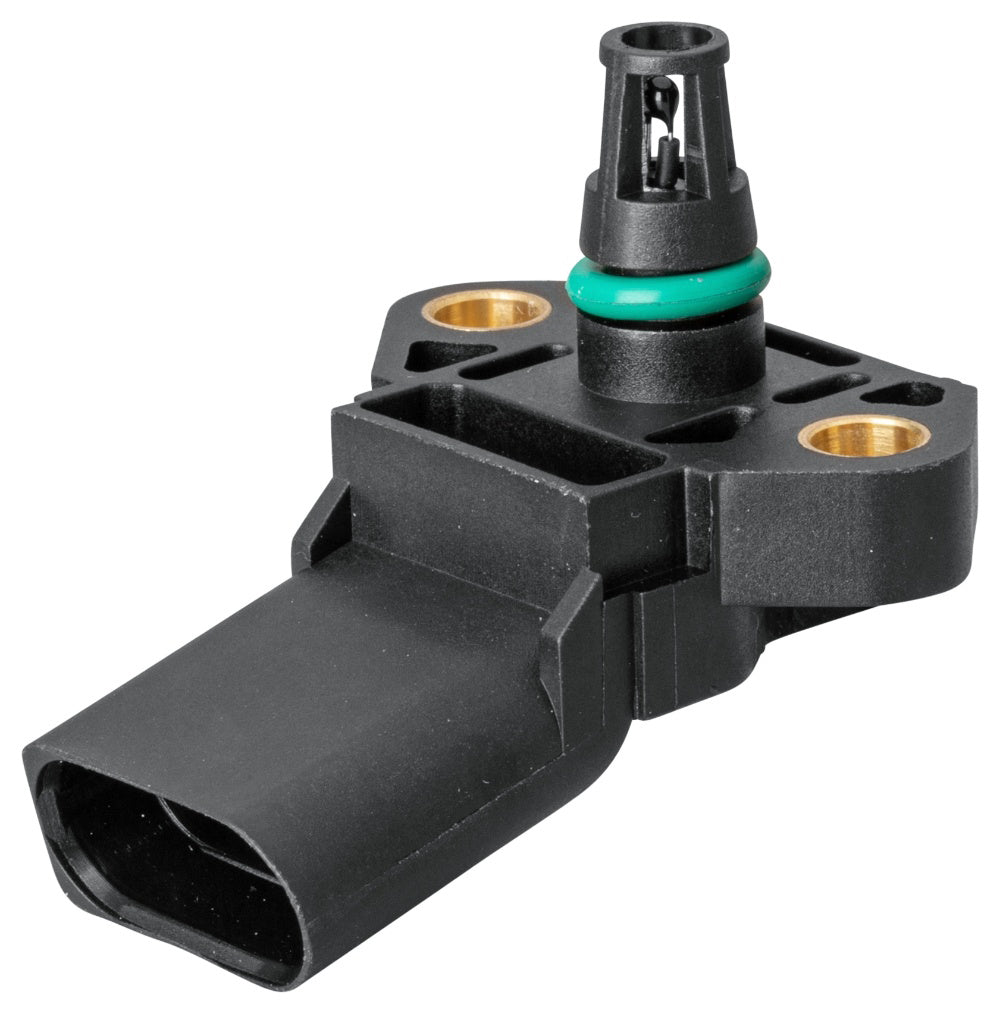

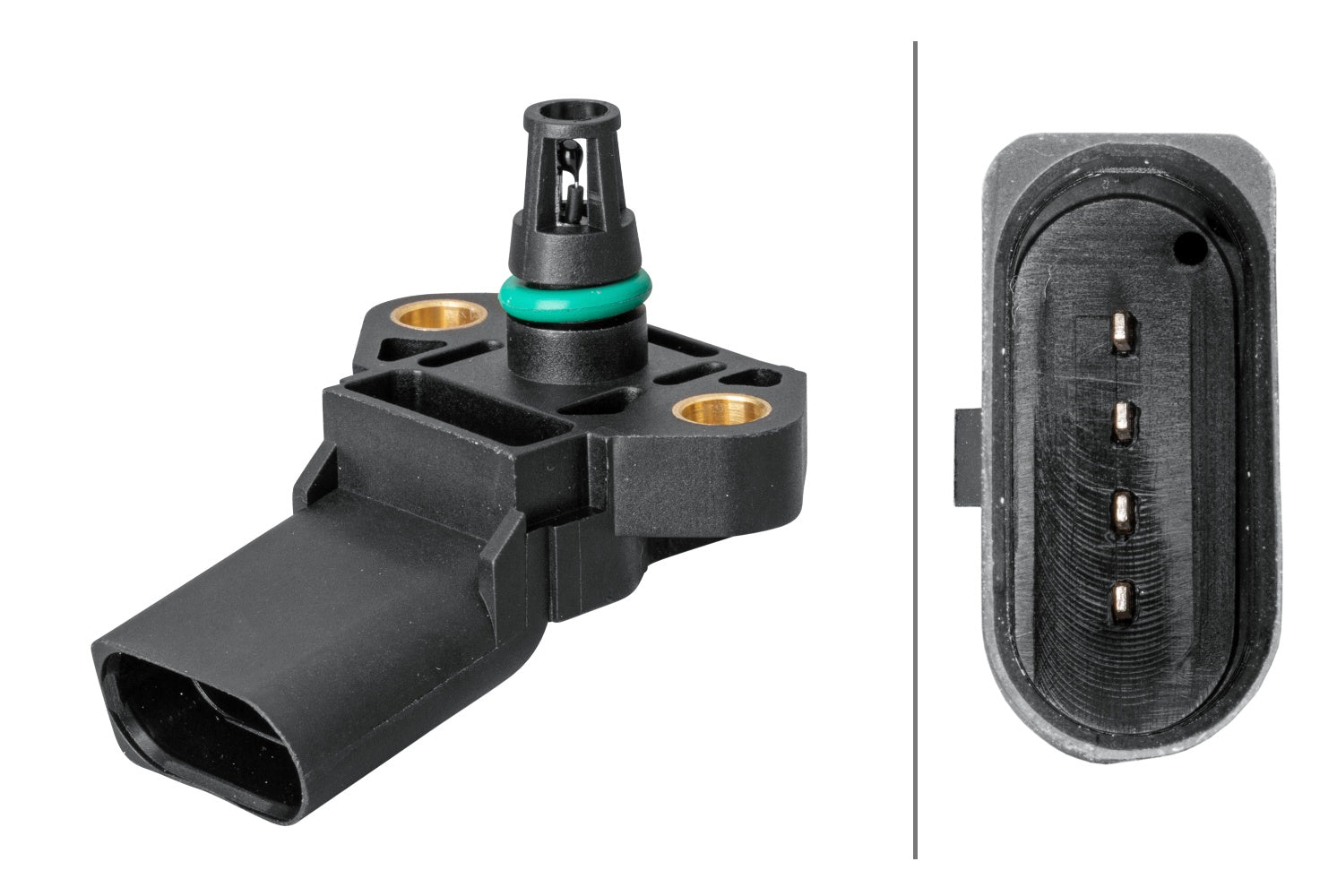

HELLA Sensor, boost pressure - 4-pin connector - Bolted 6PP009400-471

Sensor, boost pressure - 4-pin connector - Bolted

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. VW Touran (1T1, 1T2) (please check exact vehicle application)
• HELLA boost pressure sensor measures the pressure in the charging system versus ambient air and sends a voltage signal to the ECU to ensure optimal engine performance in all conditions.
• Supports lower fuel consumption and improved combustion, contributing to reduced emissions and better overall efficiency.
• Built for durability—HELLA sensors are resistant to vibration, heat, and dirt, delivering long-lasting accuracy and consistent OE-level signal quality.
• Please check the OEM number to ensure correct fitment for your vehicle and application.

Item Attributes:

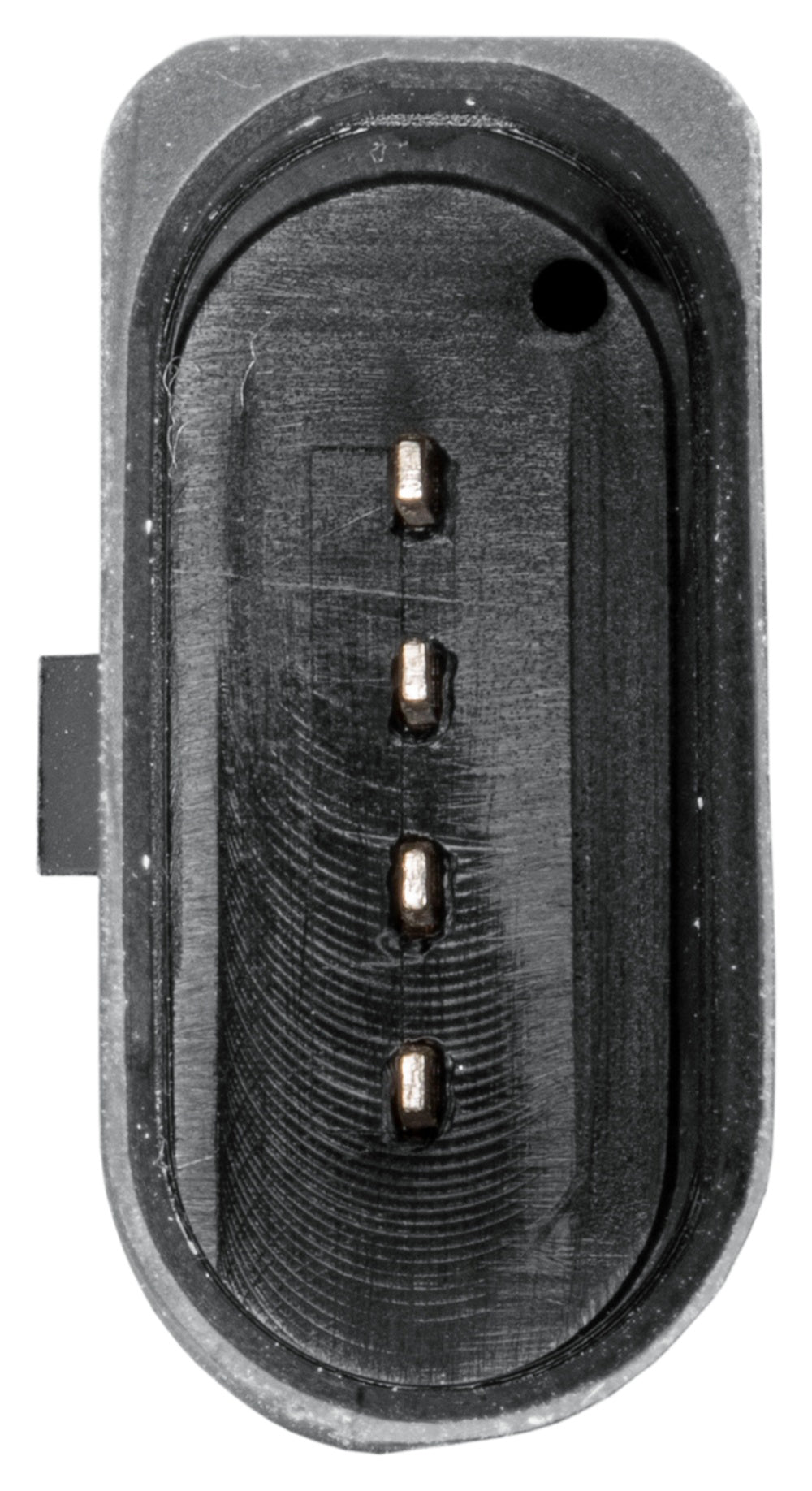

Number of pins: 4 -pin connector
Mounting Type: Bolted
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AUDI 038 906 051 B; AUDI 03F 145 673 F; AUDI 03G 906 051 D; FORD 1 136 735; FORD 99VW-9E928-AB; HITACHI 138229; MWM 550606; MWM 550752A; PORSCHE 03G.906.051.D; SEAT 038 906 051 B; SEAT 03F 145 673 F; SEAT 03G 906 051 D; SKODA 038 906 051 B; SKODA 03F 145 673 F; SKODA 03G 906 051 D; VW 038 906 051 B; VW 03F 145 673 F; VW 03G 906 051 D
