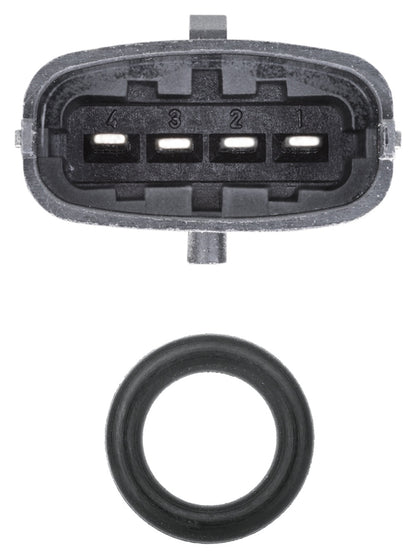

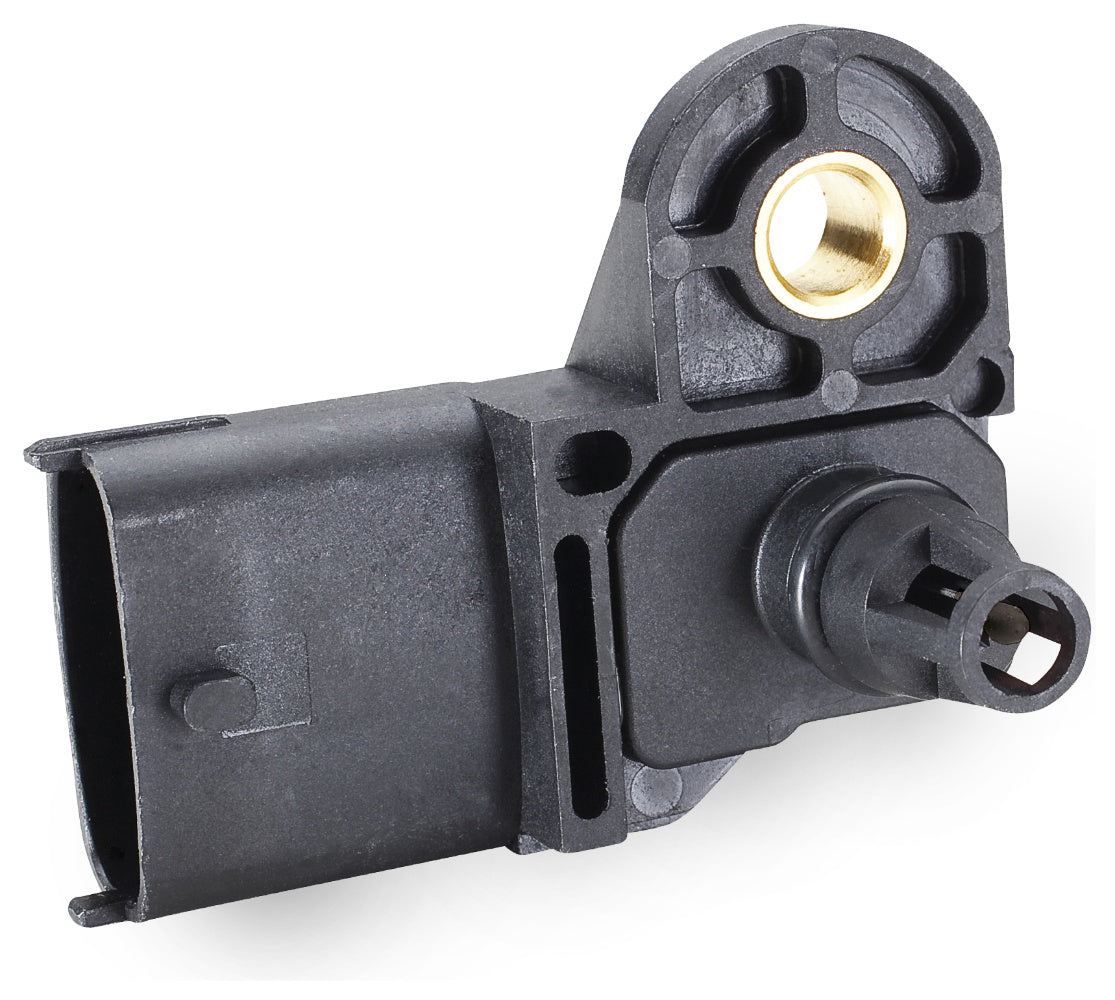

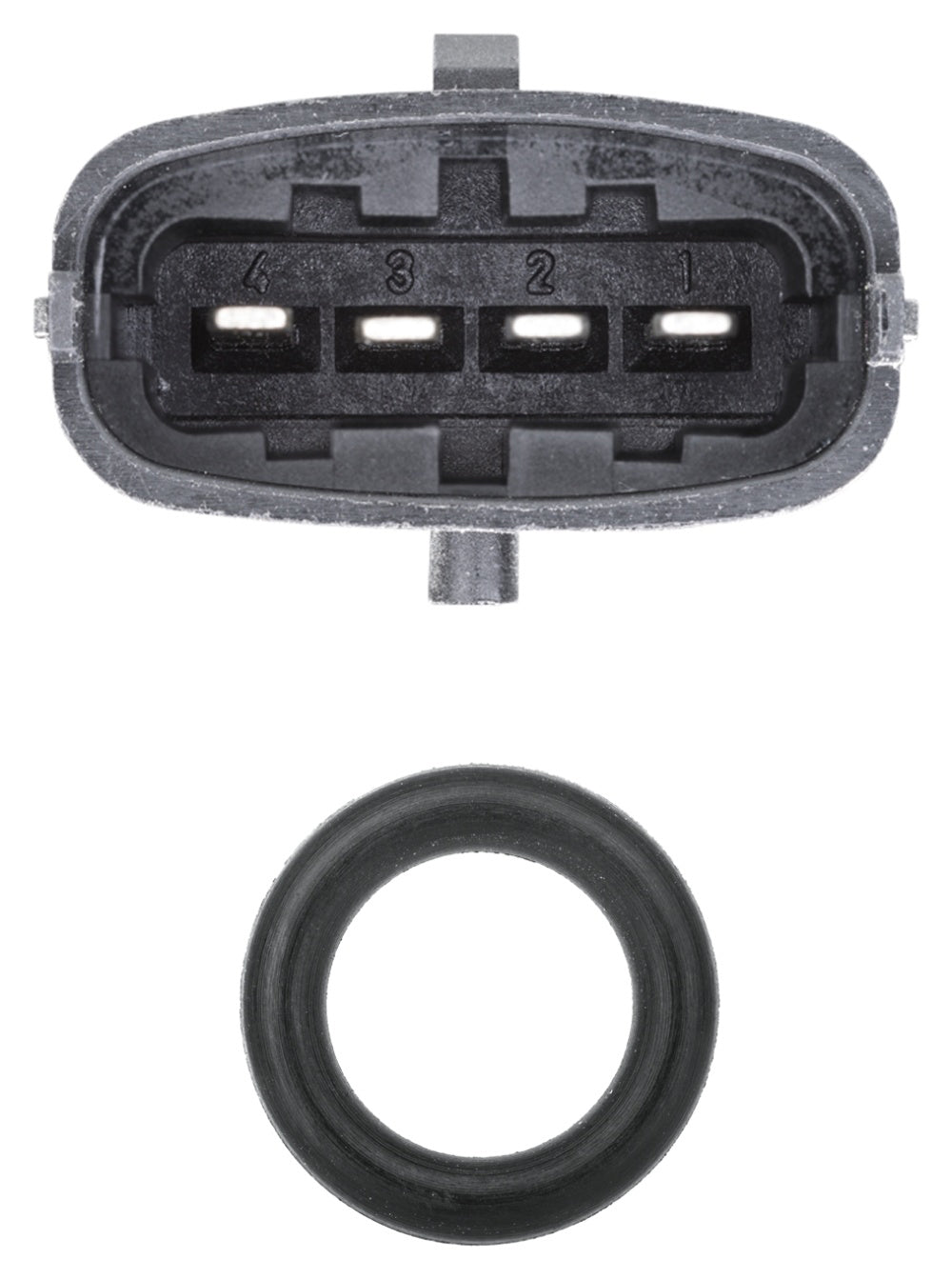

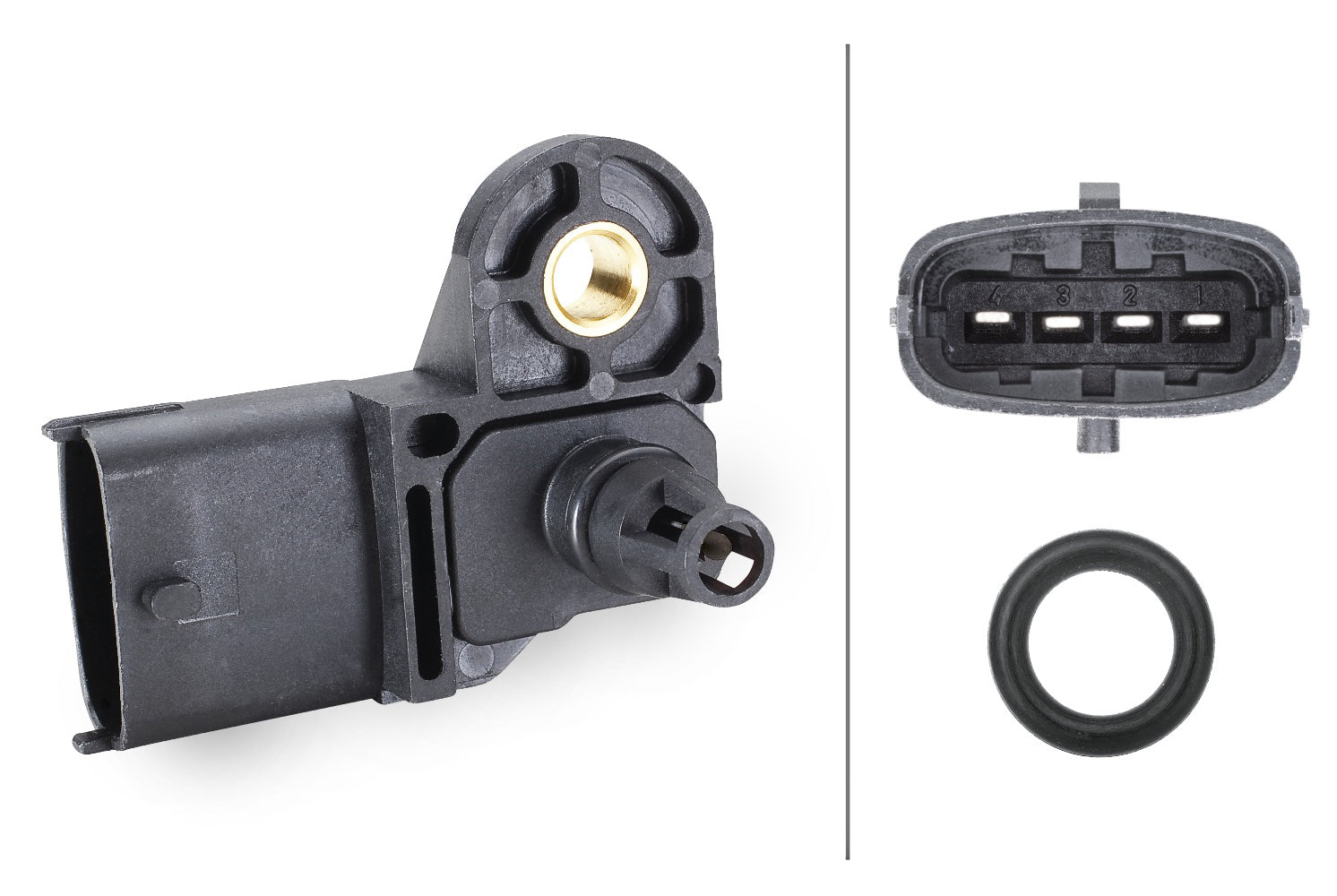

HELLA Sensor, boost pressure - 5V - 4-pin connector 6PP009400-291

Sensor, boost pressure - 5V - 4-pin connector - with gasket/seal

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. Renault Clio IV (BH_) (please check exact vehicle application)
• from: 11000Pa - to: 307000Pa
• NTC Sensor
• HELLA boost pressure sensor measures the pressure in the charging system versus ambient air and sends a voltage signal to the ECU to ensure optimal engine performance in all conditions.
• Supports lower fuel consumption and improved combustion, contributing to reduced emissions and better overall efficiency.
• Built for durability—HELLA sensors are resistant to vibration, heat, and dirt, delivering long-lasting accuracy and consistent OE-level signal quality.
• Please check the OEM number to ensure correct fitment for your vehicle and application.

Item Attributes:
Supplementary Article/Supplementary Info: with gasket/seal
Number of mounting bores: 1
from: 11000 Pa
to: 307000 Pa
Voltage: 5 V
Resistor: 2080 Ohm
Number of pins: 4 -pin connector
Sensor Type: NTC Sensor
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: ABARTH 55206797; ABARTH 55219298; ABARTH 73503657; ABARTH 77365393; ALFA ROMEO 504088431; ALFA ROMEO 504245257; ALFA ROMEO 504369148; ALFA ROMEO 552 1929 8; ALFA ROMEO 55206797; ALFA ROMEO 73503657; ALFA ROMEO 77365393; ALFA ROMEO 77366685; ALFA ROMEO K04627187AA; ALFA ROMEO K68093409AA; ALFA ROMEO K68141820AA; ALFA ROMEO K68153918AA; CHEVROLET 55 206 797; CHEVROLET 55 568 175; CHEVROLET 55219298; CHEVROLET 93 171 176; CHRYSLER 05140331AA; CHRYSLER 45962101F; CHRYSLER 55 219 298; CHRYSLER 68031593AA; CHRYSLER 68093409AA; CITROËN 1611432480; CITROËN 1636 39; CITROËN 1636 61; CITROËN 1920 SS; DACIA 22 36 500 02R; DACIA 82 00 758 731; DODGE 68031593AA; FERRARI 504 3691 48; FIAT 504088431; FIAT 504245257; FIAT 504369148; FIAT 55206797; FIAT 55219298; FIAT 73503657; FIAT 77365393; FIAT 77366685; FIAT K04627187AA; FIAT K68093409AA; FIAT K68141820AA; FIAT K68153918AA; FORD 1 448 387; FORD 1 723 819; FORD 1 871 255; FORD 5 094 154; FORD 6M34-9J433-AA; FORD BS519J559BA; FORD BV61-9F479-AA; FORD EL8A9F479CA; FORD USA 1 448 387; FORD USA 1 723 819; FORD USA 1 871 255; FORD USA 5 094 154; FORD USA 6M34-9J433-AA; FORD USA BS519J559BA; FORD USA BV61-9F479-AA; FORD USA EL8A9F479CA; GENERAL MOTORS 55 206 797; GENERAL MOTORS 55 568 175; GENERAL MOTORS 55219298; GENERAL MOTORS 93 171 176; HONDA 37830-RBD-E01; INFINITI 2236500QAL; IVECO 504088431; IVECO 504245257; IVECO 55206797; IVECO 55219298; IVECO 73503657; IVECO 77365393; IVECO 77366685; IVECO K04627187AA; IVECO K68093409AA; IVECO K68141820AA; IVECO K68153918AA; JEEP 4627187AA; JEEP 5140331AA; JEEP 55206797; JEEP 68031593AA; JEEP 77366685; JEEP K04627187AA; JEEP K05140331AA; JEEP K68031593AA; JEEP K68093409AA; JEEP K68153918AA; LANCIA 504088431; LANCIA 504245257; LANCIA 504369148; LANCIA 55206797; LANCIA 55219298; LANCIA 73503657; LANCIA 77365393; LANCIA 77366685; LANCIA K04627187AA; LANCIA K68093409AA; LANCIA K68141820AA; LANCIA K68153918AA; MAZDA WE01-18-211; NISSAN 2236500QAL; OPEL 12 35 029; OPEL 12 35 084; OPEL 55 20 679; OPEL 55 21 929; OPEL 55206797; OPEL 55219298; OPEL 55568175; OPEL 62 38 210; OPEL 62 38 865; OPEL 93 17 117; OPEL 93171176; PEUGEOT 1611432480; PEUGEOT 1636.39; PEUGEOT 1636.61; PEUGEOT 1920 SS; POLESTAR 31432308; RENAULT 223650002R; RENAULT 8200758731; SAAB 24 459 853; SAAB 53 41 409; SAAB 5341409; SAAB 55 206 797; SAAB 55 568 175; SAAB 55206797; SAAB 55219298; SAAB 55568175; SAAB 93 171 176; SAAB 93171176; SAAB 9543901; SUZUKI 1859068L01; SUZUKI 1859068L01000; SUZUKI 1859079J60000; SUZUKI 1859079J61; SUZUKI 1859079J61000; SUZUKI 1859079J62; SUZUKI 18590-79J62-000; SUZUKI 18590N68L00-000; VAUXHALL 12 35 029; VAUXHALL 12 35 084; VAUXHALL 55 20 679; VAUXHALL 55 21 929; VAUXHALL 55206797; VAUXHALL 55219298; VAUXHALL 55568175; VAUXHALL 62 38 210; VAUXHALL 62 38 865; VAUXHALL 93 17 117; VAUXHALL 93171176; VOLVO 31316215; VOLVO 31405340; VOLVO 31432308
