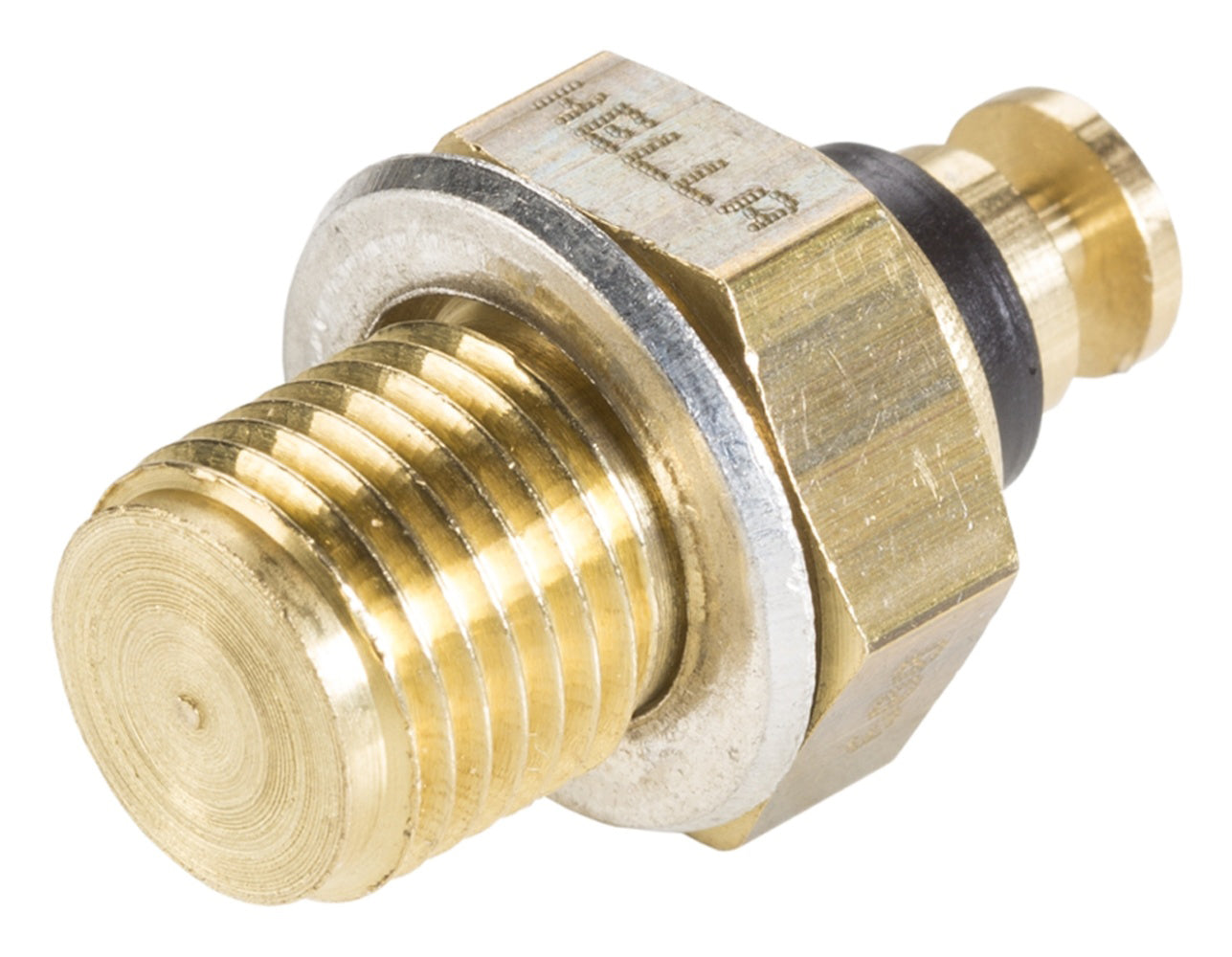

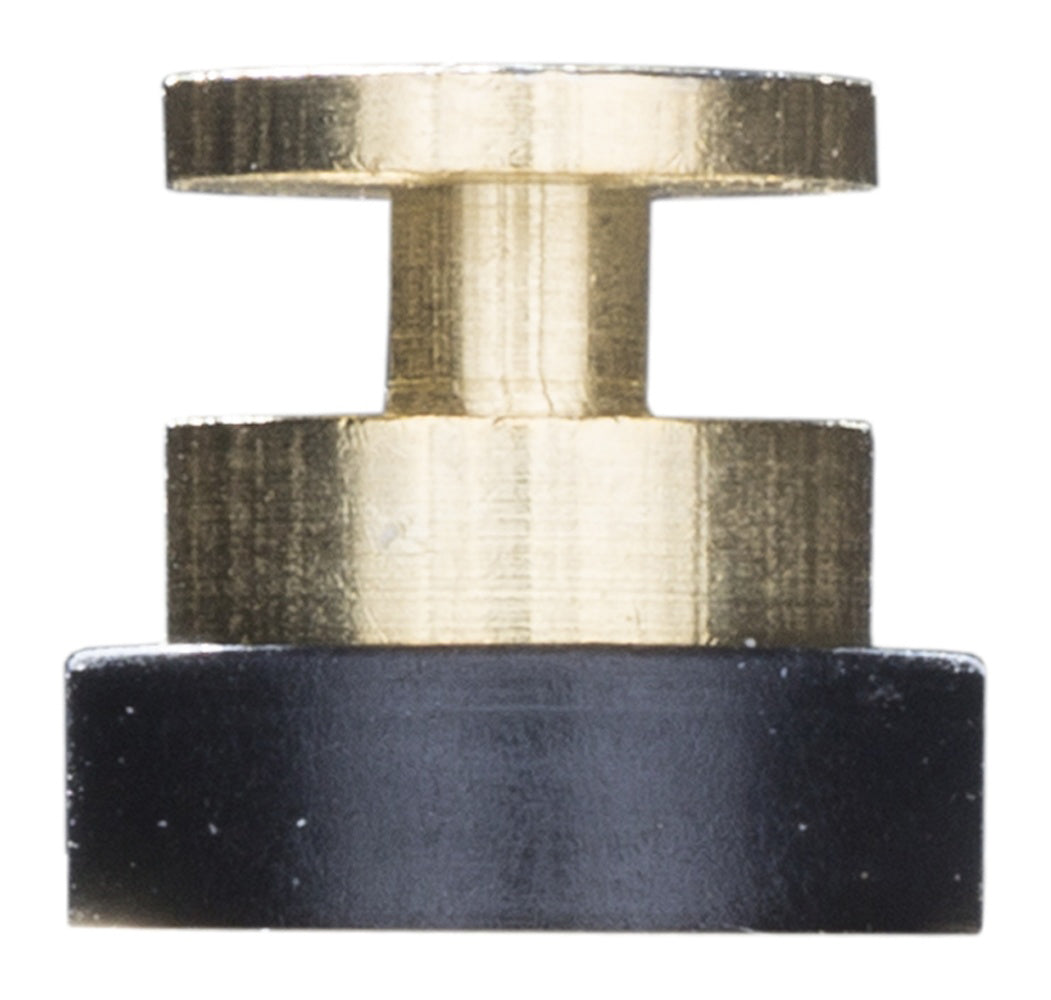

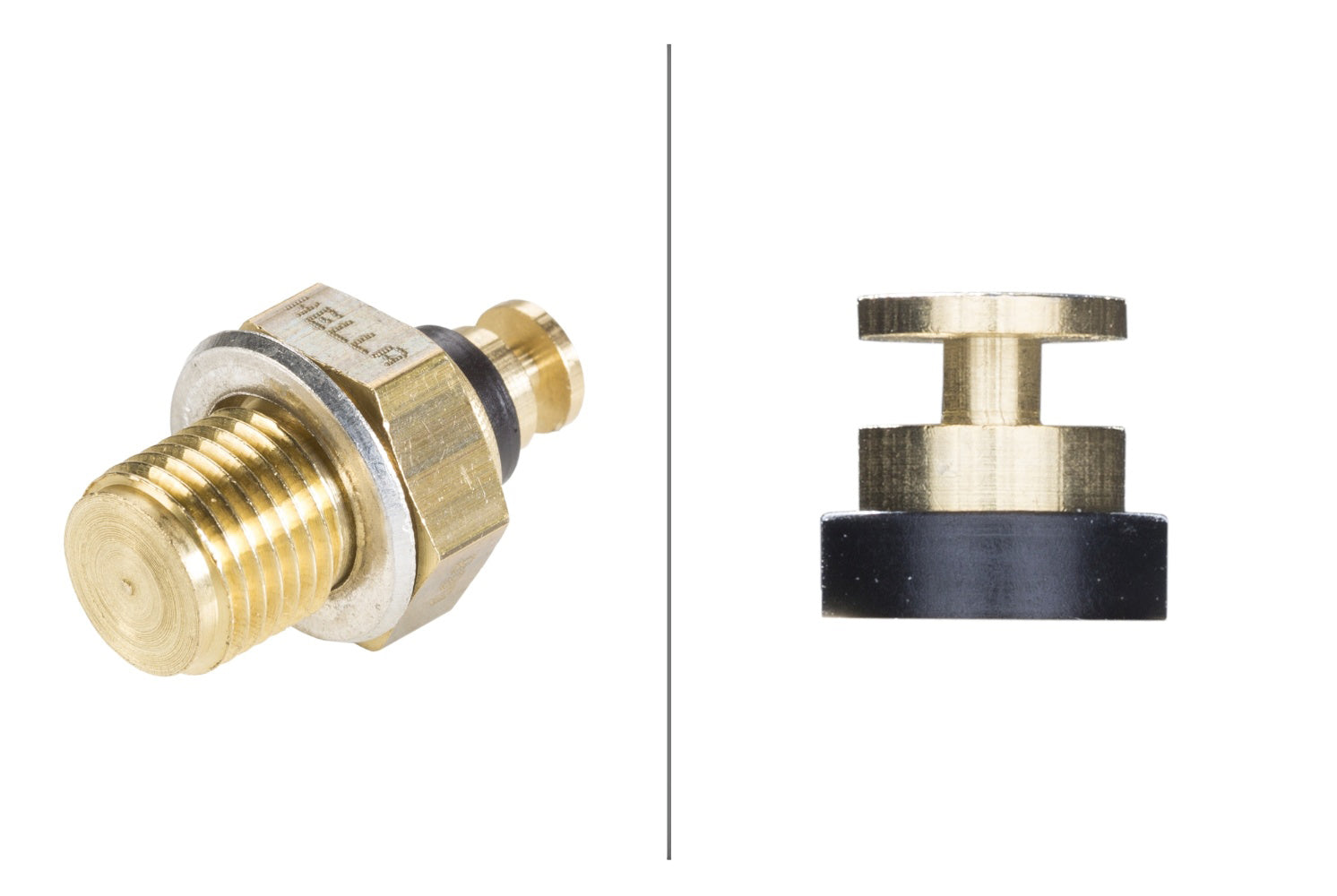

HELLA Sensor, coolant temperature - 12V - 1-pin connector 6PT009309-441

Sensor, coolant temperature - 12V - 1-pin connector - Bolted

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The temperature sensors from HELLA are versatile: Oil, coolant, intake air, outside and interior temperatures can be precisely recorded with them. The changing resistance is used by various control units for further calculations. The sensor, which is manufactured in-house, impresses with its robust design, which ensures the best measurement results under difficult conditions.

• fits e.g. VW Golf I Cabriolet (155) (please check exact vehicle application)
• Temperature range from: 0°C - Temperature range to: +125°C
• NTC Sensor - Thread Size: M10x1 - Spanner size: 13
• Corresponds to the original part in colour: Black
• NTC sensor
• Number of connections: 1-pole
• Thread dimension: M10x1

Item Attributes:
Mounting Type: Bolted
Voltage: 12 V
Thread Size: M10x1
Spanner Size: 13
Sensor Type: NTC Sensor
Number of pins: 1 -pin connector
Corresponds to the original part in colour: black
SVHC: 7439-92-1; Lead
Temperature range from: 0 °C
Temperature range to: +125 °C
Assembly by qualified personnel required!

OE references: AUDI 049 919 501; SEAT 279 19. 501; SEAT 499 195 01; SEAT SE0 219 47. 00 0I; SEAT SE0 219 470 00 1; SEAT W00 499 19. 50 1; SEAT WO0 499 19. 50 1; VOLVO 1257216; VOLVO 3517501; VOLVO 35175017; VOLVO 3517501-7; VW 027 919.501; VW 049 919 501; VW 049 919 501 1; VW 175 919 501; VW SE 021947.000I; VW SE0 219 470 001; VW W0 049919.501; VW WO 049919.501
