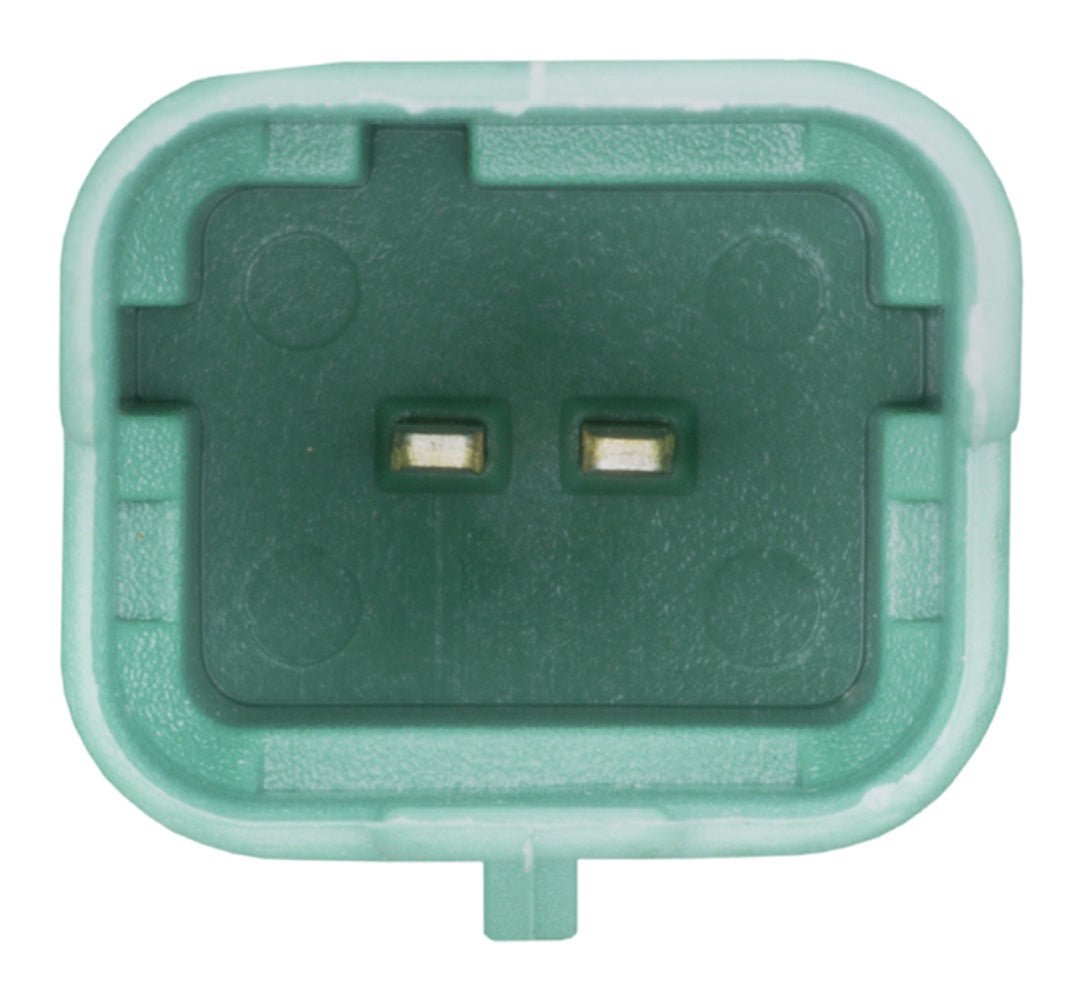

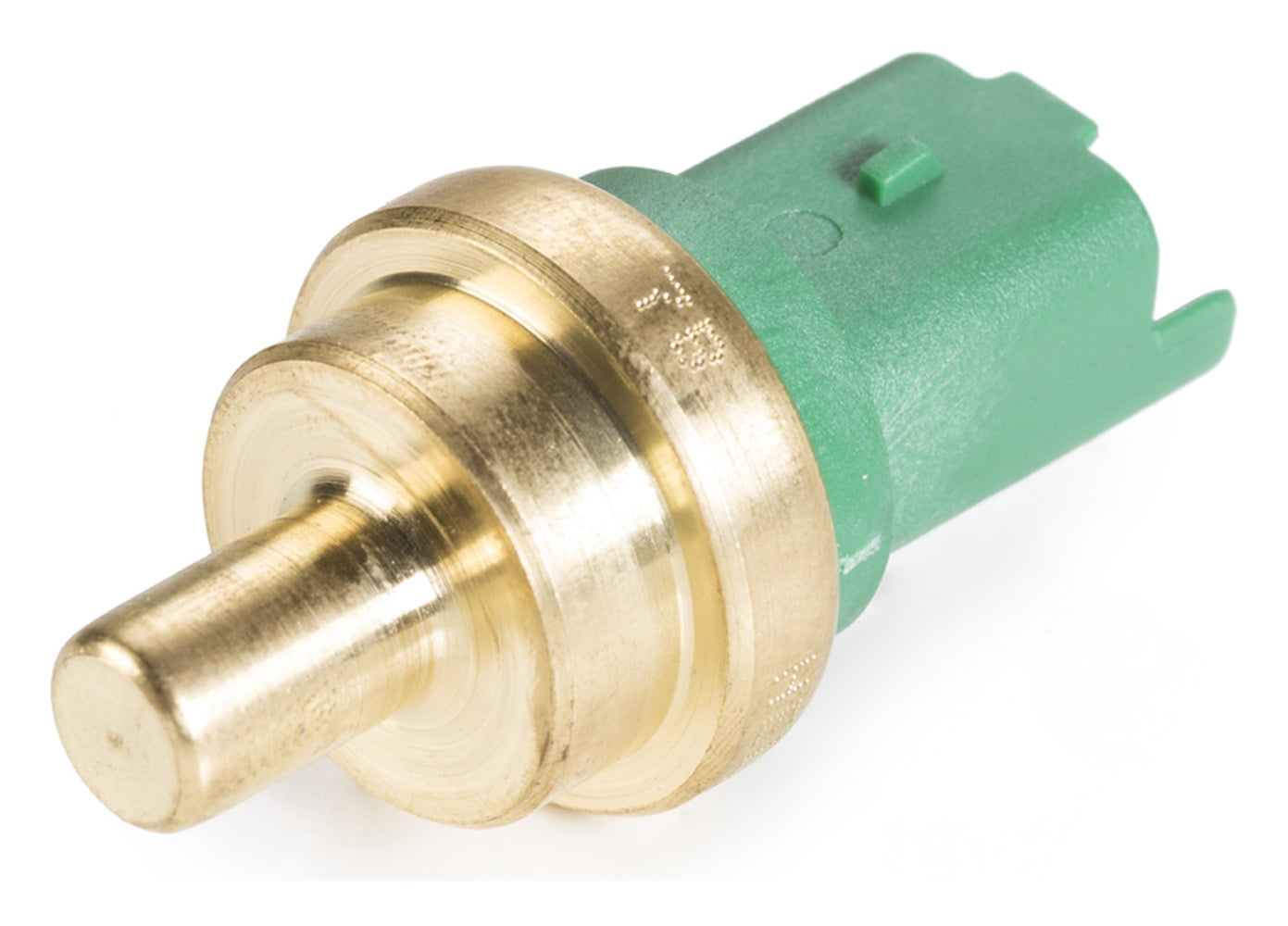

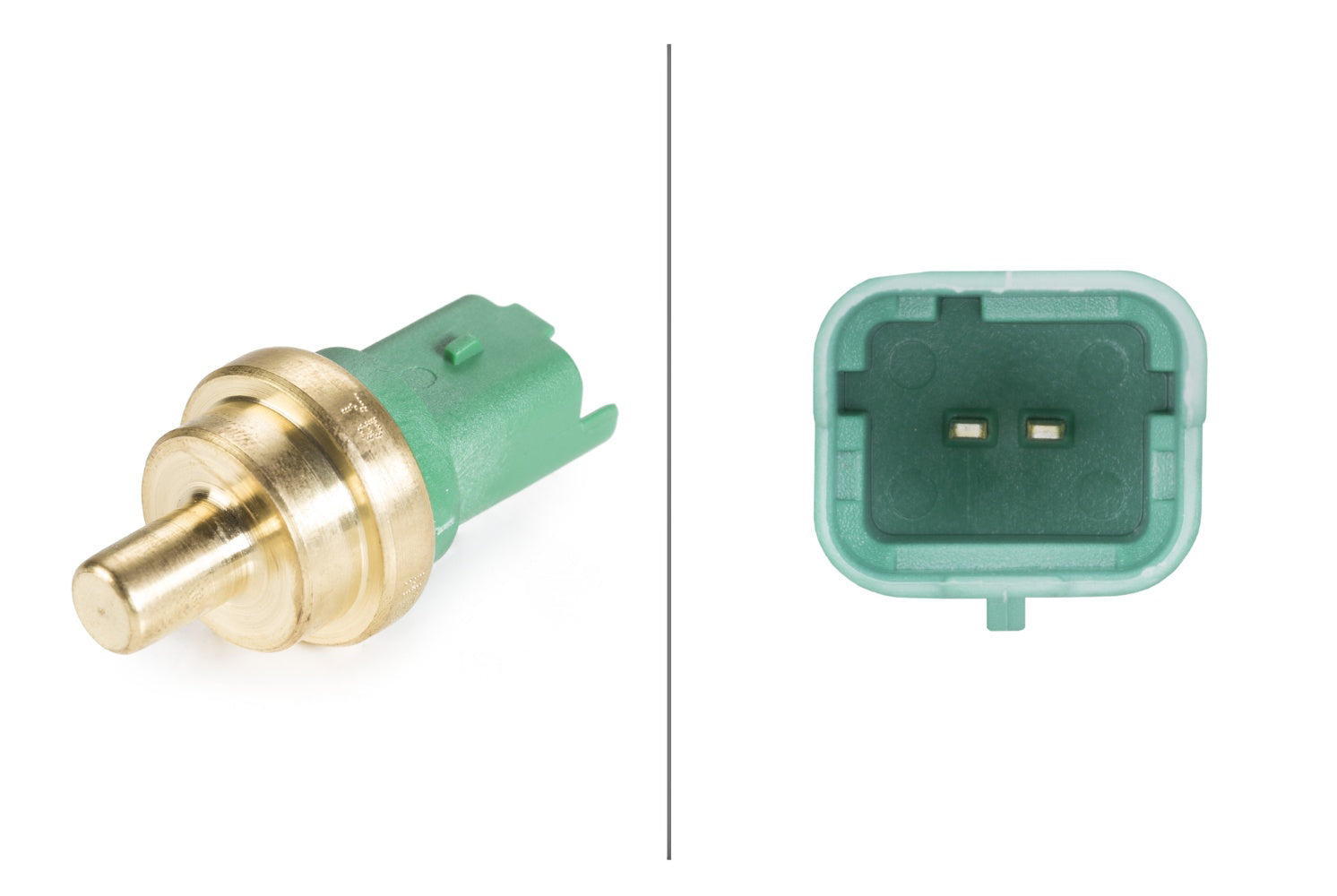

HELLA Sensor, coolant temperature - 12V - 2-pin connector 6PT009309-031

Sensor, coolant temperature - 12V - 2-pin connector - Bolted

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. To keep the coolant temperature stable under all circumstances, the durable HELLA coolant thermostats are a good choice. The combination of a wax thermostat and an electric heating element guarantees a fuel-saving higher operating temperature, which is reached quickly.

• fits e.g. Citroën Saxo (S0, S1) (please check exact vehicle application)
• Temperature range from: 120/25°C - Temperature range to: +80°C
• NTC Sensor - with circuit closer switch - Thread Size: M14x1,25 - Spanner size: 20
• Corresponds to the original part in colour: BlueColour Coding: Grey
• Technical support and free installation instructions available via Hella Tech World
• A seal is included in the scope of delivery
• Comprehensive product range for numerous application areas for the world's leading brands in the passenger car and commercial vehicle sector

Item Attributes:
Mounting Type: Bolted
Voltage: 12 V
Resistor: 2300 Ohm / 250 Ohm
Switch: with circuit closer switch
Temperature range from: 25 °C / 120 °C
Temperature range to: +80 °C
Thread Size: M14x1,25
Spanner Size: 20
Sensor Type: NTC Sensor
Number of pins: 2 -pin connector
Colour Coding: grey
Corresponds to the original part in colour: blue
Assembly by qualified personnel required!

OE references: CITROËN 0242.68; CITROËN 0242.83; CITROËN 0242.85; CITROËN 0242.87; CITROËN 96 018 422; FERRARI 9601842280; FERRARI 9617916180; FIAT 9601842280; FIAT 9617916180; LANCIA 9601842280; LANCIA 9617916180; PEUGEOT 0242.68; PEUGEOT 0242.85; PEUGEOT 0242.87; ROVER PEJ10007
