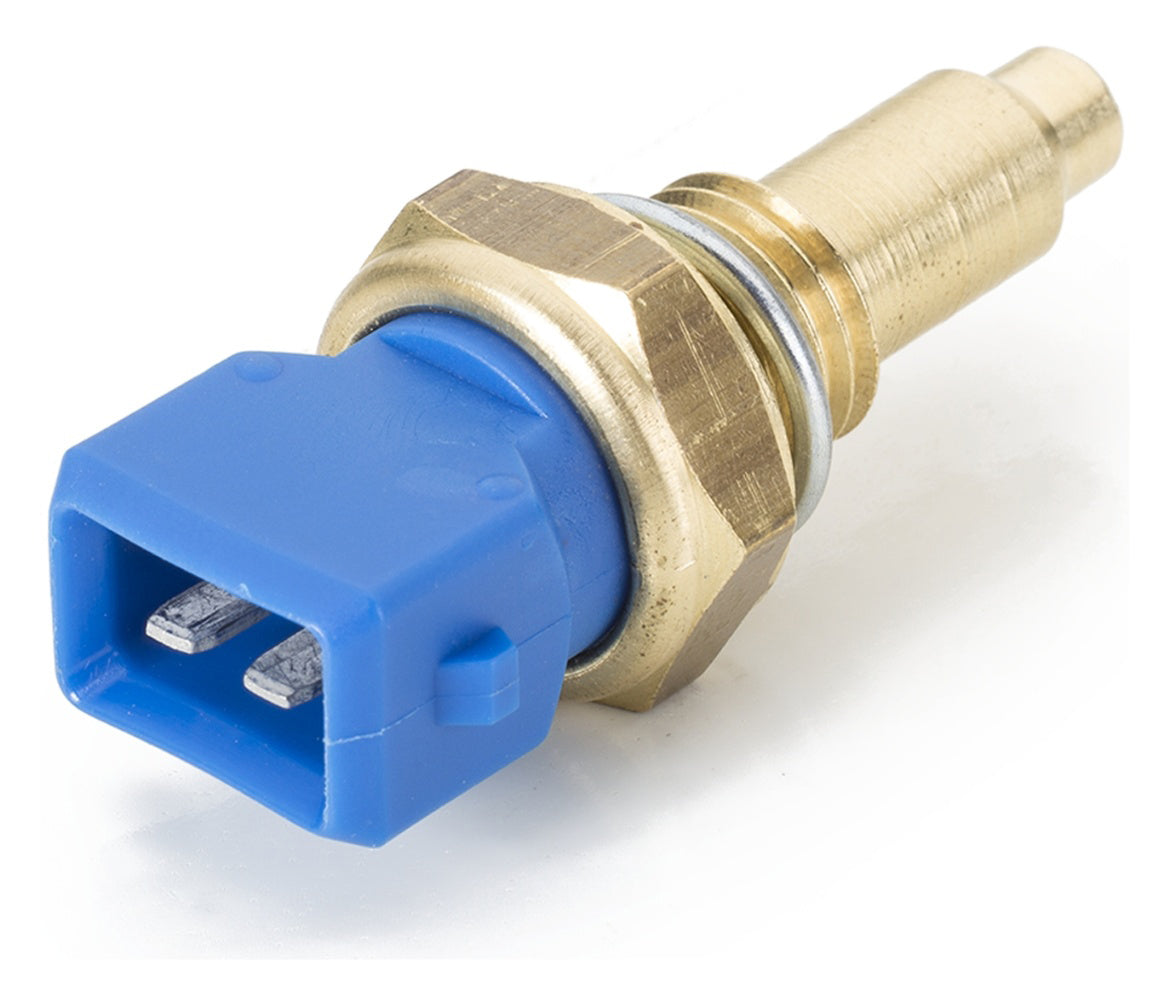

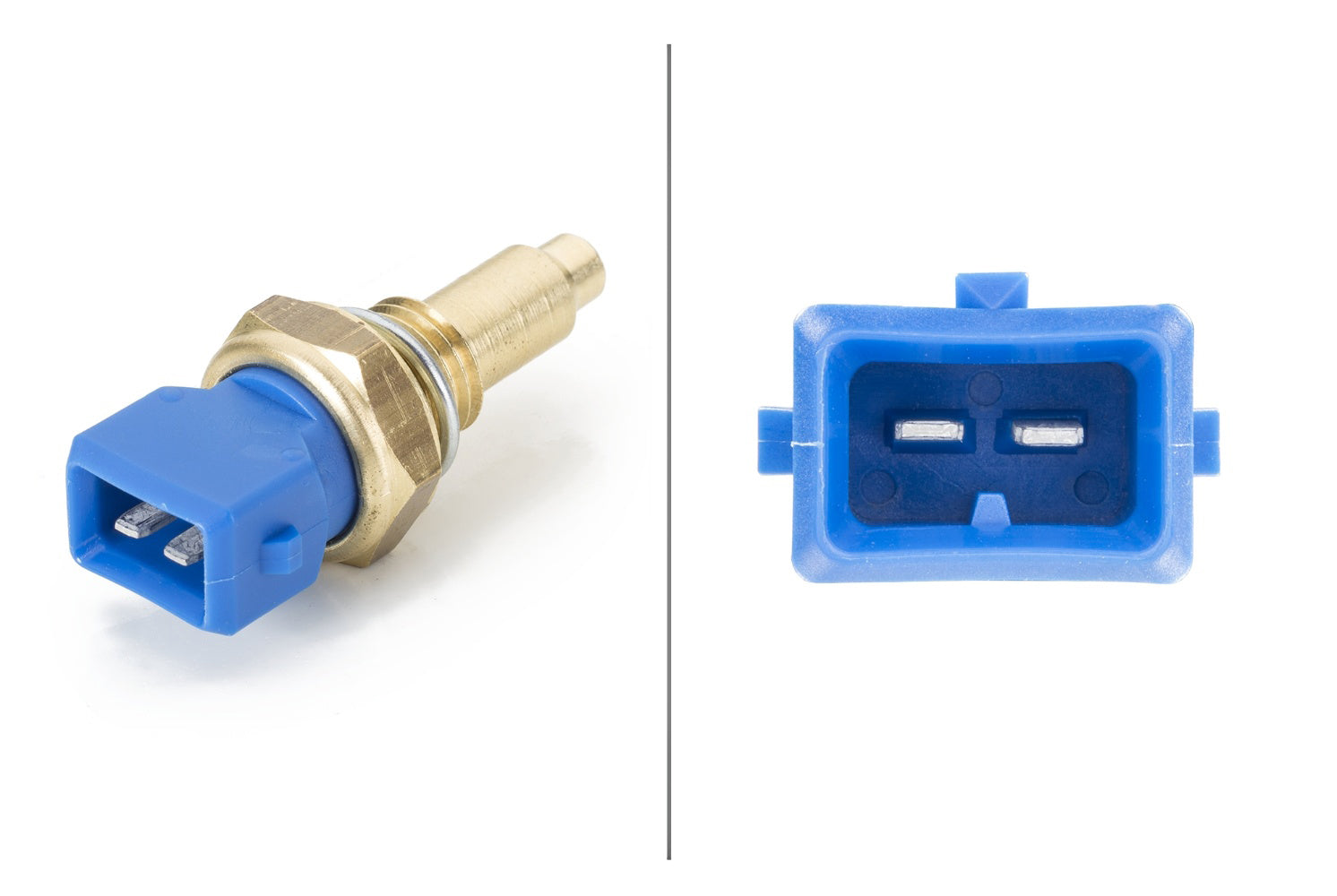

HELLA Sensor, coolant temperature - 12V - 2-pin connector 6PT009309-291

Sensor, coolant temperature - 12V - 2-pin connector - with gasket/seal

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The temperature sensors from HELLA are versatile: Oil, coolant, intake air, outside and interior temperatures can be precisely recorded with them. The changing resistance is used by various control units for further calculations. The sensor, which is manufactured in-house, impresses with its robust design, which ensures the best measurement results under difficult conditions.

• fits e.g. Fiat Panda (141_) (please check exact vehicle application)
• Temp. Range: 25/80°C
• NTC Sensor - Thread Size: M12x1,5 - Spanner size: 19
• Housing Colour: Blue
• NTC sensor
• Thread dimension: M12x1,5
• Resistance: 2.055 Ohm, 327 Ohm

Item Attributes:
Supplementary Article/Supplementary Info: with gasket/seal
Voltage: 12 V
Resistor: 327 Ohm / 2055 Ohm

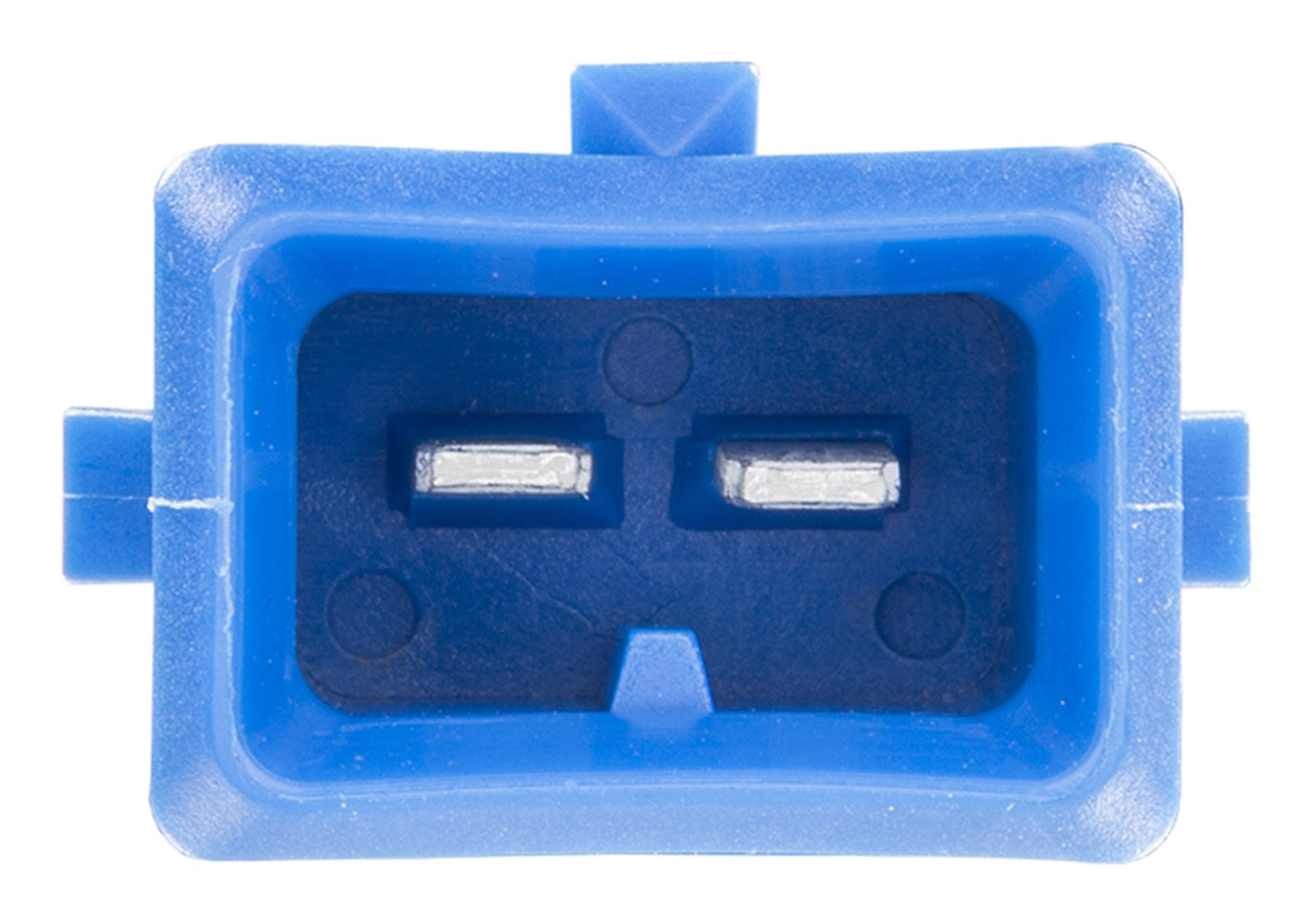

Number of pins: 2 -pin connector
Housing Colour: blue
Thread Size: M12x1,5
Spanner Size: 19
Sensor Type: NTC Sensor
Temp. Range: 80 °C / 25 °C
SVHC: 1303-86-2; Diboron trioxide / 7439-92-1; Lead / 1317-36-8; Lead monoxide (lead oxide)
Assembly by qualified personnel required!

OE references: ALFA ROMEO 464 7702 2; ALFA ROMEO 4850371; ALFA ROMEO 50009755; ALFA ROMEO 608 0637 9; ALFA ROMEO 60813751; ALFA ROMEO 7547977; ALFA ROMEO 7695581; CITROËN 1338 A5; FERRARI 46477022; FERRARI 4850371; FERRARI 60813751; FERRARI 7547977; FERRARI 769 5581; FIAT 46477022; FIAT 4850371; FIAT 50009755; FIAT 60813751; FIAT 7547977; FIAT 7695581; FORD 1 639 283; FORD V86HF12A648AA; GENERAL MOTORS 90411977; GENERAL MOTORS 93184580; HOLDEN 90411977; INNOCENTI 46477022; IVECO 46477022; IVECO 4850371; LANCIA 46477022; LANCIA 4850371; LANCIA 50009755; LANCIA 60813751; LANCIA 7547977; LANCIA 7695581; OPEL 09160301; OPEL 13 42 850; OPEL 44 16 020; OPEL 45 00 001; OPEL 90411977; OPEL 93184580; PEUGEOT 1338.A5; PEUGEOT 1338.AS; RENAULT 7702087460; VW 026 906 161 12; VW 026 906 161 B
