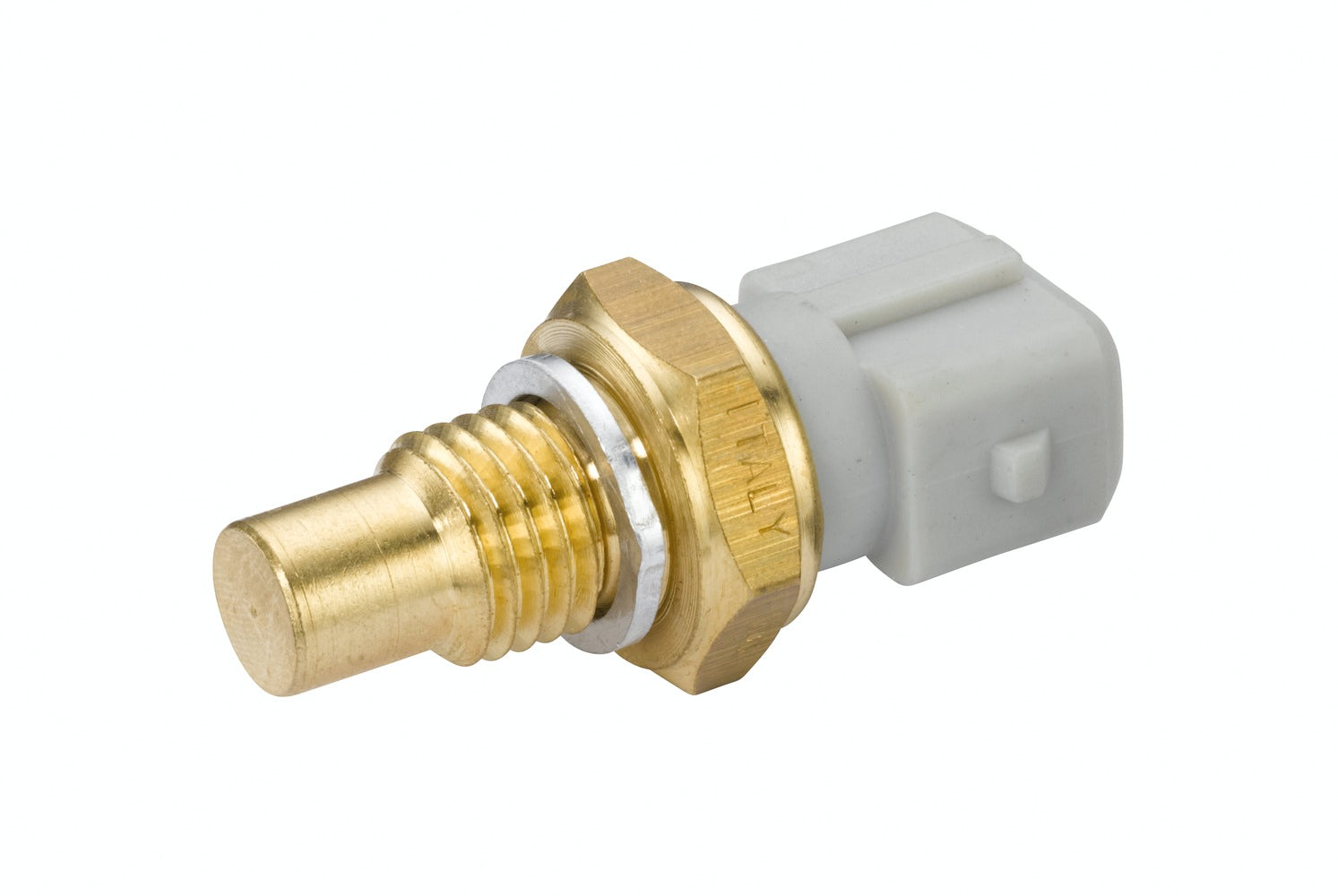

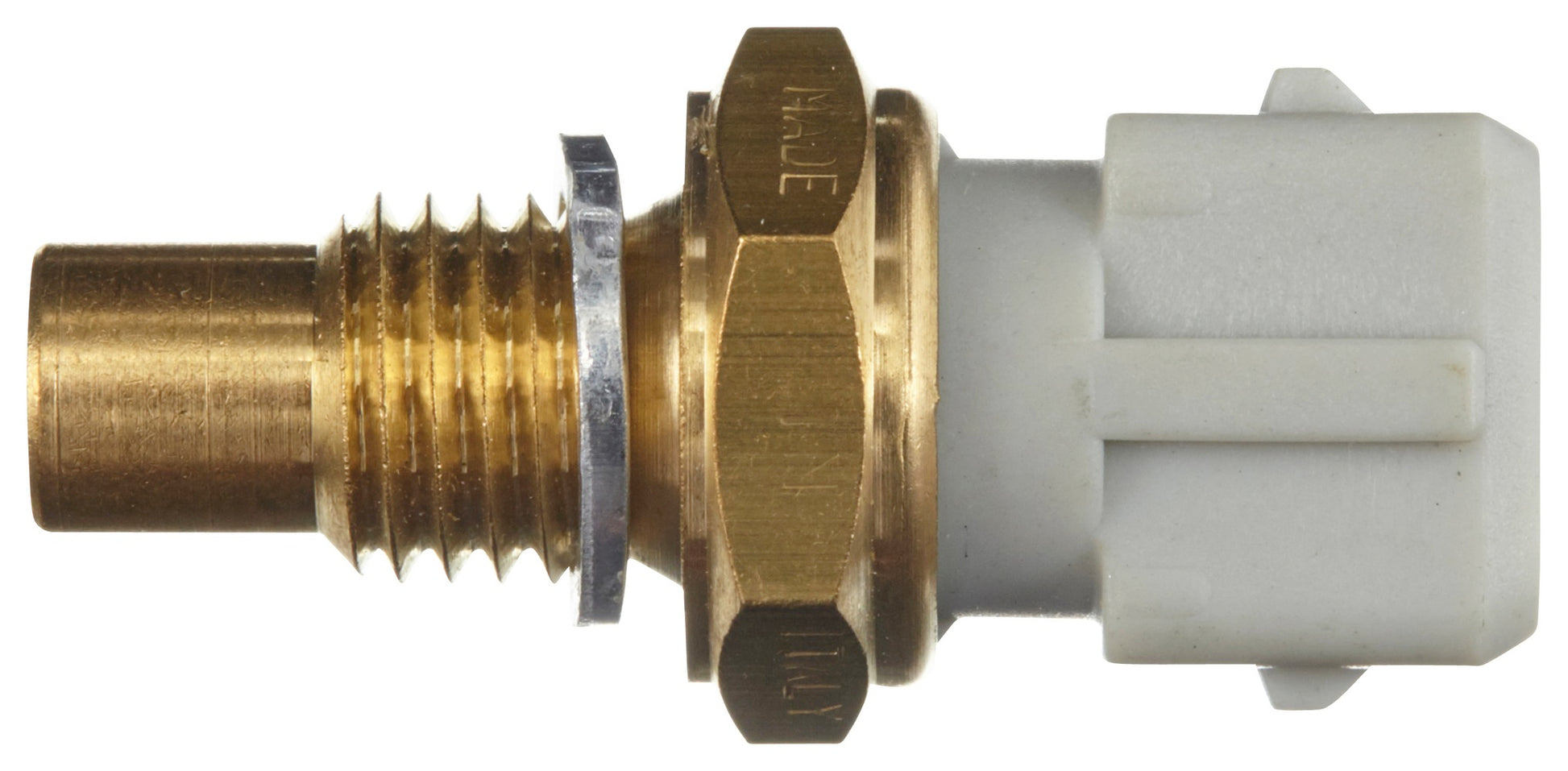

HELLA Sensor, coolant temperature - 12V - 2-pin connector 6PT009309-301

Sensor, coolant temperature - 12V - 2-pin connector - Bolted

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The temperature sensors from HELLA are versatile: Oil, coolant, intake air, outside and interior temperatures can be precisely recorded with them. The changing resistance is used by various control units for further calculations. The sensor, which is manufactured in-house, impresses with its robust design, which ensures the best measurement results under difficult conditions.

• fits e.g. Renault Megane Scenic (JA0/1_) (please check exact vehicle application)
• Temp. Range: 25/80°C
• NTC Sensor - Thread Size: M12x1,5
• NTC sensor
• Thread dimension: M12x1,5
• Resistance: 2,795 Ohm, 331 Ohm
• Temperature range from 25 °C to 80 °C

Item Attributes:
Mounting Type: Bolted
Voltage: 12 V
Resistor: 2795 Ohm / 331 Ohm

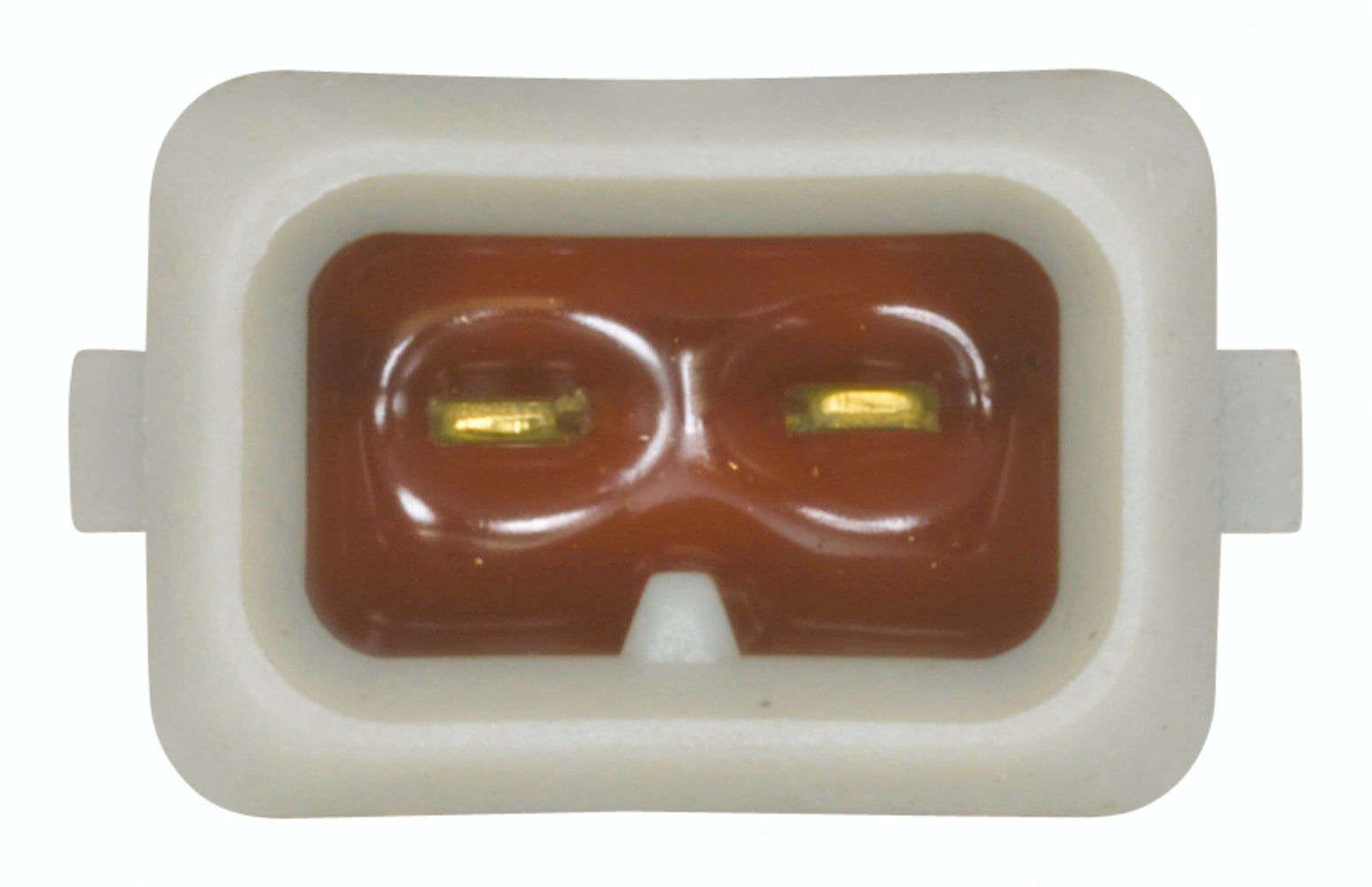

Number of pins: 2 -pin connector
Thread Size: M12x1,5
Sensor Type: NTC Sensor
Temp. Range: 80 °C / 25 °C
Tolerance: 7 % / 5 %
SVHC: 7439-92-1; Lead / 1303-86-2; Diboron trioxide / 1317-36-8; Lead monoxide (lead oxide) / 80-05-7; 4,4-isopropylidenediphenol
Assembly by qualified personnel required!

OE references: GENERAL MOTORS 9109810; OPEL 44 01 810; OPEL 9109810; RENAULT 7700737571; RENAULT 7700869343; VOLVO 3344169; VOLVO 33441692; VOLVO 3345511
