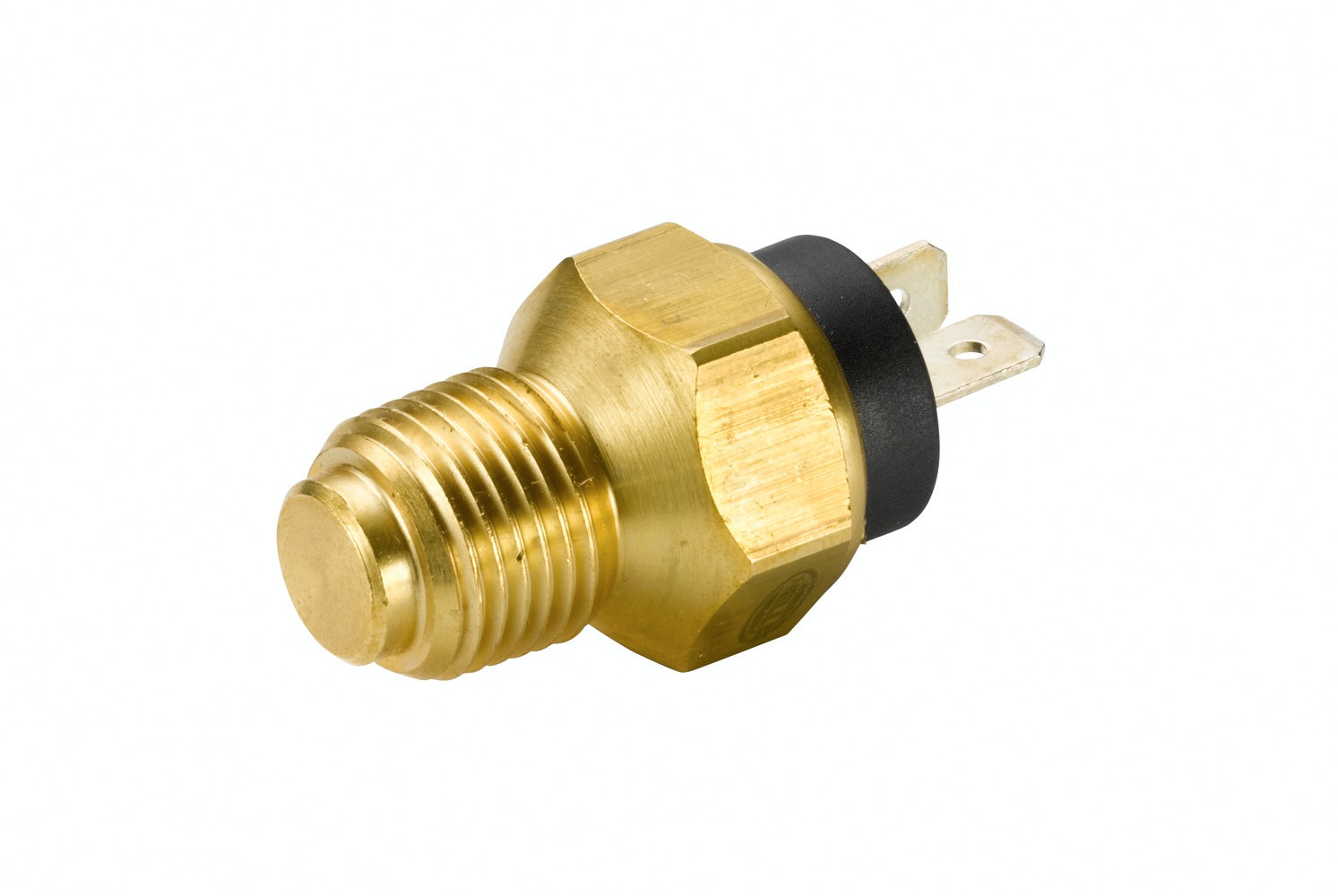

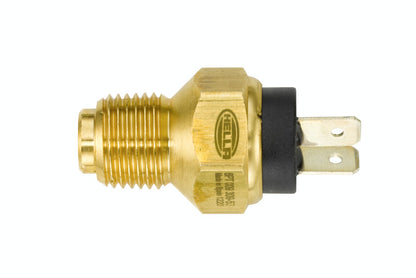

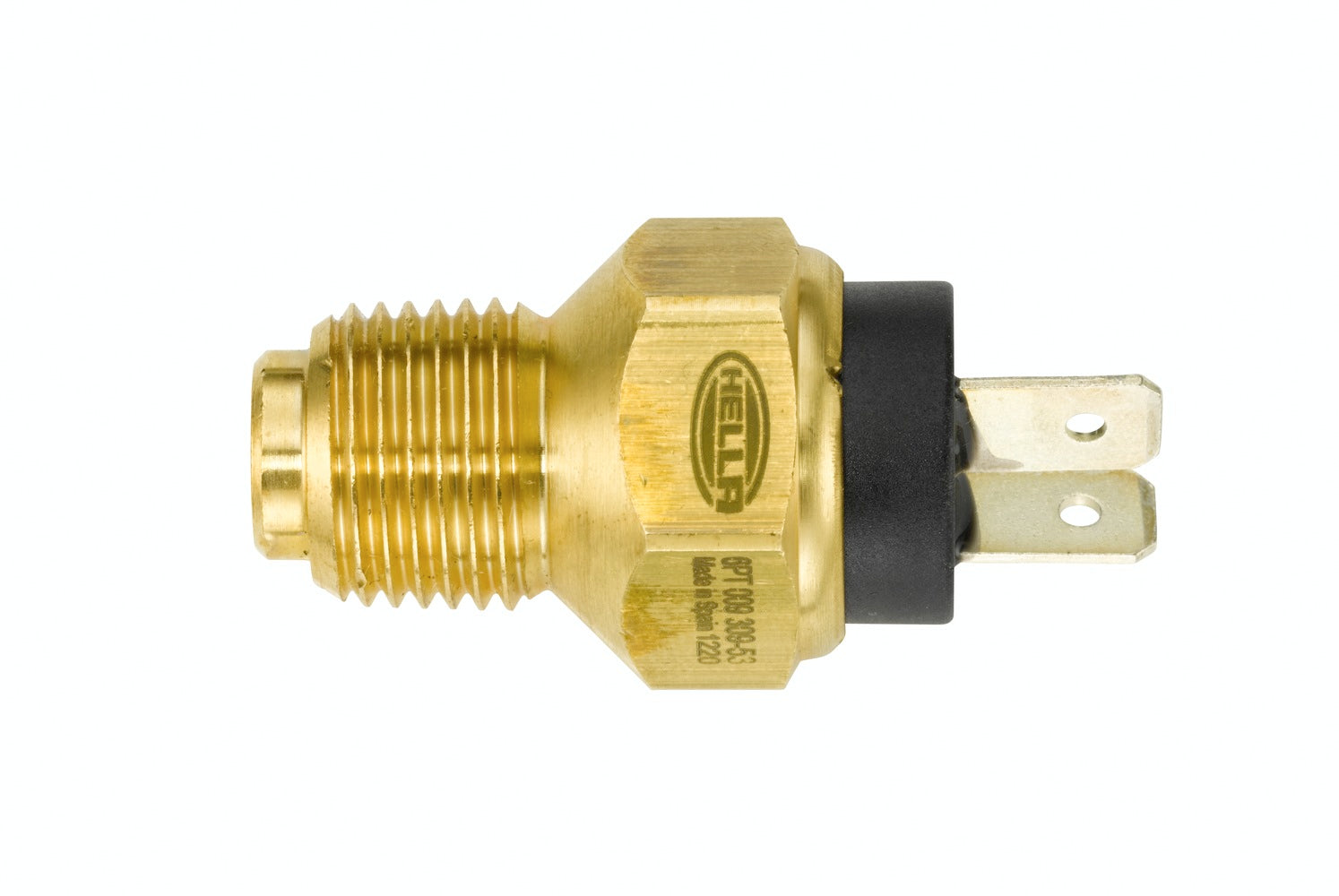

HELLA Sensor, coolant temperature - 12V - 2-pin connector 6PT009309-531

Sensor, coolant temperature - 12V - 2-pin connector - Bolted

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. To keep the coolant temperature stable under all circumstances, the durable HELLA coolant thermostats are a good choice. The combination of a wax thermostat and an electric heating element guarantees a fuel-saving higher operating temperature, which is reached quickly.

• fits e.g. Fiat Ducato Platform/Chassis (230_) (please check exact vehicle application)
• Temperature range from: 107°C
• NTC Sensor - with circuit closer switch - Thread Size: M16x1,5 - Spanner size: 22
• Technical support and free installation instructions available via Hella Tech World
• A seal is included in the scope of delivery
• Comprehensive product range for numerous application areas for the world's leading brands in the passenger car and commercial vehicle sector
• Reduction of fuel consumption

Item Attributes:
Mounting Type: Bolted
Voltage: 12 V
Switch: with circuit closer switch
Temperature range from: 107 °C
Thread Size: M16x1,5
Spanner size: 22
Sensor Type: NTC Sensor

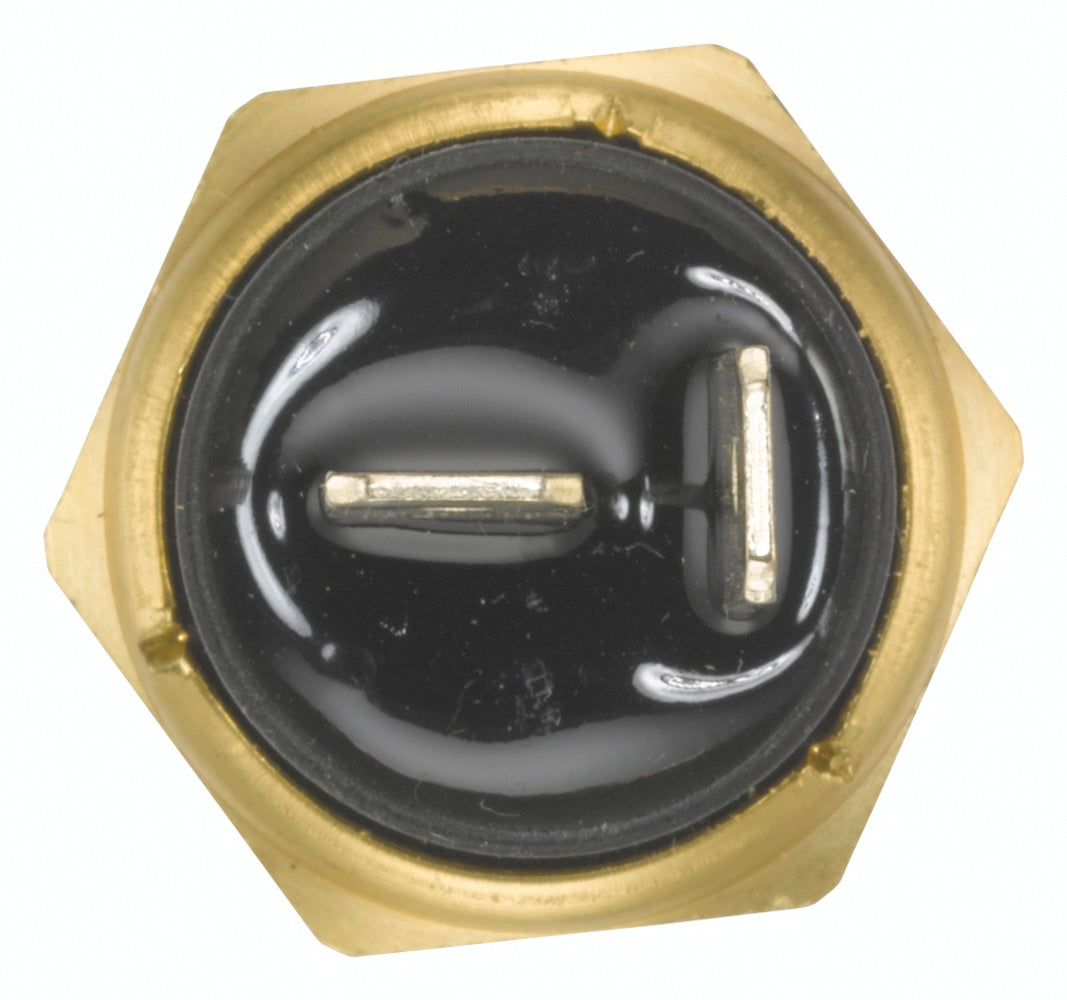

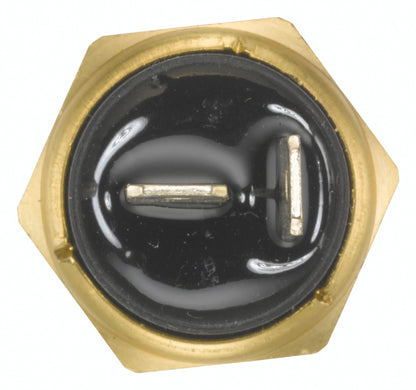

Number of pins: 2 -pin connector
SVHC: 96-45-7; Imidazolidine-2-thione; (2-imidazoline-2-thiol) / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CITROËN 1338 93; CITROËN 1338 F7; FERRARI 4837950; FERRARI 504127558; FIAT 4837950; FIAT 500334723; FIAT 504127558; IVECO 4837950; IVECO 503473833; IVECO 503641845; IVECO 504127558; PEUGEOT 1338 93; PEUGEOT 1338 F7
