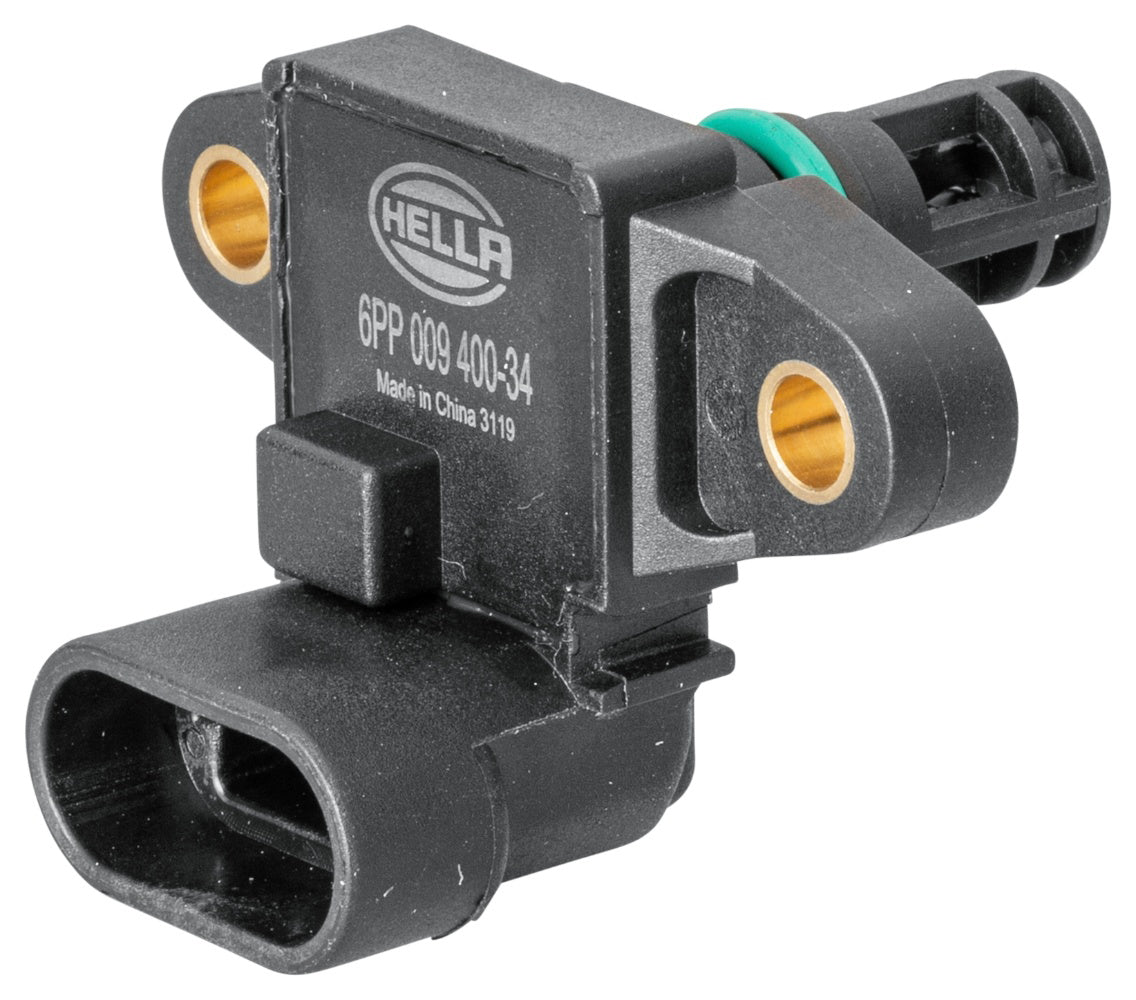

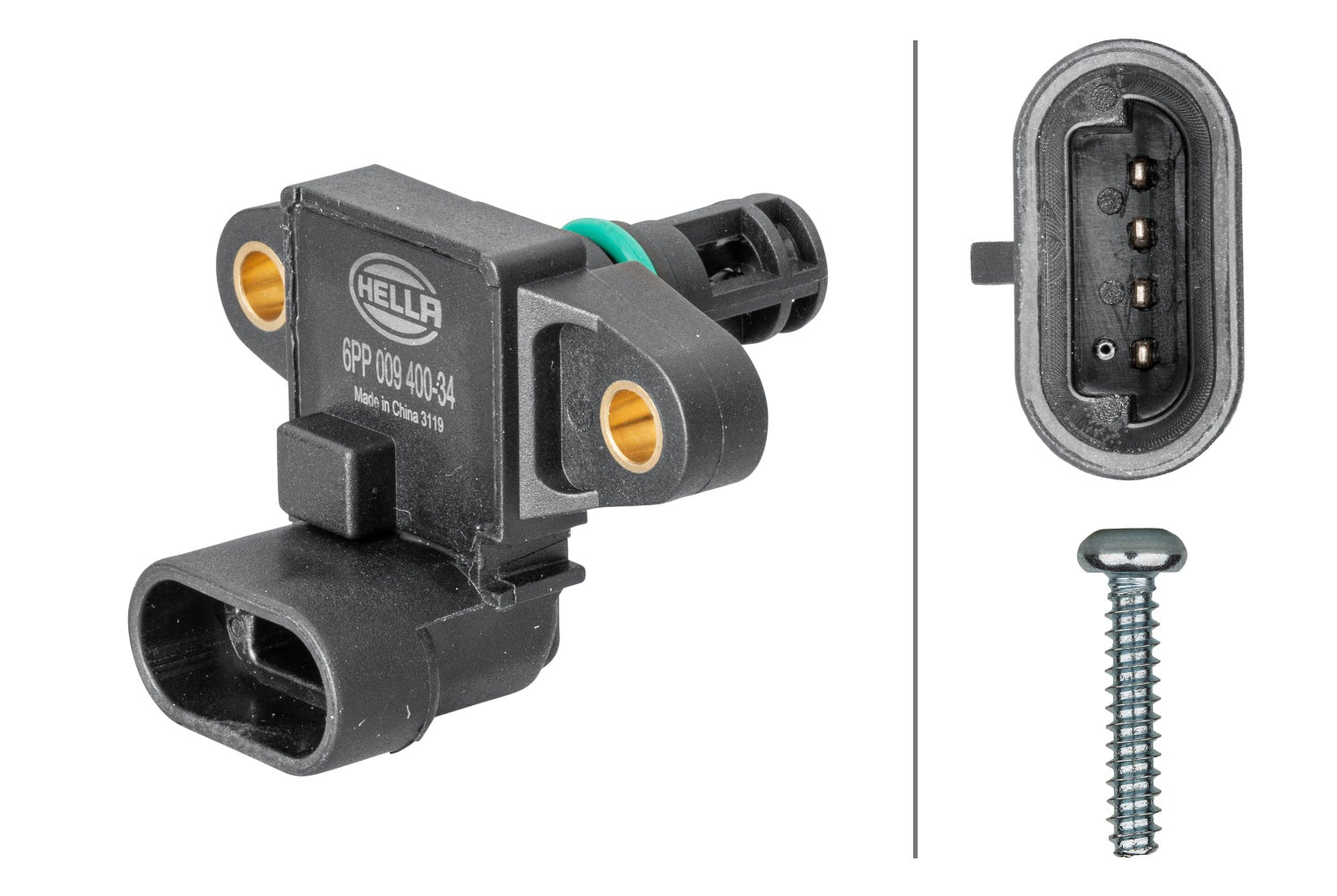

HELLA Sensor, intake manifold pressure - 12V - 4-pin connector 6PP009400-341

Sensor, intake manifold pressure - 12V - 4-pin connector

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. Fiat Punto (188_) (please check exact vehicle application)
• from: 17000Pa - to: 104500Pa
• NTC Sensor
• HELLA intake manifold pressure sensors measure absolute pressure after the throttle valve by comparing ambient and system pressures, providing the ECU with accurate data to calculate air mass.
• Can help to reduce low fuel consumption, improved engine response, and reduced emissions through efficient mixture formation.
• Built to endure harsh conditions—resistant to vibration, heat, and dirt for long-lasting, precise performance.
• Developed to OEM standards for accurate readings and seamless integration in modern engine management systems. Check OEM number to ensure correct fitment for your vehicle.

Item Attributes:
from: 17000 Pa
to: 104500 Pa
Voltage: 12 V
Resistor: 2080 Ohm

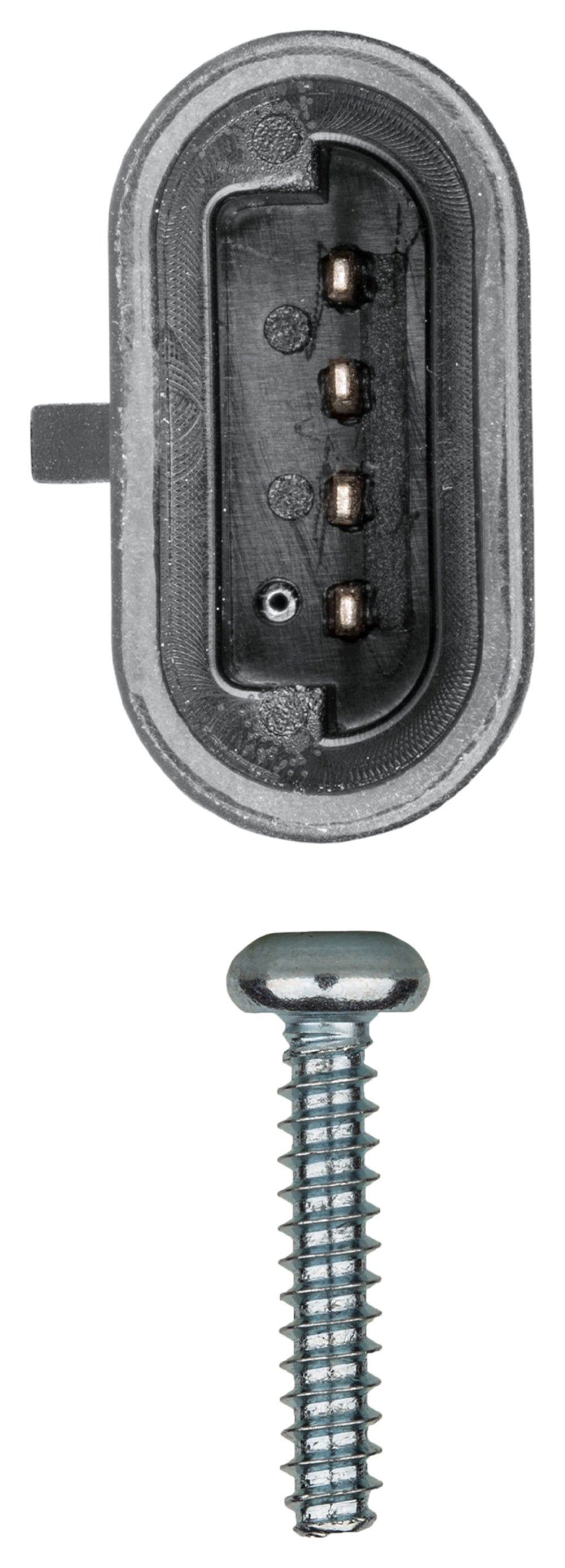

Number of pins: 4 -pin connector
Sensor Type: NTC Sensor
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: FERRARI 46451792; FERRARI 55221402; FERRARI 71714218; FERRARI 71718233; FERRARI 71718678; FERRARI 71728656; FIAT 46451792; FIAT 55221402; FIAT 71714218; FIAT 71718233; FIAT 71718678; FIAT 71728656; LANCIA 46451792; LANCIA 55221402; LANCIA 71714218; LANCIA 71718233; LANCIA 71718678; LANCIA 71728656; MWM 550125A
