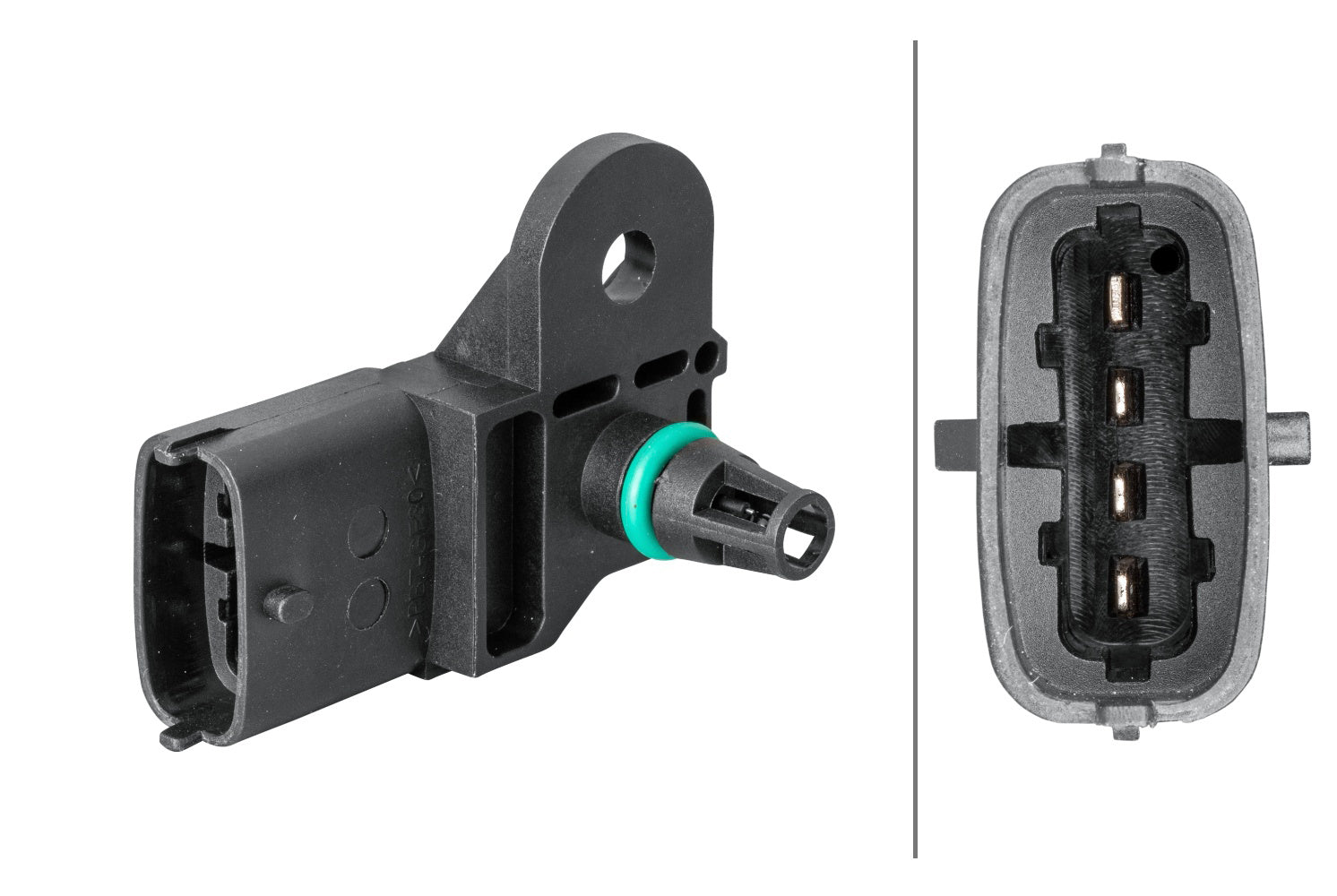

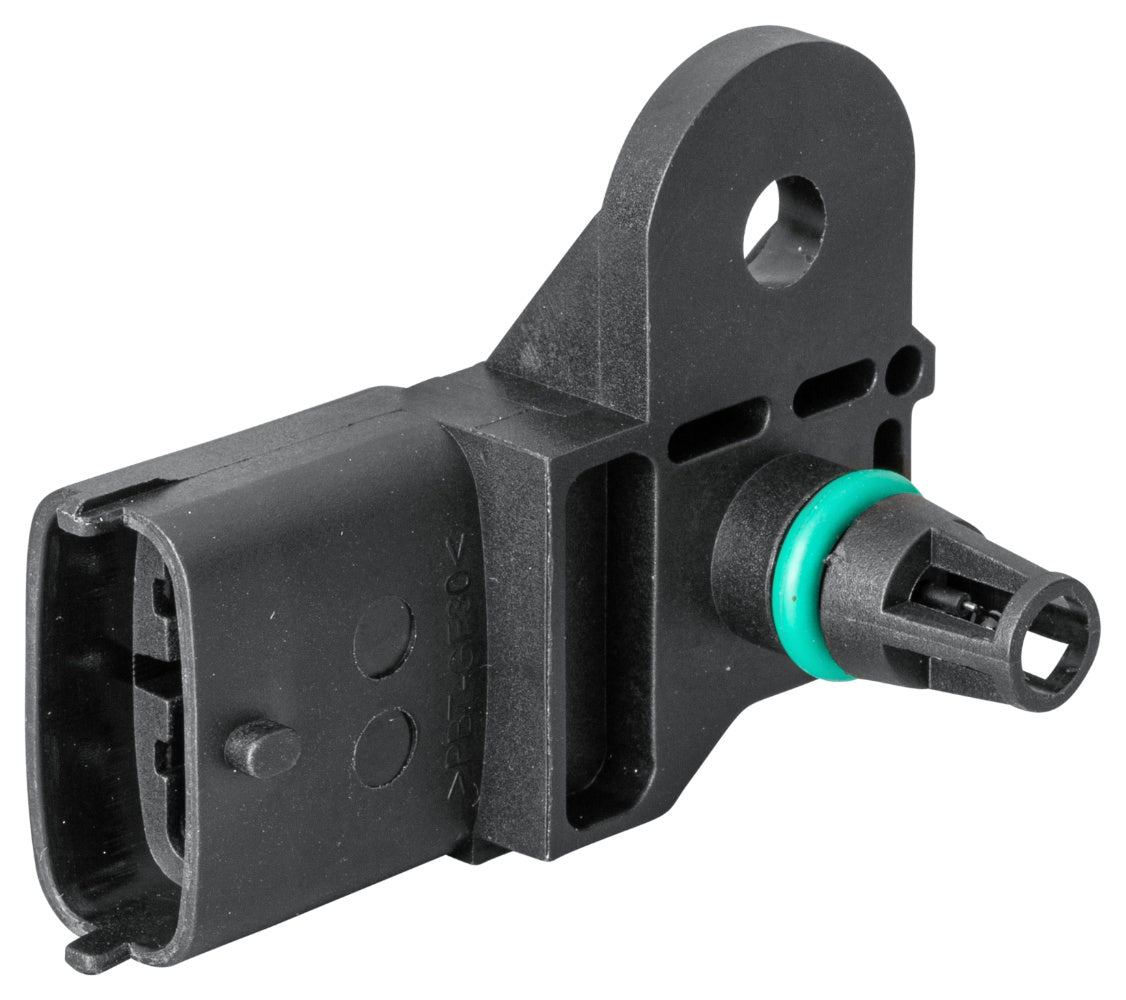

HELLA Sensor, intake manifold pressure - 4-pin connector 6PP009400-951

Sensor, intake manifold pressure - 4-pin connector

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. Opel Meriva B Mpv (S10) (please check exact vehicle application)
• HELLA intake manifold pressure sensors measure absolute pressure after the throttle valve by comparing ambient and system pressures, providing the ECU with accurate data to calculate air mass.
• Can help to reduce low fuel consumption, improved engine response, and reduced emissions through efficient mixture formation.
• Built to endure harsh conditions—resistant to vibration, heat, and dirt for long-lasting, precise performance.
• Developed to OEM standards for accurate readings and seamless integration in modern engine management systems. Check OEM number to ensure correct fitment for your vehicle.

Item Attributes:
Pressure from: 20 kPa
Pressure to: 253 kPa
Measuring Range from: 0.390 V
Measuring Range to: 4.700 V

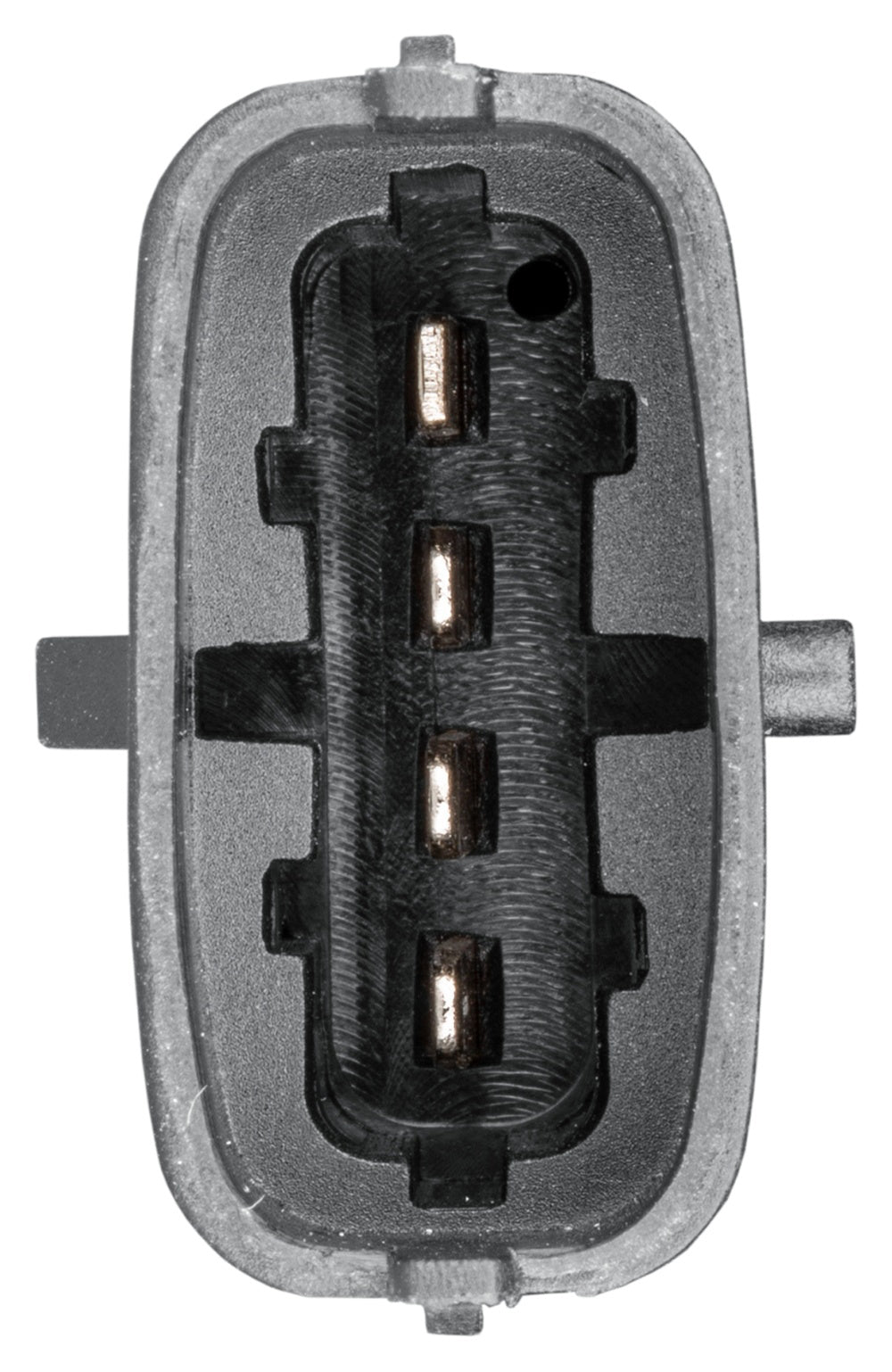

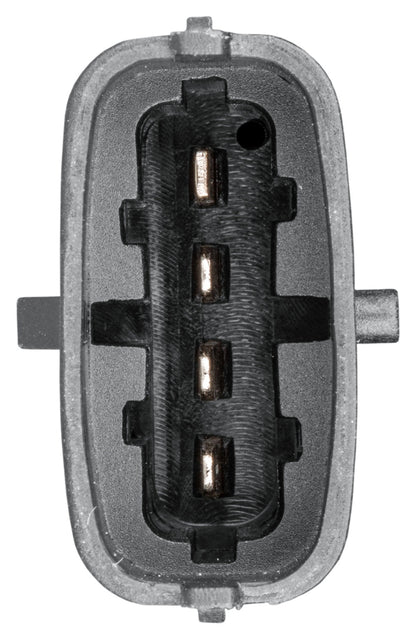

Number of pins: 4 -pin connector
Assembly by qualified personnel required!

OE references: ALFA ROMEO 467 6997 8; ALFA ROMEO 504064370; BMW 13 62 7 966 237; BMW 7 966 237; BUICK 90423637; CADILLAC 90423637; CHERY B113614022; CHEVROLET 90423637; FERRARI 467 6997 8; FERRARI 504 0643 70; FIAT 46769978; FIAT 504064370; GENERAL MOTORS 55576223; GENERAL MOTORS 90423637; GENERAL MOTORS 93170309; GENERAL MOTORS 95512870; HITACHI 138240; IVECO 46769978; IVECO 504064370; LANCIA 46769978; LANCIA 504064370; LOTUS A116E6063F; OPEL 12 38 244; OPEL 12 47 128; OPEL 12 47 478; OPEL 55238125; OPEL 55576223; OPEL 90423637; OPEL 93170309; OPEL 95512870; PORSCHE 955.606.180.00; PORSCHE 996.606.180.00; SAAB 55576223; SAAB 90423637; SAAB 93 17 030 9; SAAB 93170309; SAAB 95512870; SATURN 90423637; VAUXHALL 12 38 244; VAUXHALL 12 47 128; VAUXHALL 12 47 478; VAUXHALL 55576223; VAUXHALL 93170309; VAUXHALL 95512870; VW 7L5906051
