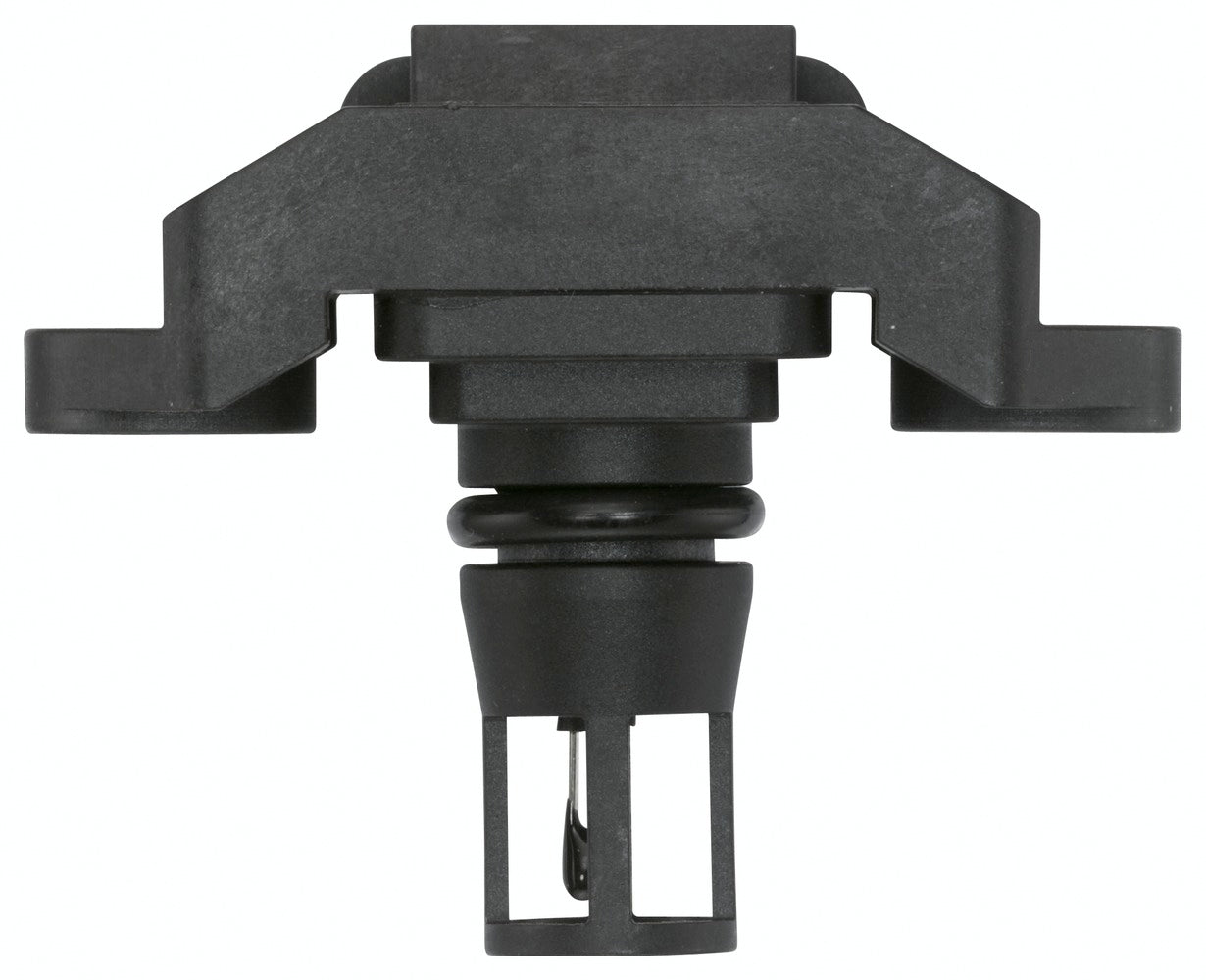

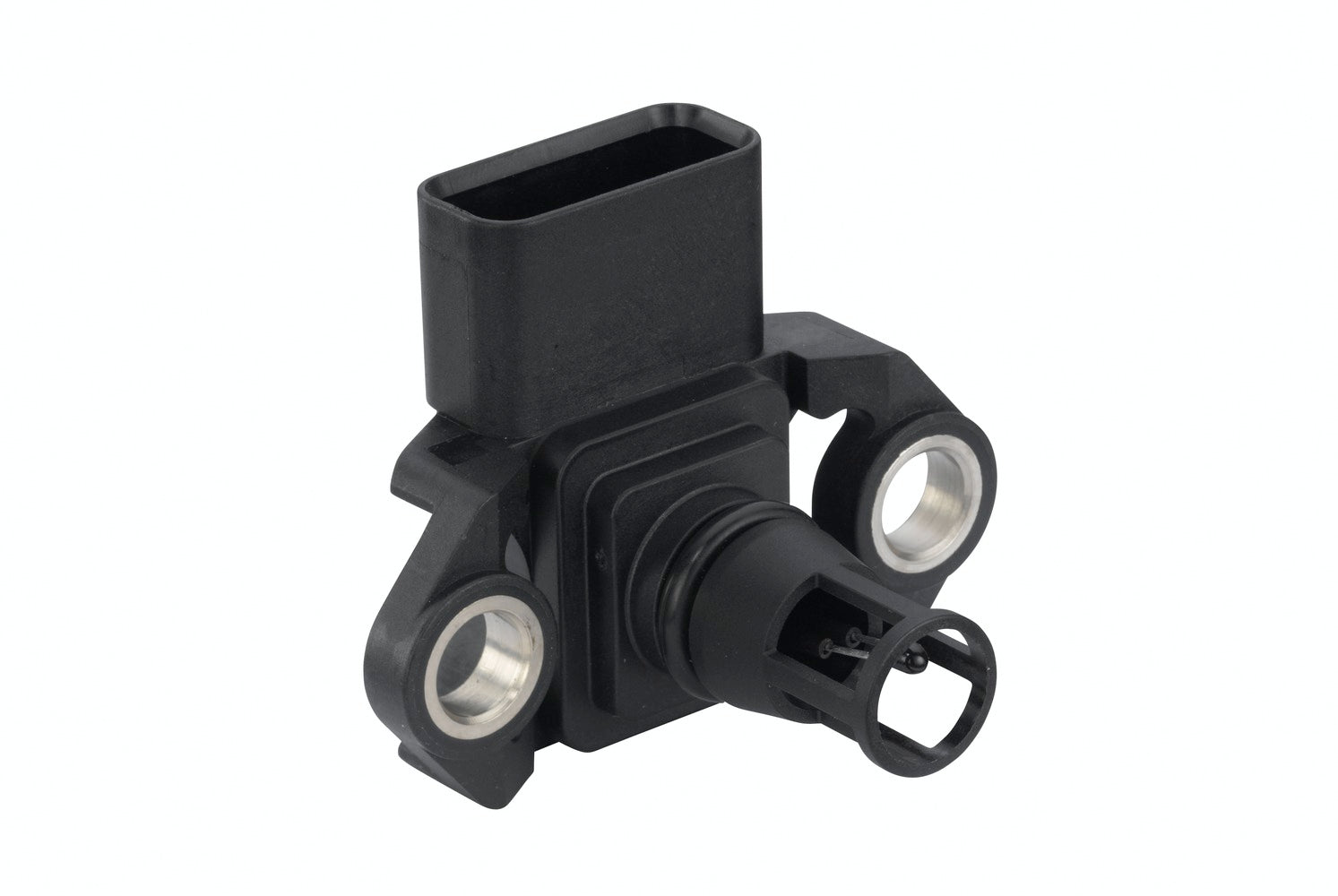

HELLA Sensor, intake manifold pressure - 4-pin connector 6PP013112-011

Sensor, intake manifold pressure - 4-pin connector

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. Opel Meriva A Mpv (X03) (please check exact vehicle application)
• HELLA intake manifold pressure sensors measure absolute pressure after the throttle valve by comparing ambient and system pressures, providing the ECU with accurate data to calculate air mass.
• Can help to reduce low fuel consumption, improved engine response, and reduced emissions through efficient mixture formation.
• Built to endure harsh conditions—resistant to vibration, heat, and dirt for long-lasting, precise performance.
• Developed to OEM standards for accurate readings and seamless integration in modern engine management systems. Check OEM number to ensure correct fitment for your vehicle.

Item Attributes:
Pressure from: 30.8 kPa
Pressure to: 369.2 kPa
Measuring Range from: 0.250 V
Measuring Range to: 4.750 V

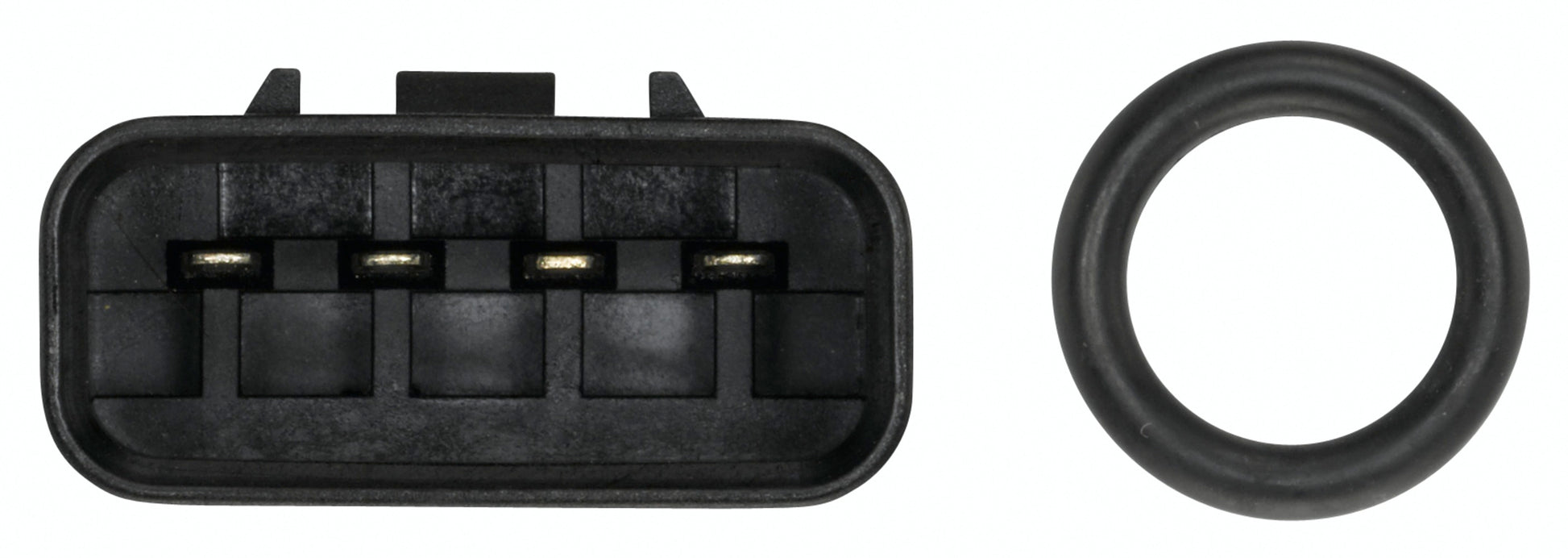

Number of pins: 4 -pin connector
Assembly by qualified personnel required!

OE references: GENERAL MOTORS 97381191; OPEL 62 38 678; OPEL 97381191; VAUXHALL 62 38 678; VAUXHALL 97381191
