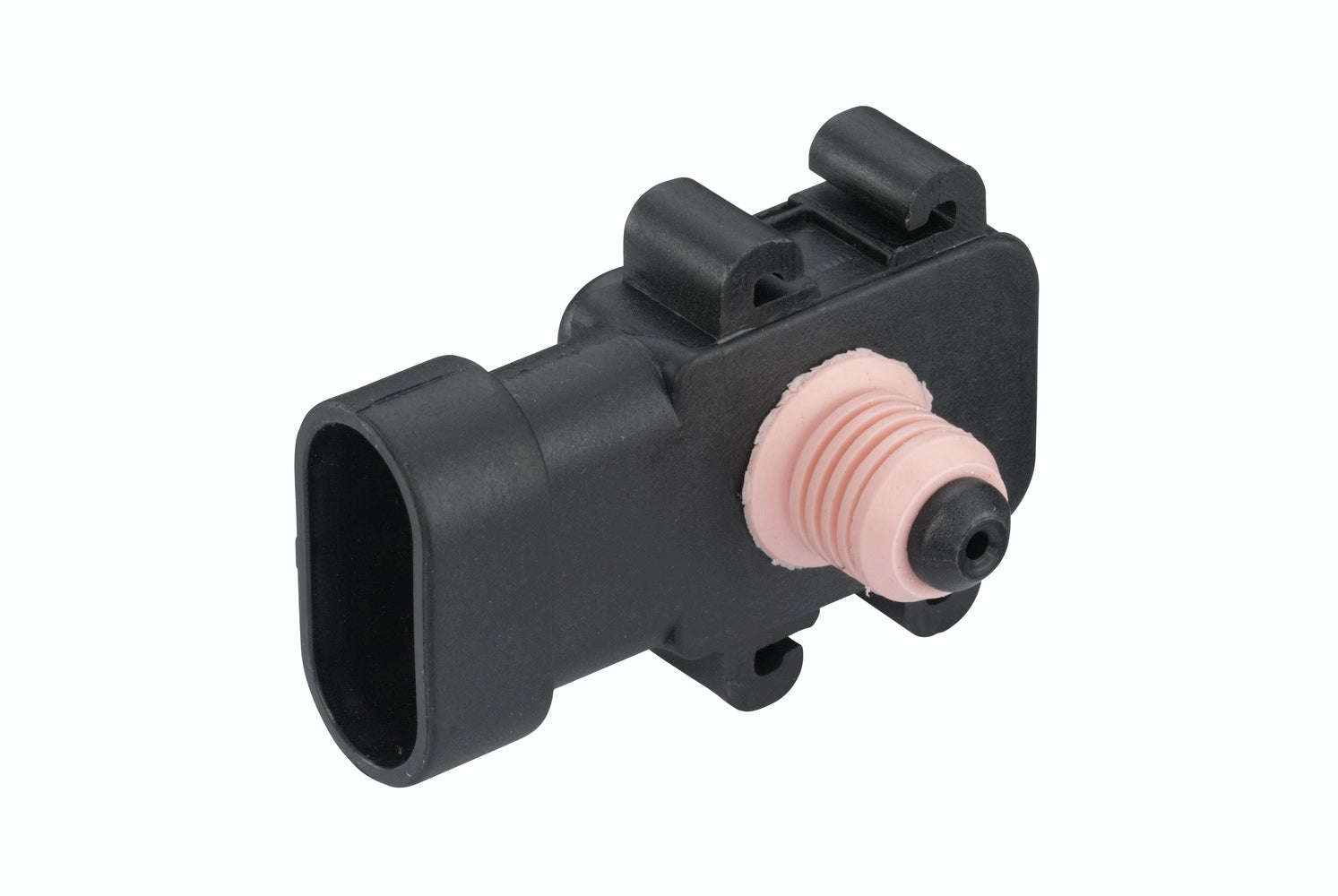

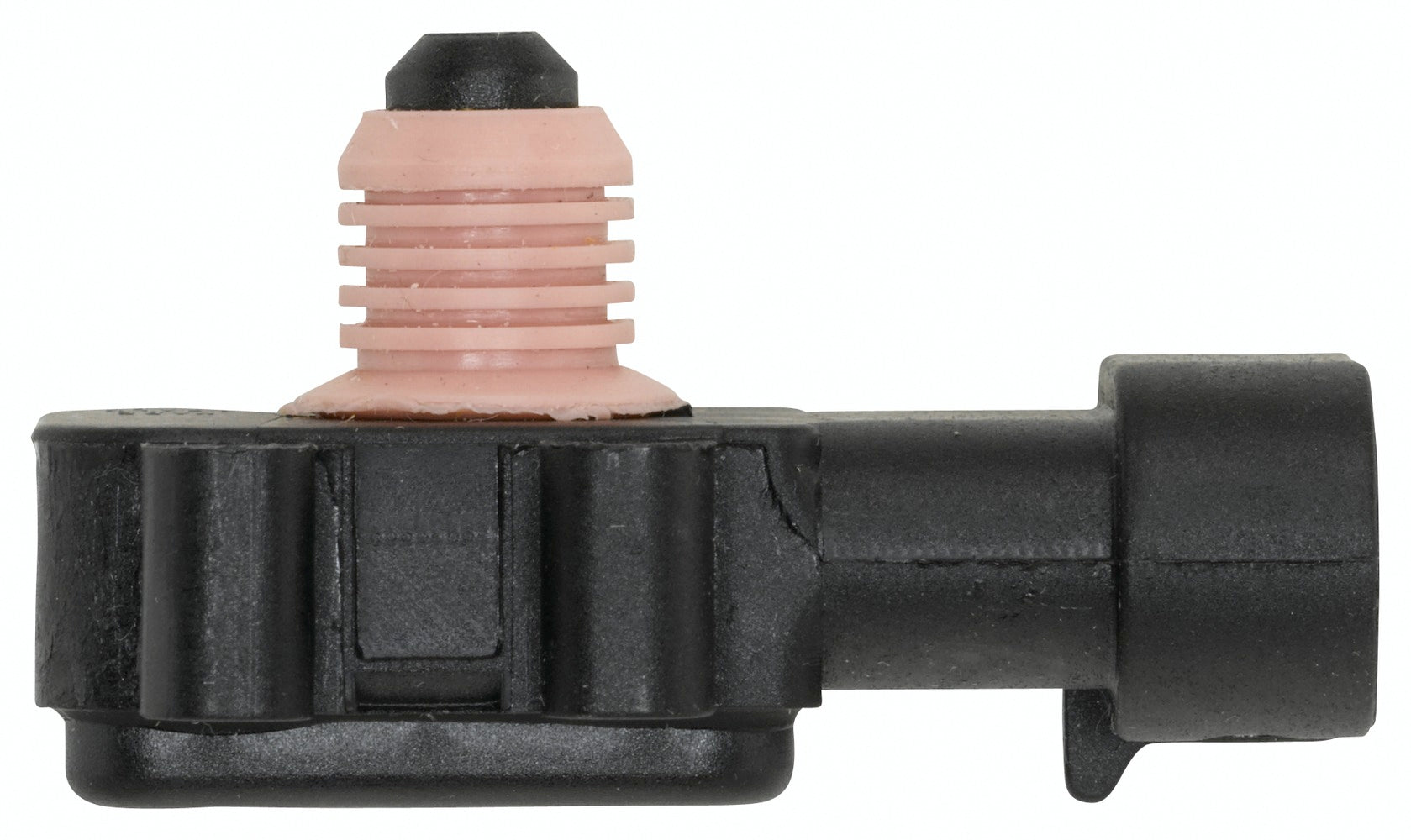

HELLA Sensor, intake manifold pressure - 5V - 3-pin connector 6PP009400-431

Sensor, intake manifold pressure - 5V - 3-pin connector

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. Opel Corsa C (X01) (please check exact vehicle application)
• from: 18500Pa - to: 200000Pa
• HELLA intake manifold pressure sensors measure absolute pressure after the throttle valve by comparing ambient and system pressures, providing the ECU with accurate data to calculate air mass.
• Can help to reduce low fuel consumption, improved engine response, and reduced emissions through efficient mixture formation.
• Built to endure harsh conditions—resistant to vibration, heat, and dirt for long-lasting, precise performance.
• Developed to OEM standards for accurate readings and seamless integration in modern engine management systems. Check OEM number to ensure correct fitment for your vehicle.

Item Attributes:
from: 18500 Pa
to: 200000 Pa
Voltage: 5 V

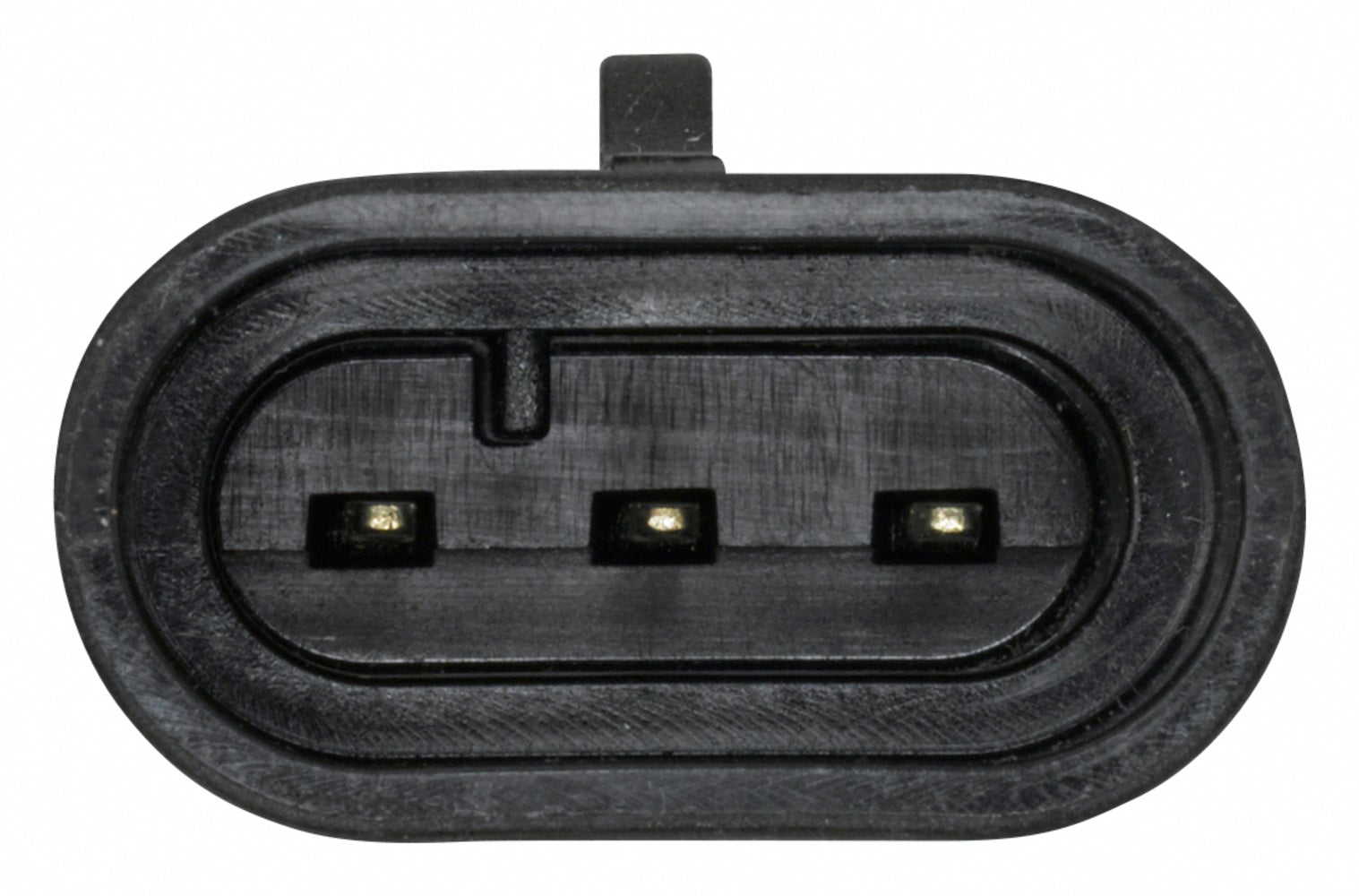

Number of pins: 3 -pin connector
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: GENERAL MOTORS 16 235 939; GENERAL MOTORS 97 180 655; GENERAL MOTORS 98131026; OPEL 16 235 939; OPEL 62 38 166; OPEL 97 18 065; OPEL 97180655; OPEL 98 13 102; OPEL 98131026; VAUXHALL 16 235 939; VAUXHALL 62 38 166; VAUXHALL 97 18 065; VAUXHALL 97180655; VAUXHALL 98 13 102; VAUXHALL 98131026
