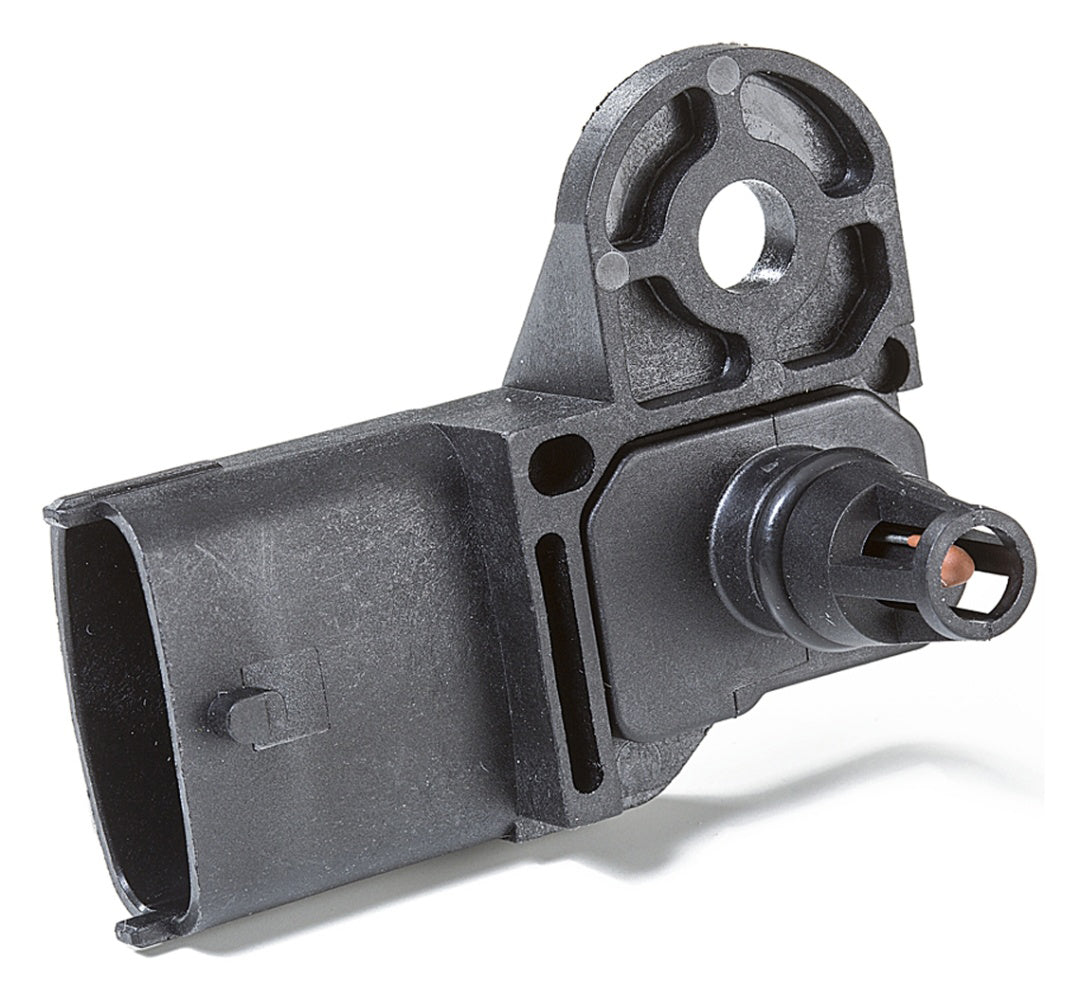

HELLA Sensor, intake manifold pressure - 5V - 4-pin connector 6PP009400-311

Sensor, intake manifold pressure - 5V - 4-pin connector

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. Fiat 500 (312_) (please check exact vehicle application)
• from: 10000Pa - to: 118000Pa
• NTC Sensor
• HELLA intake manifold pressure sensors measure absolute pressure after the throttle valve by comparing ambient and system pressures, providing the ECU with accurate data to calculate air mass.
• Can help to reduce low fuel consumption, improved engine response, and reduced emissions through efficient mixture formation.
• Built to endure harsh conditions—resistant to vibration, heat, and dirt for long-lasting, precise performance.
• Developed to OEM standards for accurate readings and seamless integration in modern engine management systems. Check OEM number to ensure correct fitment for your vehicle.

Item Attributes:
from: 10000 Pa
to: 118000 Pa
Voltage: 5 V
Resistor: 2080 Ohm

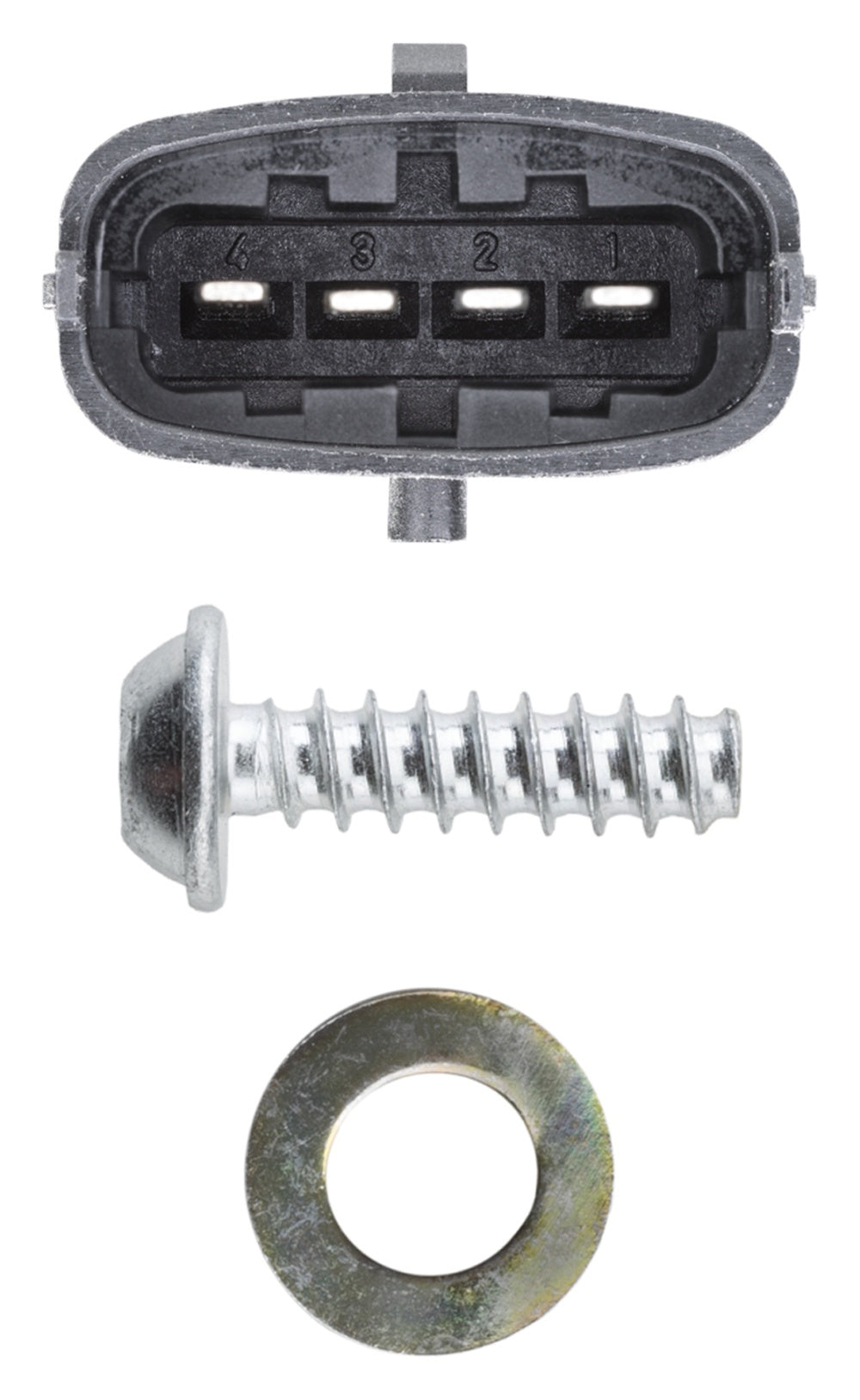

Number of pins: 4 -pin connector
Sensor Type: NTC Sensor
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: ALFA ROMEO 12568929; ALFA ROMEO 46533518; ALFA ROMEO 46553045; ALFA ROMEO 55209037; ALFA ROMEO 55219296; ALFA ROMEO 71732447; ALFA ROMEO 77364145; ALFA ROMEO 77364869; CHERY S213614021; FERRARI 46553045; FERRARI 55209037; FERRARI 55219296; FERRARI 71732447; FERRARI 77364145; FERRARI 77364869; FIAT 12568929; FIAT 46533518; FIAT 46553045; FIAT 55209037; FIAT 55219296; FIAT 71732447; FIAT 77364145; FIAT 77364869; FORD 1 562 724; FORD 1 580 533; FORD 9S519J559BB; GENERAL MOTORS 95512846; HITACHI 138227; JEEP 55219296; LANCIA 46553045; LANCIA 55209037; LANCIA 55219296; LANCIA 71732447; LANCIA 77364145; LANCIA 77364869; MITSUBISHI MN195775; MITSUBISHI MR985032; MWM 550098A; OPEL 12 47 474; OPEL 12568929; OPEL 93313154; OPEL 95512846; PROTON PW810694; SCANIA 5166434; SMART A0051536128; SMART A0061534728; VAUXHALL 12 47 474; VAUXHALL 95512846
