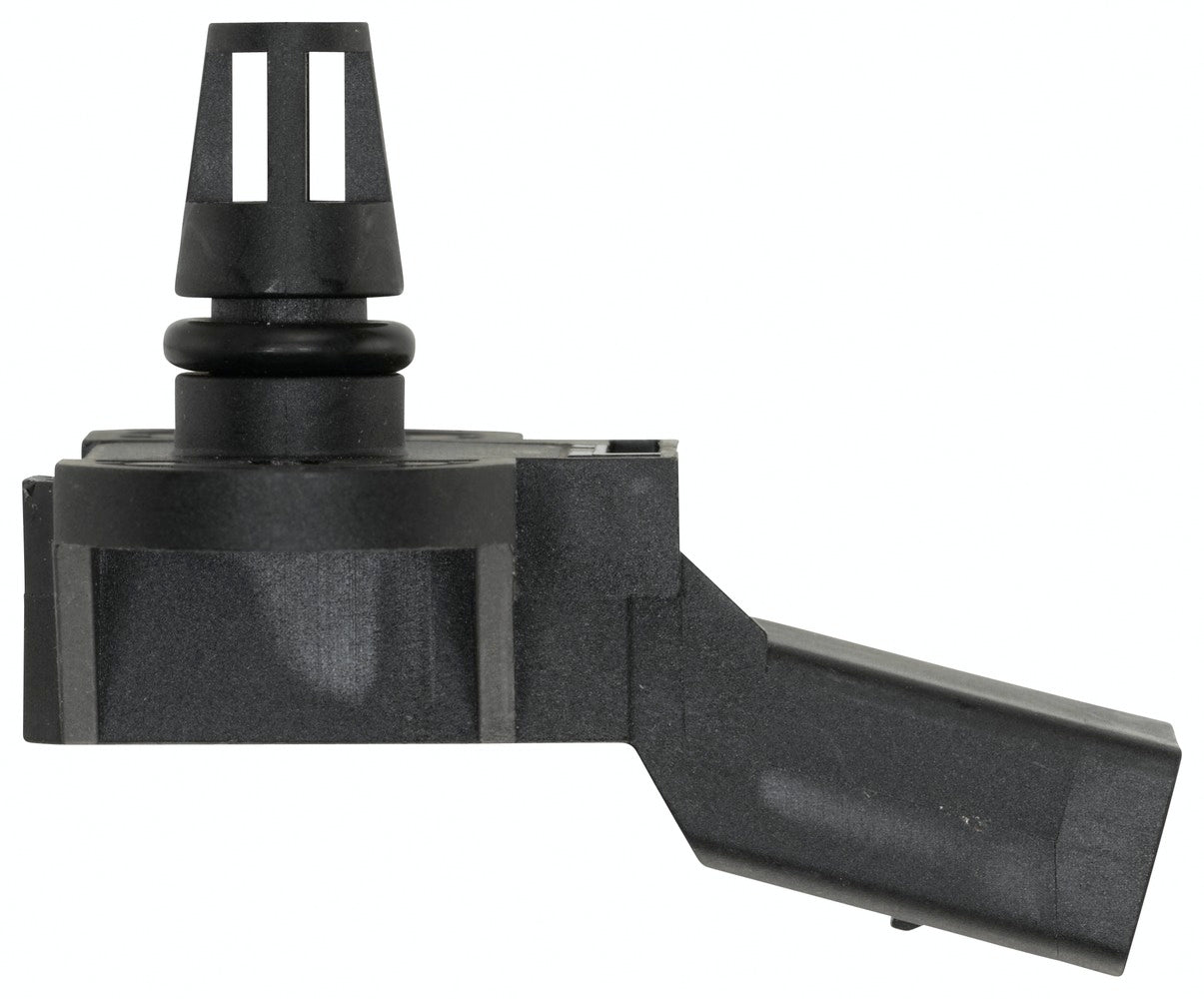

HELLA Sensor, intake manifold pressure - 5V - 4-pin connector 6PP009400-541

Sensor, intake manifold pressure - 5V - 4-pin connector

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA throttle body regulates the amount of intake air and ensures the even power output of the engine. In modern motor vehicles, it also takes over the task of the idle speed adjuster. Intake manifold and boost pressure sensors are located in the vehicle's intake tract and measure the air pressure. The intake manifold pressure sensor measures the intake manifold vacuum prevailing in the intake manifold after the throttle valve and the boost pressure sensor measures the absolute pressure of the intake air before the throttle valve. The sensors transmit the determined values to the engine control unit. HELLA's expertise is evident on the one hand in its high-quality manufacturing, which ensures a long service life for its products. On the other hand, in the continuous development and expansion of the product range.

• fits e.g. VW New Beetle Convertible (1Y7) (please check exact vehicle application)
• from: 10000Pa - to: 117000Pa
• HELLA intake manifold pressure sensors measure absolute pressure after the throttle valve by comparing ambient and system pressures, providing the ECU with accurate data to calculate air mass.
• Can help to reduce low fuel consumption, improved engine response, and reduced emissions through efficient mixture formation.
• Built to endure harsh conditions—resistant to vibration, heat, and dirt for long-lasting, precise performance.
• Developed to OEM standards for accurate readings and seamless integration in modern engine management systems. Check OEM number to ensure correct fitment for your vehicle.

Item Attributes:
from: 10000 Pa
to: 117000 Pa
Voltage: 5 V

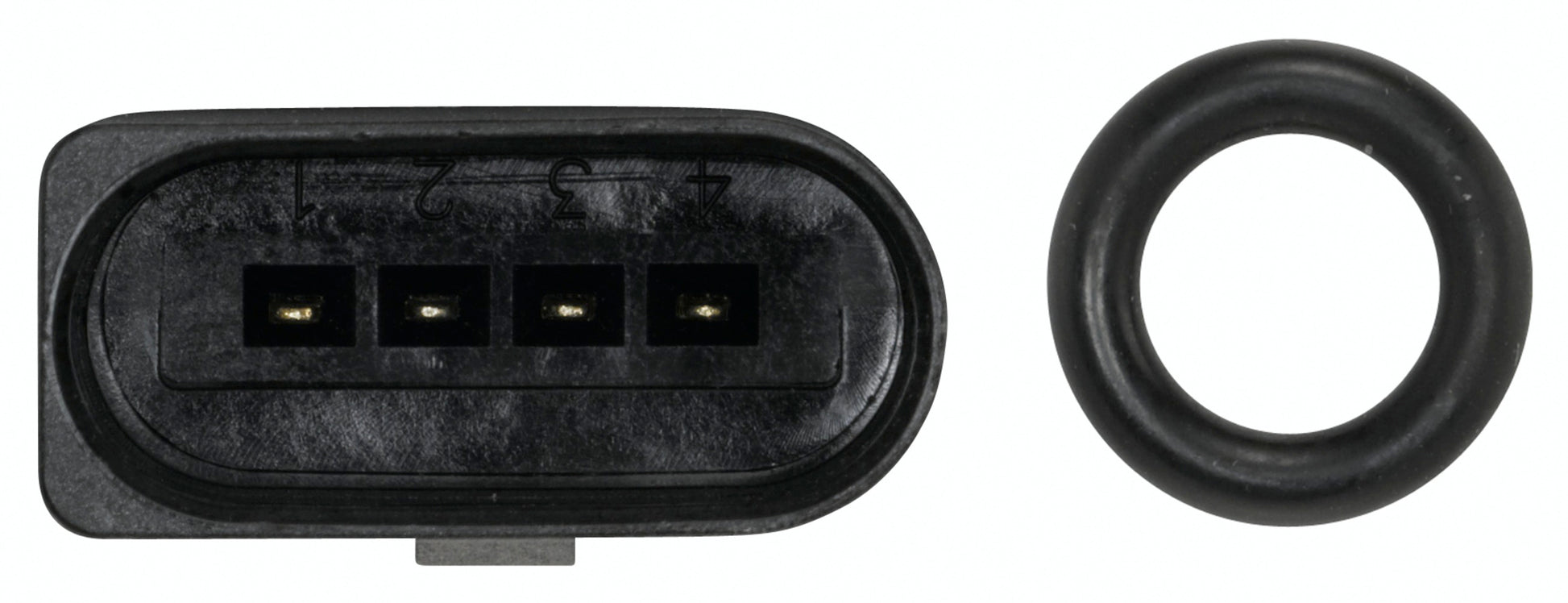

Number of pins: 4 -pin connector
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AUDI 036 906 051 G; AUDI 03C906051F; PORSCHE 958.355.051.07; SEAT 036 906 051 G; SEAT 03C 906 051 F; SEAT 1K0 612 041 BT; SEAT 1K0 612 041 DH; SEAT 1K0 612 041 GH; SEAT 1K0 612 041 KA; SEAT 5N0 612 041 AH; SEAT 5N0 612 041 BA; SEAT 6R1 612 041 AK; SEAT 6R1 612 041 AL; SEAT 6R1 612 041 H; SEAT 6R1 612 041 M; SEAT 6R2 612 041 AE; SEAT 6R2 612 041 J; SEAT 6R2 612 051 AE; SKODA 036 906 051 G; SKODA 03C906051F; SKODA 1K0 612 041 FR; SKODA 1K0 612 041 HJ; SKODA 6R1 612 041 AL; SKODA 6R1 612 041 M; SKODA 6R1 612 041 P; VW 036 906 051 G; VW 03C906051F; VW 1K0 612 041 BT; VW 1K0 612 041 DH; VW 1K0 612 041 FE; VW 1K0 612 041 FR; VW 1K0 612 041 GH; VW 1K0 612 041 HB; VW 1K0 612 041 HJ; VW 1K0 612 041 HL; VW 1K0 612 041 JL; VW 1K0 612 041 KA; VW 1K0 612 041 KE; VW 1K0 612 041 KP; VW 1K0 612 041 LG; VW 3AA 612 041 AC; VW 3AA 612 041 AG; VW 5N0 612 041 AF; VW 5N0 612 041 AH; VW 5N0 612 041 BA; VW 6R1 612 041 AK; VW 6R1 612 041 AL; VW 6R1 612 041 H; VW 6R1 612 041 M; VW 6R1 612 041 P; VW 6R2 612 041 AE; VW 6R2 612 041 J; VW 6R2 612 051 AE; VW 7N0 612 041 C; VW 7N0 612 041 D
