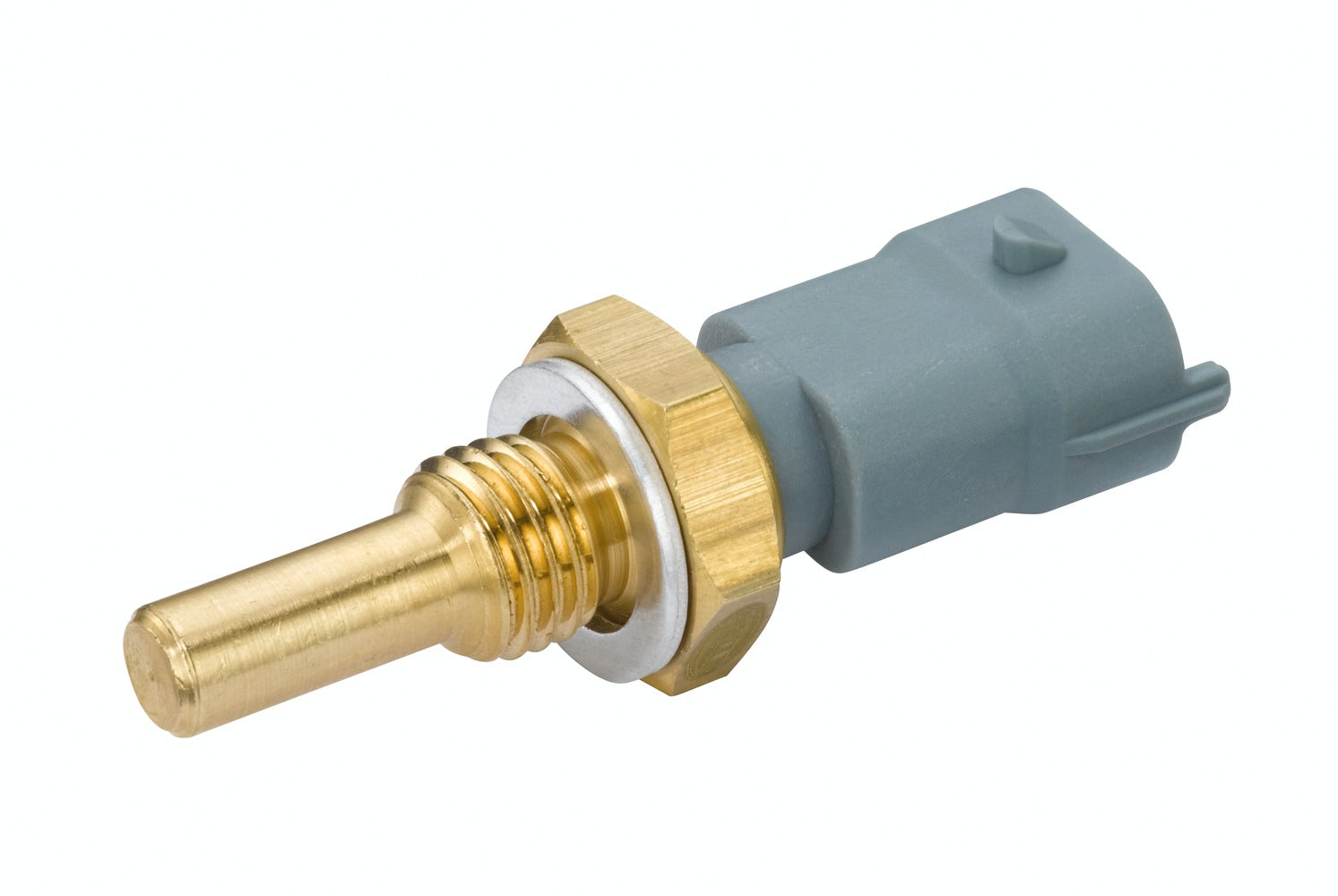

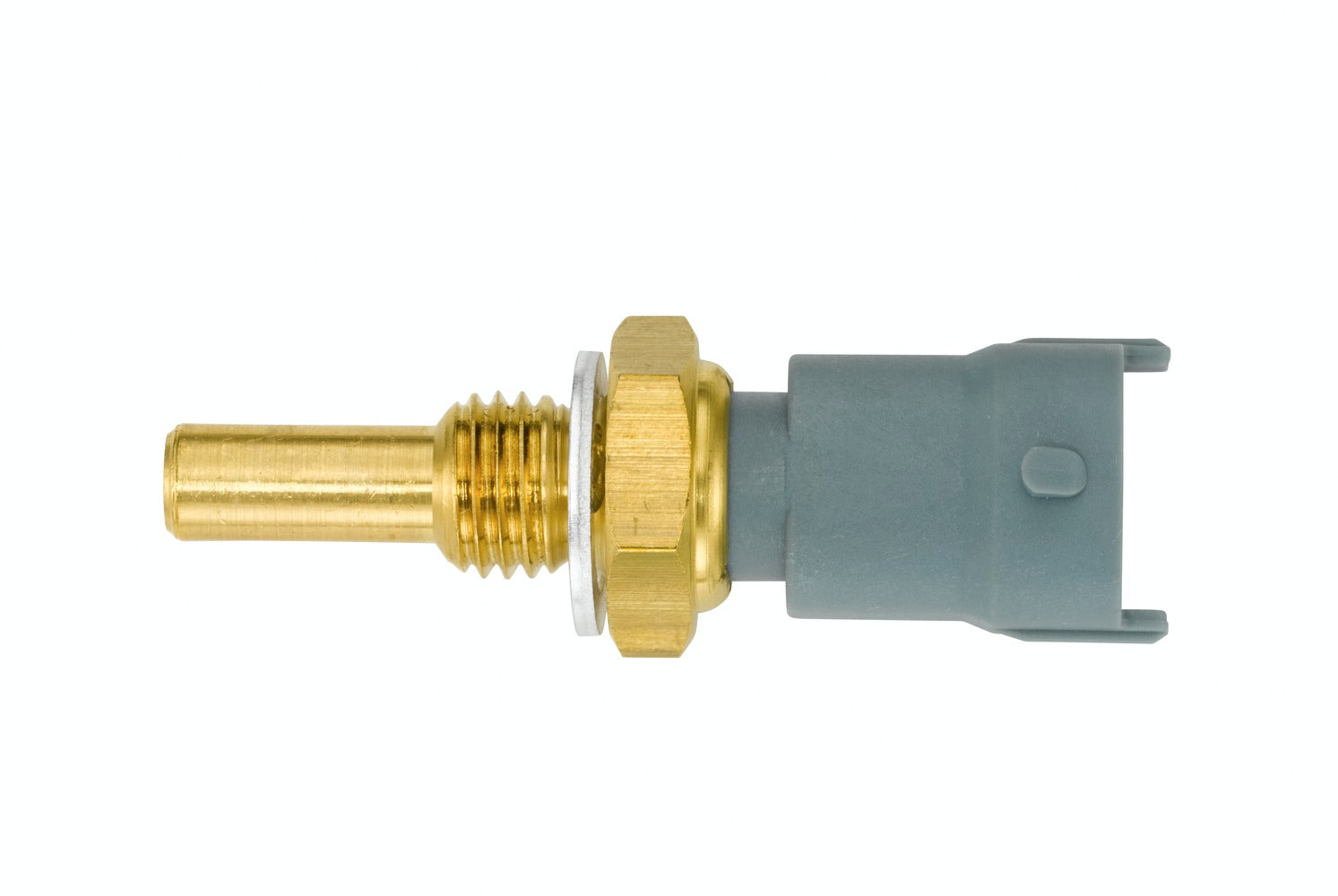

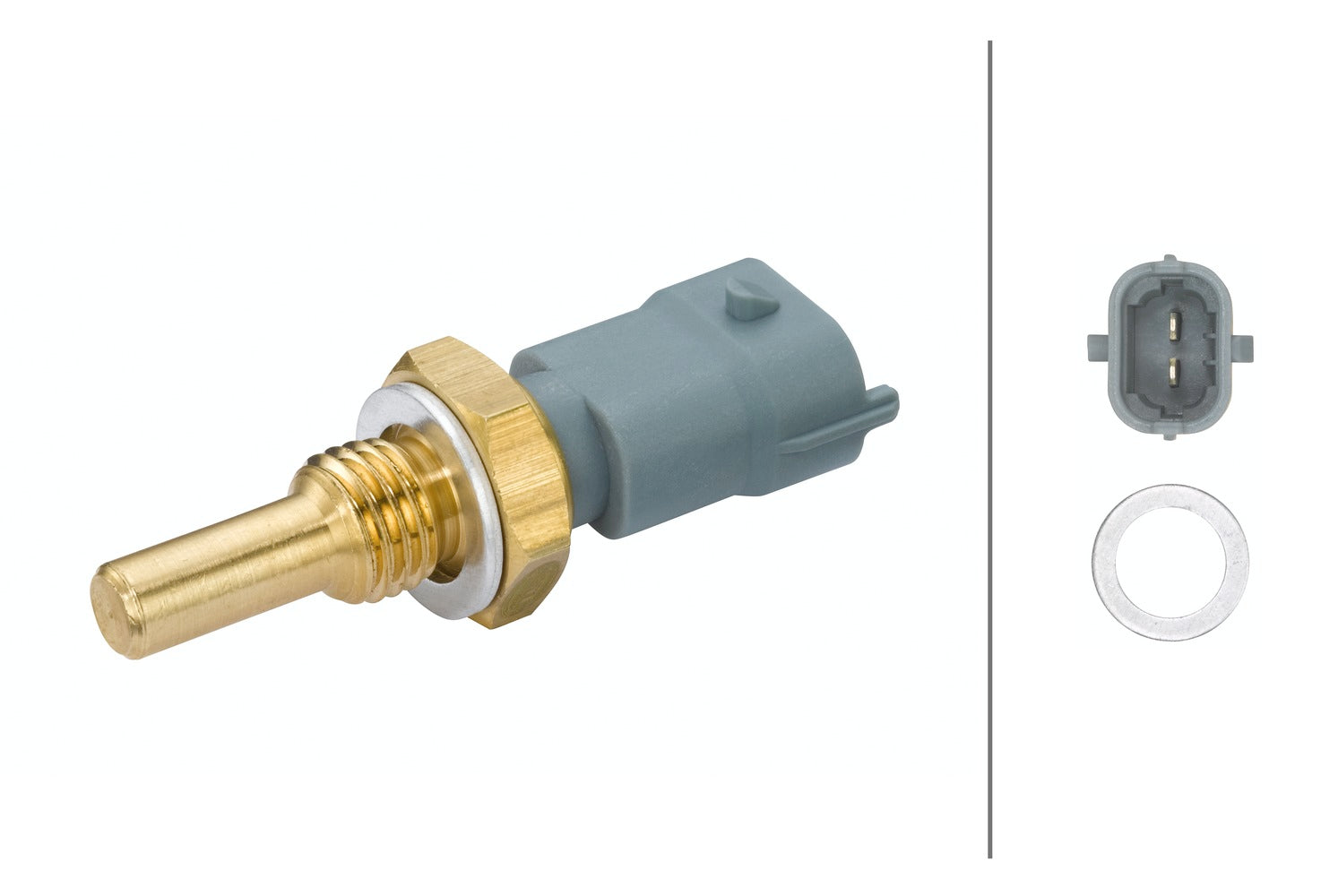

HELLA Sensor, oil temperature - 2-pin connector 6PT009107-611

Sensor, oil temperature - 2-pin connector - Bolted - with gasket/seal

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The temperature sensors from HELLA are versatile: Oil, coolant, intake air, outside and interior temperatures can be precisely recorded with them. The changing resistance is used by various control units for further calculations. The sensor, which is manufactured in-house, impresses with its robust design, which ensures the best measurement results under difficult conditions.

• fits e.g. Opel Corsa C (X01) (please check exact vehicle application)
• Temp. Range: 25/80°C
• NTC Sensor - Spanner size: 19
• Colour: blue - Corresponds to the original part in colour: Black/White/light blue
• HELLA oil temperature sensors use Negative Temperature Coefficient thermistor technology to deliver accurate oil temperature readings for efficient engine management.
• Measures engine oil temperature, allowing the ECU to adjust performance until optimal operating conditions are reached.
• HELLA oil temperature sensors help ensure engine protection and performance, with real-time data also displayed on the dashboard in many vehicles.

Item Attributes:
Outer Diameter: 7.4 mm
Resistor: 294 Ohm / 2080 Ohm
Supplementary Article/Supplementary Info: with gasket/seal
External Thread: 12 mm
Thread Pitch: 1.5 mm
Temp. Range: 25 °C / 80 °C
Mounting Type: Bolted
Colour: blue
Spanner Size: 19
Sensor Type: NTC Sensor

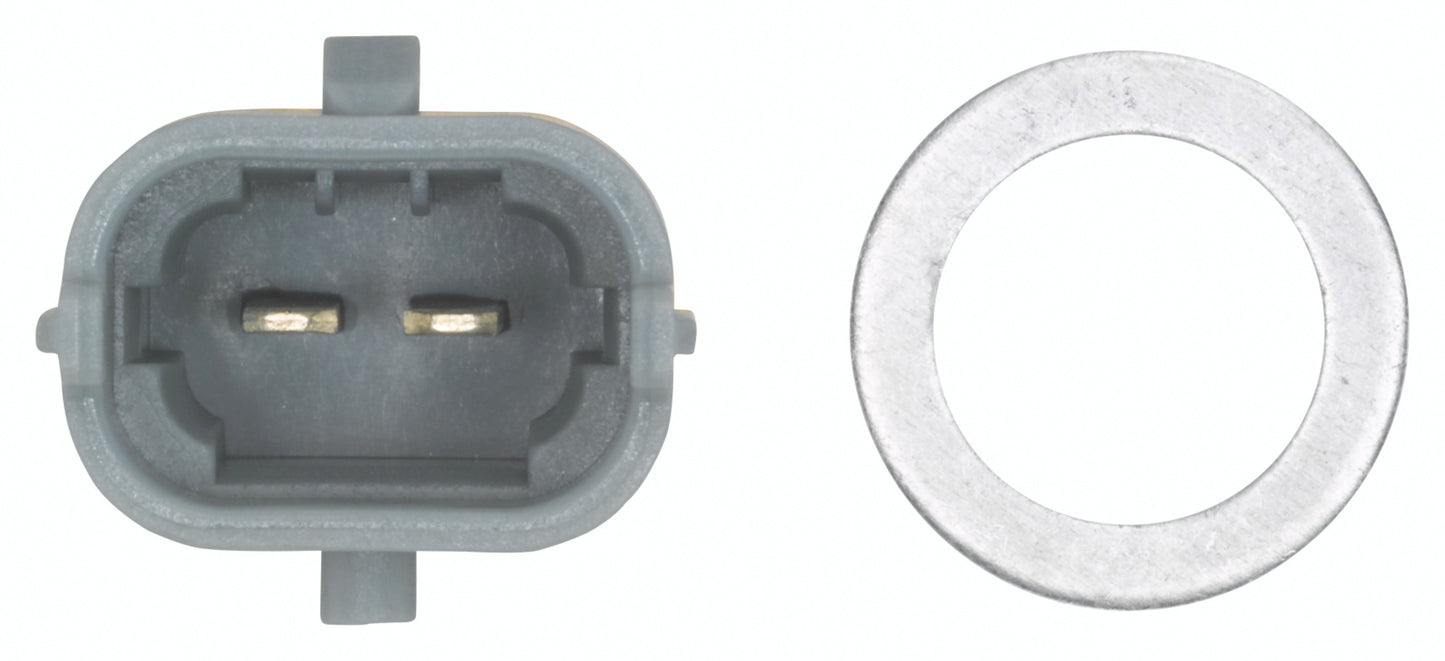

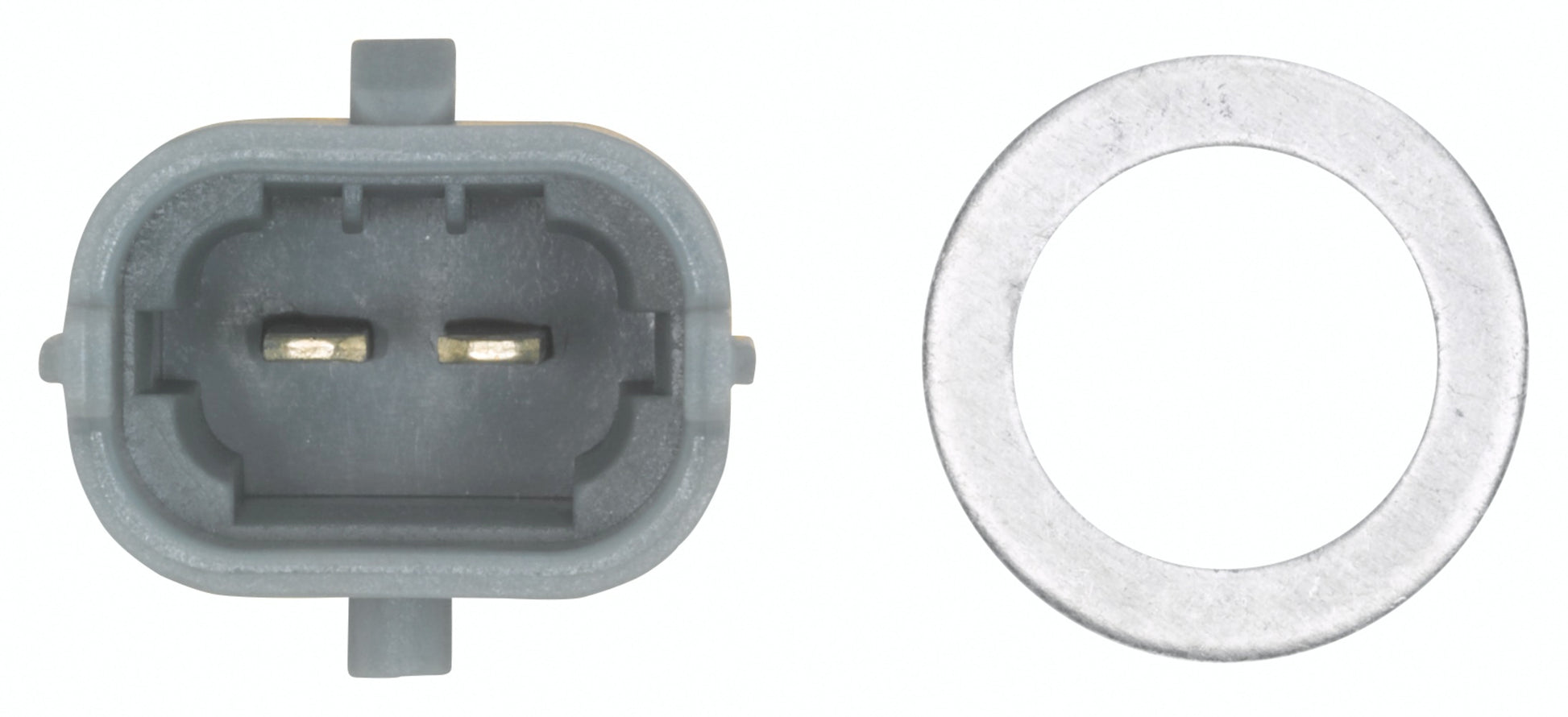

Number of pins: 2 -pin connector
Corresponds to the original part in colour: black / white / light blue
Assembly by qualified personnel required!

OE references: ALFA ROMEO 46469865; ALFA ROMEO 46472179; ALFA ROMEO 500382599; ALFA ROMEO 55187822; ALFA ROMEO 60814715; ALFA ROMEO 6472179; ALFA ROMEO 670050444; ALFA ROMEO 71739856; ALFA ROMEO 71741090; ALFA ROMEO 99455420; BENTLEY 3Z0963535; BUICK 12566778; BUICK 12639899; CADILLAC 12566778; CADILLAC 12639899; CADILLAC 15393755; CADILLAC 90541520; CADILLAC 90570185; CASE IH 500382599; CHEVROLET 12 639 899; CHEVROLET 12566778; CHEVROLET 15393755; CHEVROLET 25 183 414; CHEVROLET 55 566 146; CHEVROLET 55599958; CHEVROLET 9 198 691; CHEVROLET 90541520; CHEVROLET 90541937; CHEVROLET 90542063; CHEVROLET 90570185; CHEVROLET 91298691; CHEVROLET 9193163; CHEVROLET 93174208; CHEVROLET 93342219; CHEVROLET 96 868 950; CHEVROLET 97227219; CHRYSLER 45962053F; CITROËN 1338 F9; CITROËN 1338.C7; CITROËN/PEUGEOT 1338.C7; FERRARI 180137; FERRARI 46469865; FERRARI 46472179; FERRARI 500382599; FERRARI 60814715; FERRARI 71739856; FERRARI 99455420; FIAT 46469865; FIAT 46472179; FIAT 500382599; FIAT 55187822; FIAT 60814175; FIAT 60814715; FIAT 6472179; FIAT 670005736; FIAT 670050422; FIAT 670050444; FIAT 71739856; FIAT 8972272190; FIAT 90570185; FIAT 99455420; FORD GC469T305AA; FORD T219449; GENERAL MOTORS 12 639 899; GENERAL MOTORS 12566778; GENERAL MOTORS 12628120; GENERAL MOTORS 15393755; GENERAL MOTORS 24436779; GENERAL MOTORS 25 183 414; GENERAL MOTORS 55 566 146; GENERAL MOTORS 55599958; GENERAL MOTORS 9 198 691; GENERAL MOTORS 90490185; GENERAL MOTORS 90541520; GENERAL MOTORS 90541937; GENERAL MOTORS 90542063; GENERAL MOTORS 90570185; GENERAL MOTORS 90570382; GENERAL MOTORS 91298691; GENERAL MOTORS 9193163; GENERAL MOTORS 93174208; GENERAL MOTORS 93342219; GENERAL MOTORS 96 868 950; GENERAL MOTORS 97227219; HOLDEN 90490185; HOLDEN 90541520; HOLDEN 90542063; HONDA 37 870-PLZ-D00; HONDA 37 870-RBD-E01; HONDA 37870RBDE011; HONDA 37870RBDE011M4; ISUZU 8972272190; IVECO 42538752; IVECO 46469865; IVECO 46472179; IVECO 500382599; IVECO 60814715; IVECO 71739856; IVECO 99455420; JEEP K68142898AA; KAMAZ 201149034; KAMAZ 4510411110119088; LANCIA 46469865; LANCIA 46472179; LANCIA 500382599; LANCIA 60814715; LANCIA 6472179; LANCIA 71739856; LANCIA 99455420; MAHINDRA 3090C0071N; MASERATI 180137; MCLAREN 11L0247CP01; OPEL 12 639 899; OPEL 12566778; OPEL 13 38 179; OPEL 13 38 357; OPEL 13 38 418; OPEL 13 38 467; OPEL 13 38 511; OPEL 13 42 567; OPEL 1338461; OPEL 15393755; OPEL 24436779; OPEL 25 183 414; OPEL 48 01 922; OPEL 48 18 227; OPEL 55 566 146; OPEL 55599958; OPEL 62 35 605; OPEL 62 38 179; OPEL 62 38 266; OPEL 62 38 422; OPEL 62 38 935; OPEL 63 38 486; OPEL 8972272190; OPEL 90490185; OPEL 90541520; OPEL 90541937; OPEL 90542063; OPEL 90570185; OPEL 90570382; OPEL 91 93 163; OPEL 91 98 691; OPEL 91298691; OPEL 93 17 420; OPEL 93174208; OPEL 96 868 950; OPEL 97 22 721; OPEL 97227219; PEUGEOT 1338 F9; PEUGEOT 1338.C7; PONTIAC 12639899; RENAULT 5001848546; RENAULT 5010412450; RENAULT TRUCKS 5001848546; RENAULT TRUCKS 5001850950; RENAULT TRUCKS 5010412450; RENAULT TRUCKS 7420513340; RENAULT TRUCKS 7485137860; ROLLS-ROYCE 3Z0963535; ROLLS-ROYCE PB107265PA; SAAB 12566778; SAAB 12639899; SAAB 15393755; SAAB 24436779; SAAB 4660585; SAAB 4772208; SAAB 4772307; SAAB 4773586; SAAB 5341391; SAAB 55566146; SAAB 5959283; SAAB 90541937; SAAB 90542063; SAAB 90570185; SAAB 9177213; SAAB 9198691; SAAB 9542861; SAAB 9543406; SAME 270990430; SATURN 12639899; SATURN 15393755; SUZUKI 1365078J00; SUZUKI 13650-78J00-000; SUZUKI 1365084E10; SUZUKI 1365084E10000; SUZUKI 1365084E11; SUZUKI 1365084E11000; TATA 570515209906; VAUXHALL 09198691; VAUXHALL 12 639 899; VAUXHALL 12566778; VAUXHALL 13 38 179; VAUXHALL 13 38 357; VAUXHALL 13 38 418; VAUXHALL 13 38 467; VAUXHALL 13 38 511; VAUXHALL 13 42 567; VAUXHALL 15393755; VAUXHALL 25183414; VAUXHALL 48 01 922; VAUXHALL 48 18 227; VAUXHALL 55566146; VAUXHALL 55599958; VAUXHALL 62 35 605; VAUXHALL 62 38 179; VAUXHALL 62 38 266; VAUXHALL 62 38 422; VAUXHALL 63 38 486; VAUXHALL 90541520; VAUXHALL 90541937; VAUXHALL 90542063; VAUXHALL 91 93 163; VAUXHALL 91298691; VAUXHALL 93 17 420; VAUXHALL 93174208; VAUXHALL 96868950; VAUXHALL 97 22 721; VAUXHALL 97227219; VOLVO 20153340; VOLVO 20513340; VW 2R0 919 501 B; VW 3Z0 963 535
