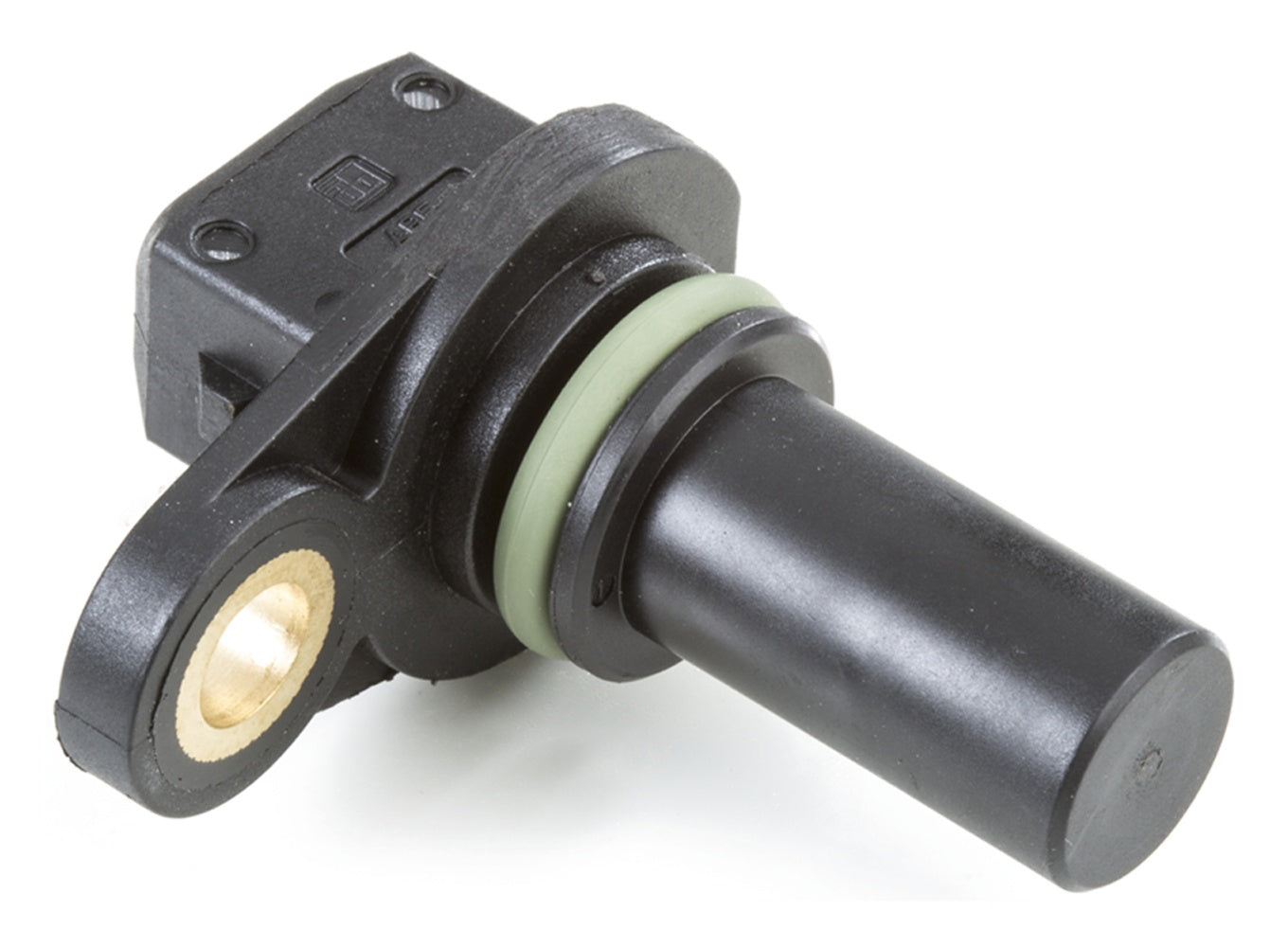

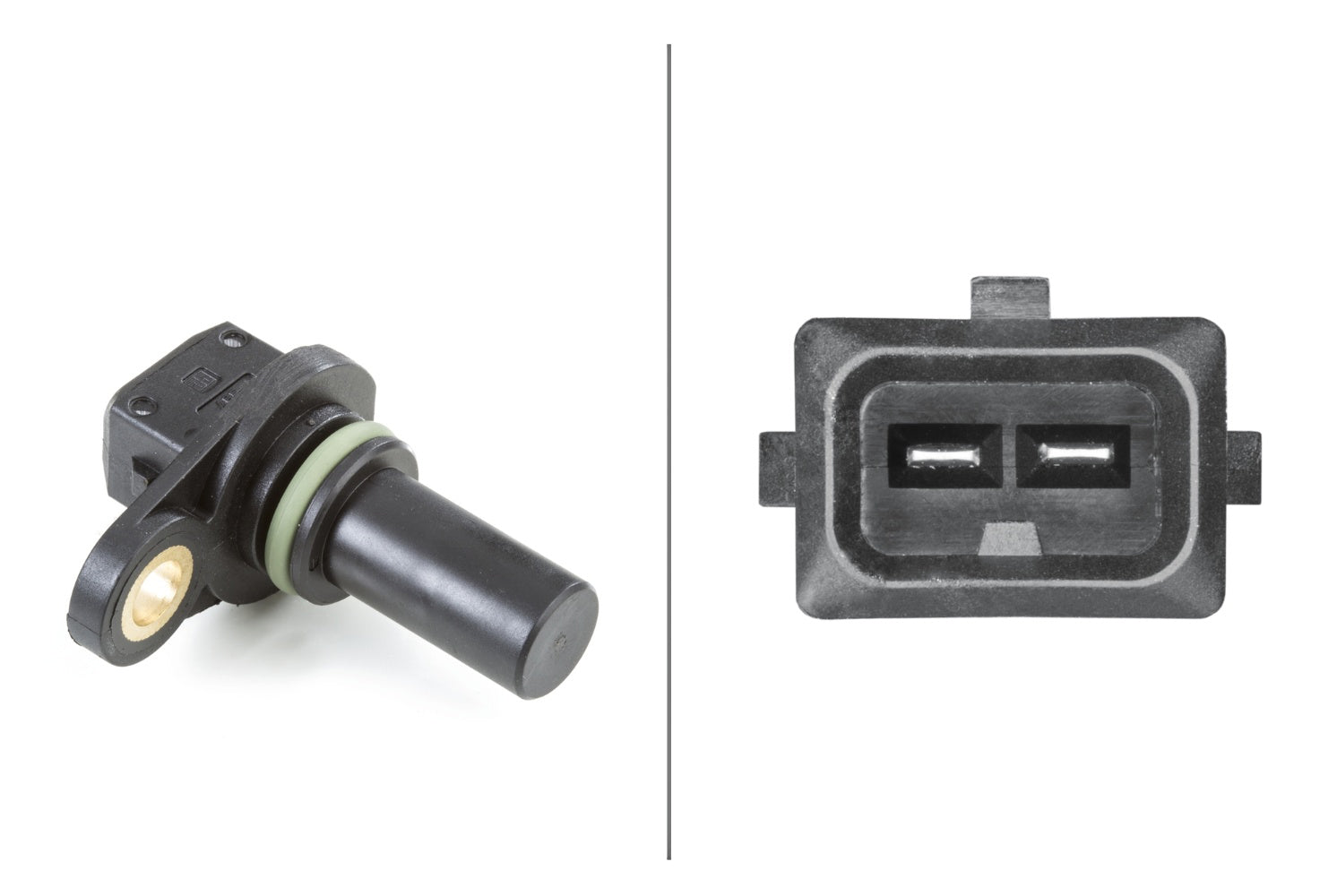

HELLA Sensor, speed/RPM - 12V - 2-pin connector 6PU009145-011

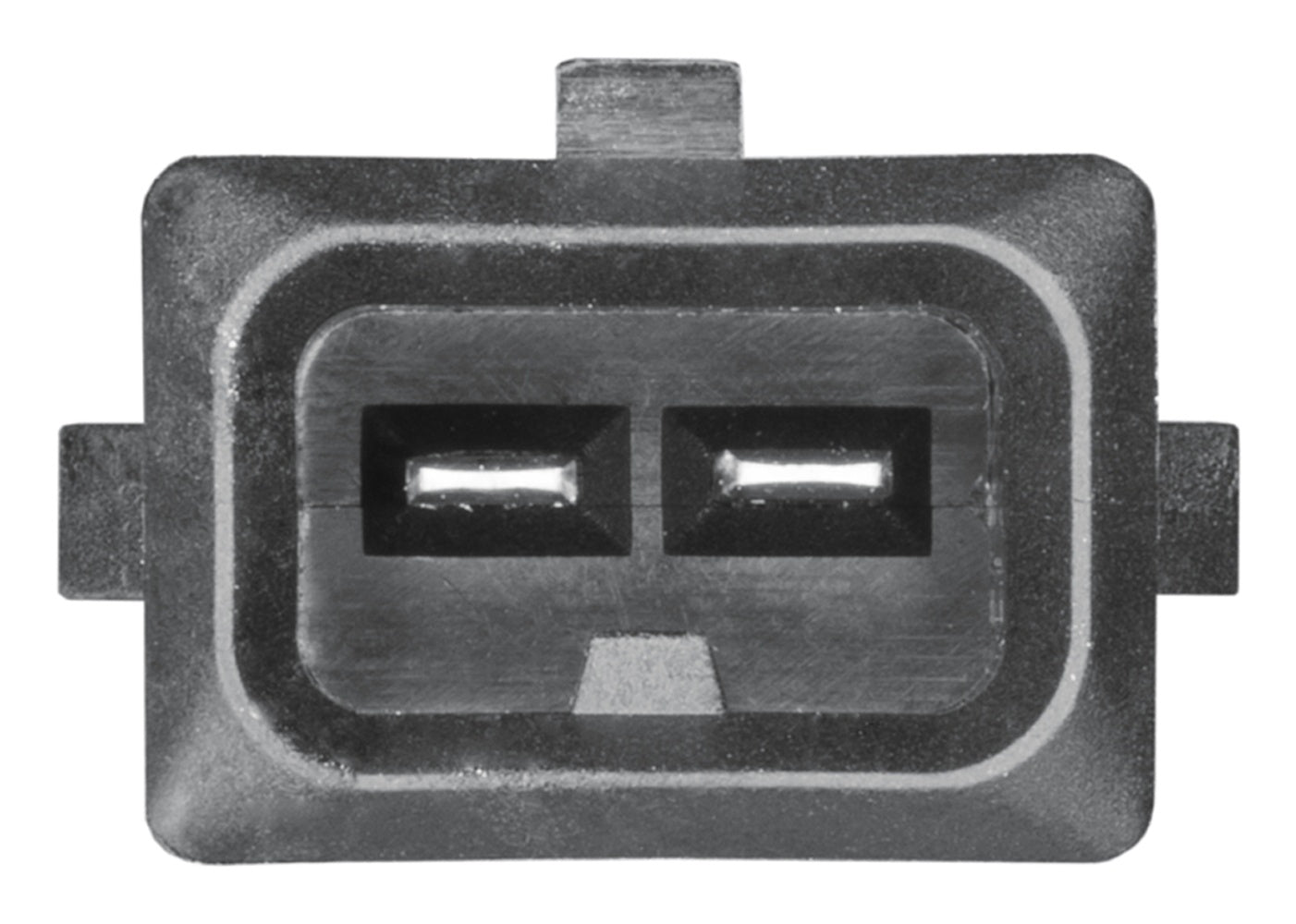

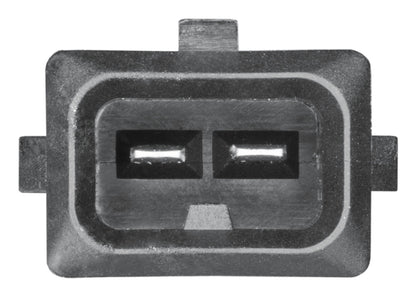

Sensor, speed/RPM - 12V - 2-pin connector - Connector Shape: angular

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits from this long-standing original equipment expertise with the successful transfer of its OE know-how. Speed sensors such as the camshaft or crankshaft sensor are required to map the engine speed and the exact position of the crankshaft. The control unit uses these values to calculate the injection and ignition pulses. HELLA offers a leading range of top-quality products for almost every application.

• fits e.g. VW Golf IV (1J1) (please check exact vehicle application)
• Inductive Sensor
• Corresponds to the original part in colour: Black
• Highest measuring precision in a wide ambient temperature range
• Low maintenance and downtime due to high quality
• Broad product range
• Compliance with OEM specification

Item Attributes:
Voltage: 12 V
Temperature range from: 24.5 °C
Temperature range to: 25.5 °C
Resistor: 1000 Ohm
Number of pins: 2 -pin connector
Corresponds to the original part in colour: Black
Sensor Type: Inductive Sensor
Plug: Blade Terminal
Connector Shape: angular
Tolerance: 10 %
Assembly by qualified personnel required!

OE references: AUDI 086 927 321; AUDI 095 927 321; AUDI 095 927 321 A; AUDI 095 927 321 C; VW 086 927 321; VW 095 927 321; VW 095 927 321 A; VW 095 927 321 C
