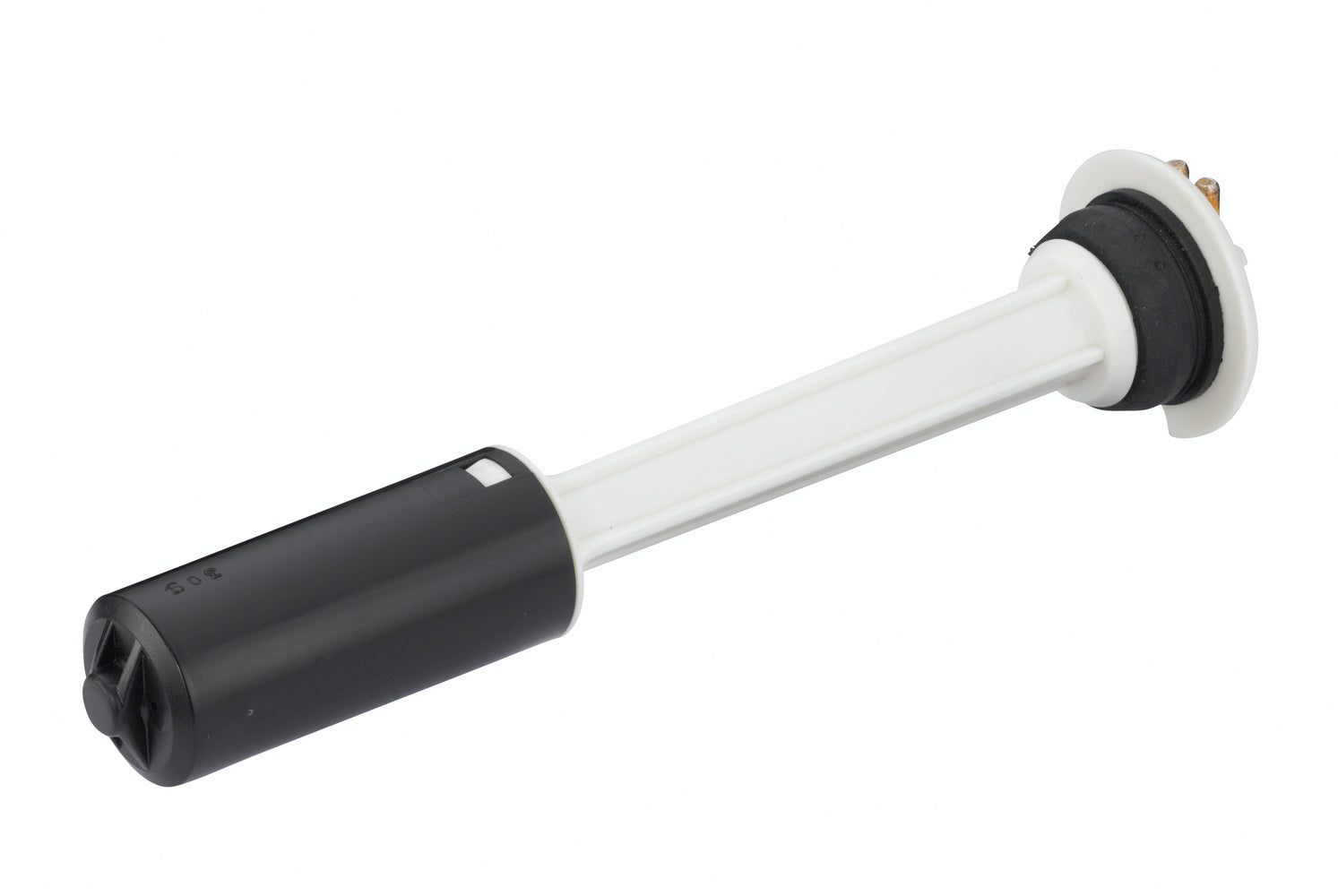

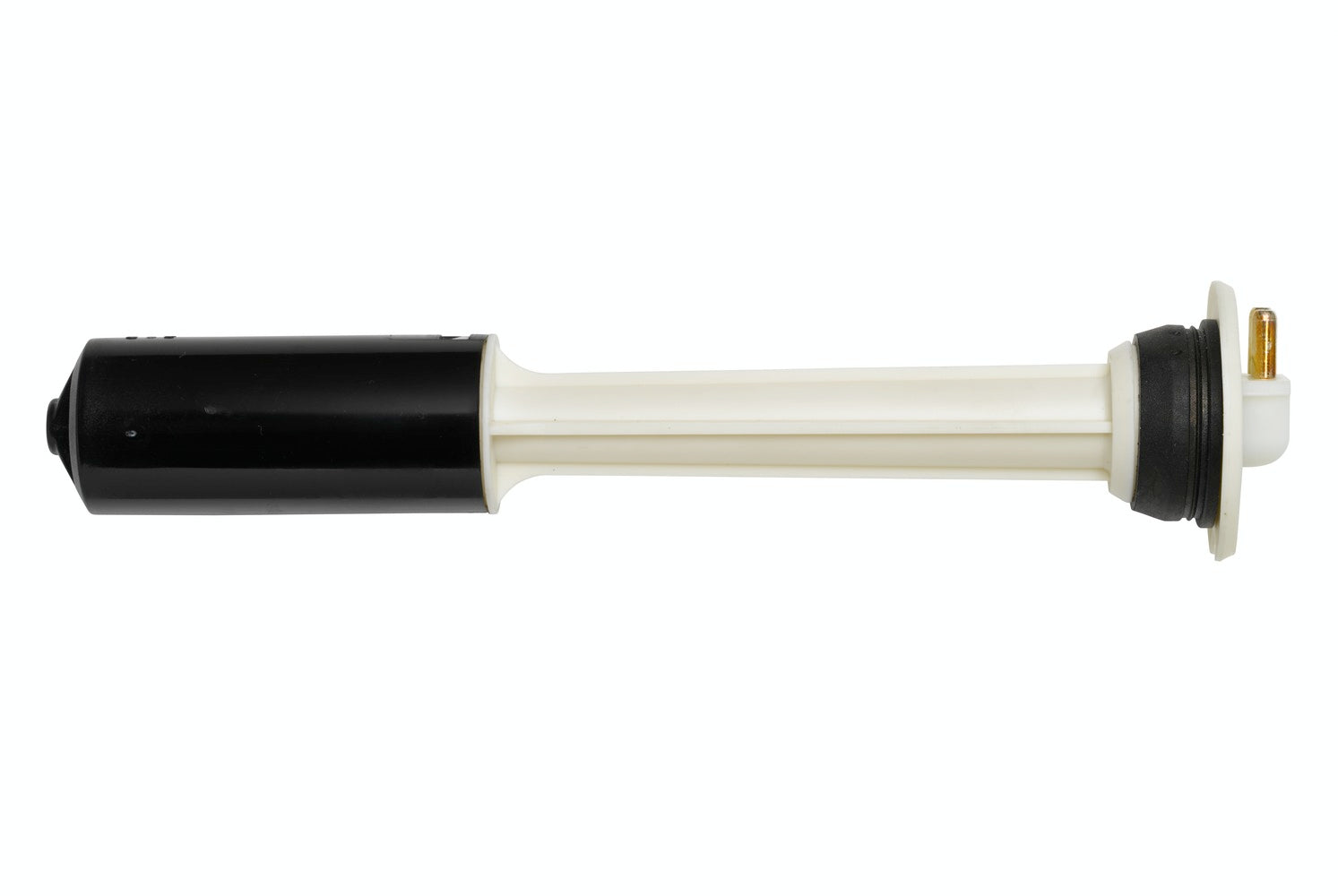

HELLA Sensor, washer fluid level - 12V 6PR005729-061

Sensor, washer fluid level - 12V

The proportion of electronics in vehicles has increased continuously in recent years. A development in which HELLA has long played a special role as an innovation leader in the field of automotive original equipment. The independent aftermarket also benefits in particular from this long-standing original equipment expertise - because HELLA successfully transfers its comprehensive OE know-how to this area and makes optimum use of the existing expert knowledge in this way. The HELLA oil level sensor reliably and continuously measures the level of the most important operating fluid in a combustion engine - the oil. In addition to the level sensor, a temperature sensor is integrated in it, as well as the sensor electronics to transmit the values to the engine control unit. Reporting a low oil level to the driver in good time can prevent costly engine damage. The level sensor is also suitable for the reliable measurement of other operating fluids such as coolant or windscreen washer water.

• fits e.g. Mercedes-Benz C-Class (W202) (please check exact vehicle application)
• Number of connectors: 2
• Normally Open Contact
• Housing Colour: black/white

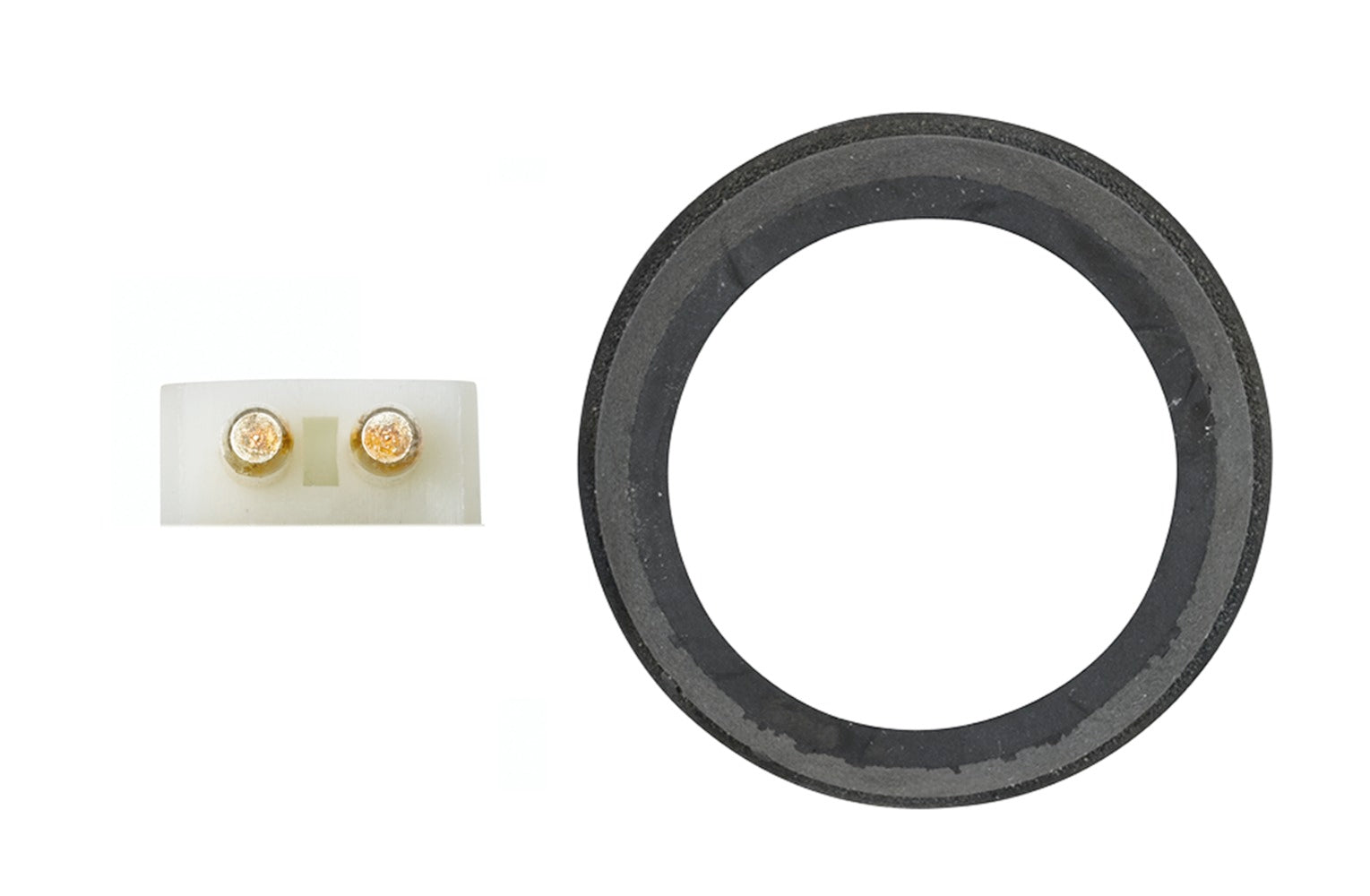

• Number of connections: 2, connector version: Round plug
• Switch function: N/O contact
• Voltage: 12 V, nominal power: 1.2 W

Item Attributes:
Height: 193 mm
Voltage: 12 V
Rated Power: 1,2 W
Number of connectors: 2
Housing Colour: black / white
Switch Function: Normally Open Contact
Plug: Round Plug
Assembly by qualified personnel required!

OE references: MACK 4381 66305; MERCEDES-BENZ 210 540 00 45; MERCEDES-BENZ A 210 540 00 45
