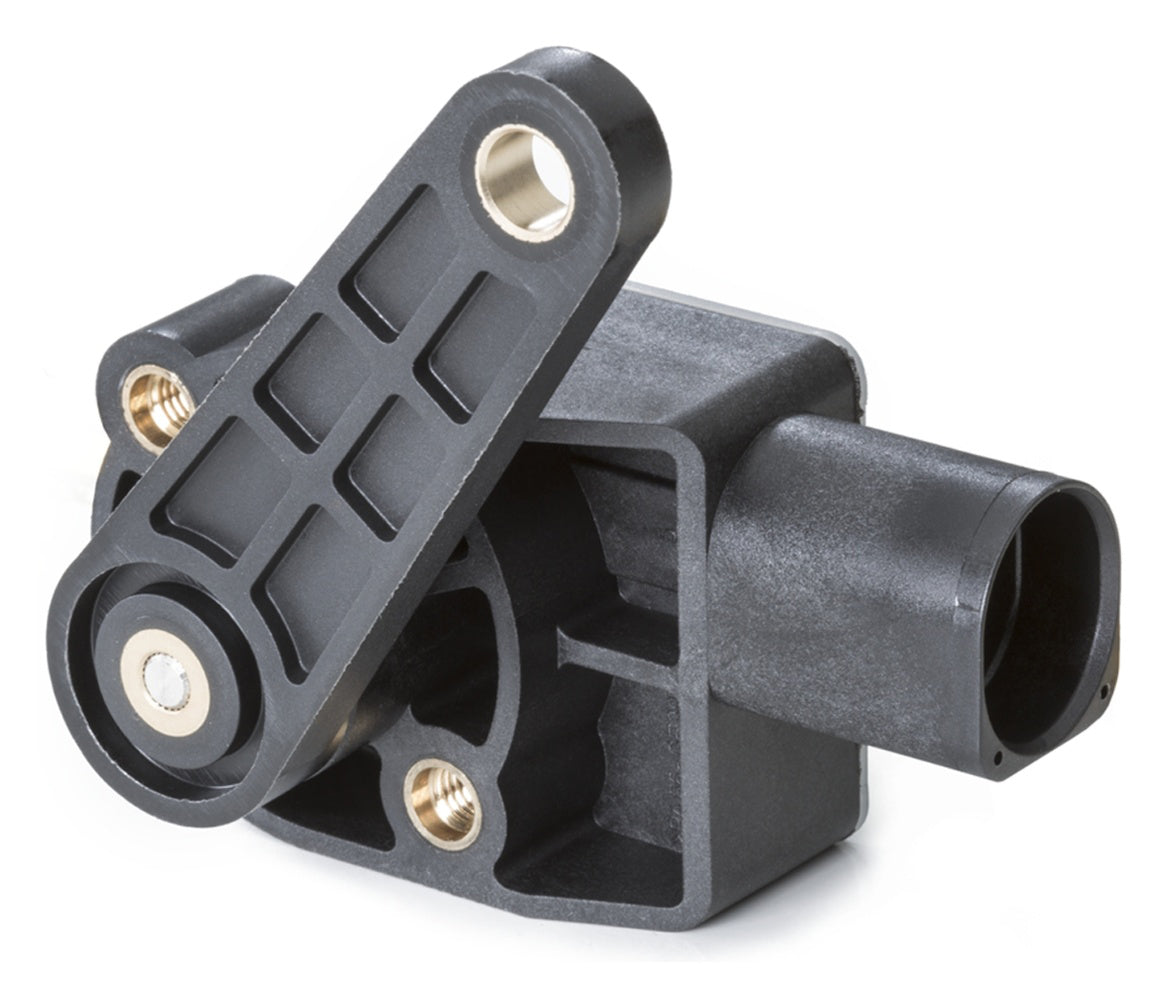

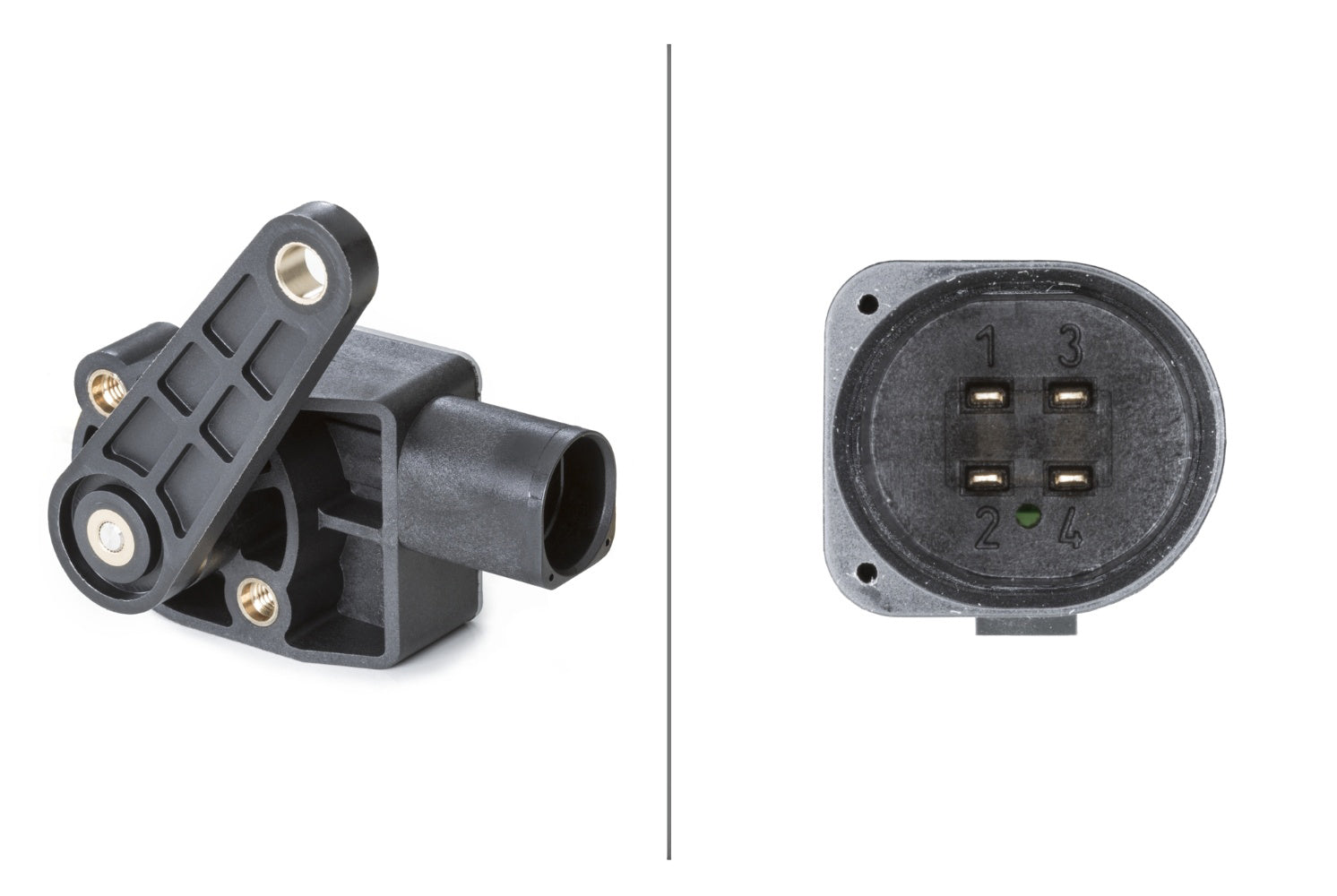

HELLA Sensor, Xenon light (headlight levelling) - 4-pin connector 6PM008739-001

Sensor, Xenon light (headlight levelling) - 4-pin connector - ECE

As a technology leader in intelligent light distributions, halogen, xenon and LED headlights and as a partner of renowned international car manufacturers, HELLA constantly meets the highest requirements and quality standards. In practice, this means the best vision through optimal light quality. The headlamp levelling system adjusts the angle and thus the beam of the headlamp so that the road is suitably illuminated and there is no unnecessary dazzling of oncoming traffic. Environmental conditions play a major role in the accurate collection of data. For example, an angle-of-rotation sensor that measures the vehicle's inclination (deflection values) and is used for level and/or headlamp levelling is placed virtually openly in the vehicle's suspension area and is thus exposed to adverse conditions in some cases. This makes the insensitivity of the rotation angle sensor to wetness and temperature changes all the more important. The actuating mechanism must be smooth-running and robust against mechanical effects and environmental influences. The actual movement is converted into a rotary movement by means of a metal or plastic connecting element via a rotor. The sensor measures the exact angle of rotation using the induction method. Based on the values, the headlight range (bright/dark limit) of the headlights is regulated via the headlight range control unit using electrical actuators.

• fits e.g. VW Golf V (1K1) (please check exact vehicle application)
• Temperature range from: -40°C - Temperature range to: +125°C
• Housing Colour: Black - Prot.type (IP Code): IP6K9K
• With ECE approval
• Number of connections: 4-pole
• Protection class: IP 6K9K
• Housing colour: black

Item Attributes:
Temperature range from: -40 °C
Temperature range to: +125 °C
Registration Type: ECE
Prot.type (IP Code): IP6K9K
Housing Colour: black

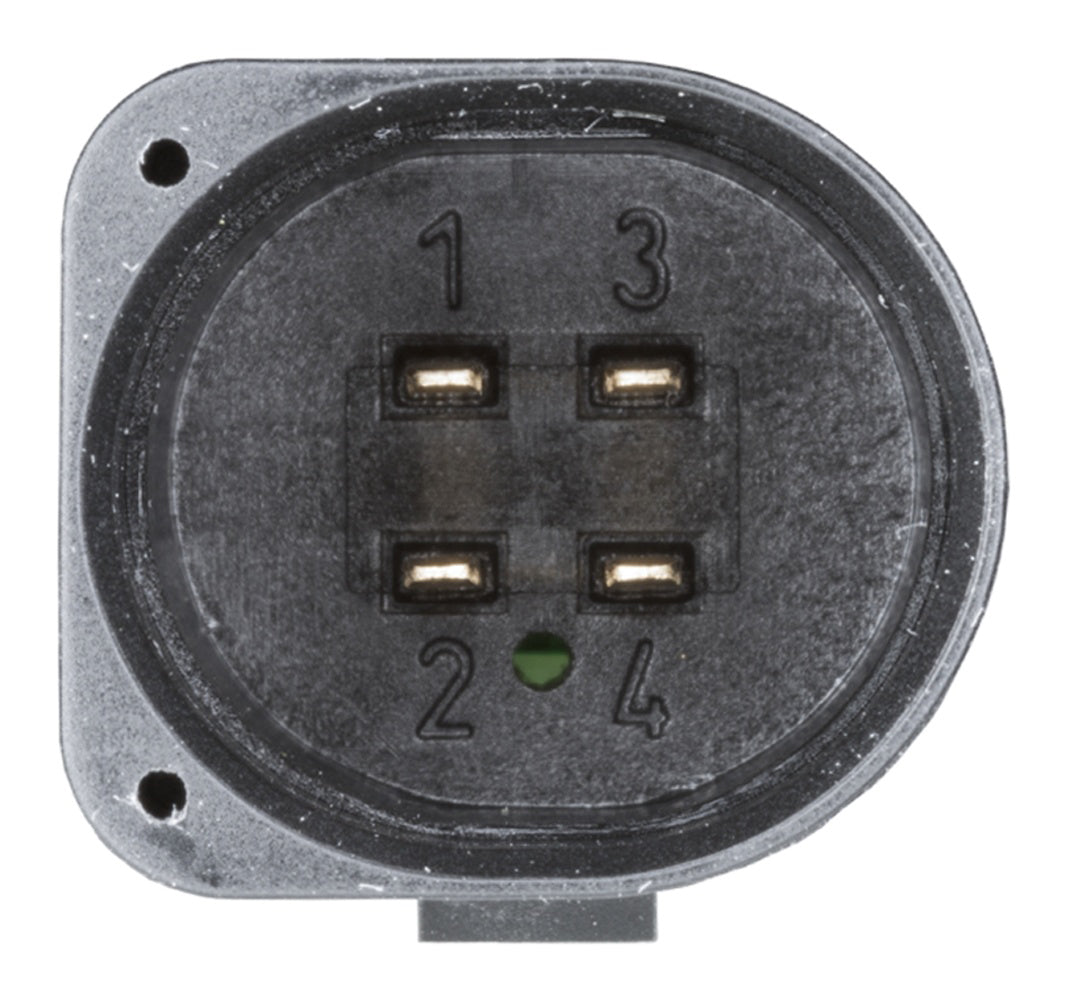

Number of pins: 4 -pin connector
SVHC: 1303-86-2; Diboron trioxide / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AUDI 1T0 907 503; MERCEDES-BENZ 906 542 01 18 ; MERCEDES-BENZ A 906 542 01 18 ; SKODA 1T0 907 503; VW 1T0 907 503
