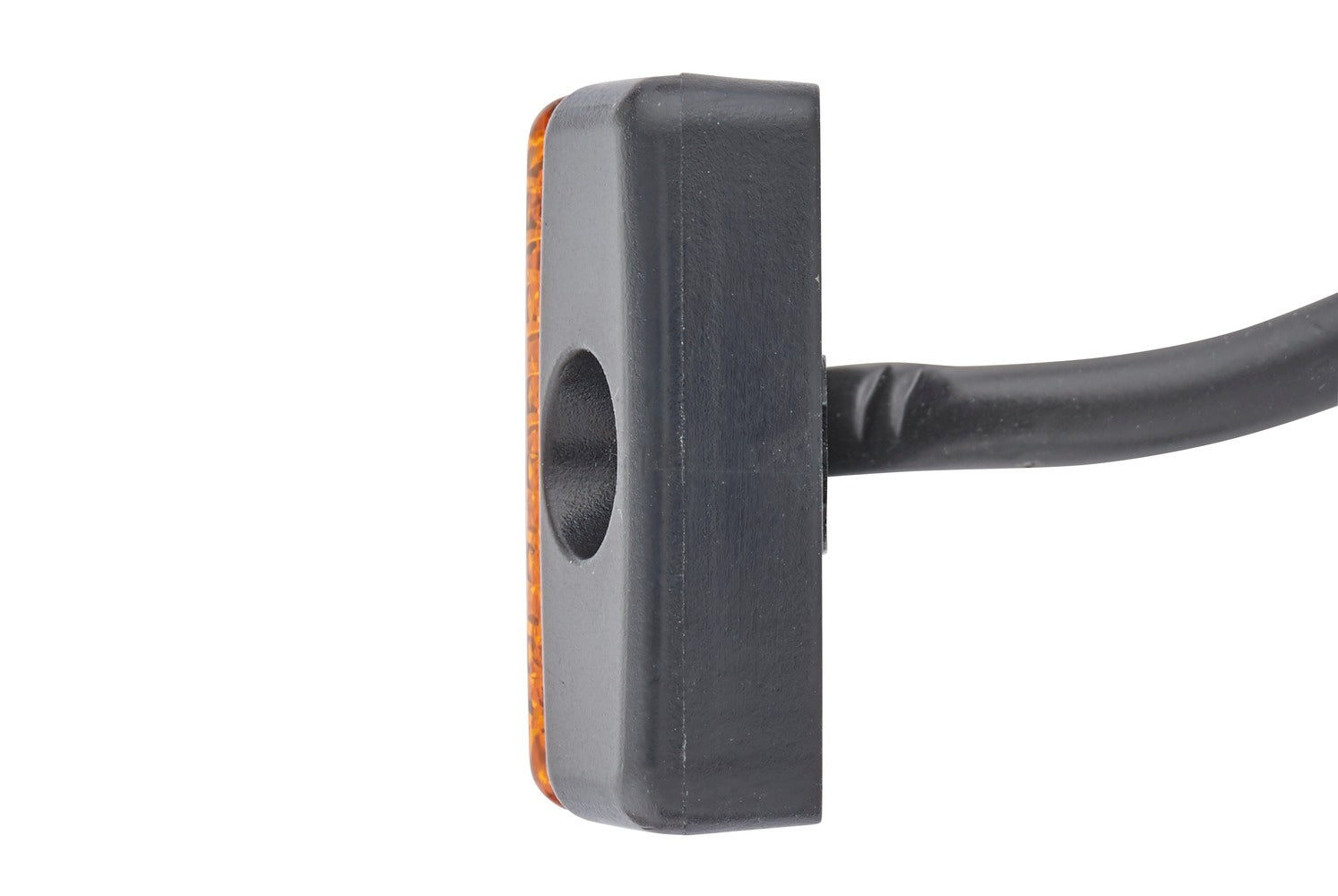

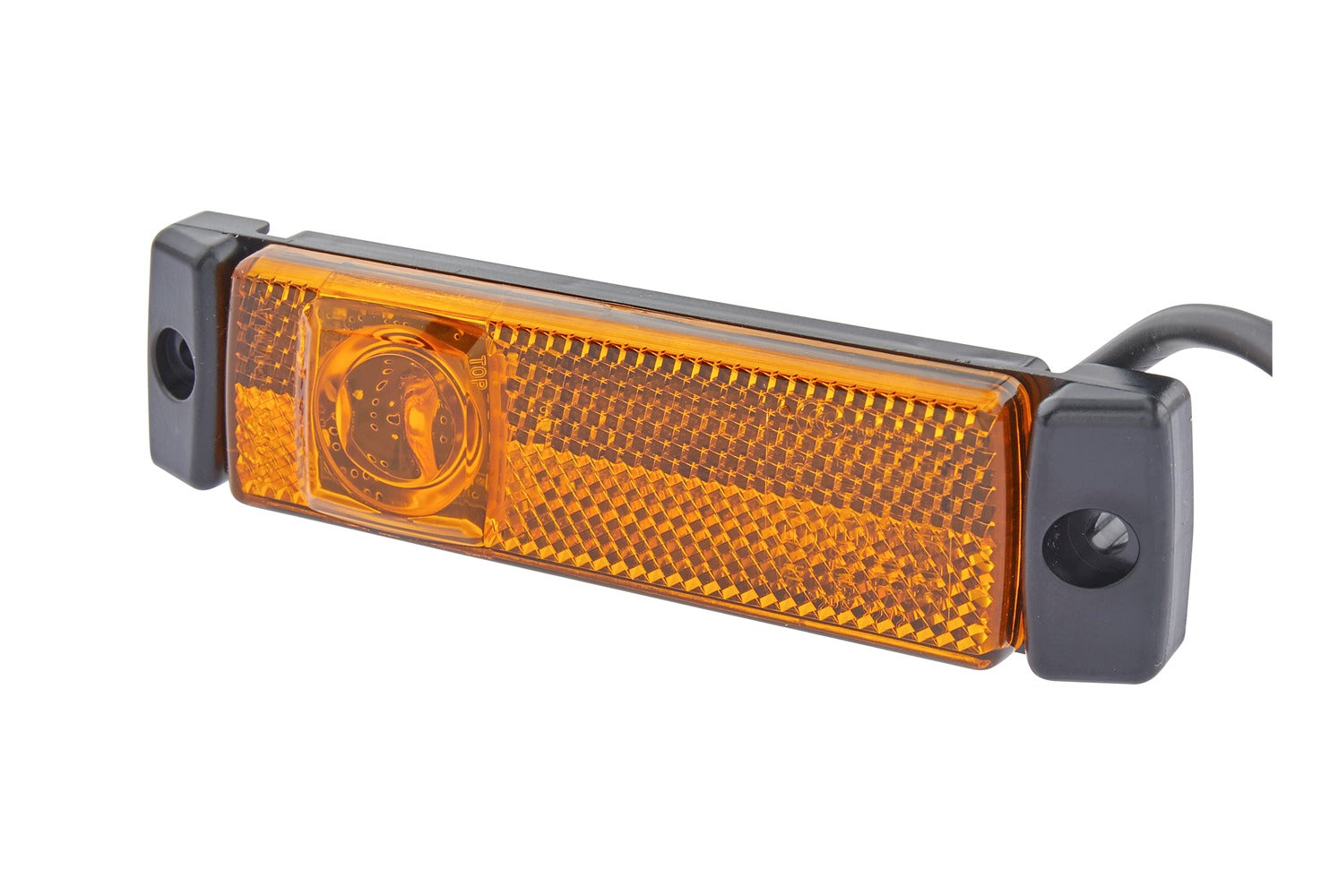

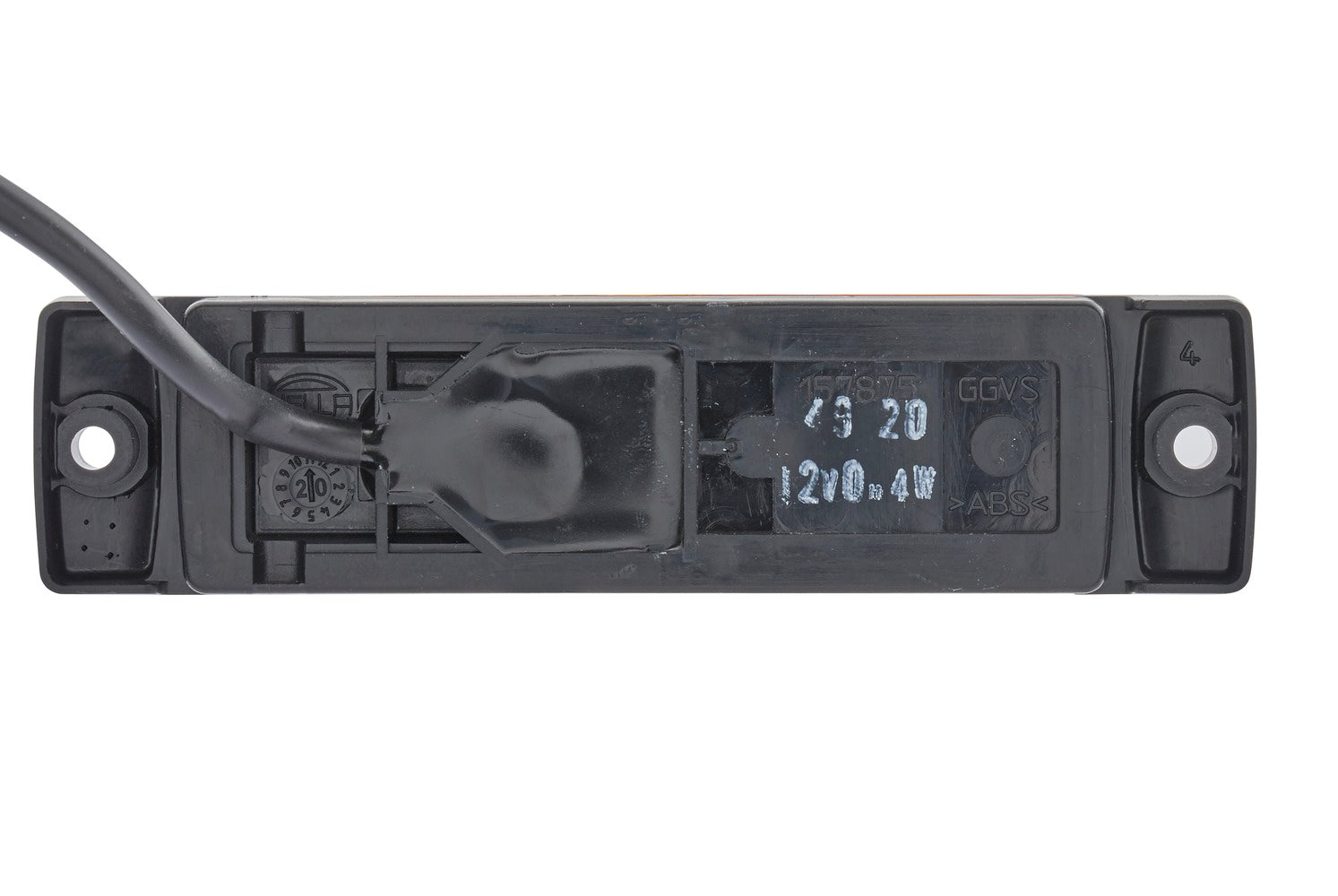

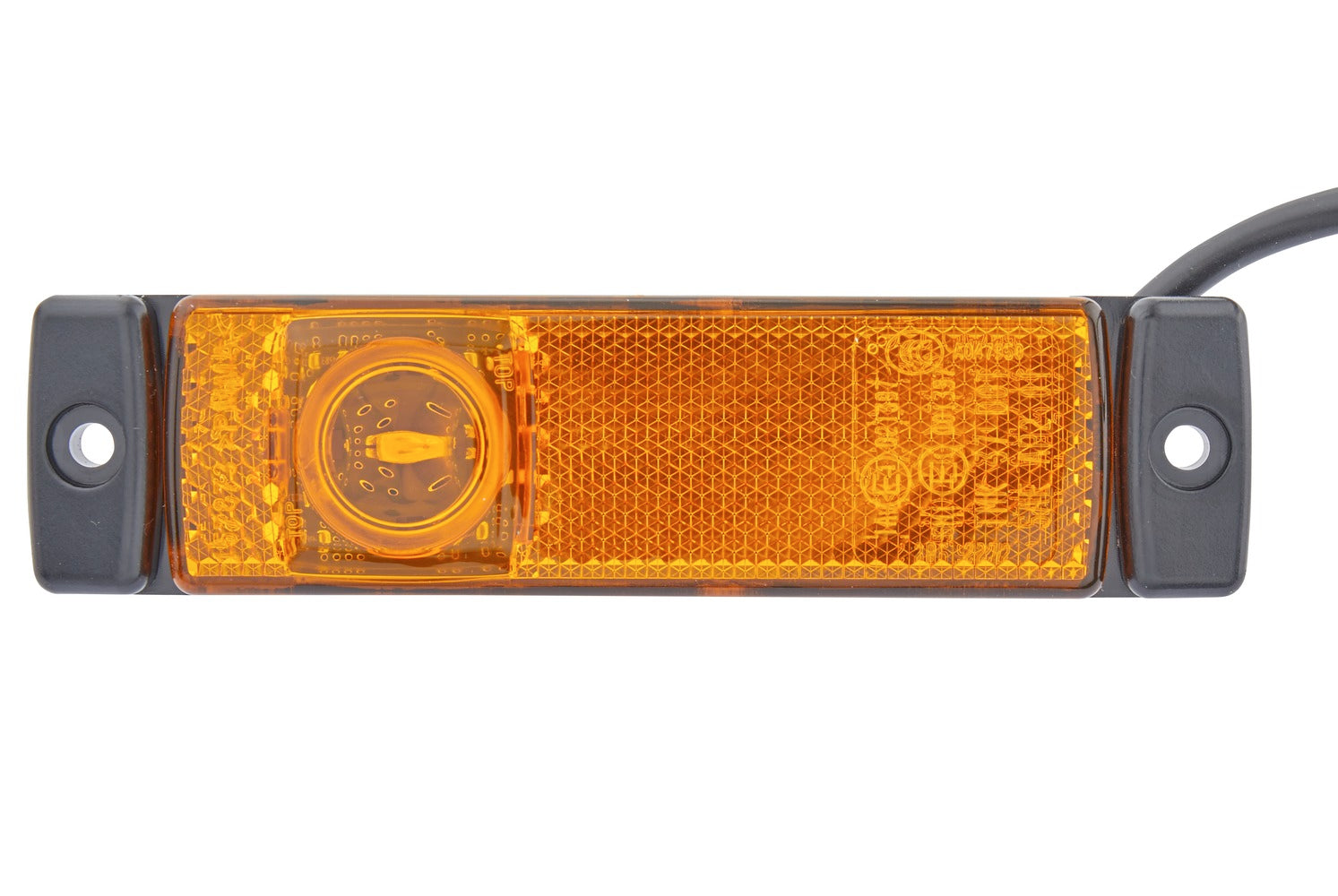

HELLA Side Marker Light - LED - 12V 2PS008645-981

Side Marker Light - LED - 12V - Screw Connection/mounting - CCC/SAE/ADR/GGVS - Lens Colour: yellow (amber) - Cable: 1500mm - Plug: open cable ends - 2-pin connector - right/left - Quantity: 1

HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark. Especially vehicles with large dimensions such as combine harvesters, long transporters, etc. can be displayed much better in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known high HELLA quality.

• LED side marker reflector luminaire for vertical surface-mounting (left / right) - with ECE / SAE / CCC approval, ADR/GGVS-tested
• The side marker light has 2 light functions: Side marker light / reflector
• With 1 LED, with 1.5 m cable, black housing, holes for fixing screws B4.2
• Length: 130mm - Width: 32mm - Height: 16mm - Lamp Type: LED - Number of LEDs: 1 - with pipe
• Light functions: 2 - with reflector/with side marker light (LED)
• Registration Type: CCC/SAE/ADR/GGVS - fulfils ECE standard: R3/R91 - Prot.type (IP Code): IP6K9K
• Housing with Plastic Lid - Housing Colour: black - LED colour: yellow (amber) - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: for vertical fastening
Light Design: LED
Lamp Type: LED
Voltage: 12 V
Fitting Position: right / left
Height: 16 mm
Width: 32 mm
Length: 130 mm
Light Function: with reflector / with side marker light (LED)
Light functions: 2

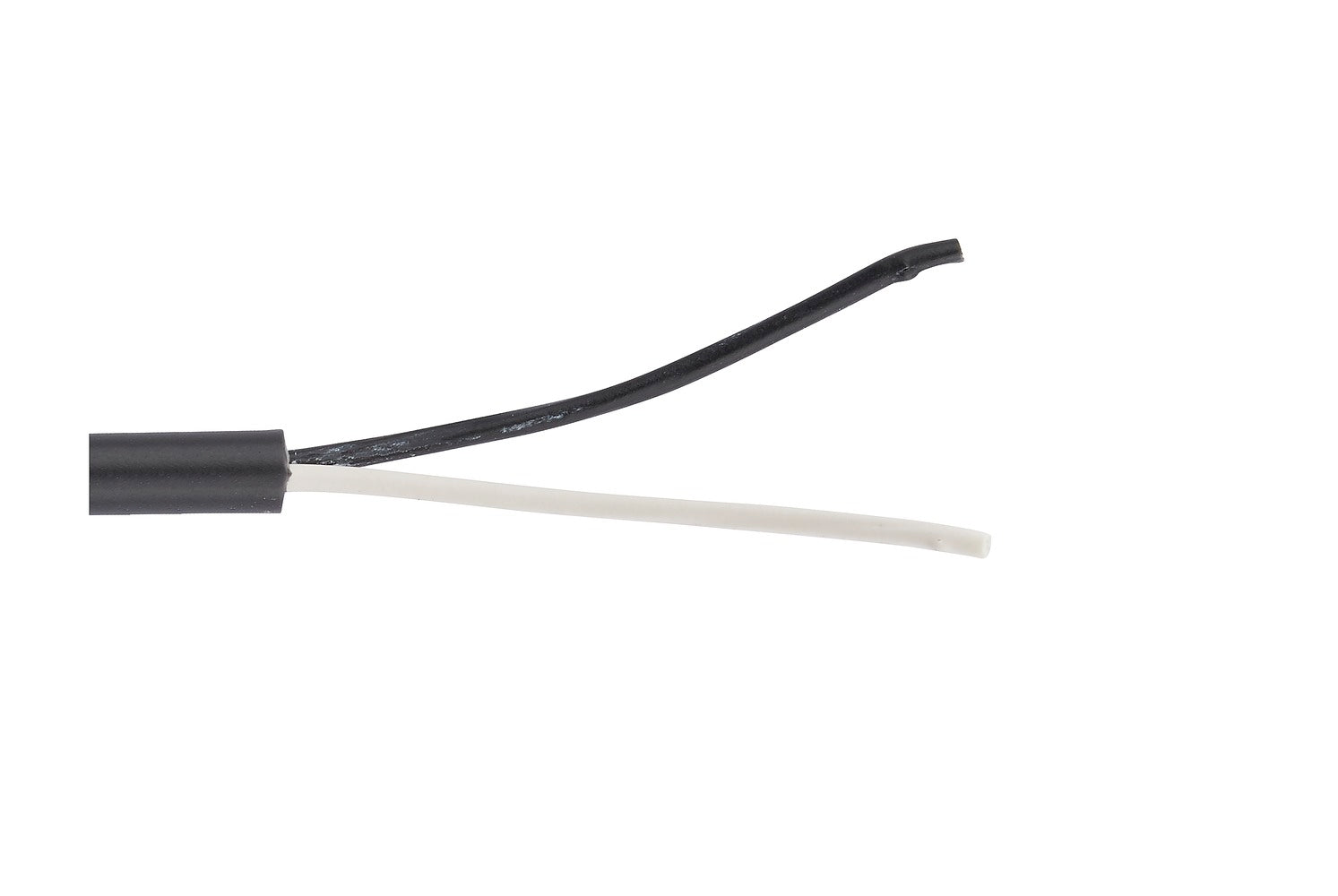

Plug: open cable ends
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R91 / R3
Registration Type: CCC / ADR/GGVS / SAE
Number of LEDs: 1
LED colour: yellow (amber)
Cable: 1500 mm
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Power consumption: 0.4 W
Supplementary Article/Supplementary Info 2: with pipe
Number of pins: 2 -pin connector
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1701119; IVECO 503270058; ROSENBAUER 525386; ROSENBAUER FE2324; SCANIA 2050994; ZIEGLER 1047499
