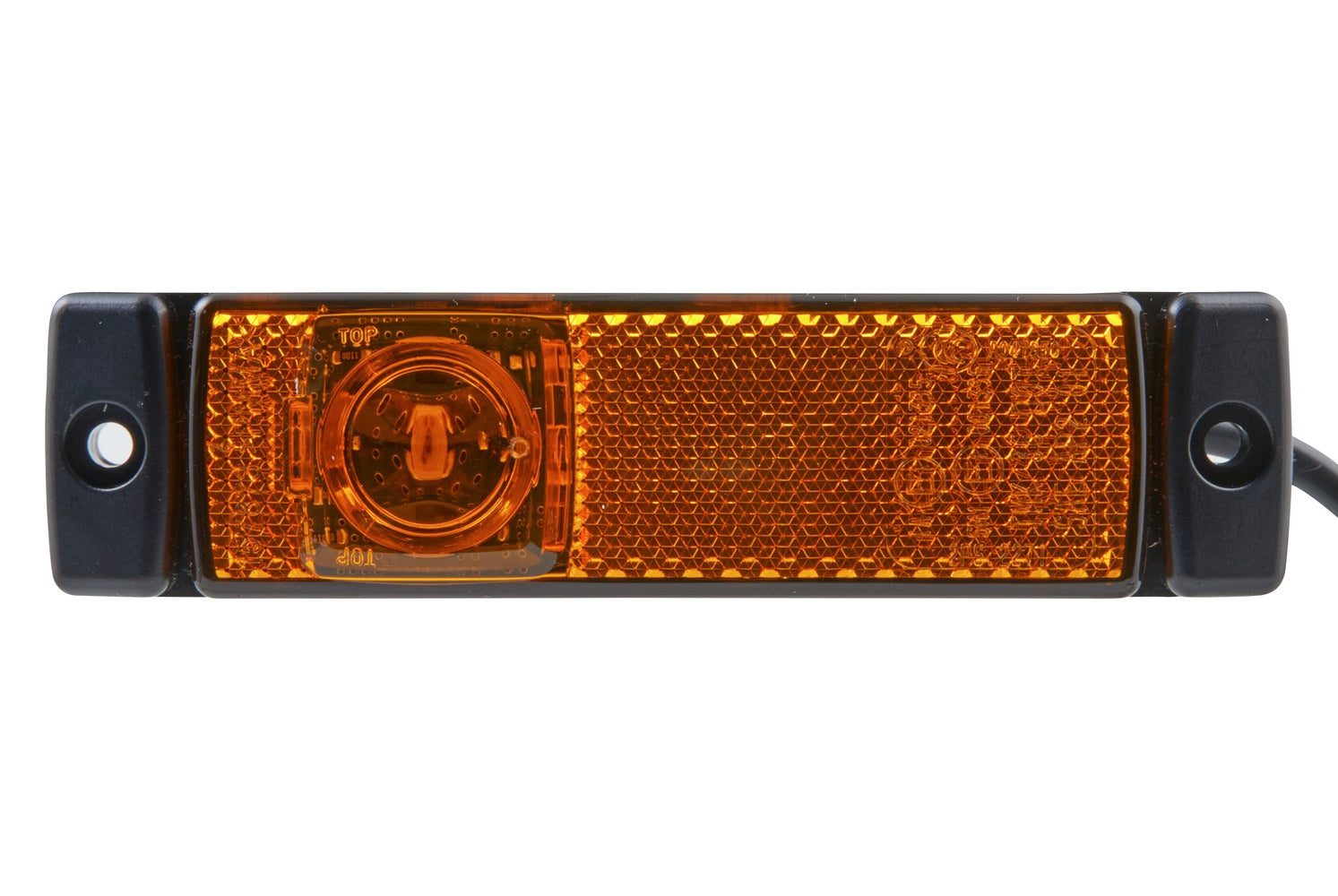

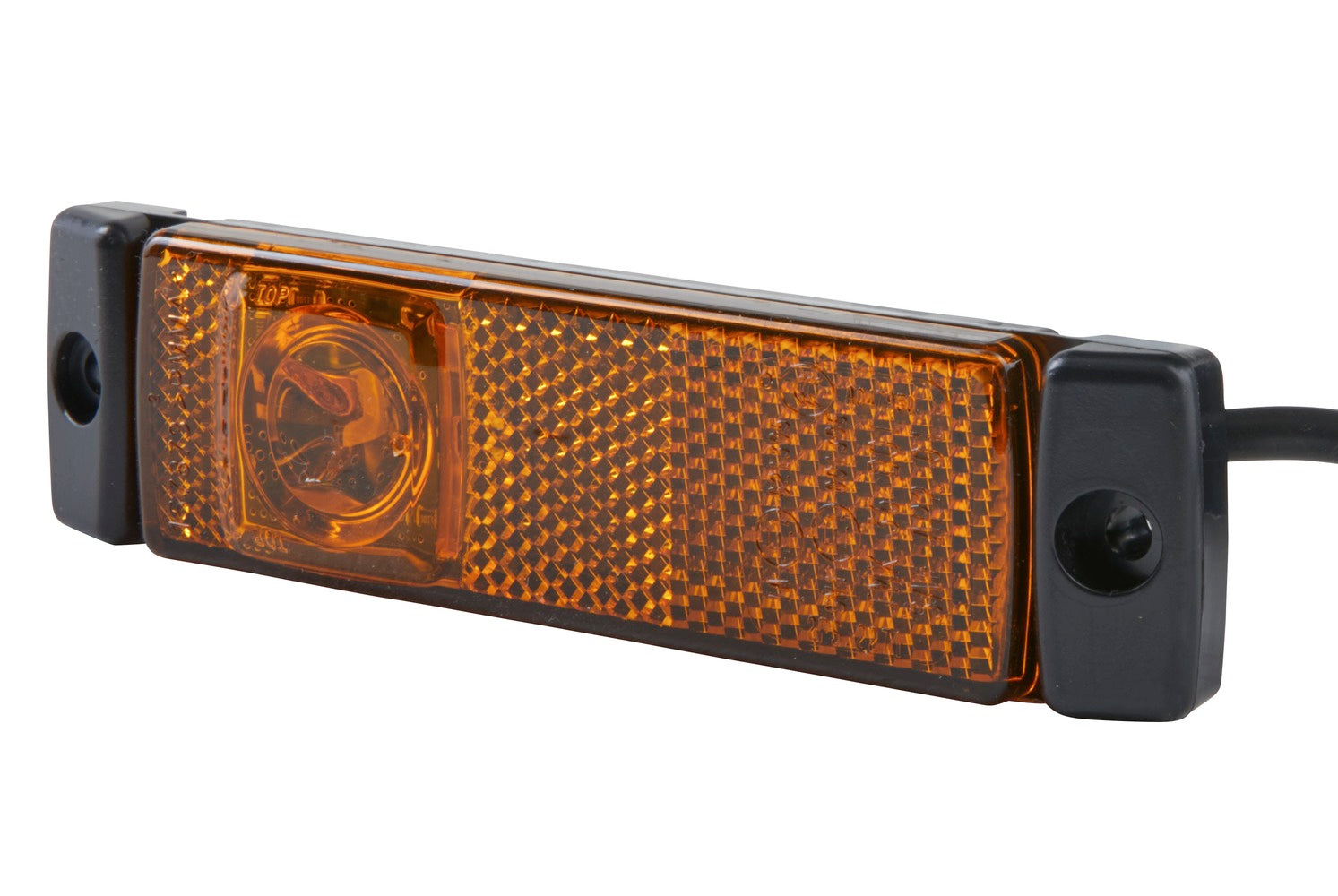

HELLA Side Marker Light - LED - 24V 2PS008645-301

Side Marker Light - LED - 24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 300mm - Plug: EasyConn - Plug: open cable ends - 2-pin connector - Lateral Mounting - Quanti

HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark. Especially vehicles with large dimensions such as combine harvesters, long transporters, etc. can be displayed much better in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known high HELLA quality.

• LED side marker reflector luminaire for horizontal, side mounting - with ECE approval, ADR/GGVS-tested
• The side marker light has 2 light functions: Side marker light / reflector

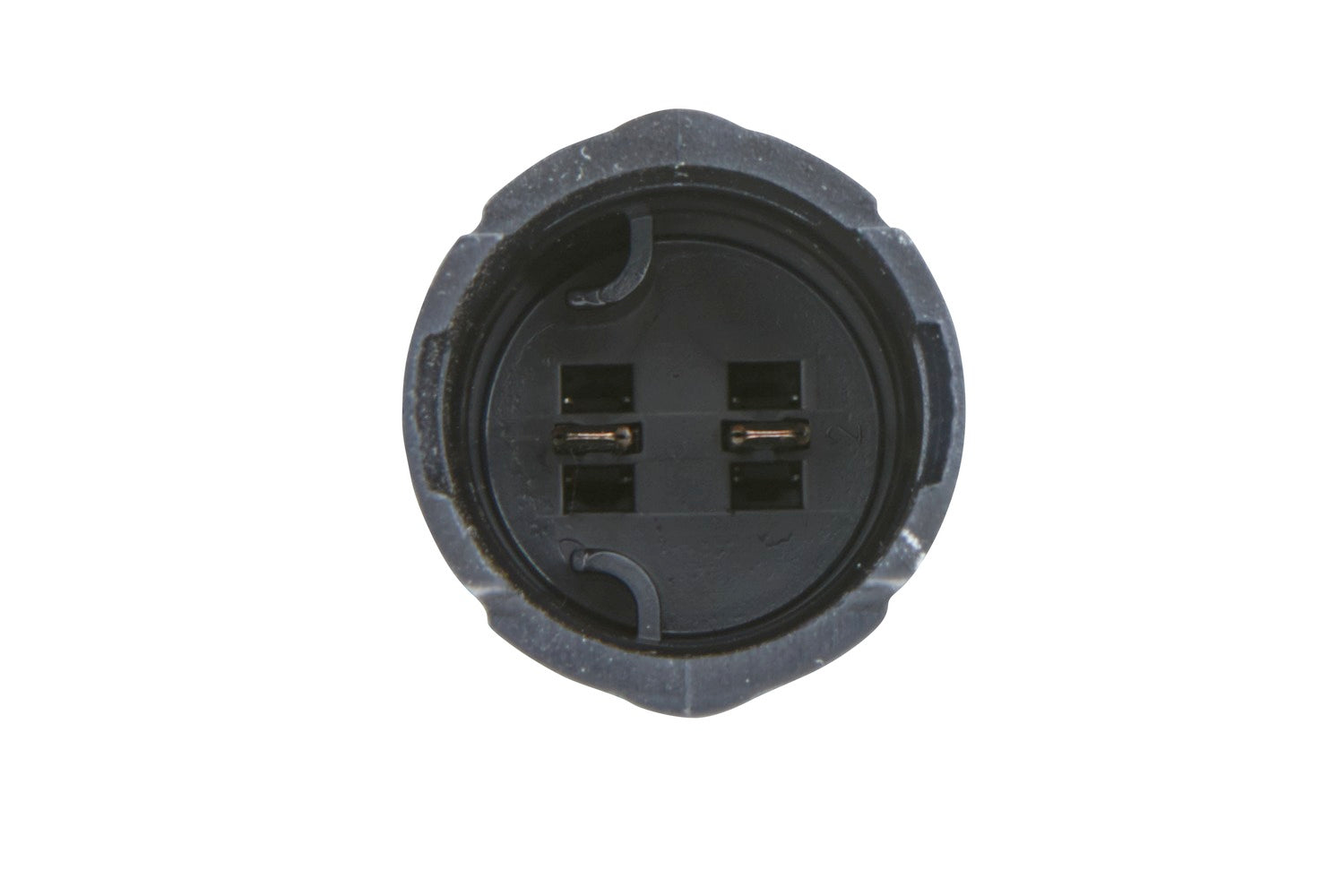

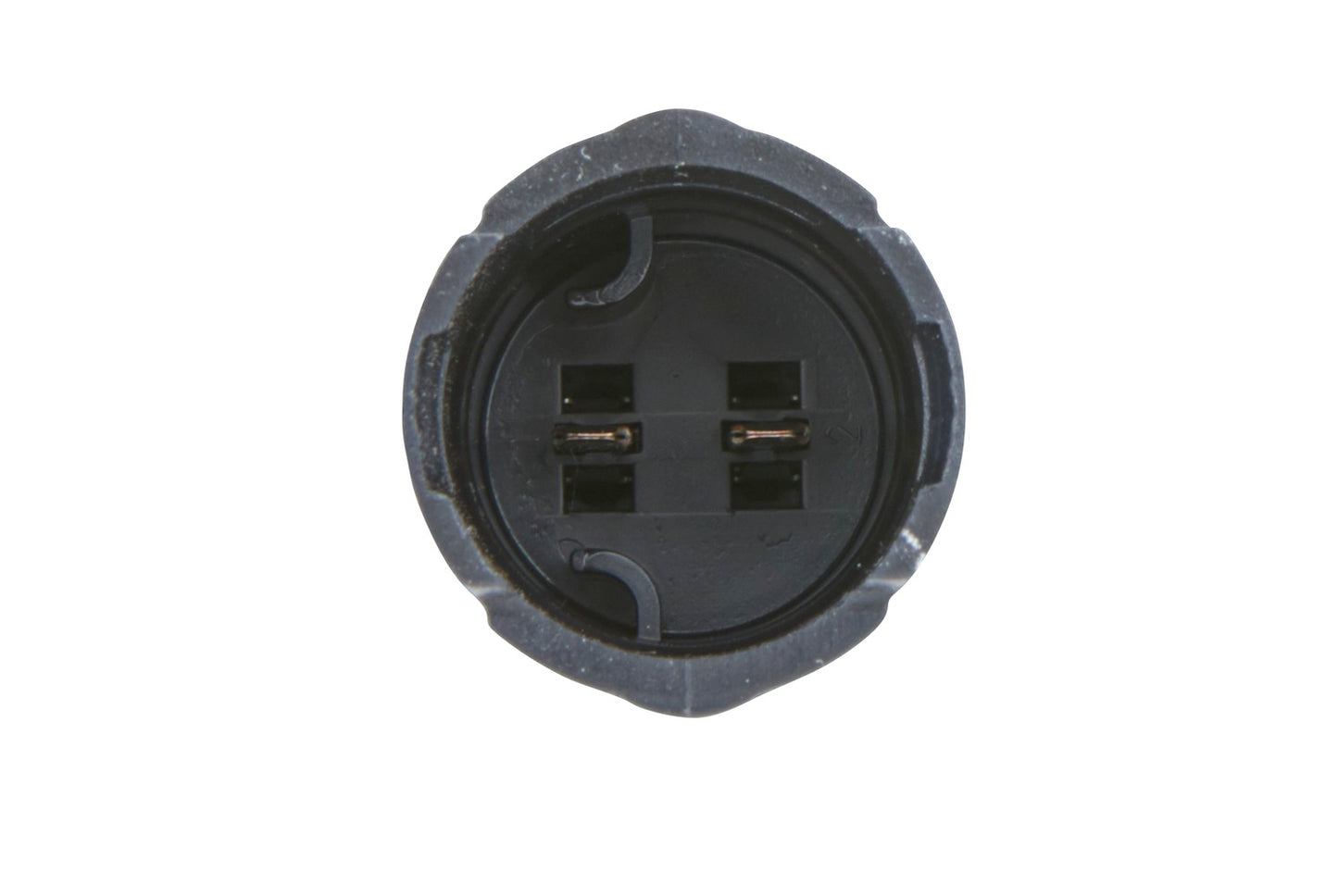

• With 1 yellow LED 24V1.2W, with 2-pole EasyConn receptacle, with 300 mm cable, black housing, 2 holes for fixing screws B4.2
• Length: 130mm - Width: 32mm - Height: 16mm - Lamp Type: LED - Number of LEDs: 1
• Light functions: 2 - with reflector/with side marker light (LED)
• Registration Type: ADR/GGVS - fulfils ECE standard: R91/R3 - Prot.type (IP Code): IP6K9K
• Housing with Plastic Lid - Housing Colour: black - LED colour: yellow (amber) - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: mounting / Screw Connection
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 24 V
Fitting Position: Lateral Mounting
Height: 16 mm
Width: 32 mm
Length: 130 mm
Light Function: with side marker light (LED) / with reflector
Light functions: 2
Plug: open cable ends
Plug: EasyConn
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R3 / R91
Registration Type: ADR/GGVS
Number of LEDs: 1
LED colour: yellow (amber)
Cable: 300 mm
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Power consumption: 1 W
Number of pins: 2 -pin connector
Quantity: 1
Assembly by qualified personnel required!

OE references: DAF 1526495; DOLL 7100457; FELDBINDER 1086266; FRUEHAUF L-SA0083-001; HOLMER 1020042787; KEMPF 96317; LIEBHERR 1 017 079 8; REISCH 5015488; SCANIA 2197428
