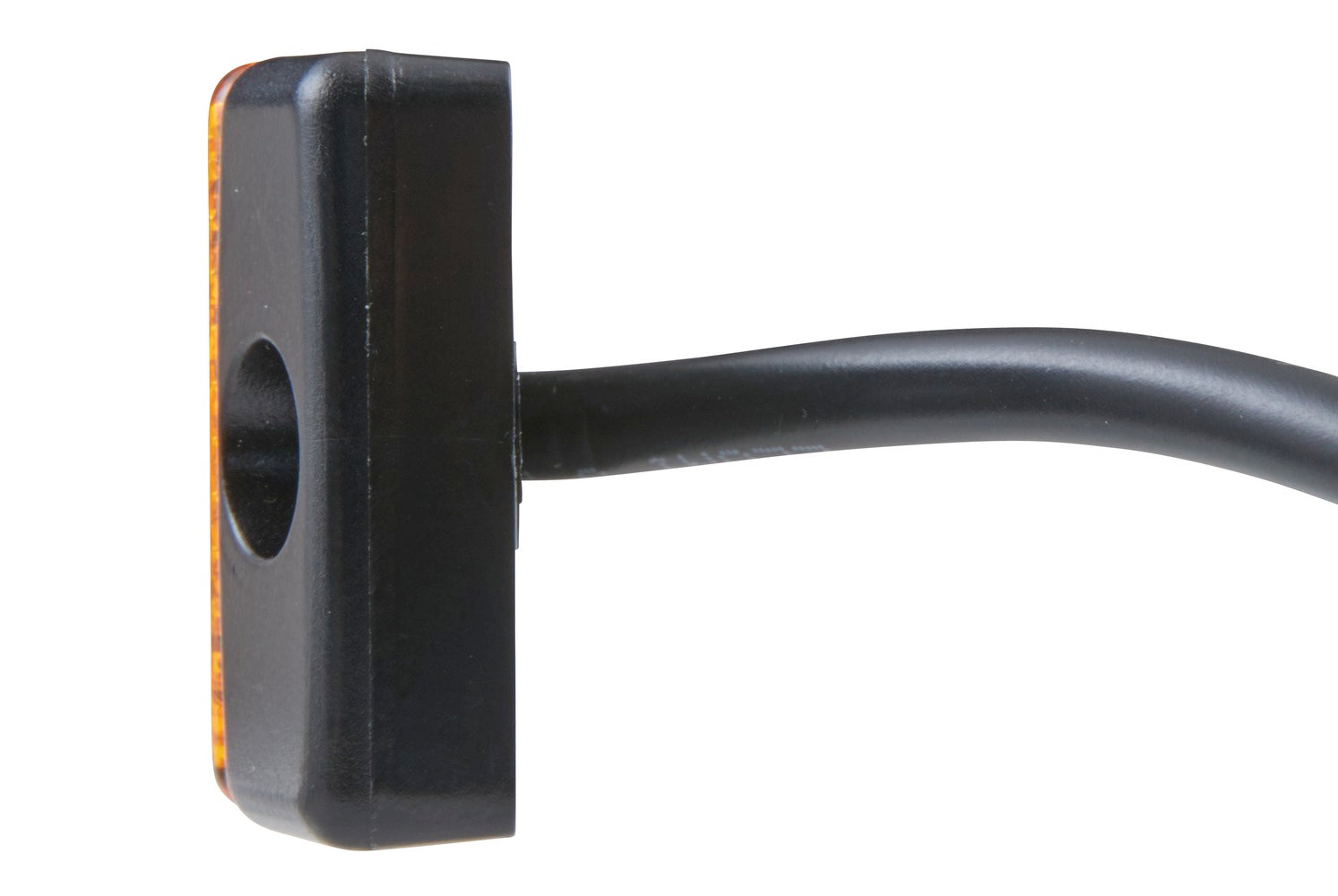

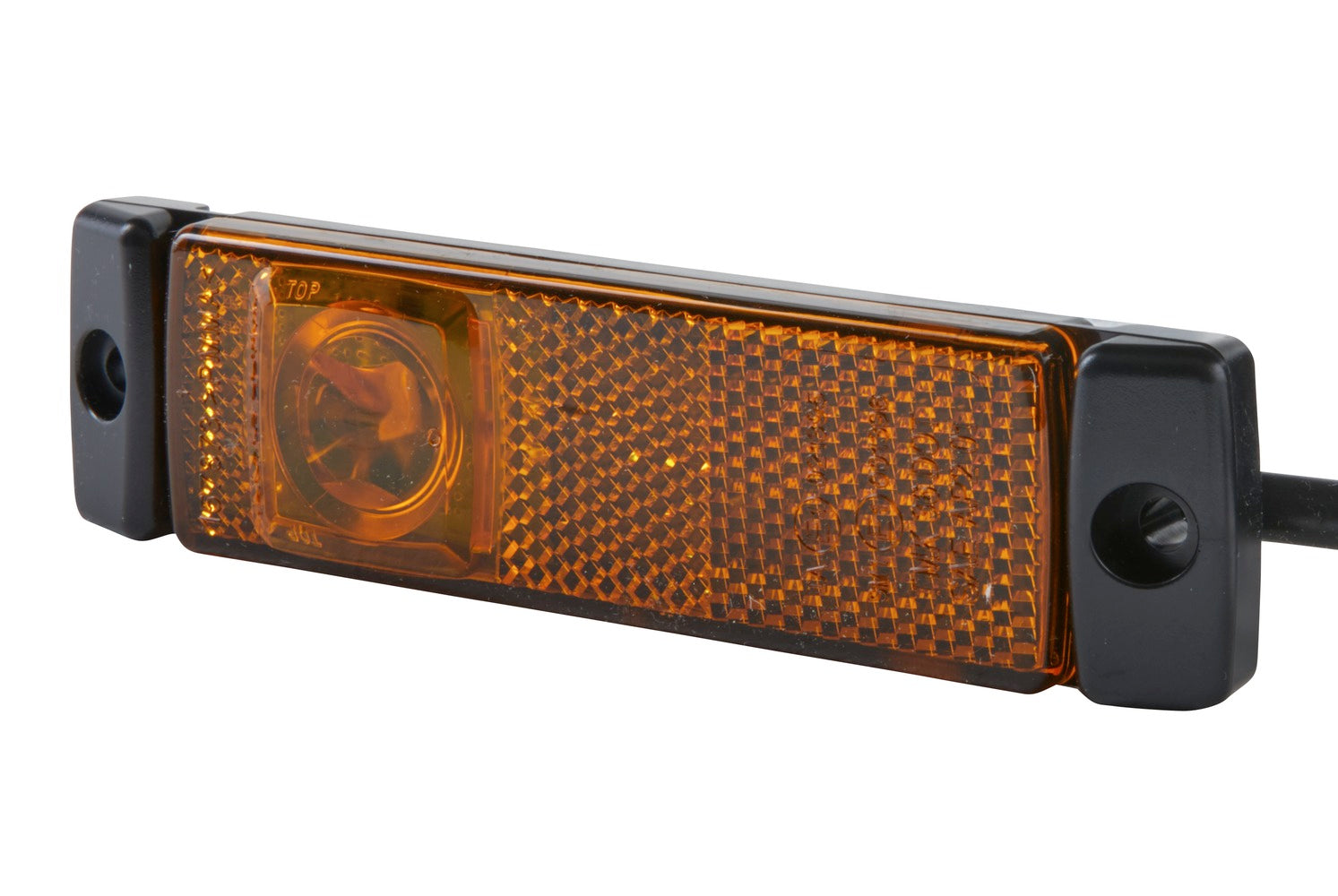

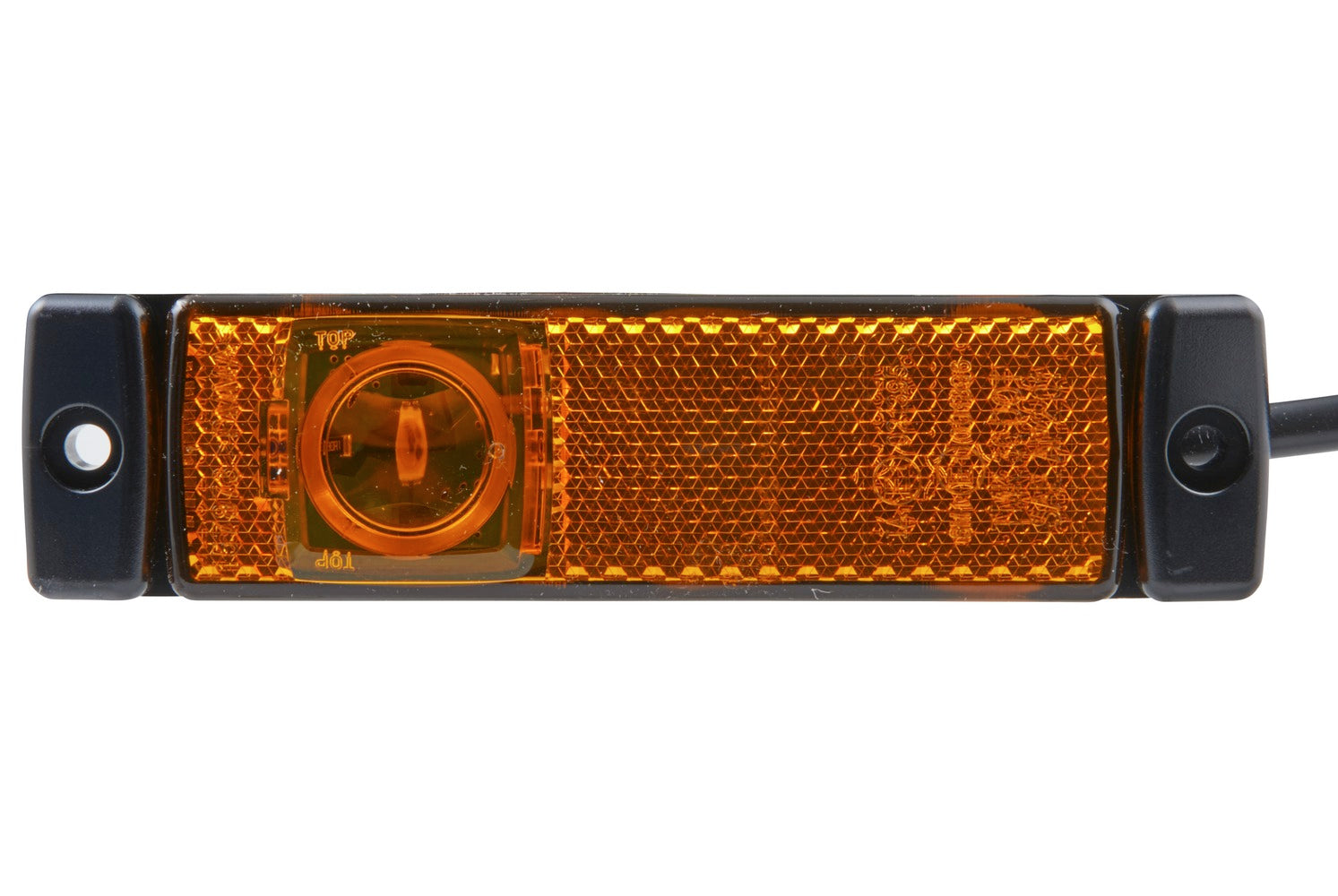

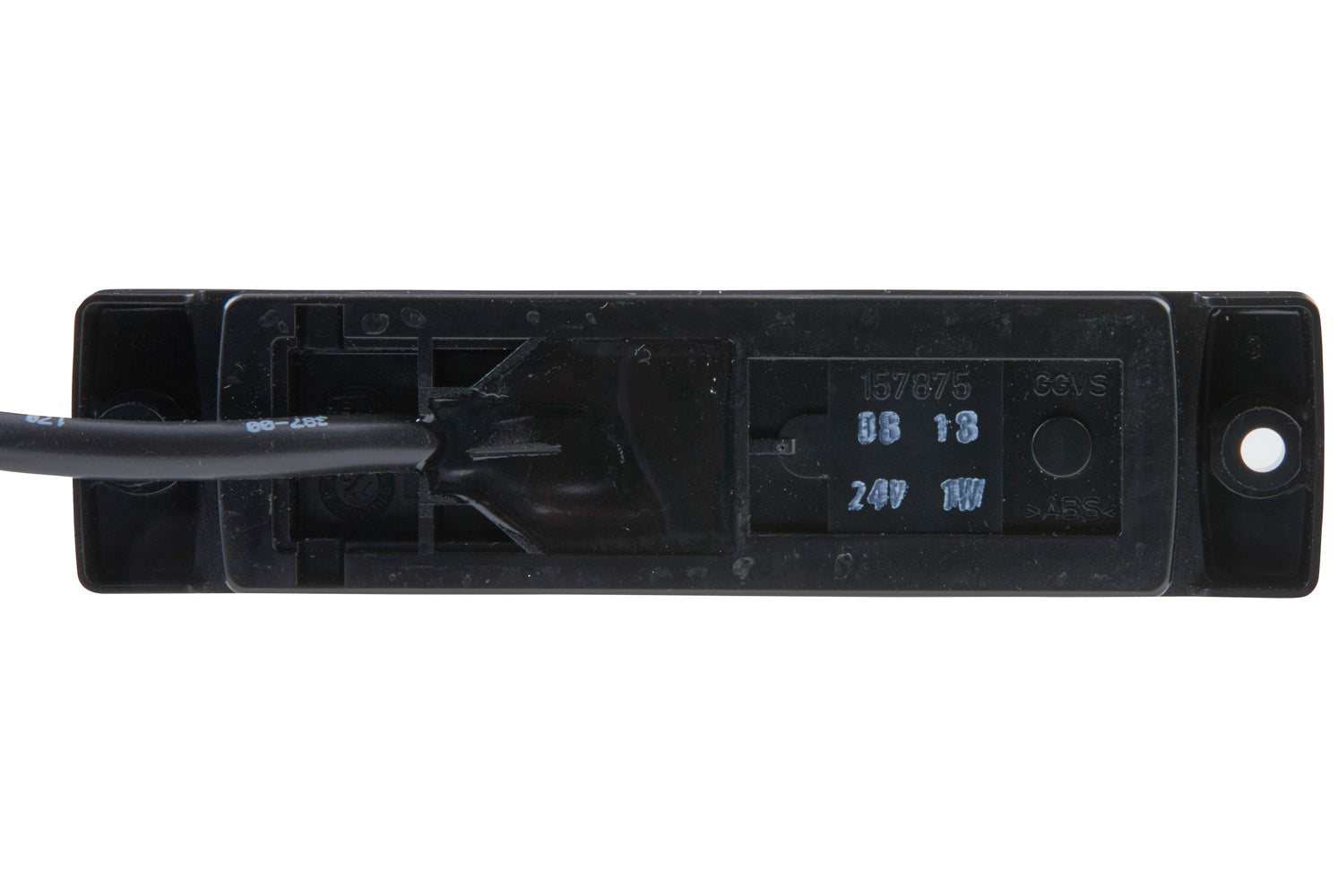

HELLA Side Marker Light - LED - 24V 2PS008645-601

Side Marker Light - LED - 24V - mounting/Screw Connection - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 150mm - Plug: Quick Link - 2-pin connector - left/right - Quantity: 1

HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark. Especially vehicles with large dimensions such as combine harvesters, long transporters, etc. can be displayed much better in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known high HELLA quality.

• LED side marker reflector luminaire for horizontal surface-mounting (left / right) - with ECE approval, ADR/GGVS-tested
• The side marker light has 2 light functions: Side marker light / reflector

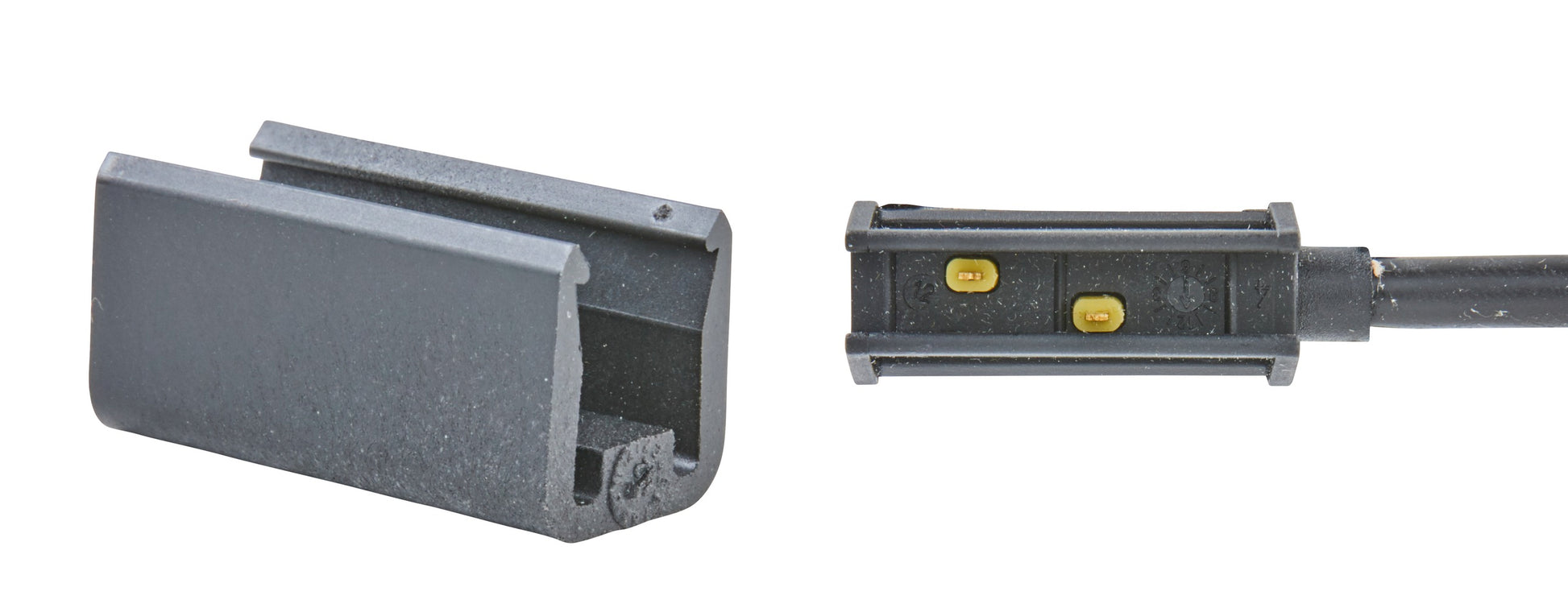

• With 1 LED 24V1.2W, with 150 mm cable and Quick-Link coupling incl. clamping piece for contacting a 2-wire flat cable, black housing, 2 holes for fixing screws B4.2
• Length: 130mm - Width: 32mm - Height: 32mm - Lamp Type: LED - Number of LEDs: 1 - with pipe
• Light functions: 2 - with reflector/with side marker light (LED)
• Registration Type: ADR/GGVS - fulfils ECE standard: R3/R91 - Prot.type (IP Code): IP6K9K
• Housing with Plastic Lid - Housing Colour: black - LED colour: yellow (amber) - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Fitting Position: left / right
Lamp Type: LED
Light Function: with reflector / with side marker light (LED)
Light Design: LED
LED colour: yellow (amber)
Voltage: 24 V
Power consumption: 1 W
Length: 130 mm
Width: 32 mm
Height: 32 mm
Cable: 150 mm
Plug: Quick Link
Number of pins: 2 -pin connector
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R91 / R3
Quantity: 1
Light functions: 2
Number of LEDs: 1
Registration Type: ADR/GGVS
Supplementary Article/Supplementary Info 2: with pipe
Assembly by qualified personnel required!

OE references: DAF 1524400; SCHMITZ CARGOBULL 1042260
