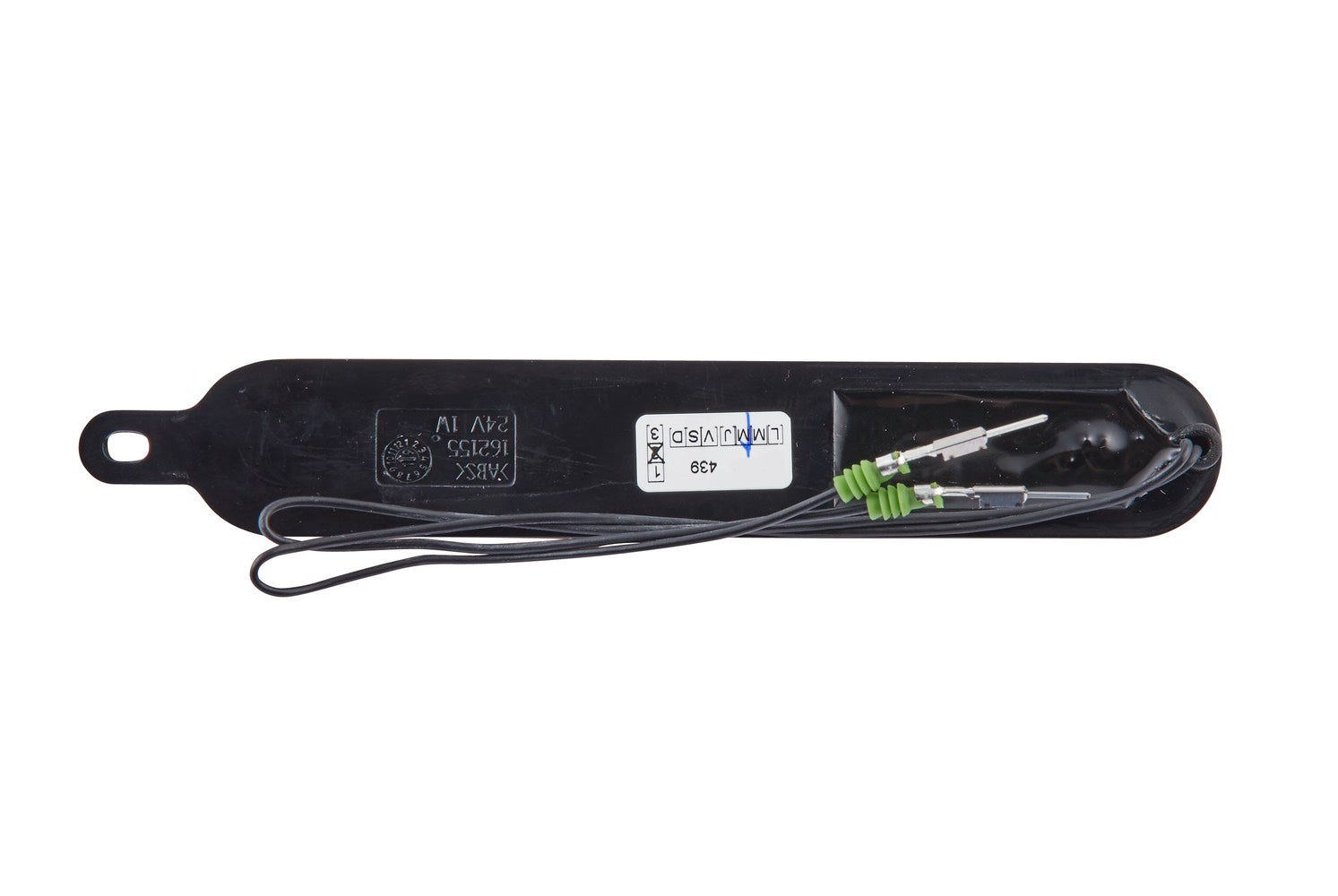

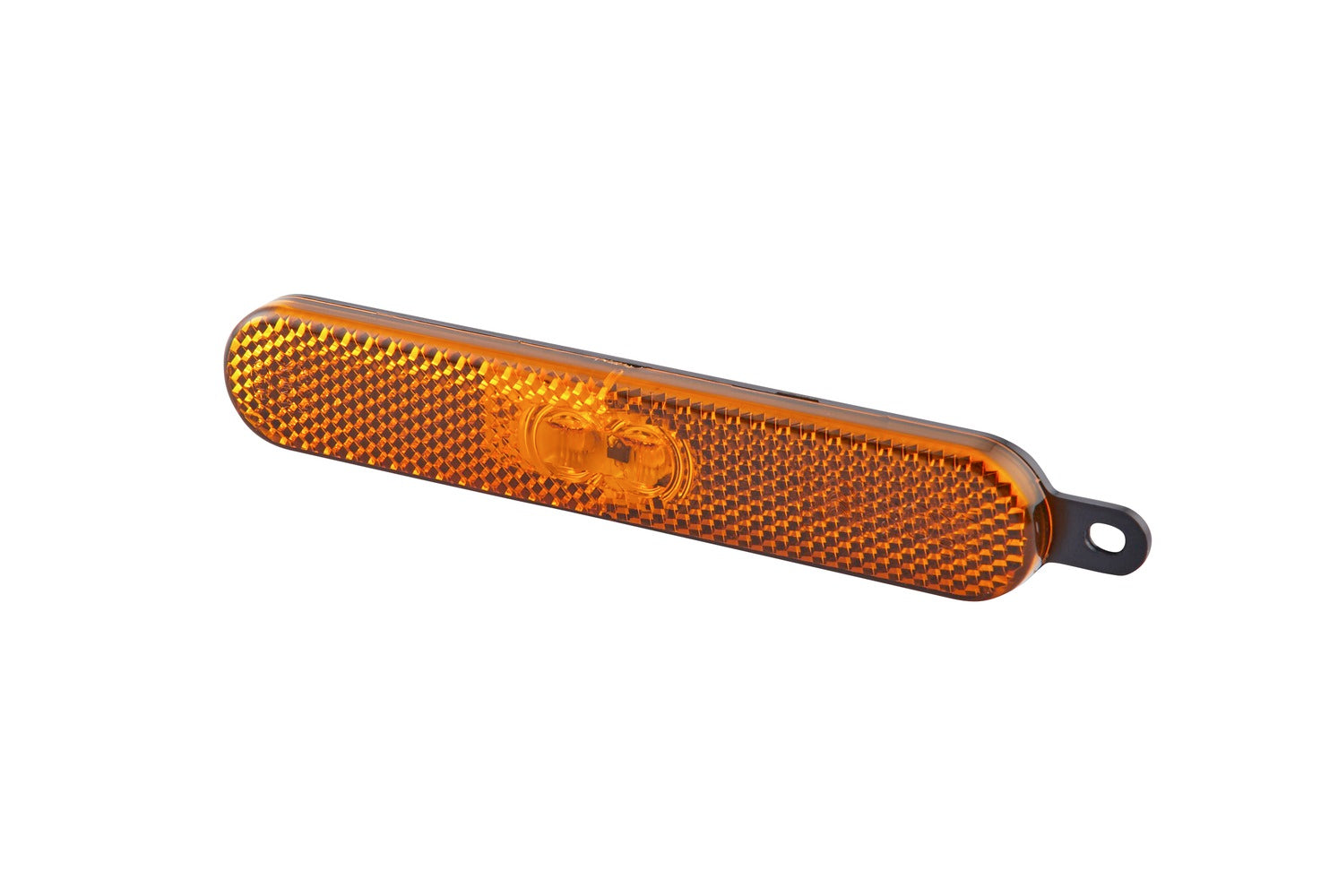

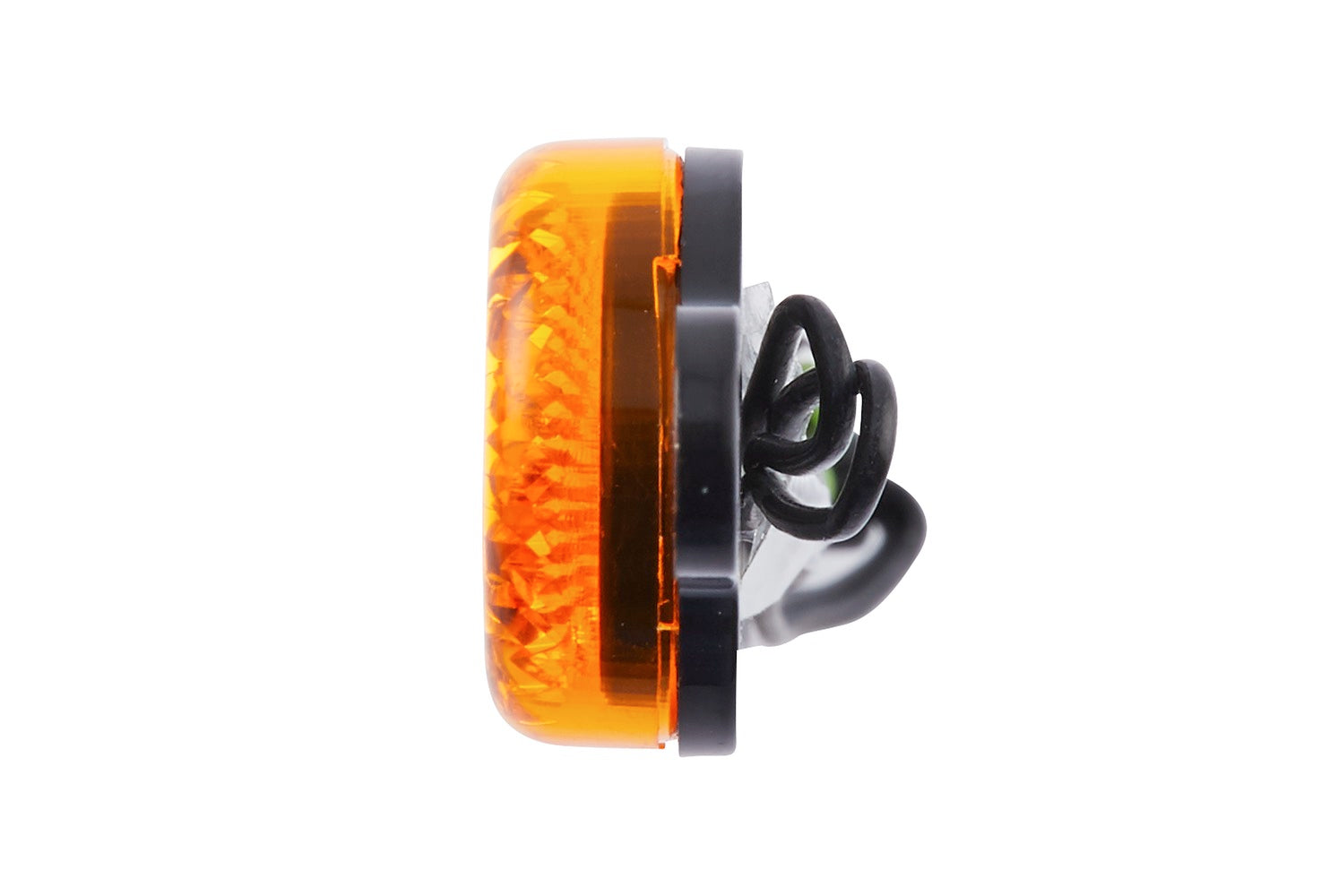

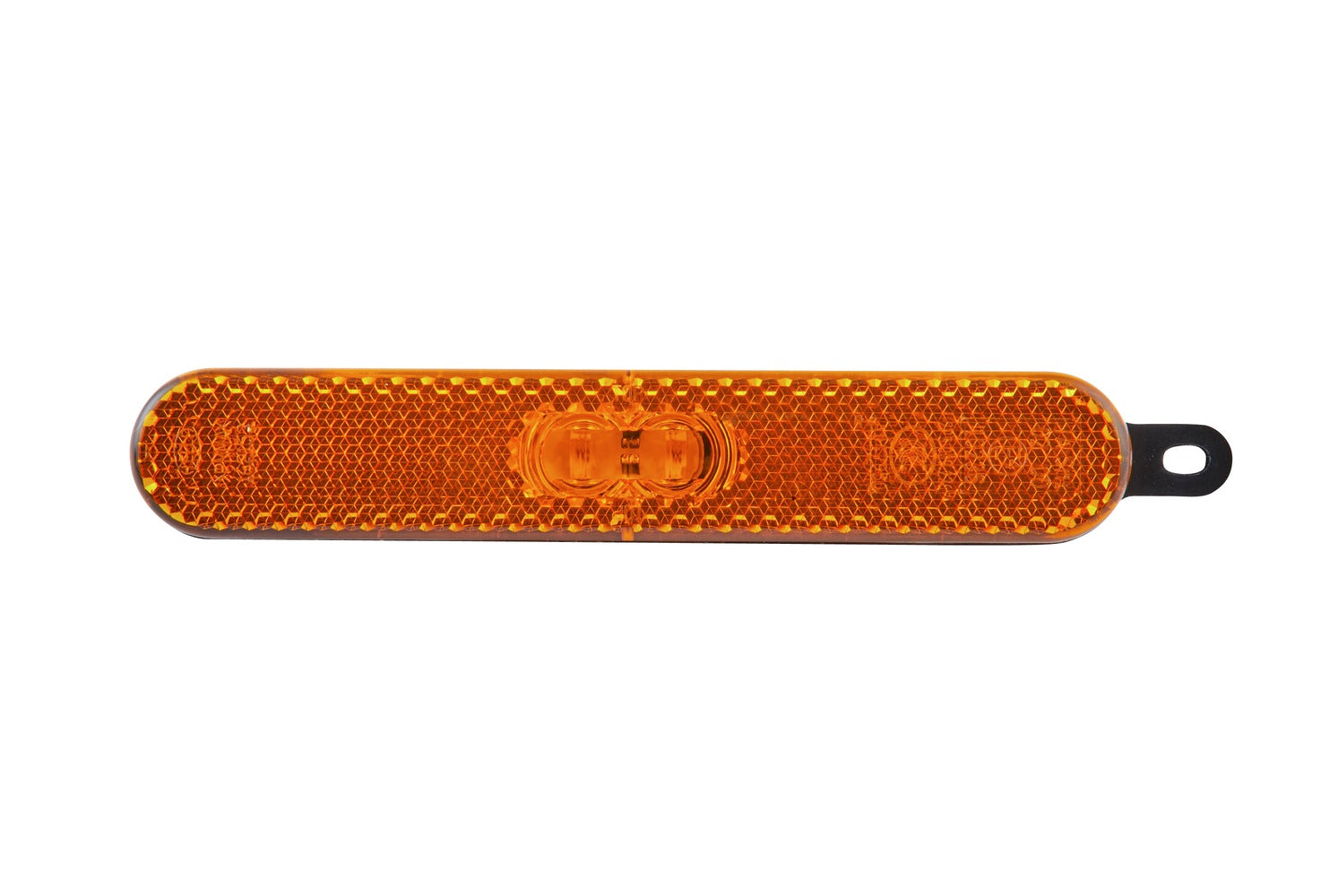

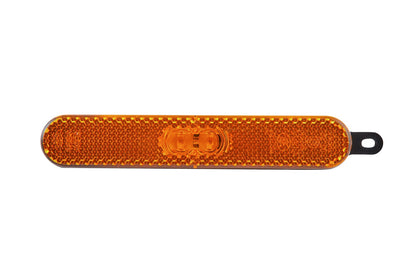

HELLA Side Marker Light - LED - 24V 2PS009226-001

Side Marker Light - LED - 24V - mounting/Screw Connection - CCC - Lens Colour: yellow (amber) - Cable: 250mm - Plug: AMP - 2-pin connector - left/right - Quantity: 1

HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark. Especially vehicles with large dimensions such as combine harvesters, long transporters, etc. can be displayed much better in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known high HELLA quality.

• LED side marker reflector light for horizontal surface-mounting - with ECE / CCC approval
• The side marker light has 2 light functions: Side marker light / reflector
• With 2 yellow LEDs 24V1.0W, self-adhesive, with 195 mm cable and 2-pole AMP plug-in connection, housing transparent, yellow
• Length: 135mm - Width: 23mm - Height: 28mm - Lamp Type: LED - Number of LEDs: 2
• Light functions: 2 - with reflector/with side marker light
• Registration Type: CCC - fulfils ECE standard: R3/R91 - Prot.type (IP Code): IP5K9K
• Housing with Plastic Lid - Housing Colour: black - LED colour: yellow (amber) - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Fitting Position: left / right
Lamp Type: LED
Light Function: with side marker light / with reflector
Light Design: LED
LED colour: yellow (amber)
Voltage: 24 V
Power consumption: 1 W
Length: 135 mm
Width: 23 mm
Height: 28 mm
Cable: 250 mm

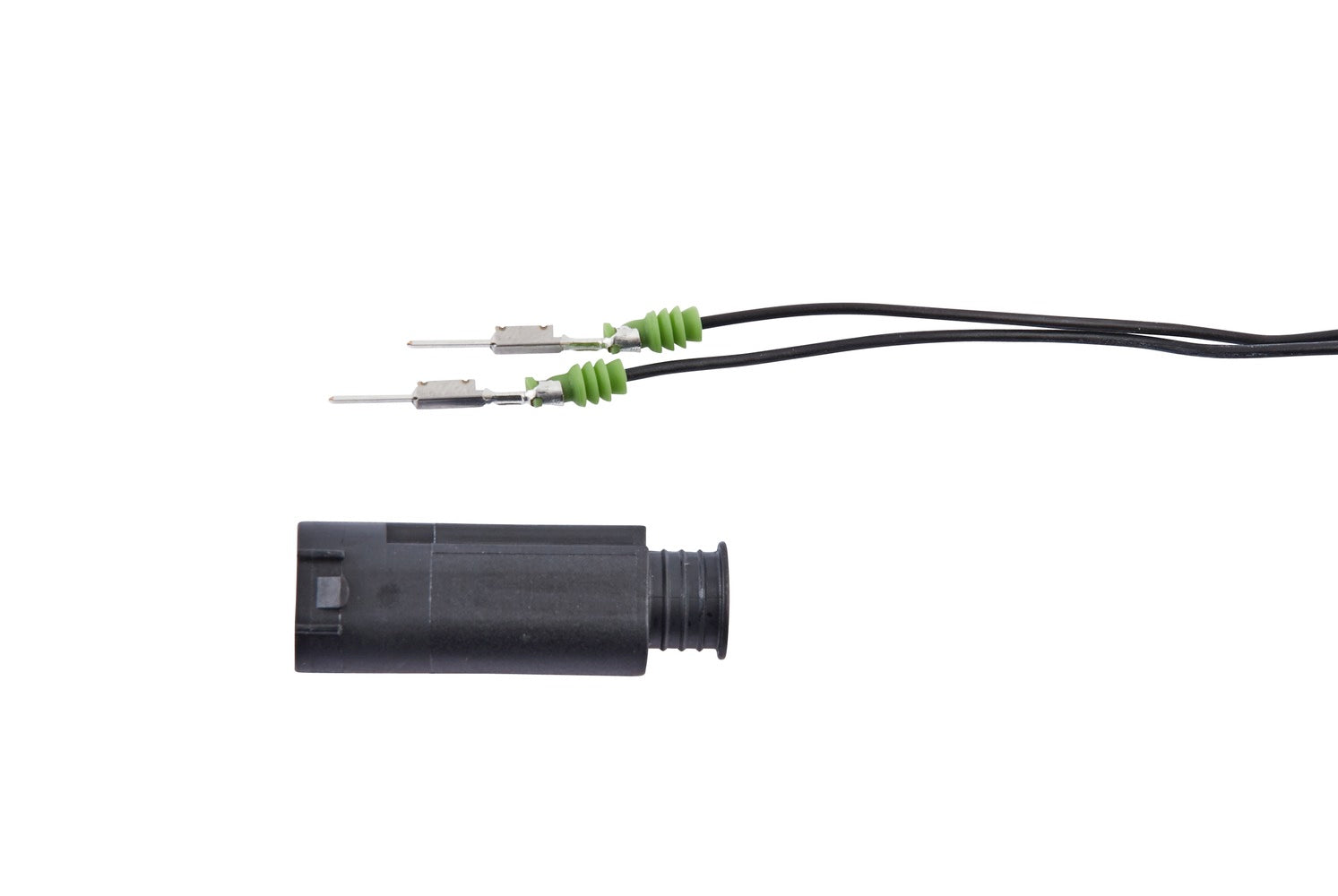

Plug: AMP
Number of pins: 2 -pin connector
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP5K9K
fulfils ECE standard: R91 / R3
Quantity: 1
Light functions: 2
Number of LEDs: 2
SVHC: 7439-92-1; Lead
Registration Type: CCC
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS 7611801N00; IVECO 73902658; LEYLAND DAF 30010584; NOGE GG00555044; VOLVO 30010584
