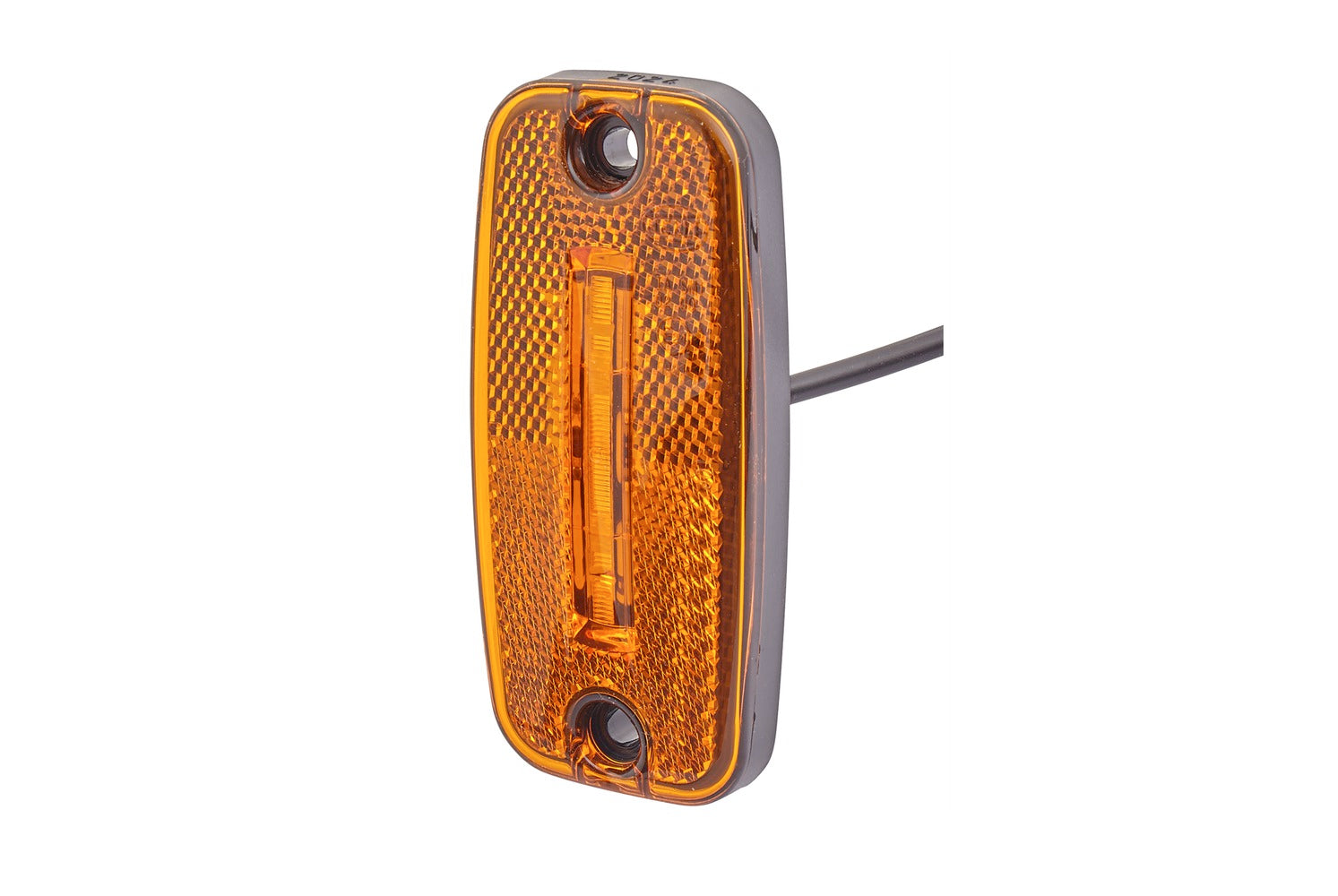

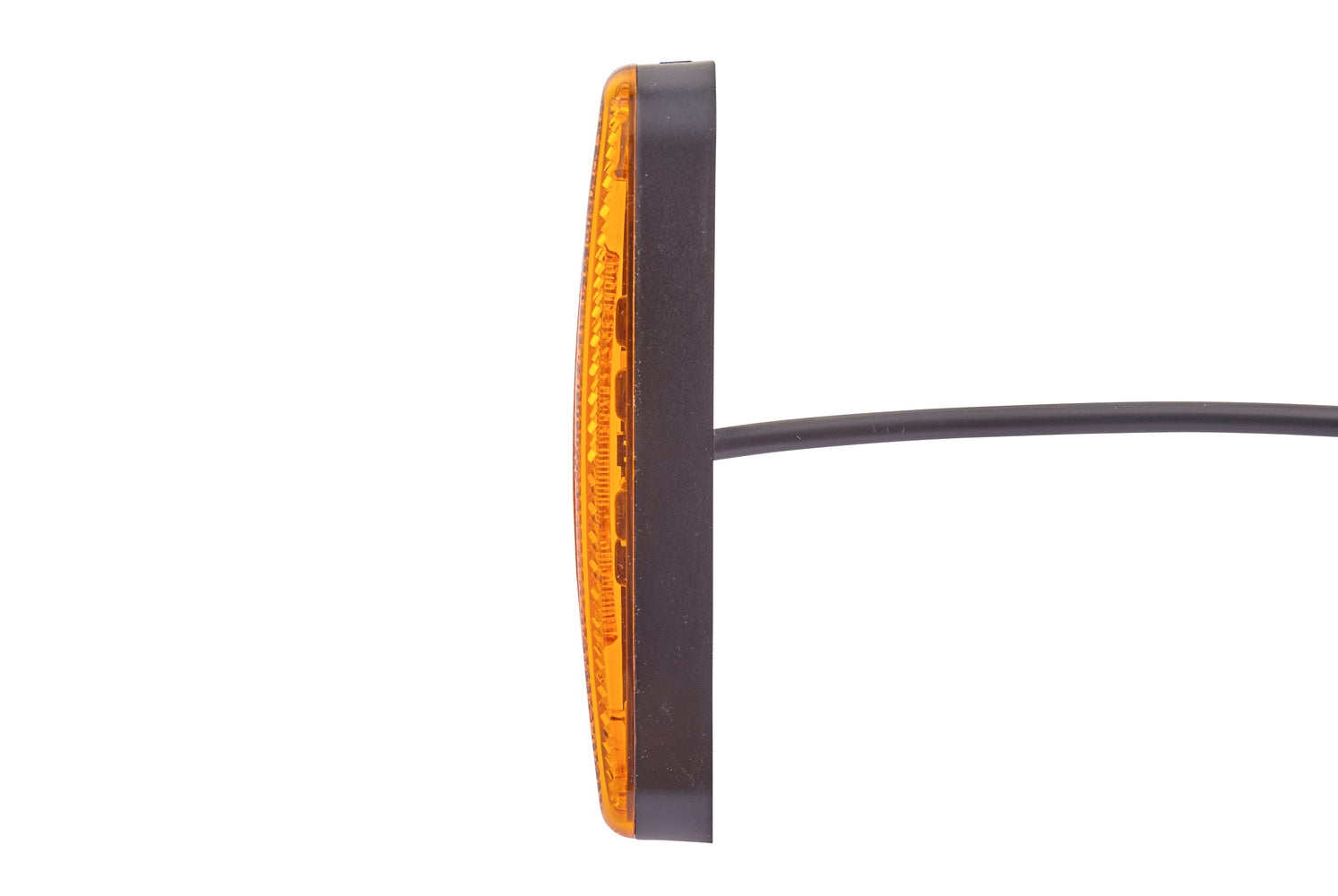

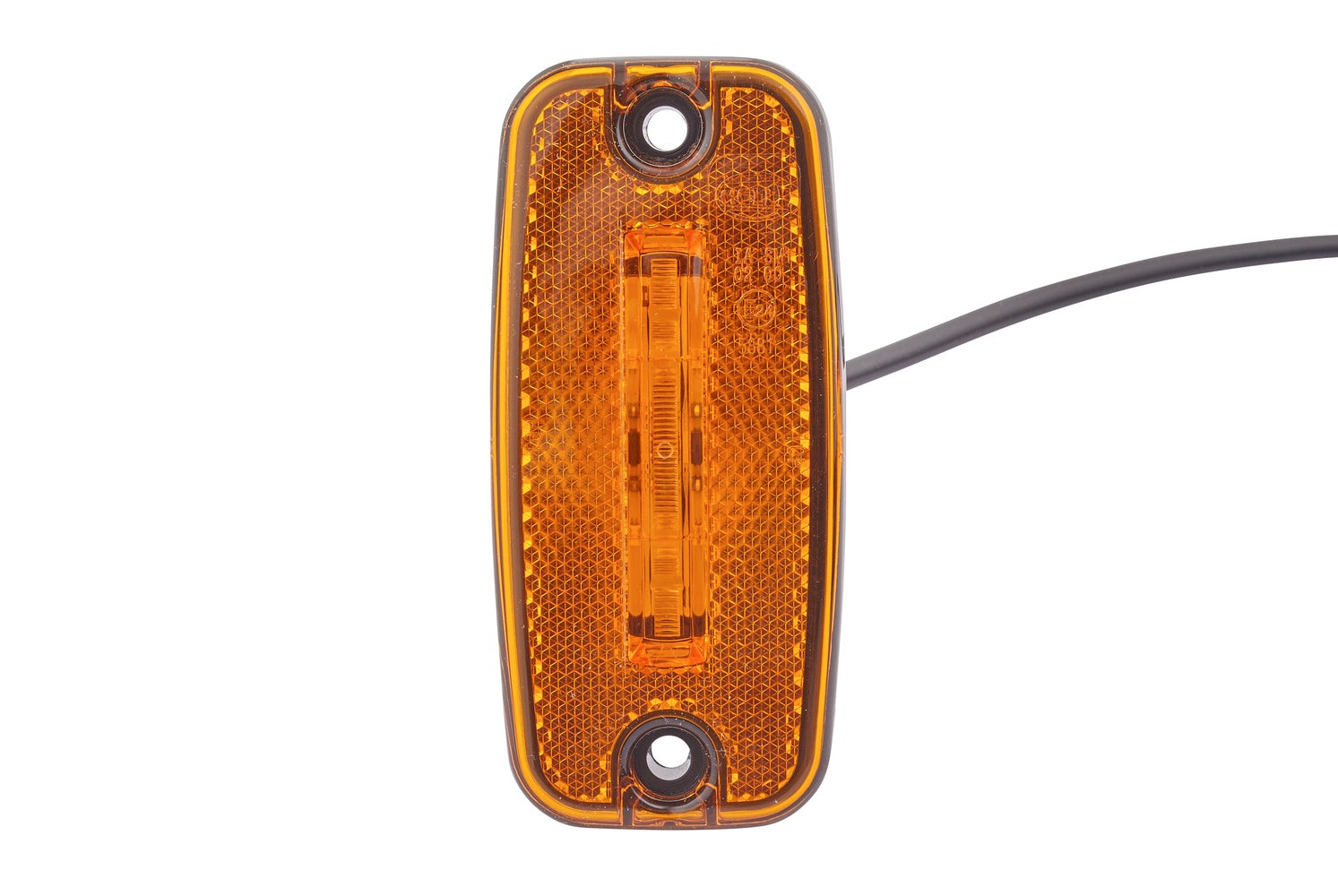

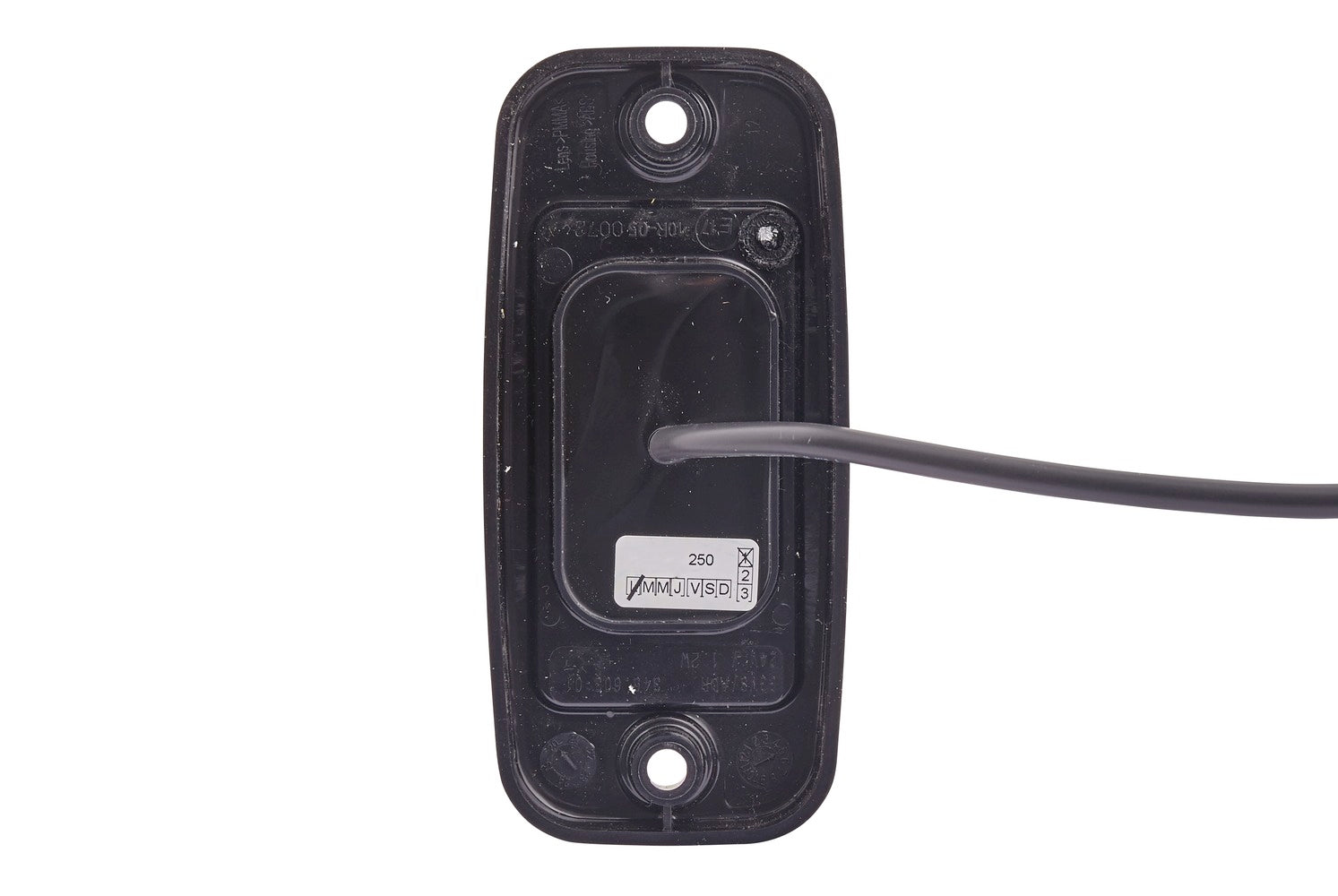

HELLA Side Marker Light - LED - 24V 2PS345600-041

Side Marker Light - LED - 24V - mounting/Screw Connection - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 4000mm - Plug: AMP - 2-pin connector - Lateral Mounting - Quantity: 1

• The innovative Light Guide technology has been applied for the first time in a side marker luminaire. It creates a slim, linear night design. The homogeneous light distribution is pioneering
• Sealed to withstand high pressure cleaning: Tested according to HELLA standard 67101, IP 6K9K, protected against high pressure and steam jet cleaning
• LED technology offers maximum reliability and vibration resistance. An extremely long service life of the luminaire is therefore achieved
• By combining efficient light-emitting diodes (LEDs) and precision optics in Light Guide design, the luminaires achieve an optimum signal pattern with extremely low power consumption
• The Light-Guide optics create a continuous light band. This combines a stylish, linear design with optimum visibility in all side marking, position and clearance light functions
• Length: 111mm - Width: 51mm - Height: 21mm - Lamp Type: LED - Number of LEDs: 2
• Light functions: 2 - with reflector/with side marker light (LED)

Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Fitting Position: Lateral Mounting
Lamp Type: LED
Light Function: with side marker light (LED) / with reflector
Light Design: LED
LED colour: yellow (amber)
Voltage: 24 V
Power consumption: 1.2 W
Length: 111 mm
Width: 51 mm
Height: 21 mm
Cable: 4000 mm

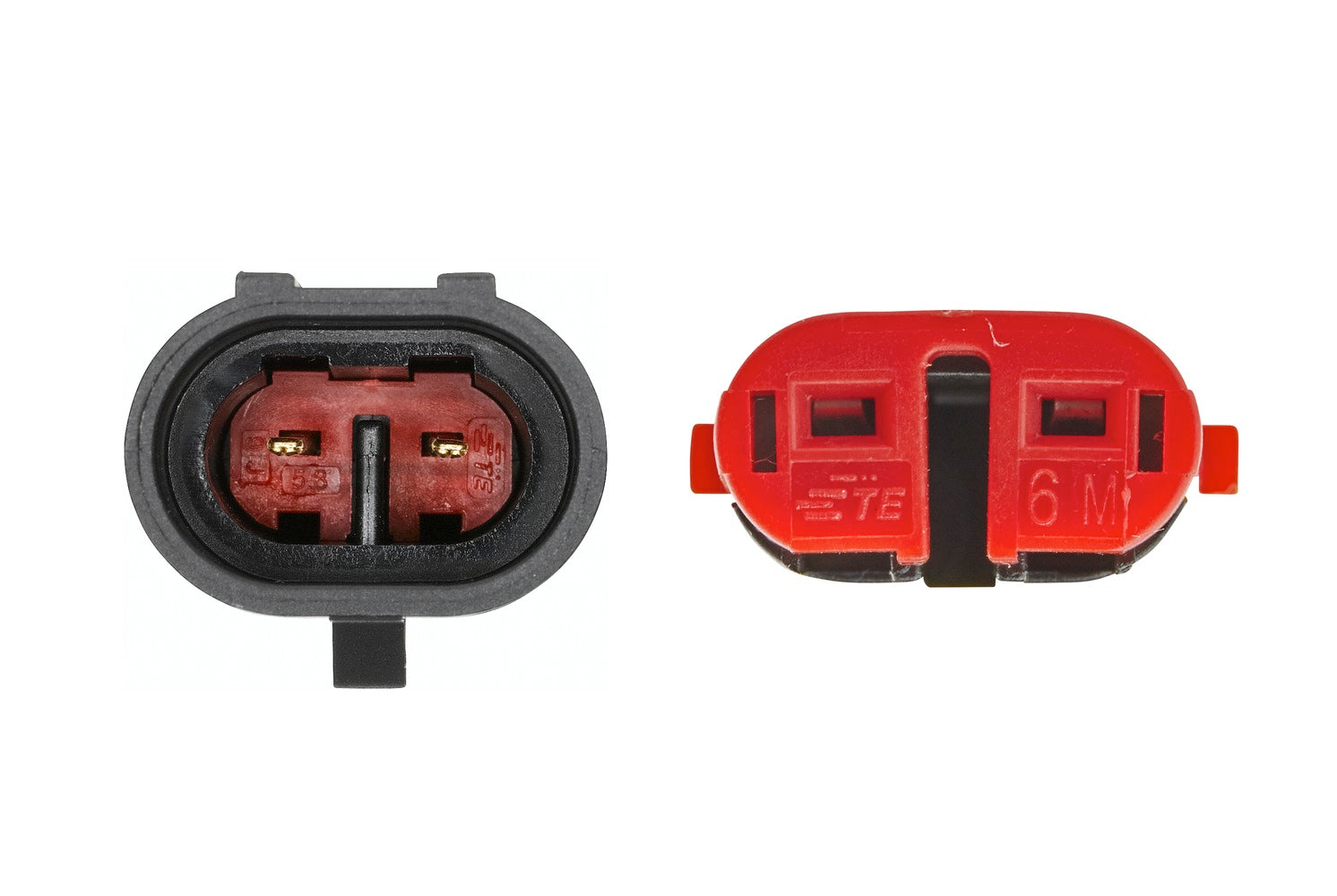

Plug: AMP
Number of pins: 2 -pin connector
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R91 / R3 / R10
Quantity: 1
Light functions: 2
Number of LEDs: 2
SVHC: 1303-96-4; Disodium tetraborate, anhydrous / 7439-92-1; Lead
Registration Type: ADR/GGVS
Assembly by qualified personnel required!

OE references: DAF 1962666; LIEBHERR 10176056
