HELLA Side Marker Light - LED - 24V 2PS345600-197

Side Marker Light - LED - 24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 1530mm - Plug: AMP - 2-pin connector - Lateral Mounting - Quantity: 20

HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark. Especially vehicles with large dimensions such as combine harvesters, long transporters, etc. can be displayed much better in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known high HELLA quality.

• LED side marker reflector luminaire for horizontal, side mounting - with ECE approval, ADR/GGVS-tested
• The side marker light has 2 light functions: Side marker light / reflector

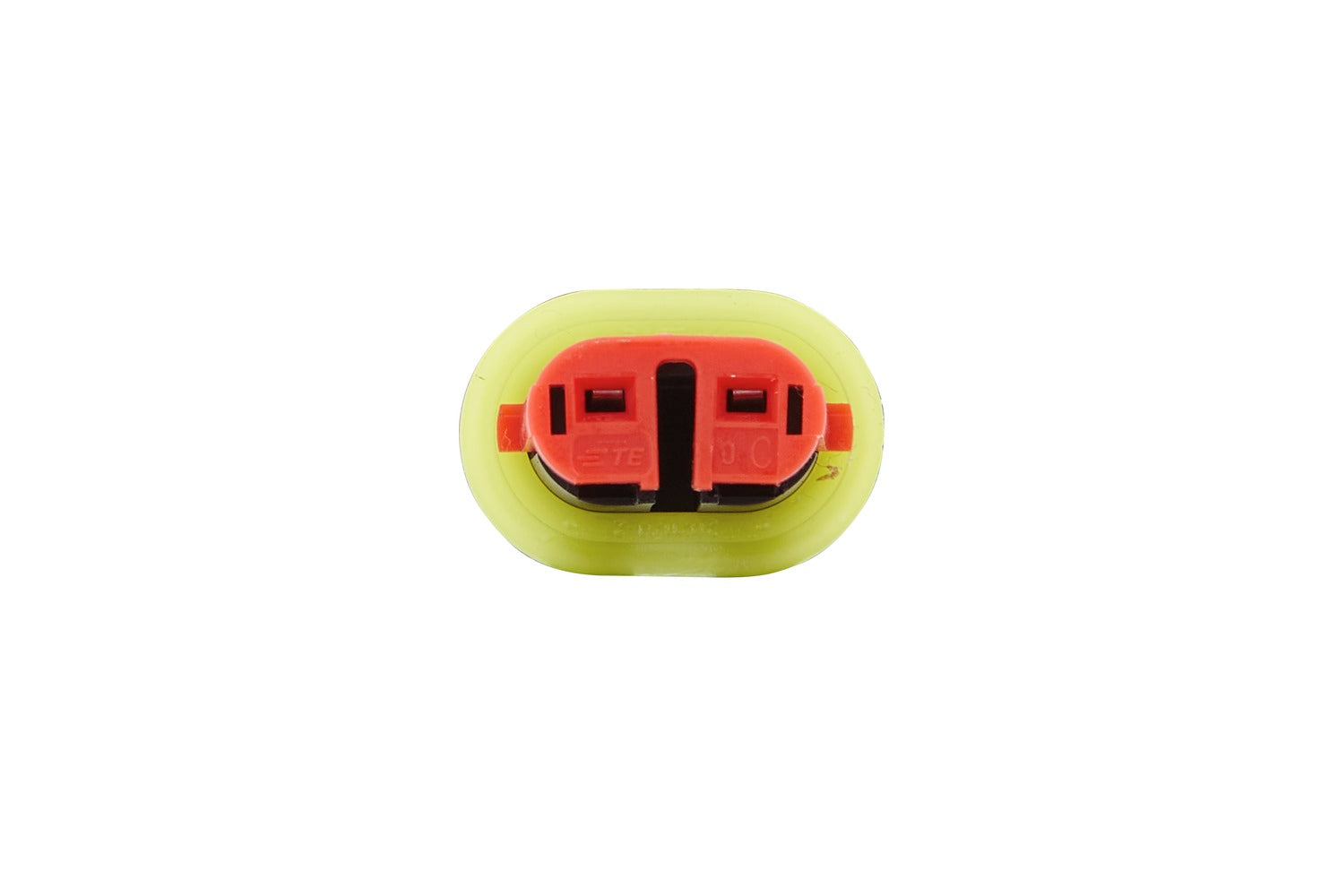

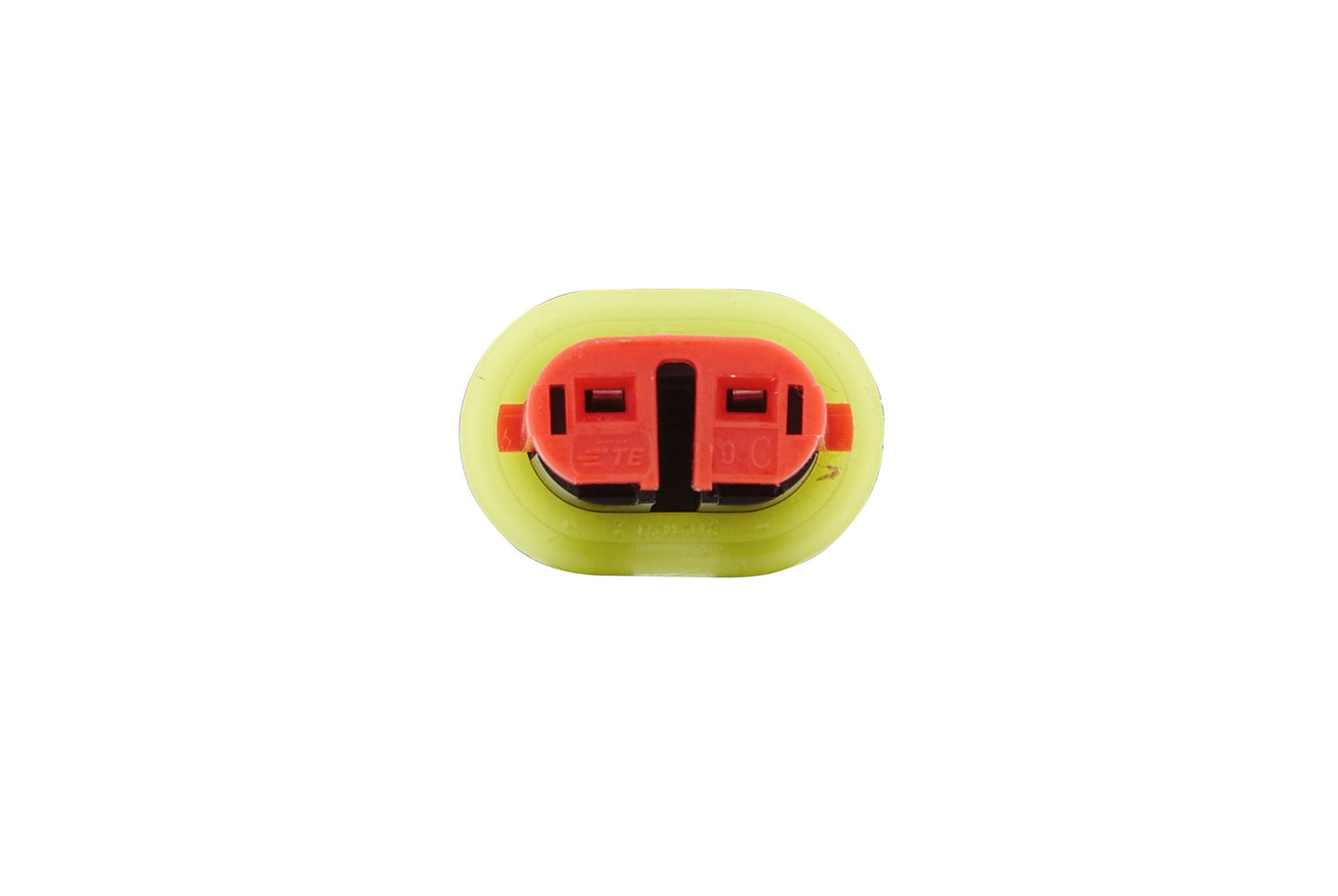

• With 2 LEDs 24V1,3W, without holder, with 1.5 m cable and AMP-Superseal plug-in connector, base plate black, 2 holes Ø 5,5 mm for fixing screws
• Length: 111mm - Width: 51mm - Height: 21mm - Lamp Type: LED - Number of LEDs: 2 - without holder
• Light functions: 2 - with side marker light (LED)/with reflector
• Registration Type: ADR/GGVS - fulfils ECE standard: R10/R91/R3 - Prot.type (IP Code): IP6K9K
• Housing with Plastic Lid - Housing Colour: black - LED colour: yellow (amber) - Lens Colour: yellow (amber)

Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 24 V
Fitting Position: Lateral Mounting
Height: 21 mm
Width: 51 mm
Length: 111 mm
Light Function: with side marker light (LED) / with reflector
Light functions: 2
Plug: AMP
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R3 / R10 / R91
Registration Type: ADR/GGVS
Number of LEDs: 2
LED colour: yellow (amber)
Cable: 1530 mm
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Power consumption: 1.2 W
Supplementary Article/Supplementary Info: without holder
Number of pins: 2 -pin connector
Quantity: 20
SVHC: 1303-96-4; Disodium tetraborate, anhydrous / 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: DAF 1963100; NOOTEBOOM 1393046; SCANIA 2417005
