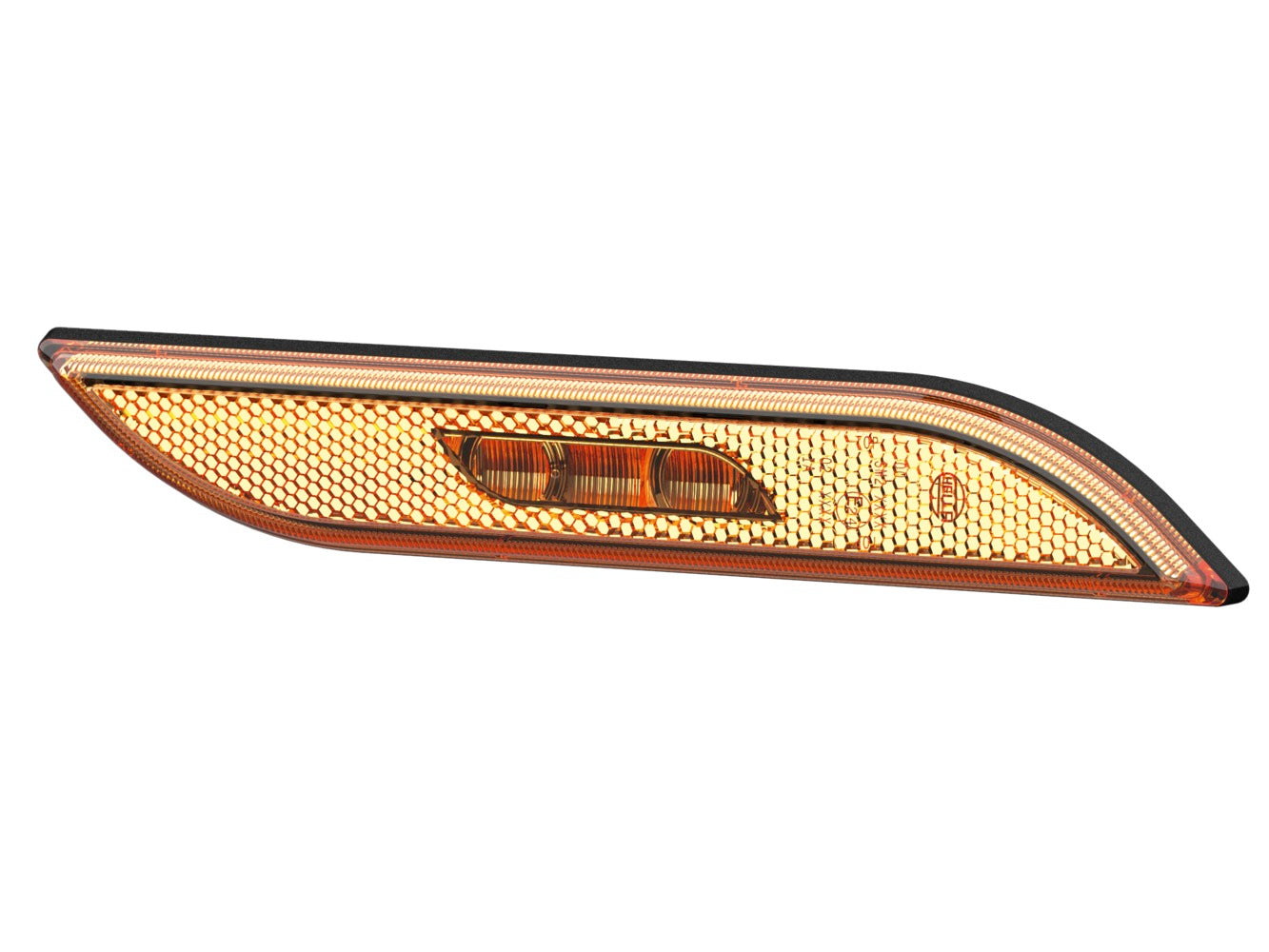

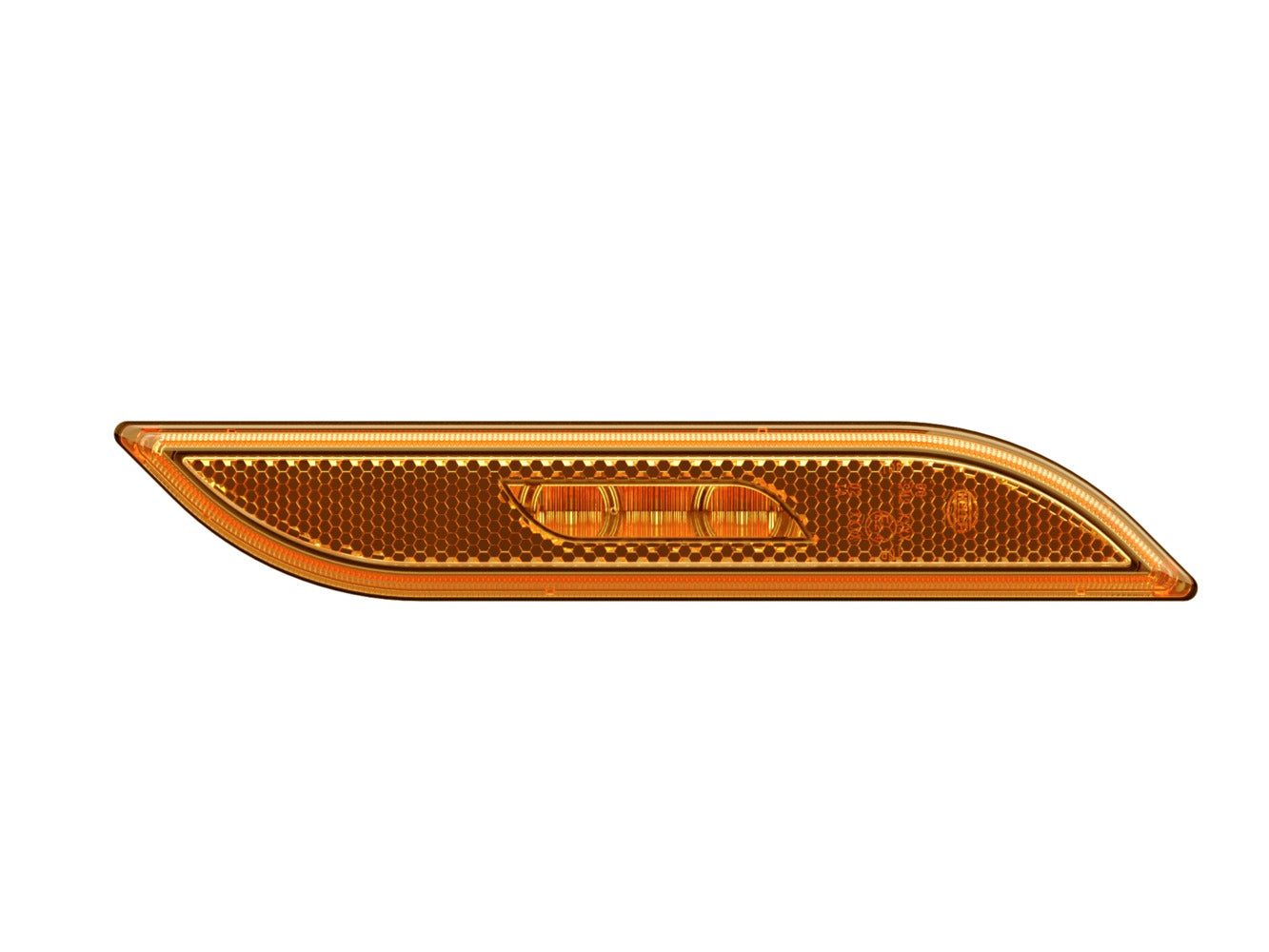

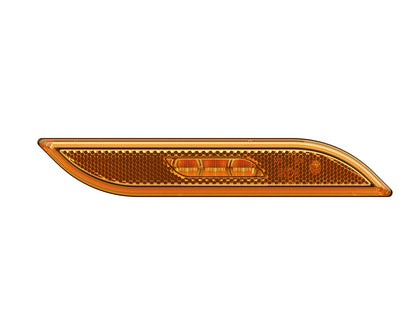

HELLA Side Marker Light - Shapeline Style - LED - 12/24V 2PS013306-081

Side Marker Light - Shapeline Style - LED - 12/24V - mounting/Bolted - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 250mm - Plug: AMP - 2-pin connector - right - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Length: 205mm - Width: 34mm - Height: 16mm - Lamp Type: LED - Number of LEDs: 1
• Light functions: 2 - with side marker light (LED)/with reflector

Item Attributes:
Mounting Type: Bolted / mounting
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 24 V / 12 V
Fitting Position: right
Height: 16 mm
Width: 34 mm
Length: 205 mm
Light Function: with side marker light (LED) / with reflector
Light functions: 2
Plug: AMP
Prot.type (IP Code): IP6K7 / IPX9K
fulfils ECE standard: R91
Registration Type: ADR/GGVS
Number of LEDs: 1
LED colour: yellow (amber)
Cable: 250 mm
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Power consumption: 0.5 W
Bolt/Nut Version: Stud
Number of pins: 2 -pin connector
Quantity: 1
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
