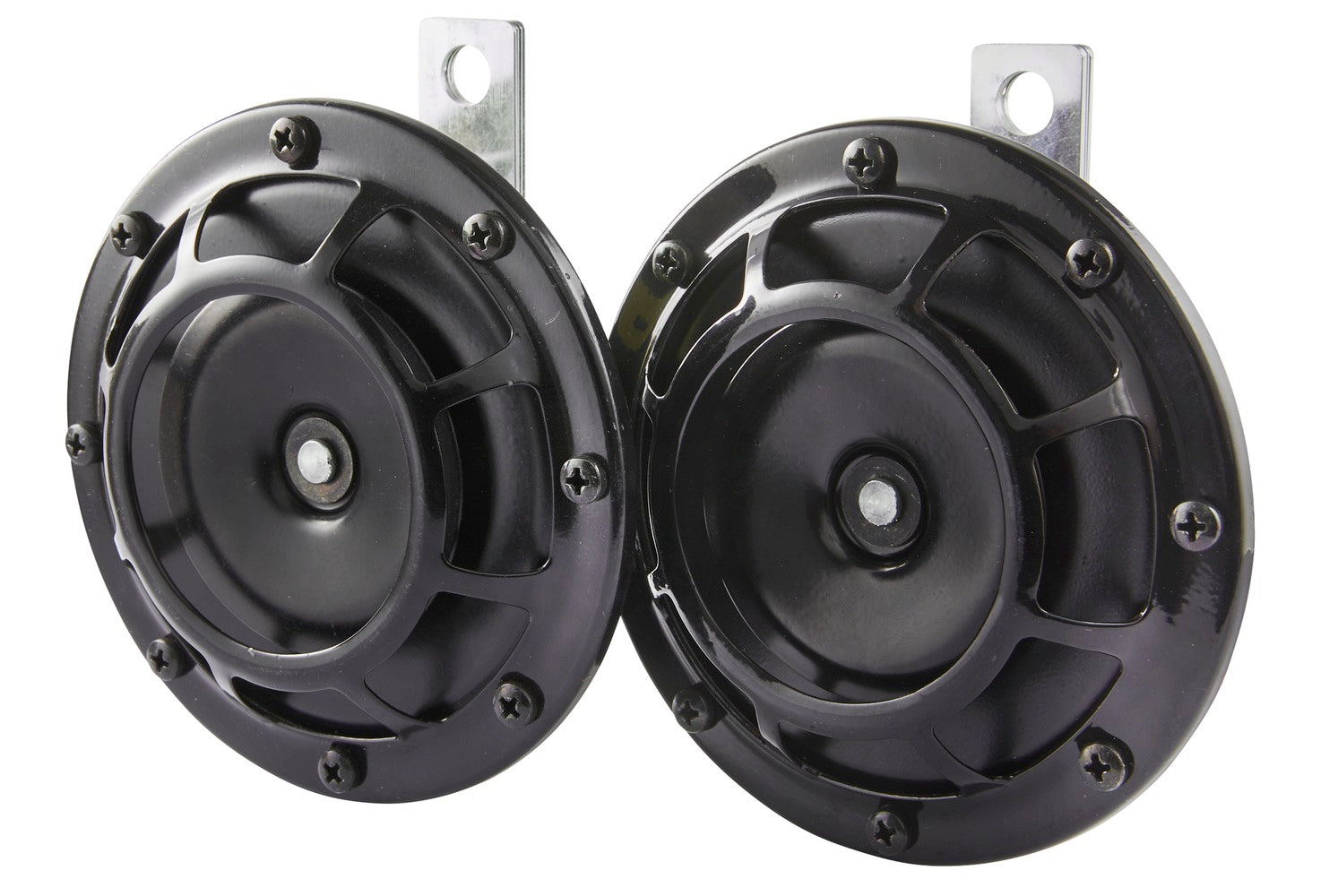

HELLA Signal Horn - B133 - 12V - 110dB(A) - High Tone/Low Tone - Quantity: 2 3AG003399-081

Signal Horn - B133 - 12V - 110dB(A) - Frequency Range: 375/500Hz - High Tone/Low Tone - Electric - ECE - Housing Colour: Black - Flat Plug-in Connector - Quantity: 2

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Sound pressure level at 3.5 m distance: 110 dB(A)

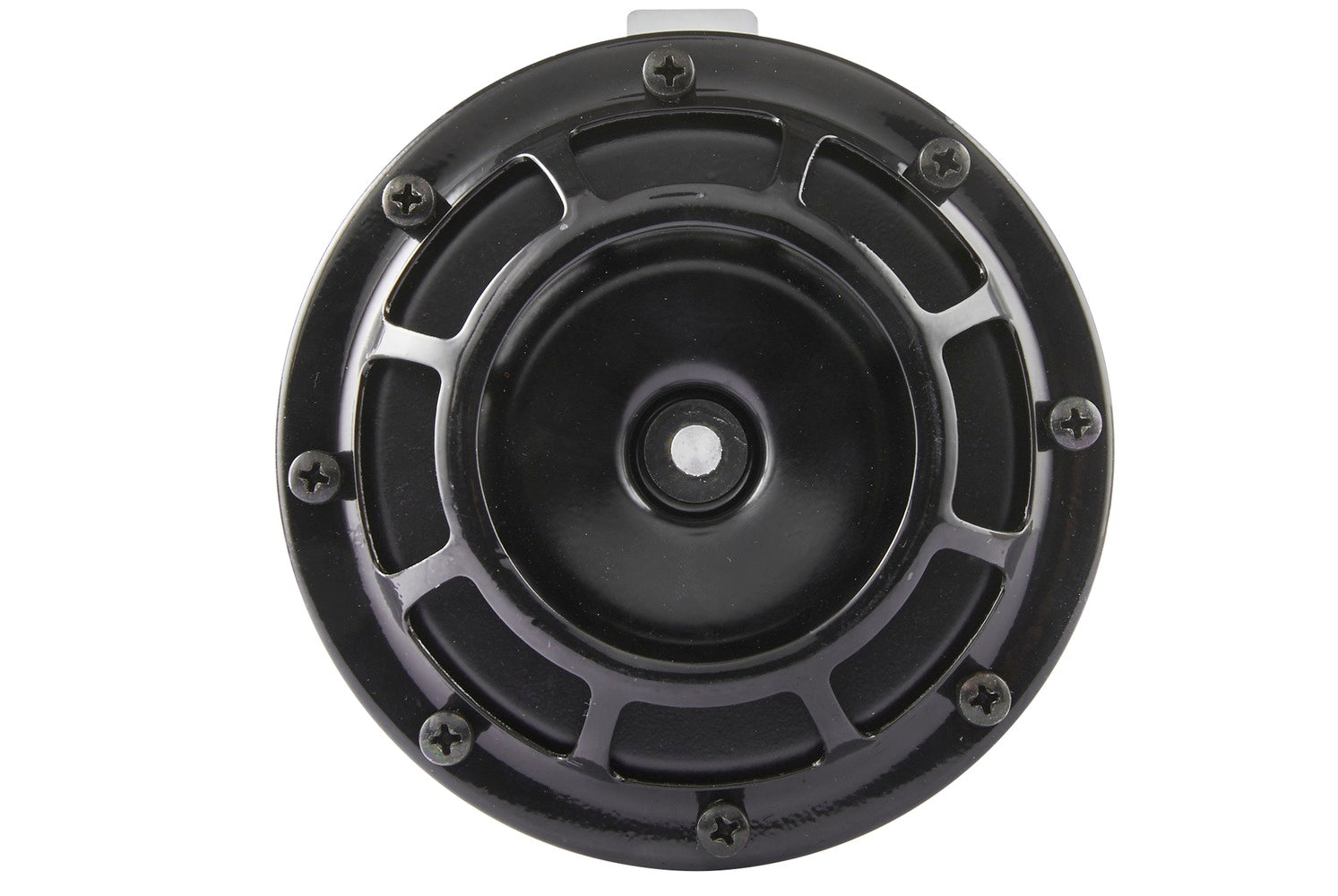

• Metal housing and protective grille painted black

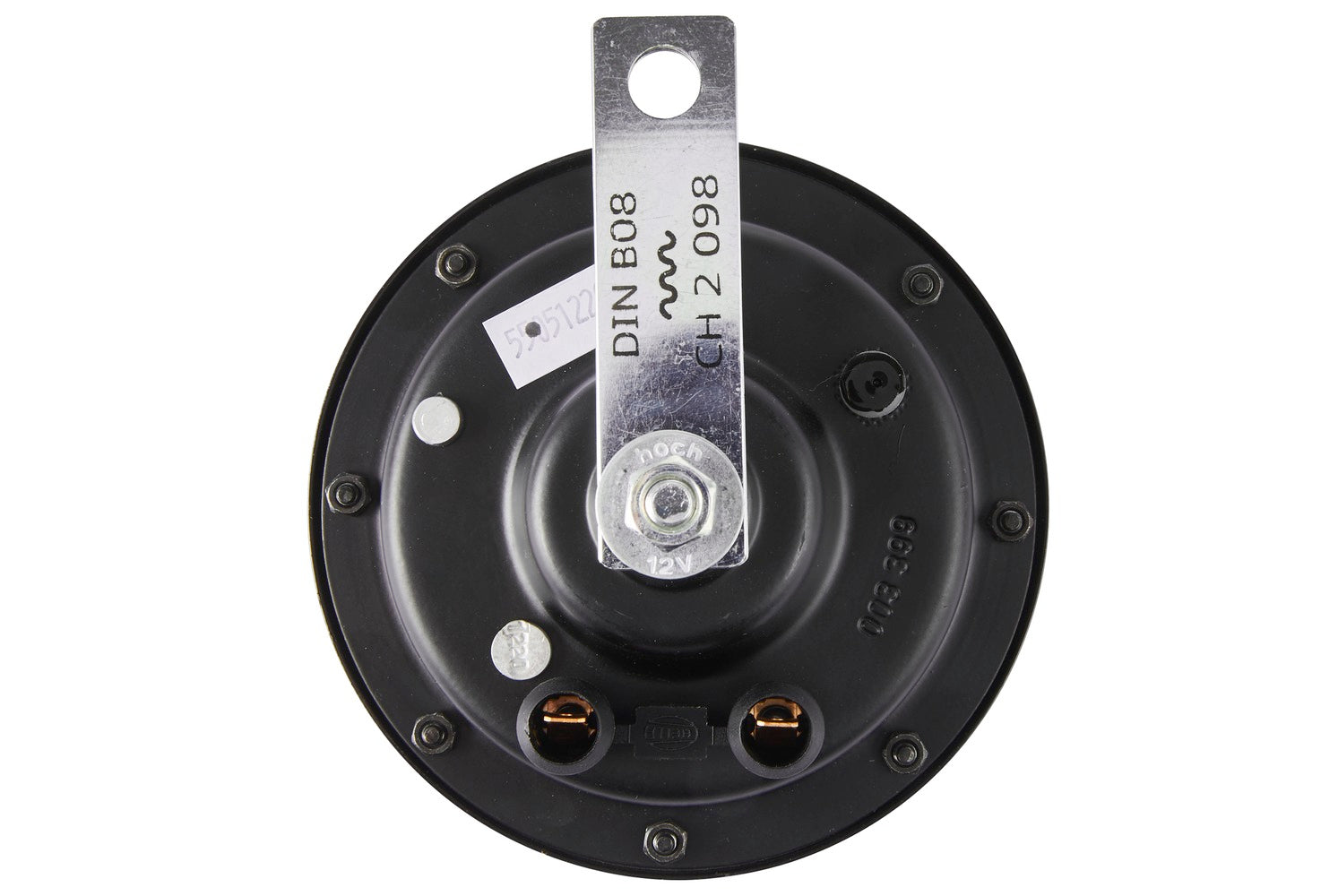

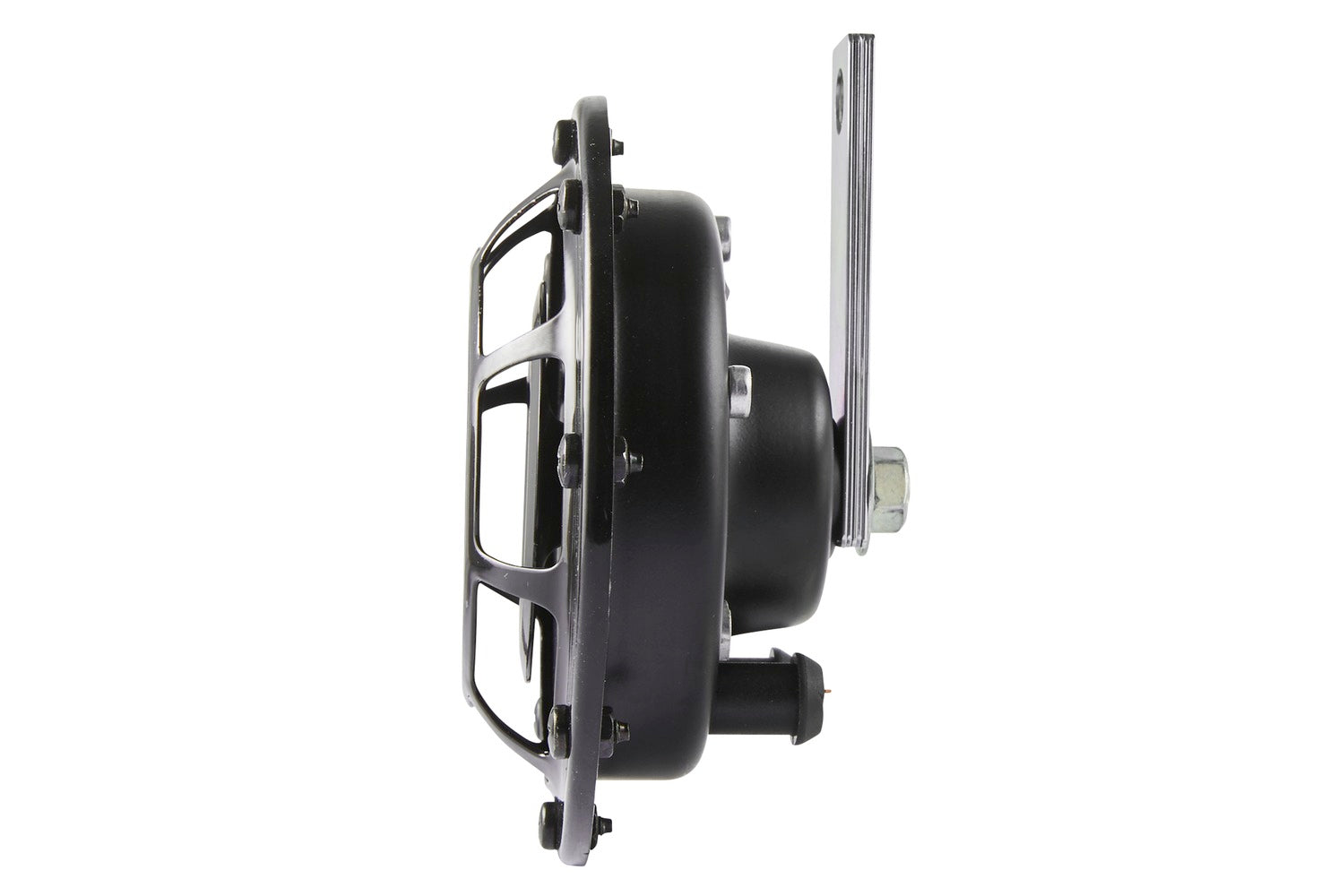

• Holder on horn for fastening screw M10

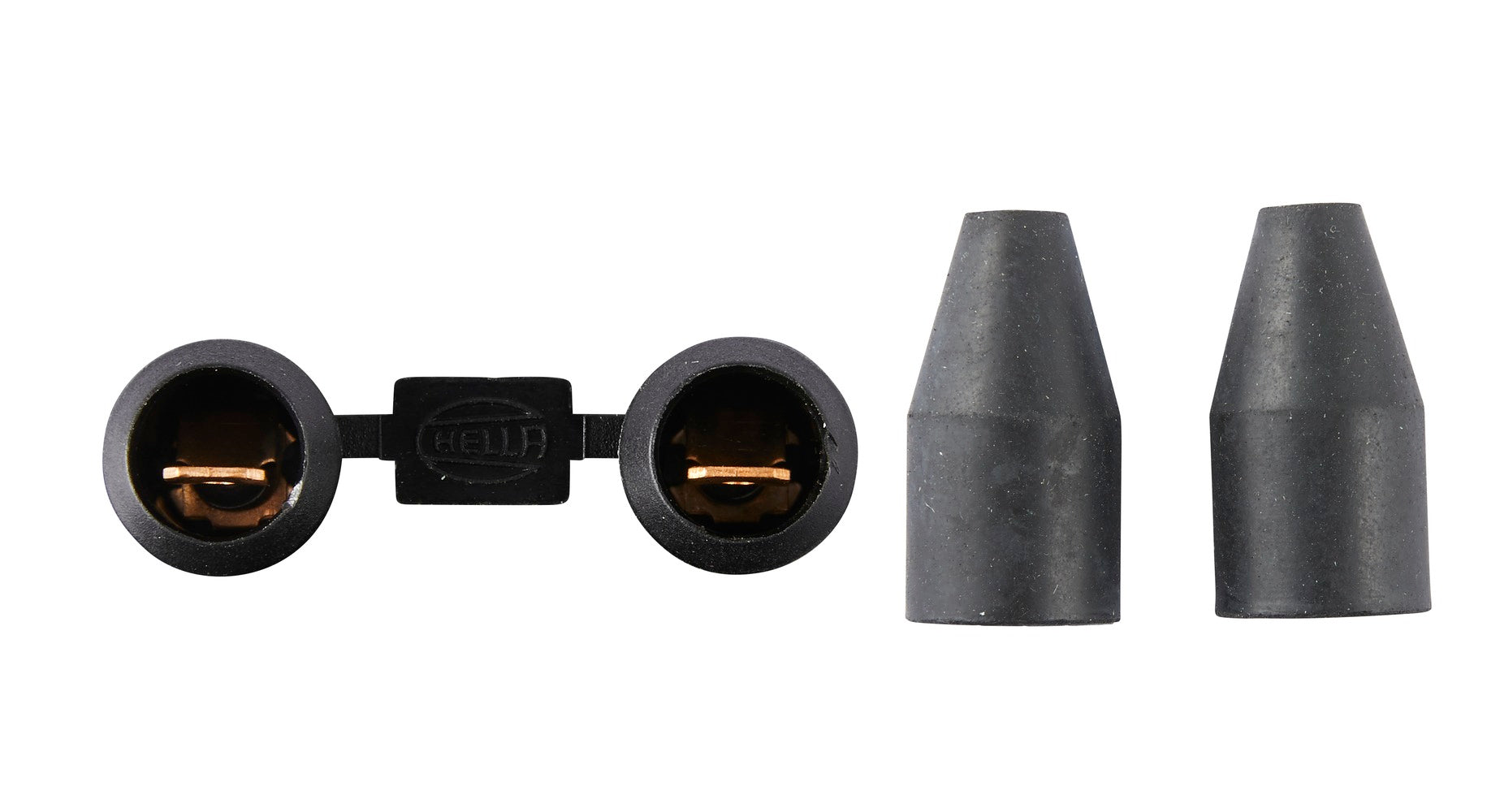

• With Teflon pill for protection against moisture, with interference suppression capacitor. Rubber grommet for contact protection.
• With flat terminals 6.3 mm, protected.
• Temperature range from: -40°C - Temperature range to: 75°C - Frequency Range: 375/500Hz - Power consumption: 78W
• Ø: 123mm - Width: 125mm - Overall Height: 135mm - Depth: 85mm

Item Attributes:
Voltage: 12 V
Power consumption: 78 W
Sound Level: 110 dB(A)
Frequency Range: 375 Hz / 500 Hz
Charging Rate: 6.5 A
Prot.type (IP Code): IPX9K / IPX7
fulfils ECE standard: R28
Registration Type: ECE
Signal: High Tone / Low Tone
Housing Colour: black
Quantity: 2
Operating Mode: Electric
Overall Height: 135 mm
Width: 125 mm
Depth: 85 mm
Ø: 123 mm
Interference Suppression
Special Purpose Vehicle: for special-purpose vehicles
Temperature range from: -40 °C
Temperature range to: 75 °C
Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: without E quality seal / with condenser / with moisture protection / with rubber grommet
Assembly by qualified personnel required!

OE references: AUDI KDWHLO9061; JOHN DEERE 19 82 6067; JOHN DEERE 55 02 4; MERCEDES-BENZ 003 542 44 20; MERCEDES-BENZ 003 542 78 20; MERCEDES-BENZ A 003 542 44 20; MERCEDES-BENZ A 003 542 78 20; OPEL 90019235; SCHMITZ CARGOBULL 1039; STEYR 003 542 78 20; VW KDWHLO9061; ZIEGLER 1156428
