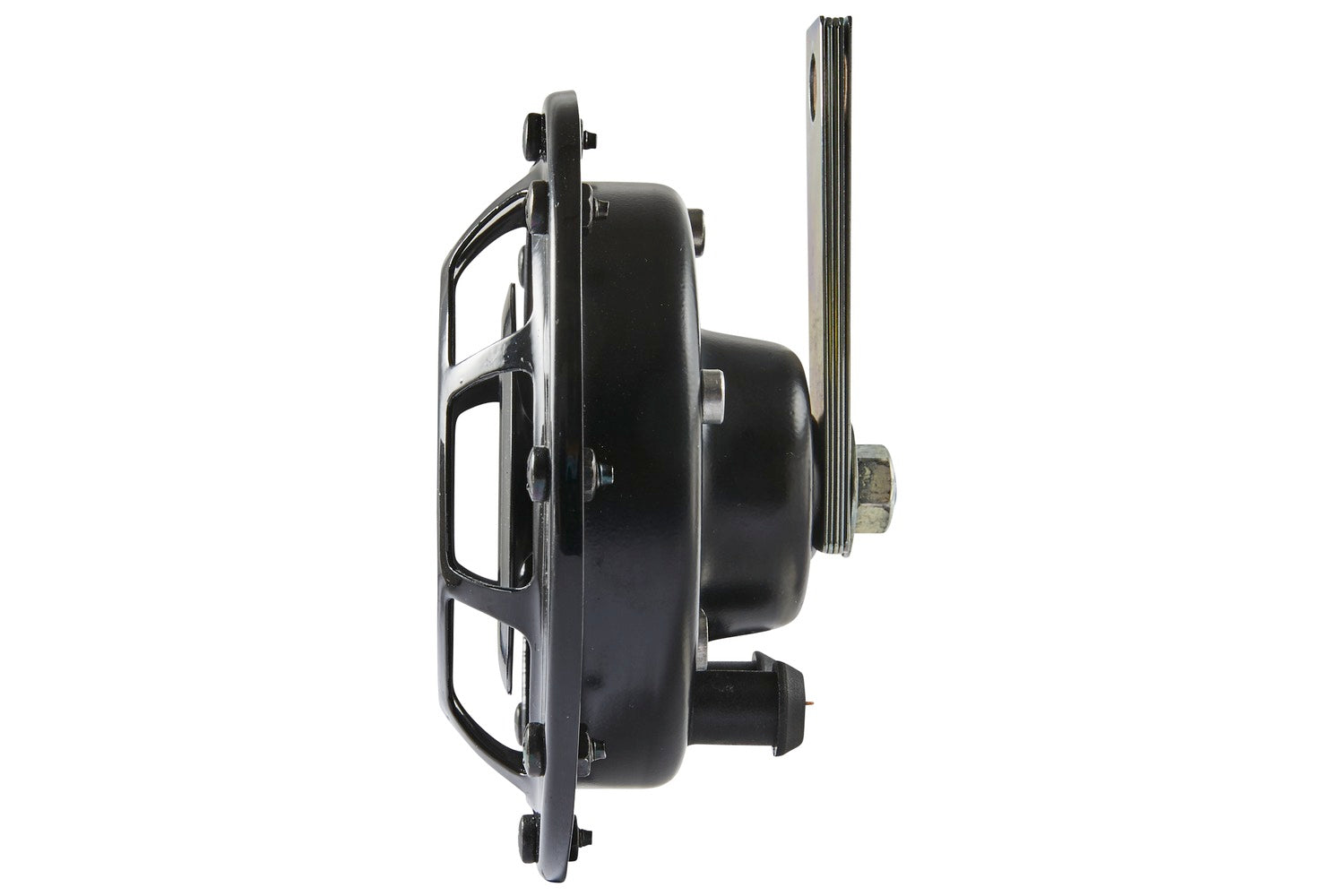

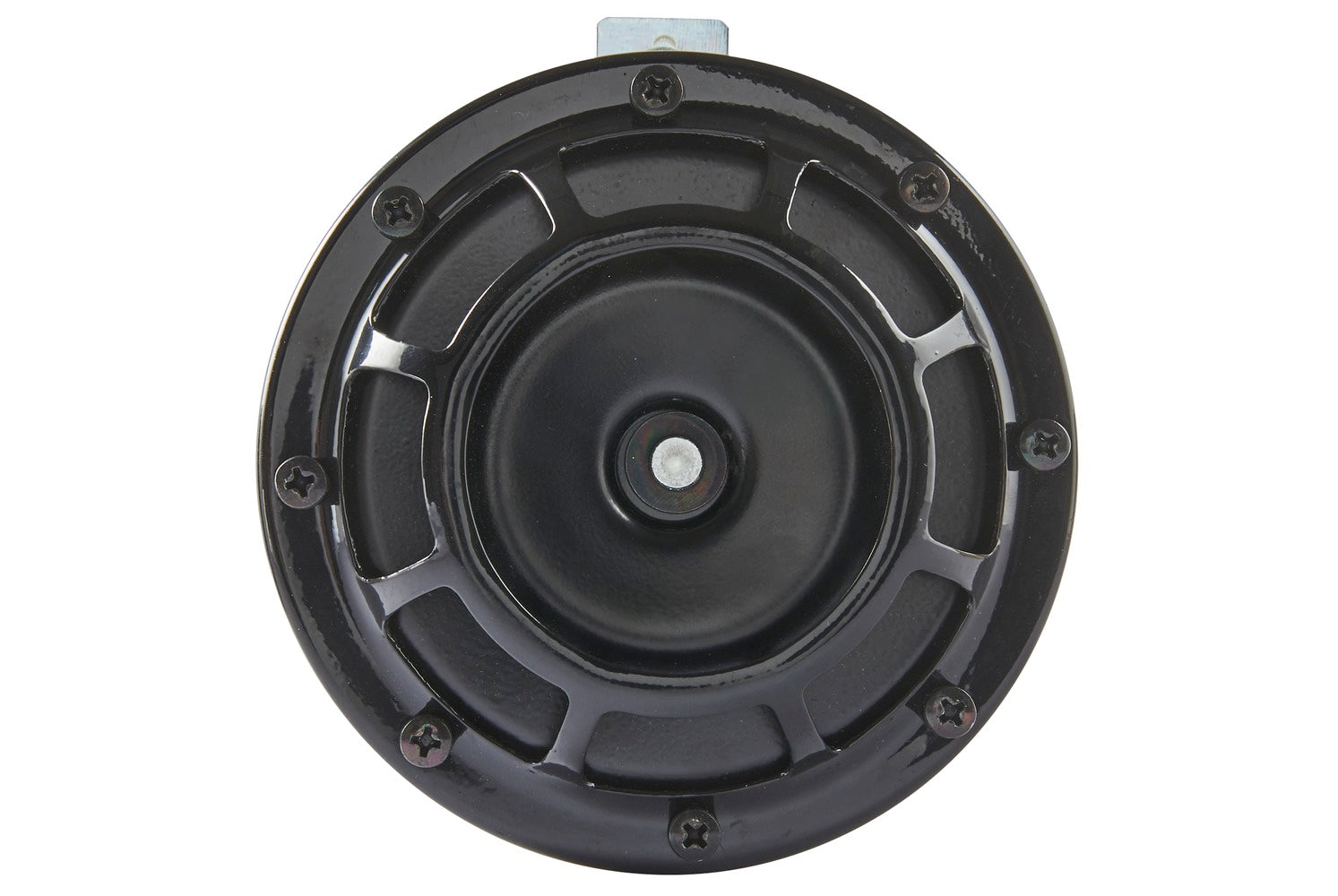

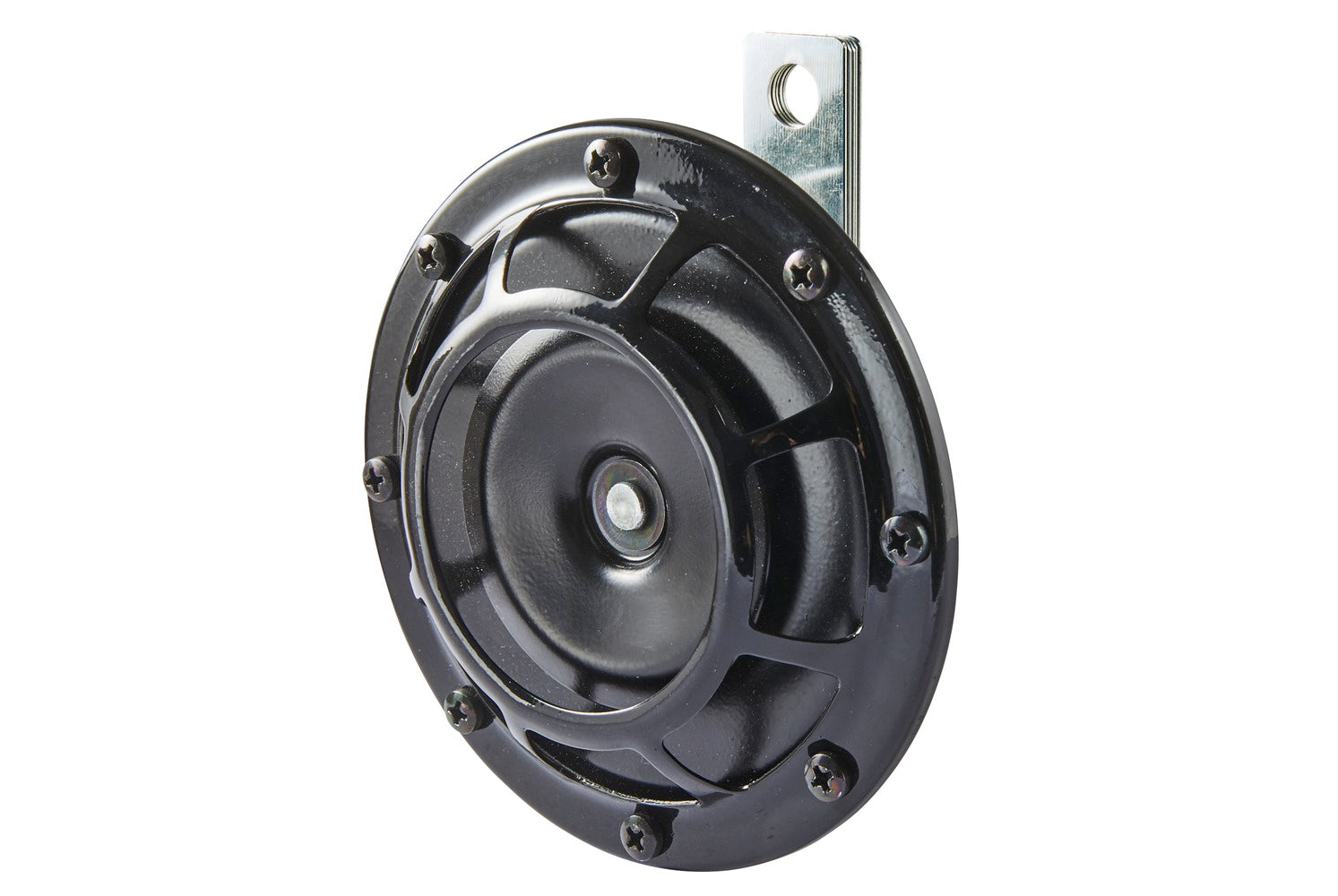

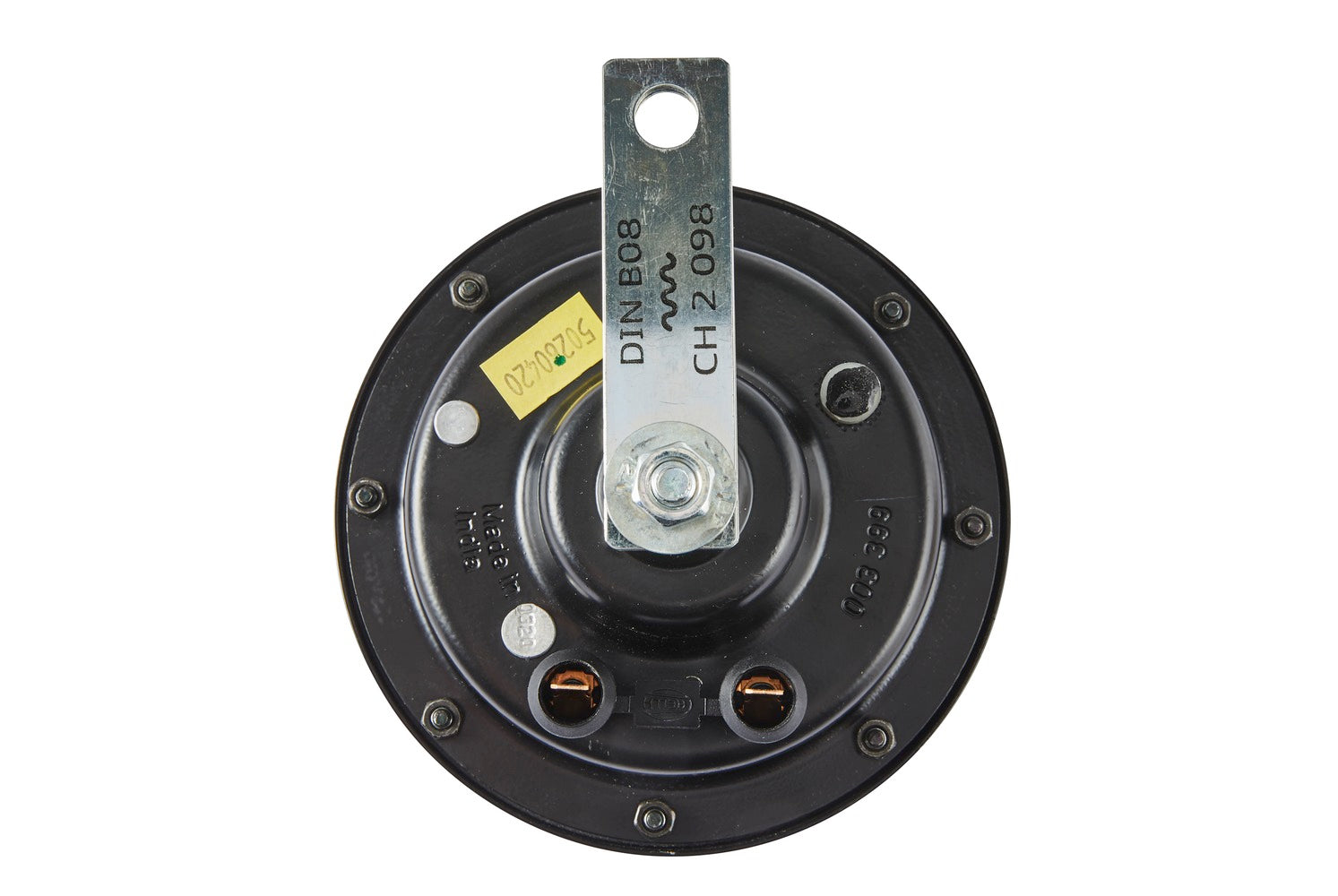

HELLA Signal Horn - B133 - 12V - 110dB(A) - Low Tone - Quantity: 1 3AF003399-041

Signal Horn - B133 - 12V - 110dB(A) - Frequency Range: 375Hz - Low Tone - Electric - ECE - Housing Colour: Black - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Sound pressure level at 3.5 m distance: 110 dB(A)
• Metal housing and protective grille painted black
• Holder on horn for fastening screw M10
• With Teflon pill for protection against moisture, with interference suppression capacitor. Rubber grommet for contact protection.

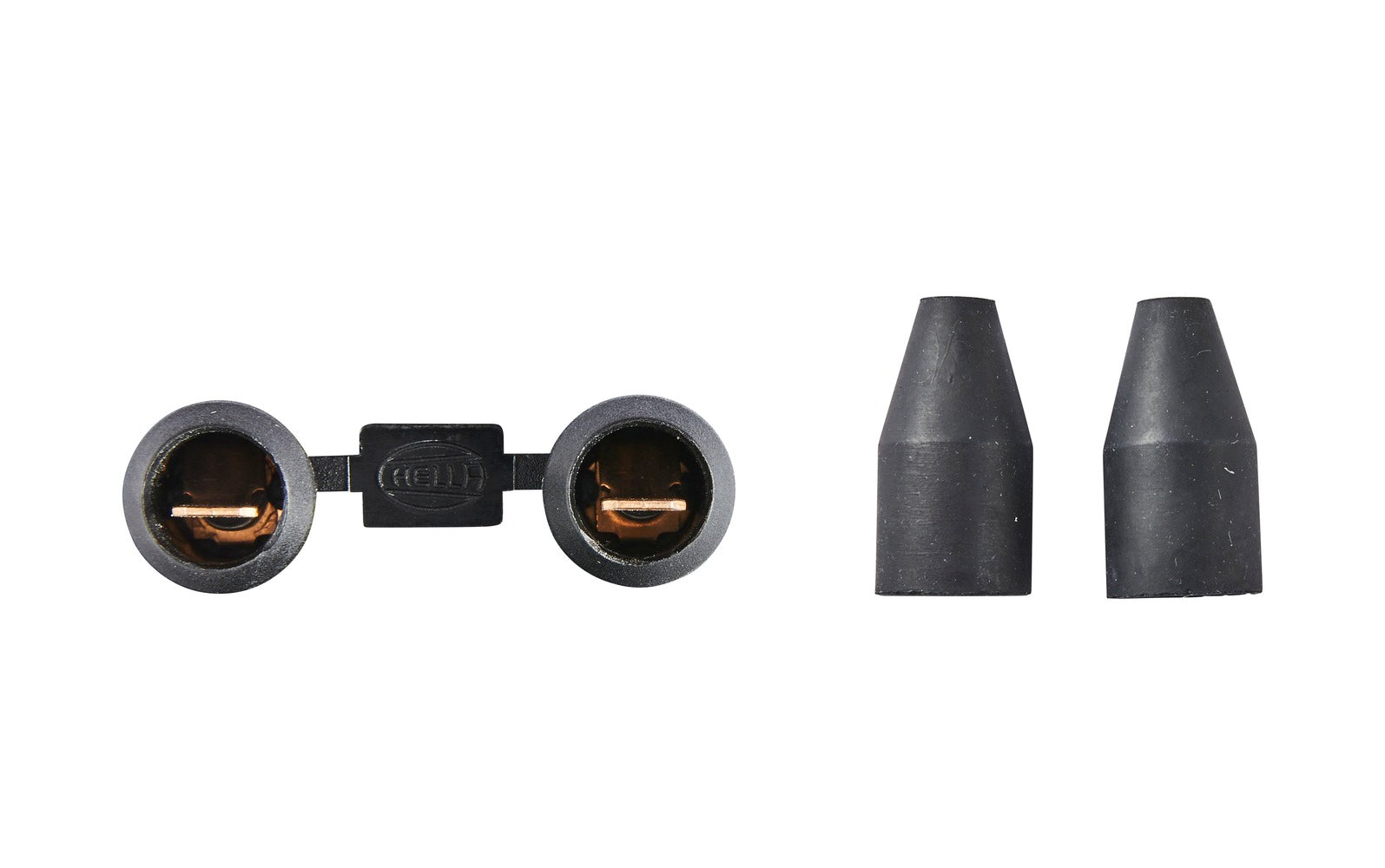

• With flat terminals 6.3 mm, protected.
• Temperature range from: -40°C - Temperature range to: 75°C - Frequency Range: 375Hz - Power consumption: 78W
• Ø: 123mm - Width: 125mm - Overall Height: 135mm - Depth: 85mm

Item Attributes:
Voltage: 12 V
Power consumption: 78 W
Sound Level: 110 dB(A)
Frequency Range: 375 Hz
Charging Rate: 6.5 A
Prot.type (IP Code): IPX9K / IPX7
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: black
Quantity: 1
Signal: Low Tone
Operating Mode: Electric
Overall Height: 135 mm
Width: 125 mm
Ø: 123 mm
Depth: 85 mm
Interference Suppression
Special Purpose Vehicle: for special-purpose vehicles
Temperature range from: -40 °C
Temperature range to: 75 °C
Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with moisture protection / with condenser / without E quality seal / with rubber grommet
Assembly by qualified personnel required!

OE references: AUDI KDWHLO9651; BOMAG 60.036.002; FORD 1 657 855; FORD V84VG 15585AA; LIEBHERR 6 140 205; VW 191 951 215; VW 211 951 217 B; VW KDWHLO9651
