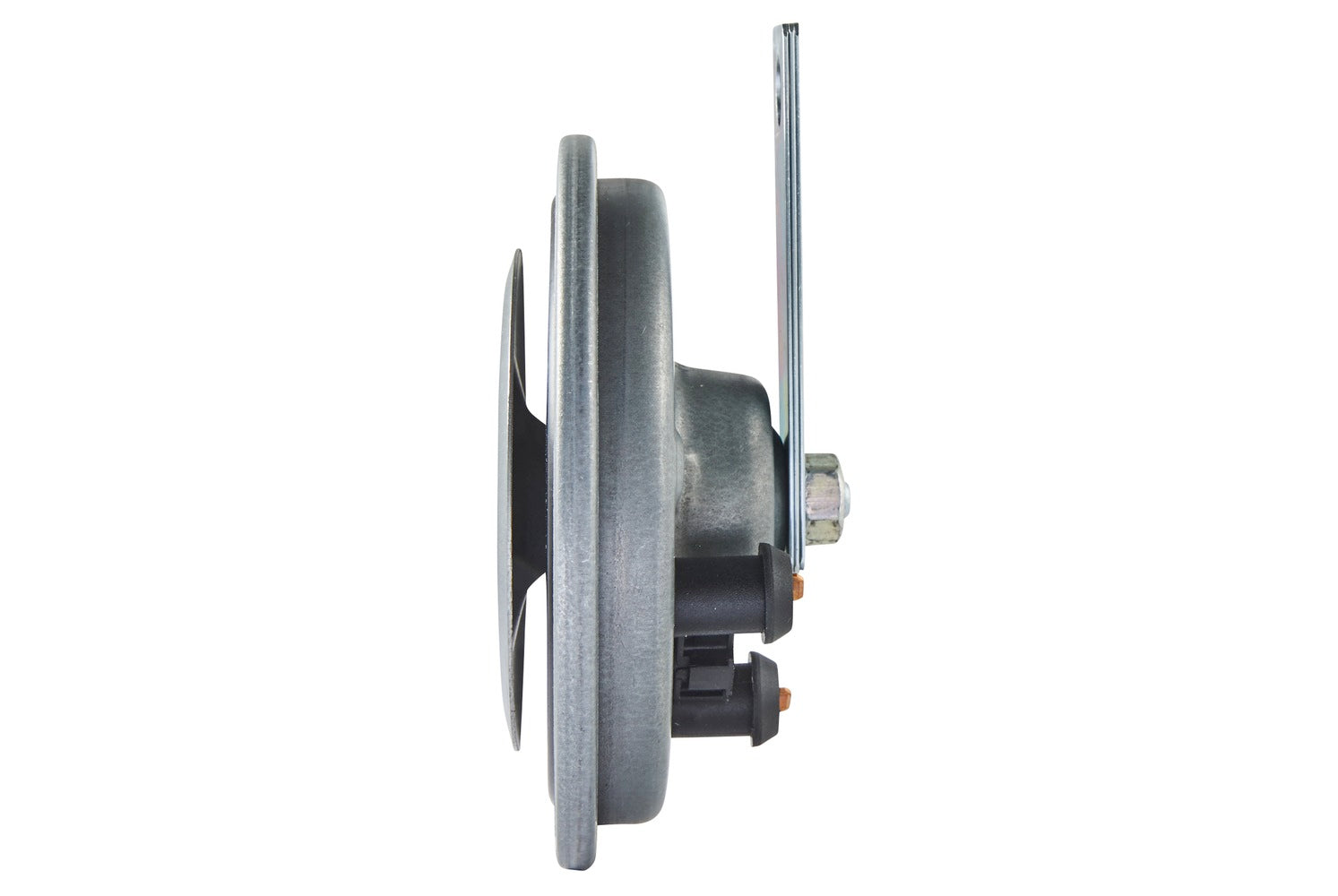

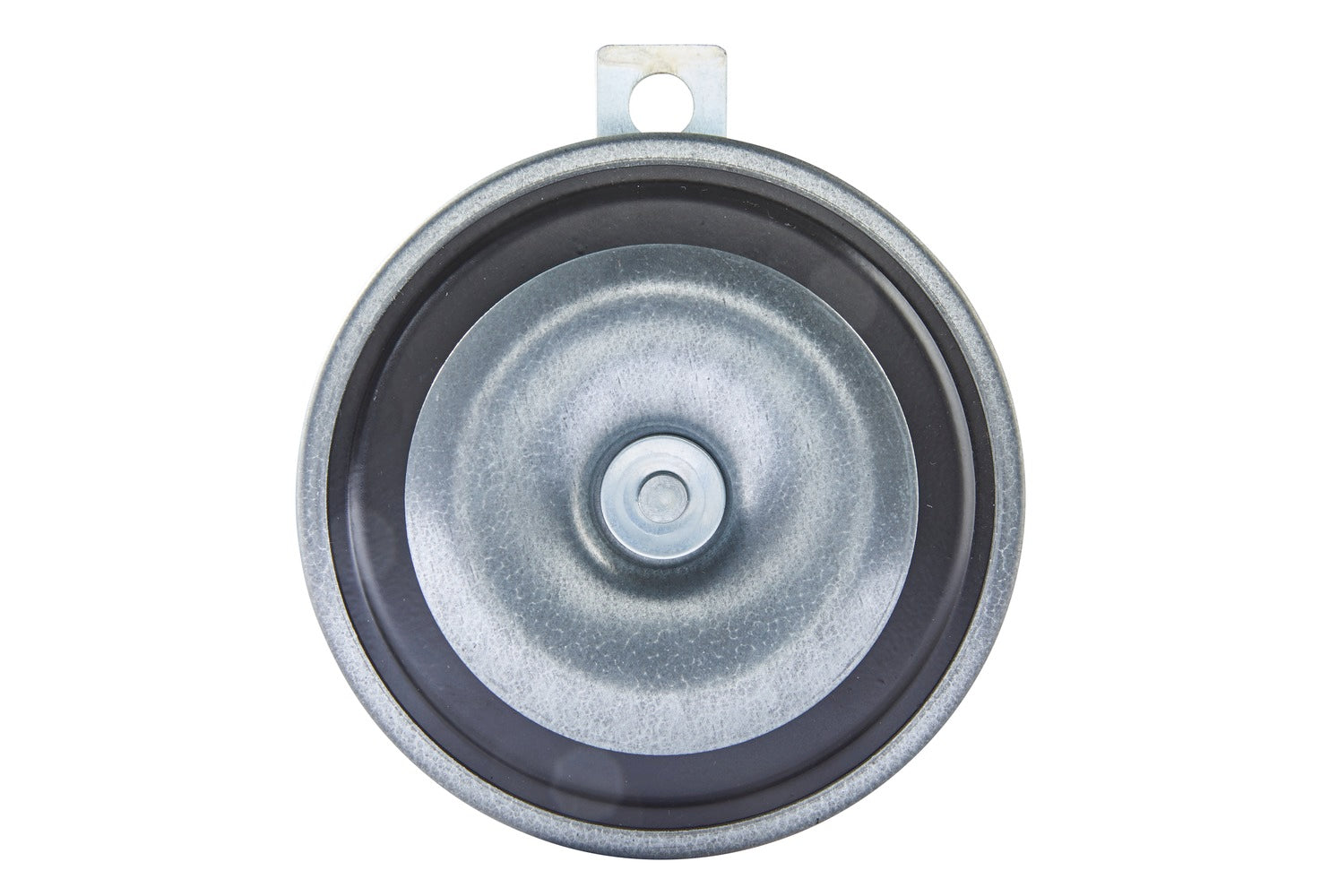

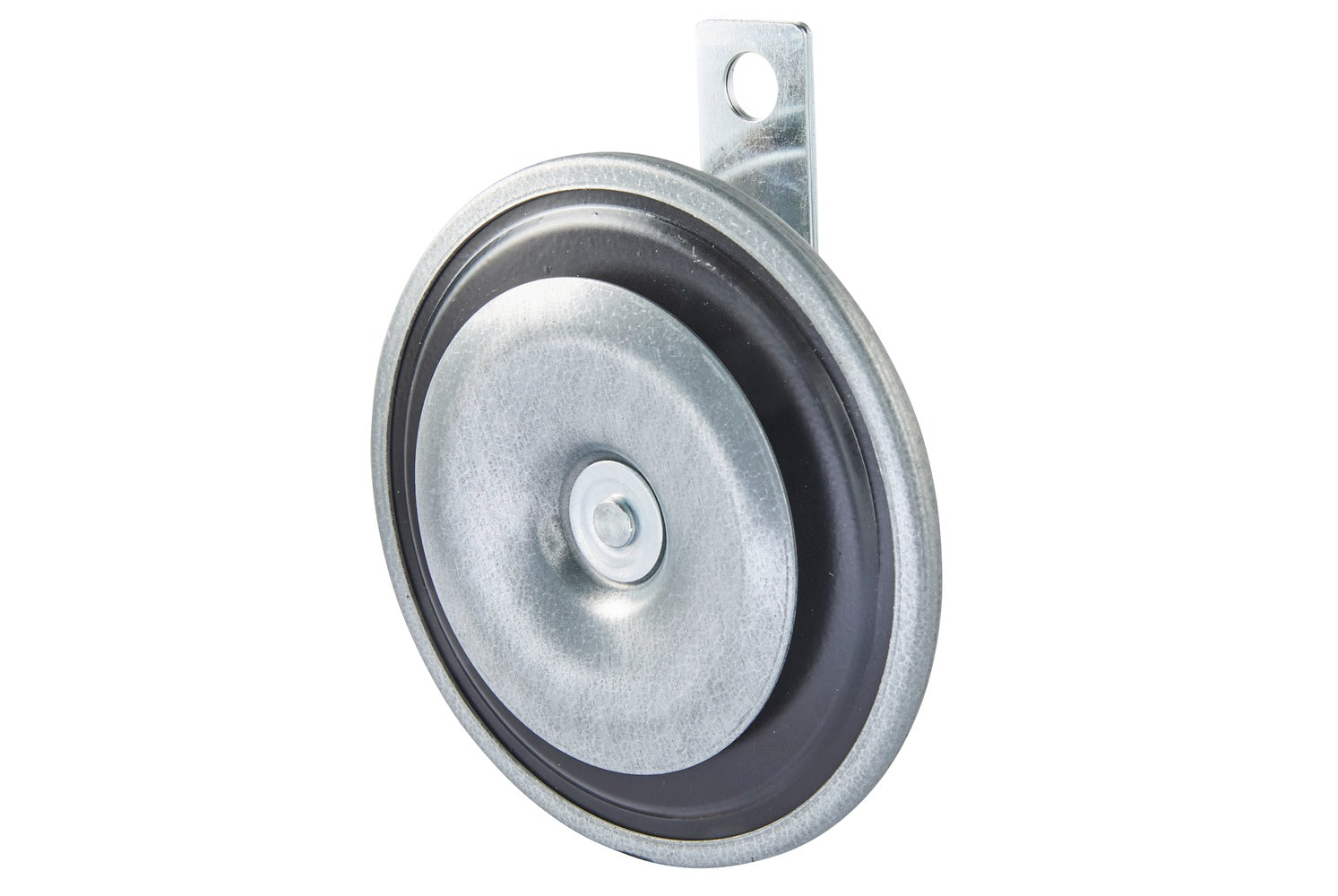

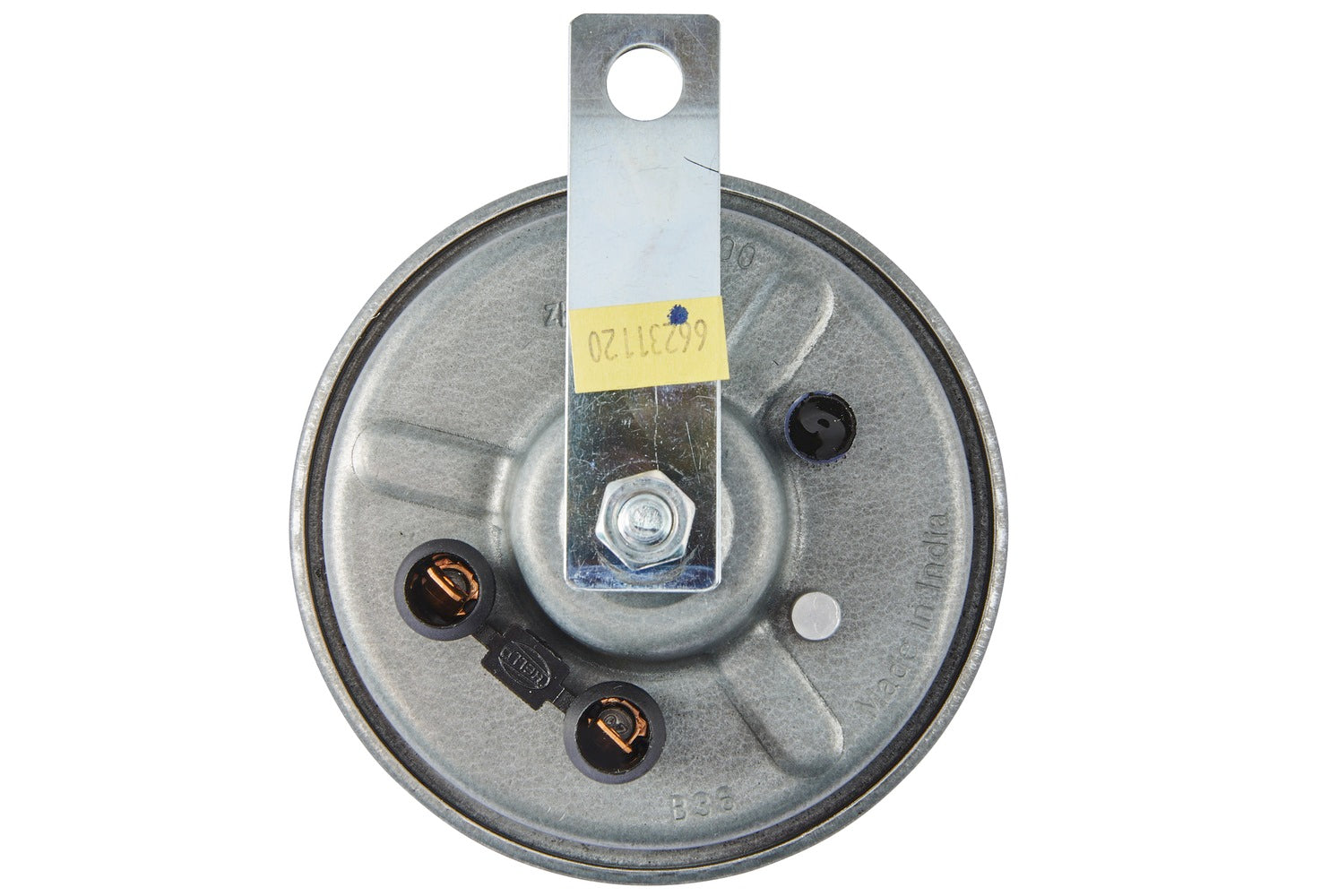

HELLA Signal Horn - B36 - 80V - 105dB(A) - Low Tone - Quantity: 1 3BA002768-001

Signal Horn - B36 - 80V - 105dB(A) - Frequency Range: 335Hz - Low Tone - Electric - ECE - Housing Colour: Grey - Flat Plug-in Connector - Quantity: 1

Play it safe - with the signal horns from HELLA. Signal horns are an absolute necessary and legally required accessory - and an essential safety feature. In view of the ever-increasing traffic in cities with millions of inhabitants, horn signals are essential to avoid accidents and collisions. An acoustic signalling device is used to ensure the safety of pedestrians but also other drivers. Horns come in a wide variety of designs and signal effects, depending on the intended use and requirement profile. HELLA offers a wide range of horns, each with a different sound. Over 100 years of experience in the development of horns and fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether in cars, trucks, buses, emergency vehicles, motor homes, motorbikes or in agricultural and construction machinery - our horns are used everywhere.

• Signal horn B36 (Ø 112 mm) with full harmonic sound over long distances in road traffic - ideal for commercial vehicles
• With low tone - optimum timbre when a set of tweeter and woofer horns is fitted
• Membrane to protect against moisture penetration
• Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 335Hz - Power consumption: 40W
• Ø: 112mm - Width: 113mm - Overall Height: 129mm - Depth: 60mm
• Registration Type: ECE - fulfils ECE standard: R28 - Prot.type (IP Code): IPX7/IPX9K
• with moisture protection/with condenser

Item Attributes:
Voltage: 80 V
Power consumption: 40 W
Sound Level: 105 dB(A)
Frequency Range: 335 Hz
Charging Rate: 0.5 A
Prot.type (IP Code): IPX7 / IPX9K
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: grey
Signal: Low Tone
Quantity: 1
Operating Mode: Electric
Overall Height: 129 mm
Width: 113 mm
Depth: 60 mm
Ø: 112 mm
Interference Suppression
Temperature range from: -40 °C
Temperature range to: +60 °C

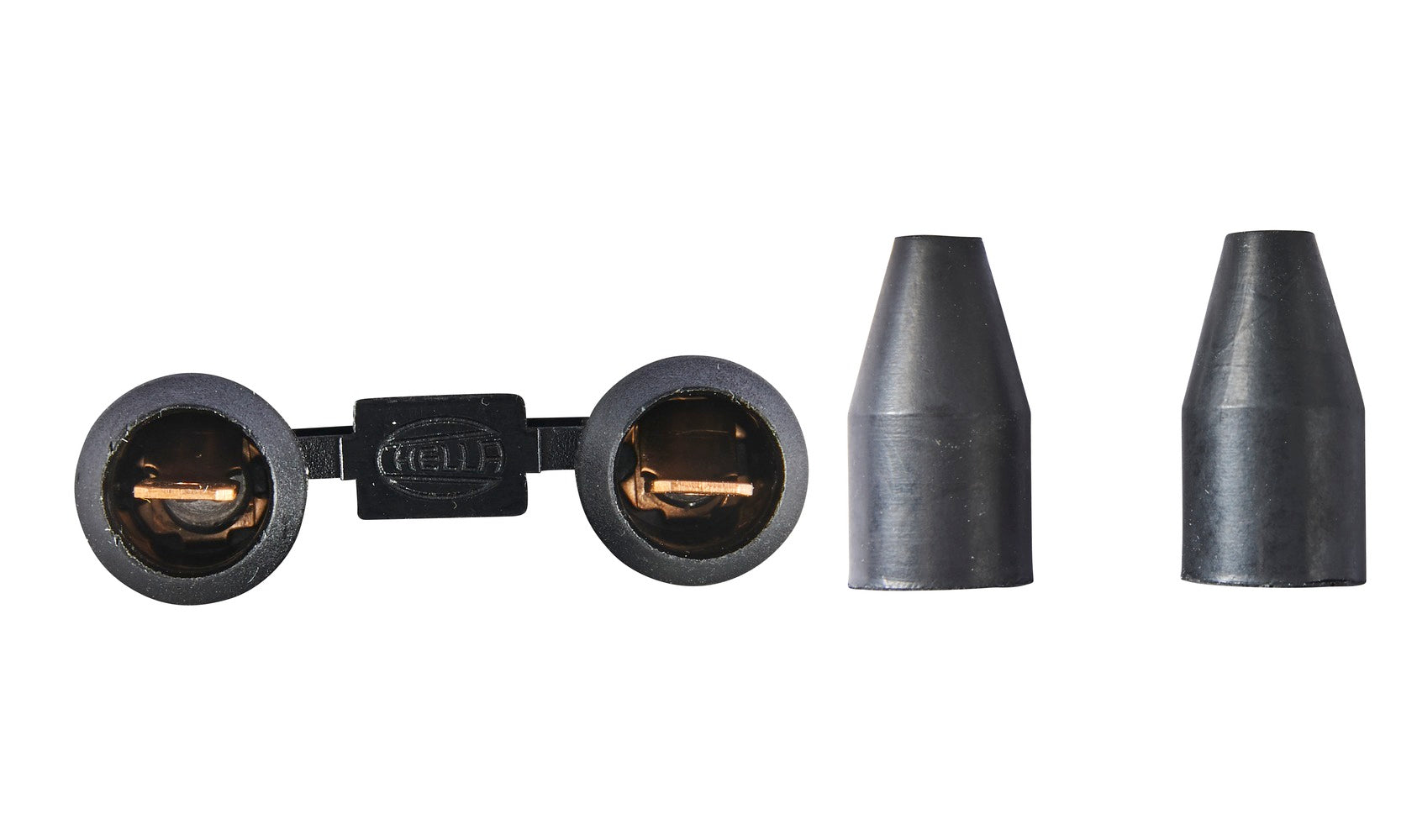

Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with moisture protection / with condenser
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CASE IH 0243614; DEUTZ-FAHR 000 9731507; HYSTER Y258304800; JOHN DEERE 56 59 3; JUNGHEINRICH 00001843; JUNGHEINRICH 28300310; KOMATSU 42106H9030; LINDE 000 973 15 07; LINDE 000 975 15 07; MAFI 000,580,2414; O&K 0243614; OPEL V06009400; OPEL V23610010; OPEL V43038900; STILL 010515; STILL 525994; STILL 8010515
