HELLA Signal Horn - HELLA HEAVY DUTY HORN B133 - 24V - 110dB(A) - Low Tone - Quantity: 3AF003399-061

Signal Horn - HELLA HEAVY DUTY HORN B133 - 24V - 110dB(A) - Frequency Range: 375Hz - Low Tone - Electric - ECE - Housing Colour: Black - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

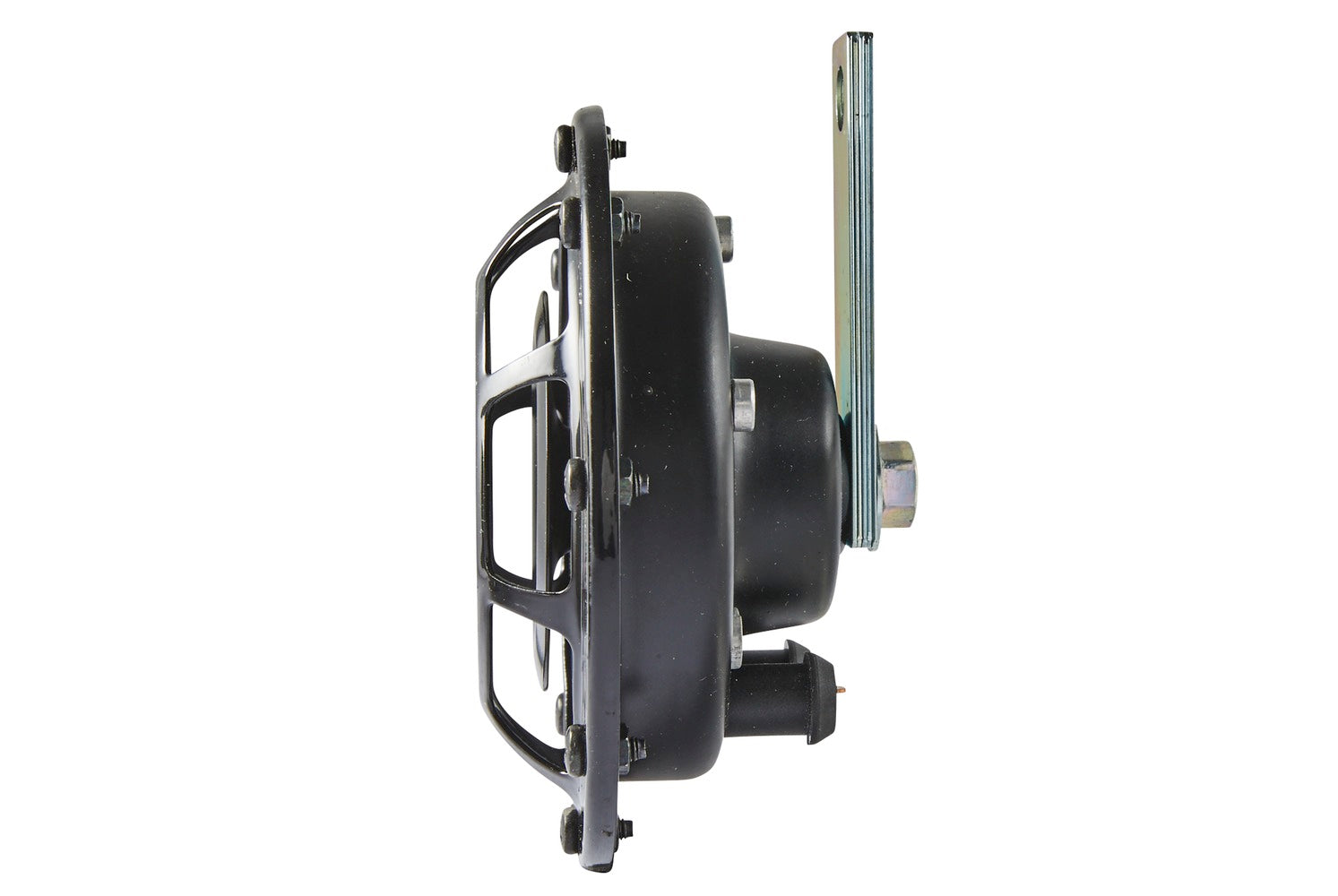

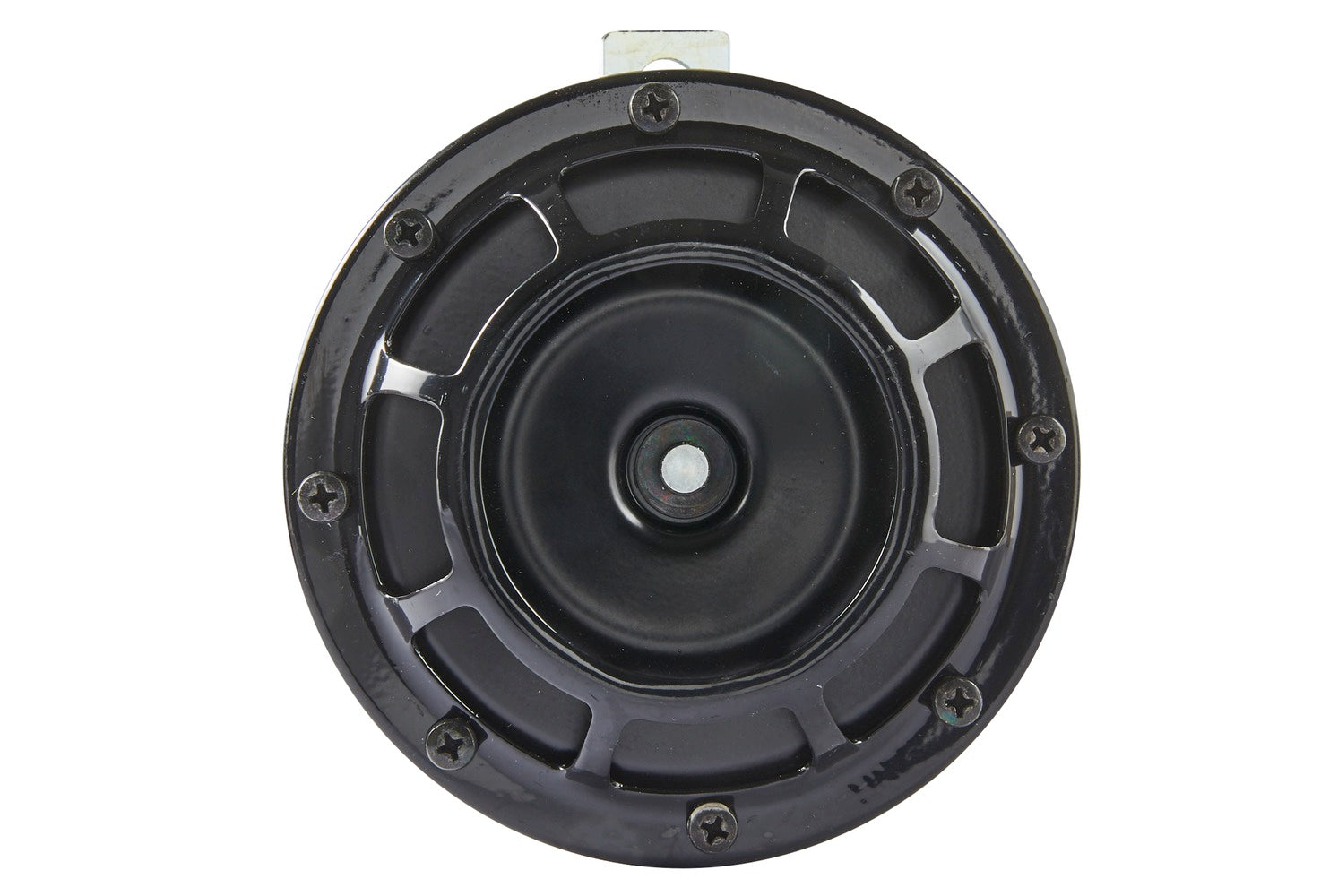

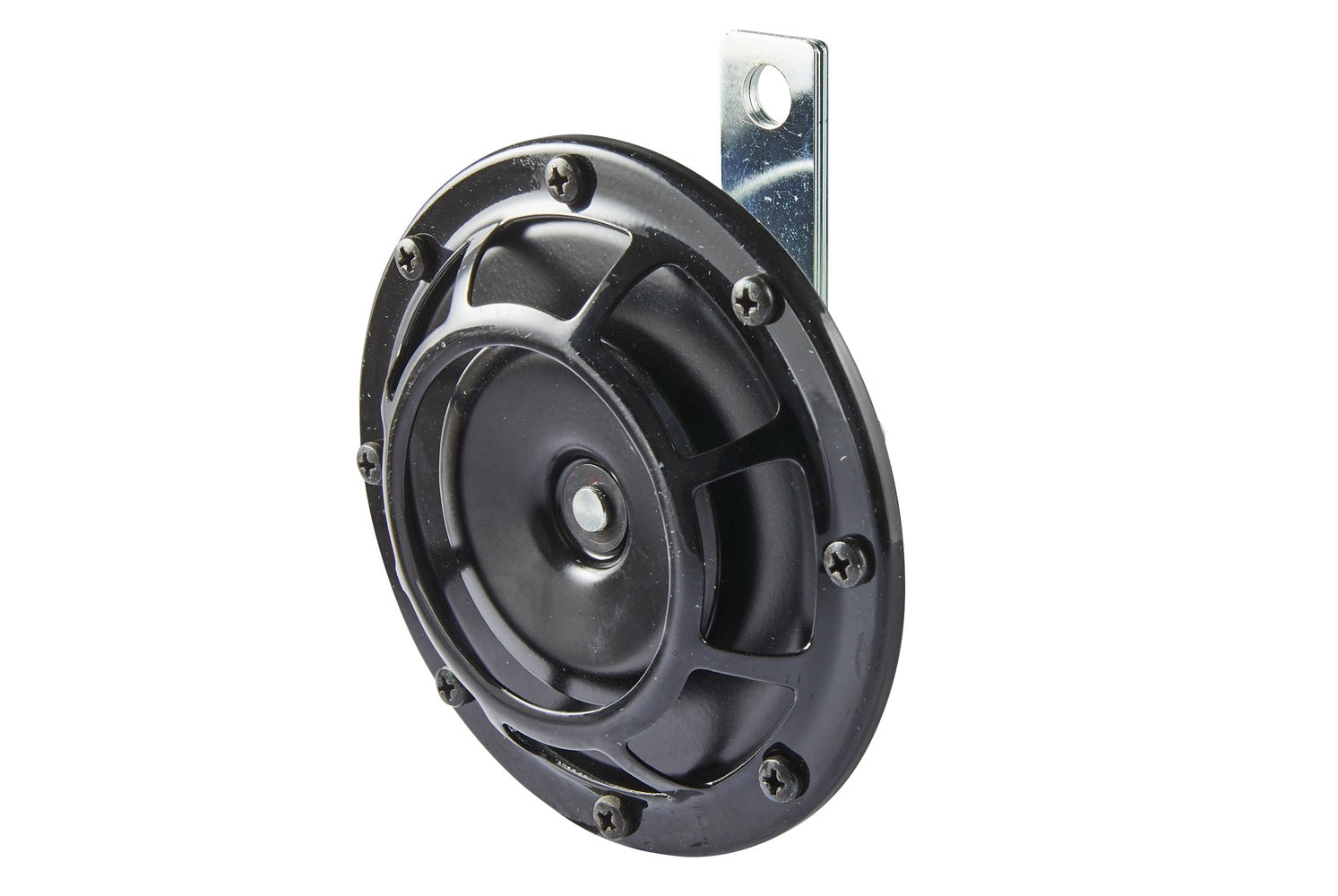

• Black housing, black protection grid and black holder, made of galvanised metal
• Sound pressure level at 2m distance: 118 dB(A); power consumption: 24V, 84W
• Holder for fixing screw M8
• Operating temperature: -40 °C to 90 °C (-40 °F to 194 °F)

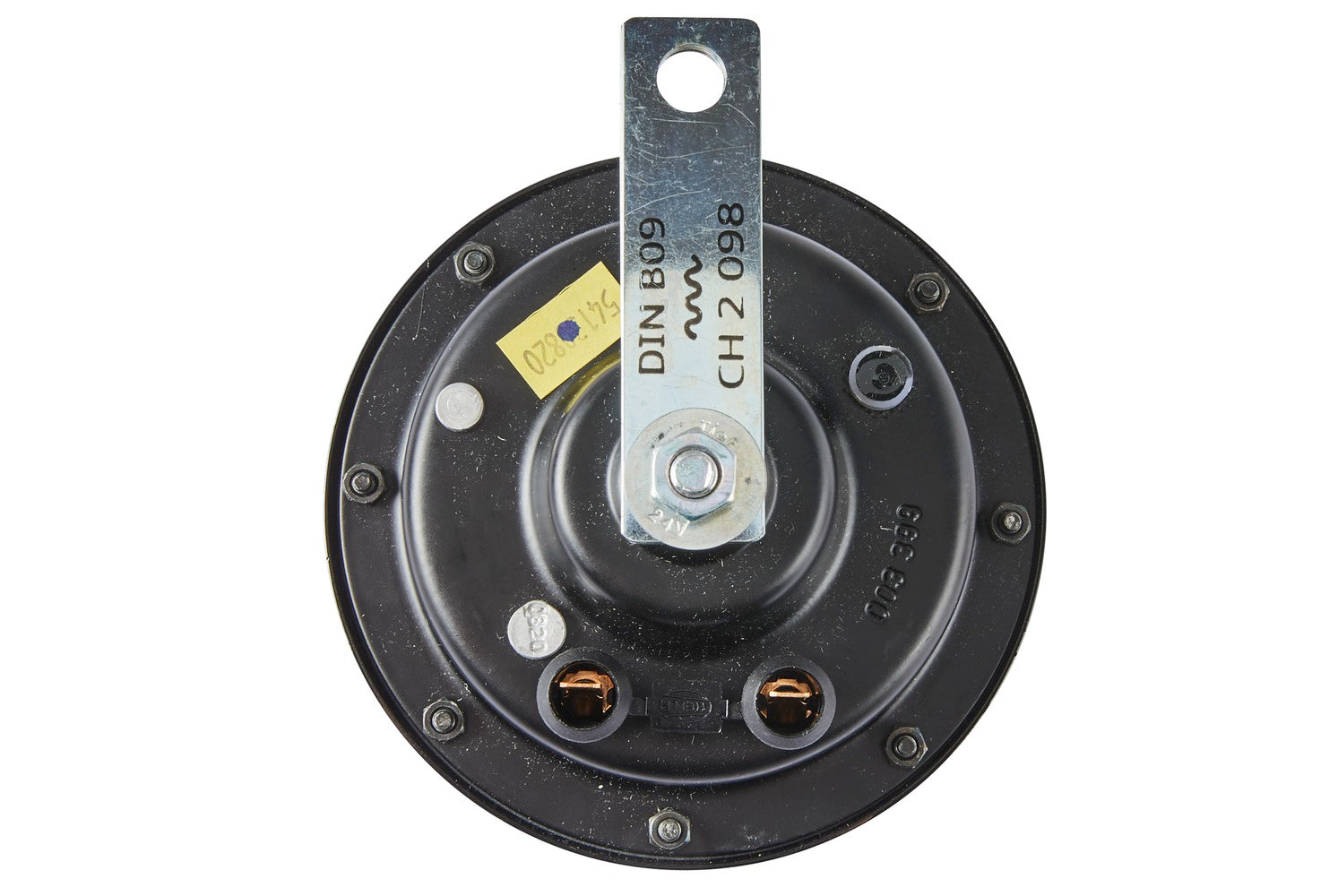

• With 6.3 mm tab terminals, open; approval: ECE
• Temperature range from: -40°C - Temperature range to: 75°C - Frequency Range: 375Hz - Power consumption: 84W
• Ø: 123mm - Width: 125mm - Overall Height: 135mm - Depth: 85mm

Item Attributes:
Voltage: 24 V
Power consumption: 84 W
Sound Level: 110 dB(A)
Frequency Range: 375 Hz
Charging Rate: 3.5 A
Prot.type (IP Code): IPX9K / IPX7
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: black
Quantity: 1
Signal: Low Tone
Operating Mode: Electric
Overall Height: 135 mm
Width: 125 mm
Ø: 123 mm
Depth: 85 mm
Interference Suppression
Special Purpose Vehicle: for special-purpose vehicles
Temperature range from: -40 °C
Temperature range to: 75 °C
Mounting Type: Flat Plug-in Connector

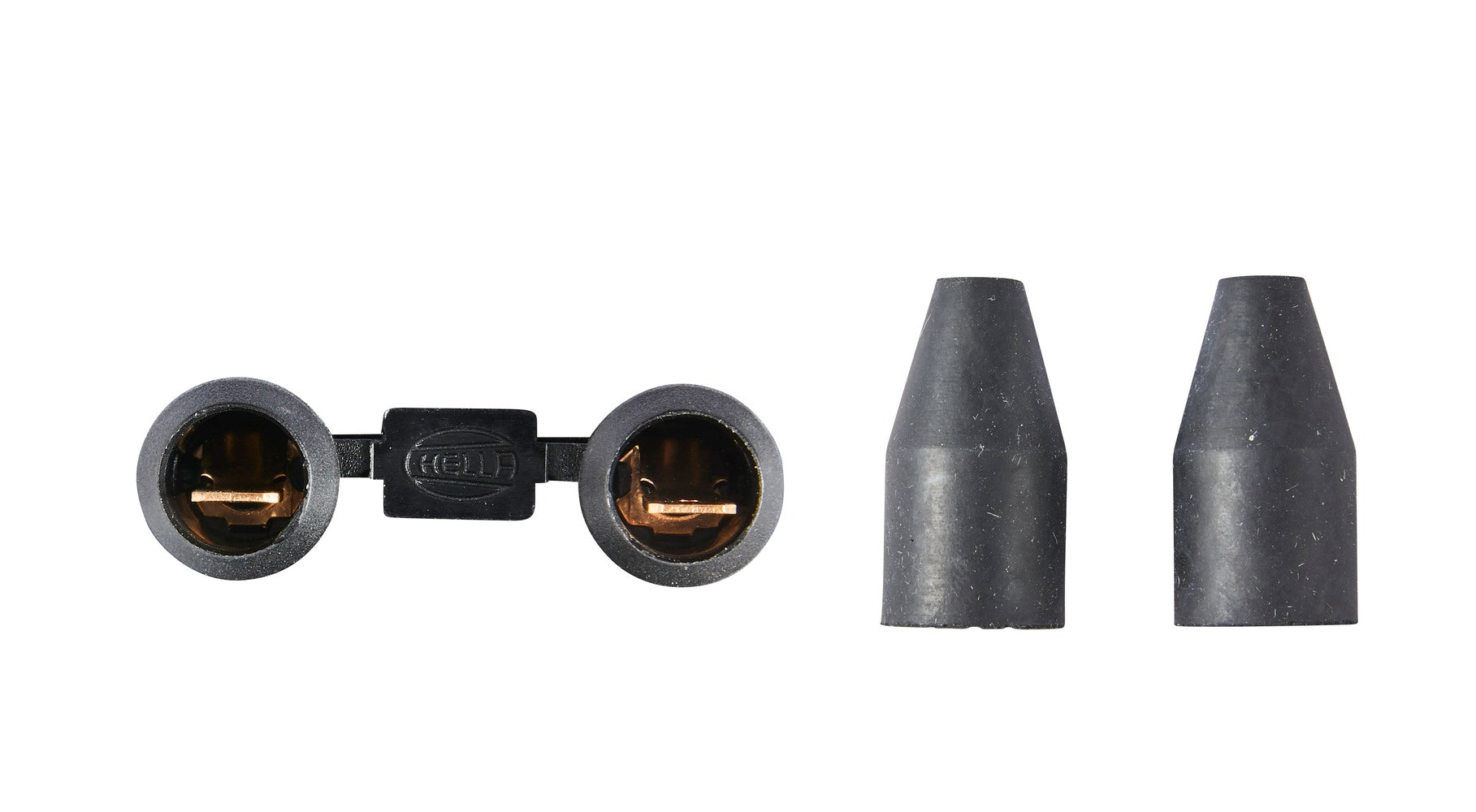

Supplementary Article/Supplementary Info 2: with condenser / with rubber grommet / with moisture protection / without E quality seal
Assembly by qualified personnel required!

OE references: ATLAS COPCO 8302313; AUWÄRTER 81.25301-6045; BUCHER 7-661-0812; DEMAG 00092912; DOOSAN 2516-9016; EVOBUS 003 542 47 20; EVOBUS 0035420320; EVOBUS A0035424520; EVOBUS A0035424720; GOLDHOFER 154731; JOHN DEERE AT395985; KÄSSBOHRER 7.711.120.000; KÄSSBOHRER 7.711.120.000.0; KOMATSU 42106H9110; LIEBHERR 1 067 552 5; LIEBHERR 6 204 592; MAN 81.25301-6045; MERCEDES-BENZ 003 542 03 20; MERCEDES-BENZ 003 542 47 20; MERCEDES-BENZ 990 542 39 00; MERCEDES-BENZ A 003 542 03 20; MERCEDES-BENZ A 003 542 47 20; MERCEDES-BENZ A 990 542 39 00; NEOPLAN 1112 388 4; NEOPLAN 81.25301-6045; ROSENBAUER 41148A; SCHMITZ CARGOBULL 1039; TEREX 00092912; TEREX 5050022291; TEREX 8302313; TEREX 94700092912; VOLVO 14531261; YANMAR 5050022291; ZIEGLER 407701
