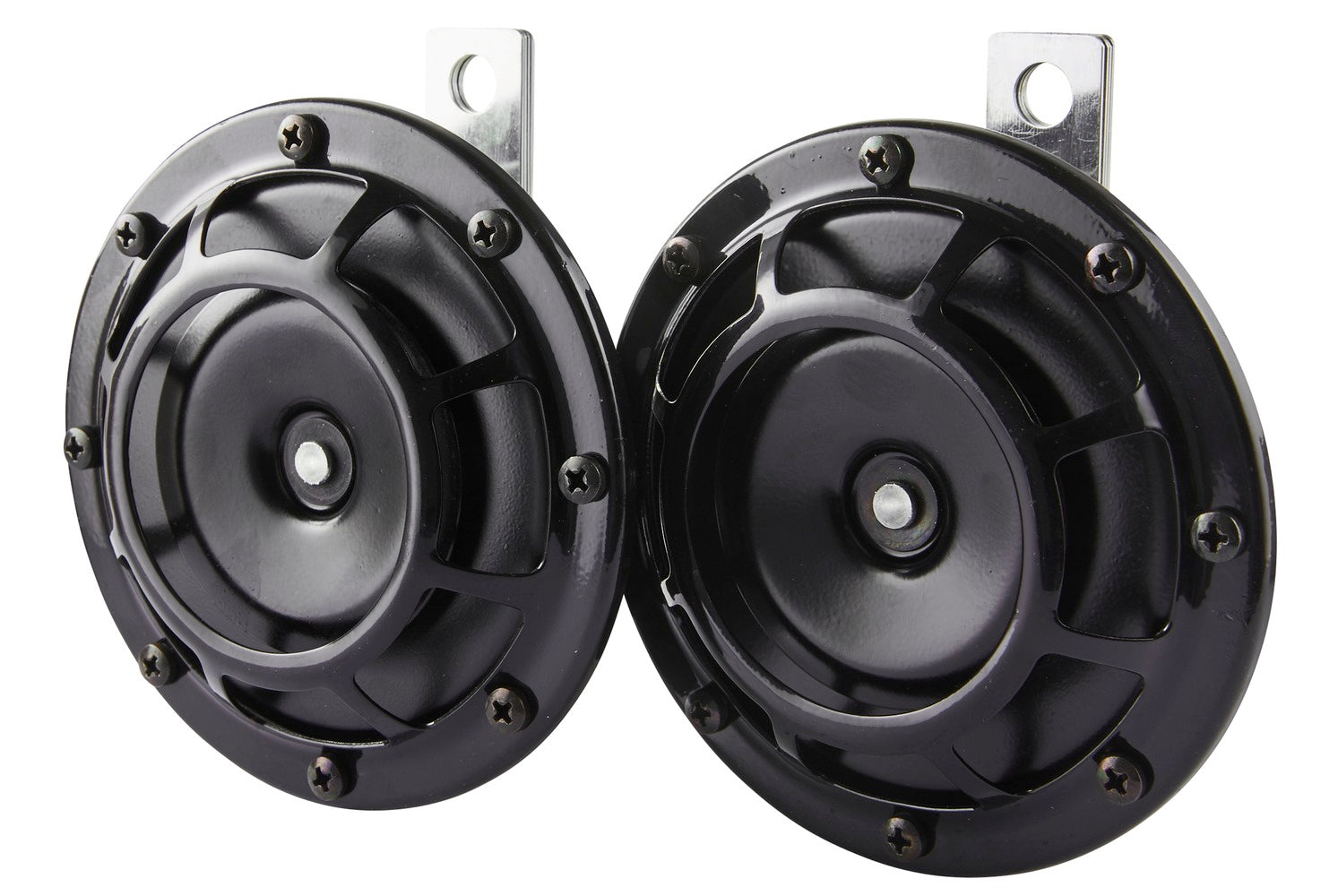

HELLA Signal Horn - HELLA HEAVY DUTY HORN B133 SET - 24V - 110dB(A) - High Tone/Low To 3AG003399-101

Signal Horn - HELLA HEAVY DUTY HORN B133 SET - 24V - 110dB(A) - Frequency Range: 375/500Hz - High Tone/Low Tone - Electric - ECE - Housing Colour: Black - Flat Plug-in Connector - Quantity: 2

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Sound pressure level at 3.5 m distance: 110 dB(A)

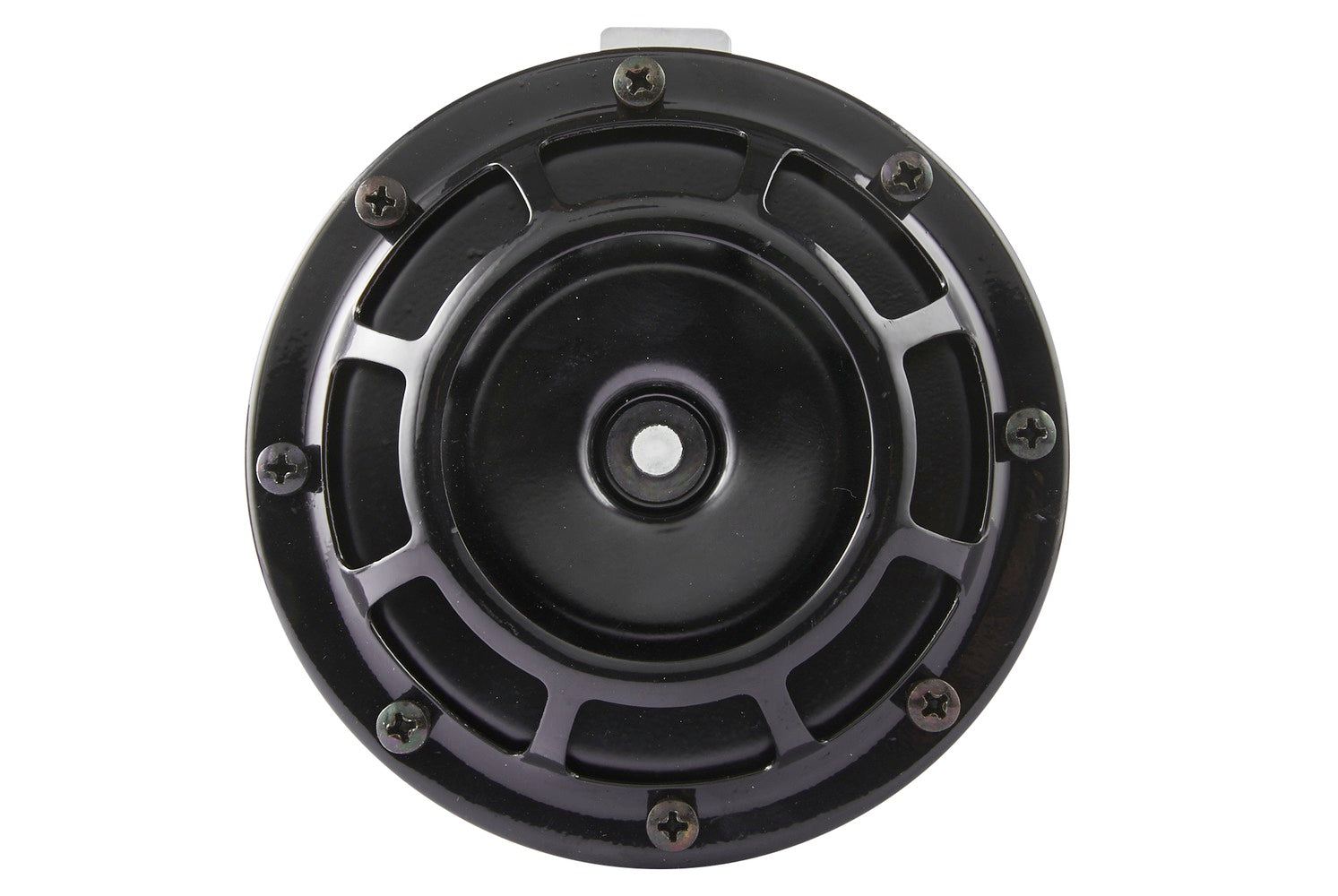

• Metal housing and protective grille painted black

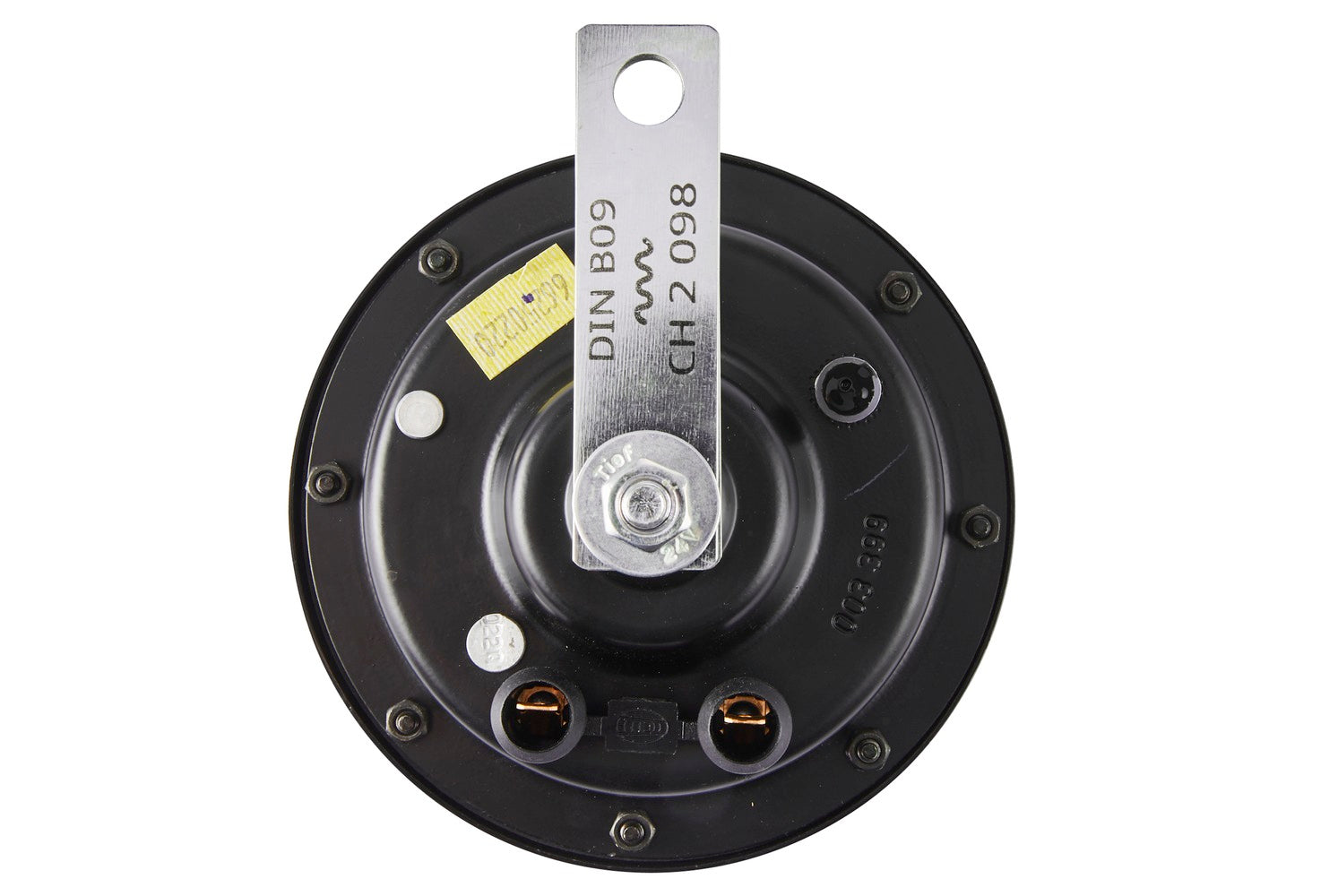

• Holder on horn for fastening screw M10

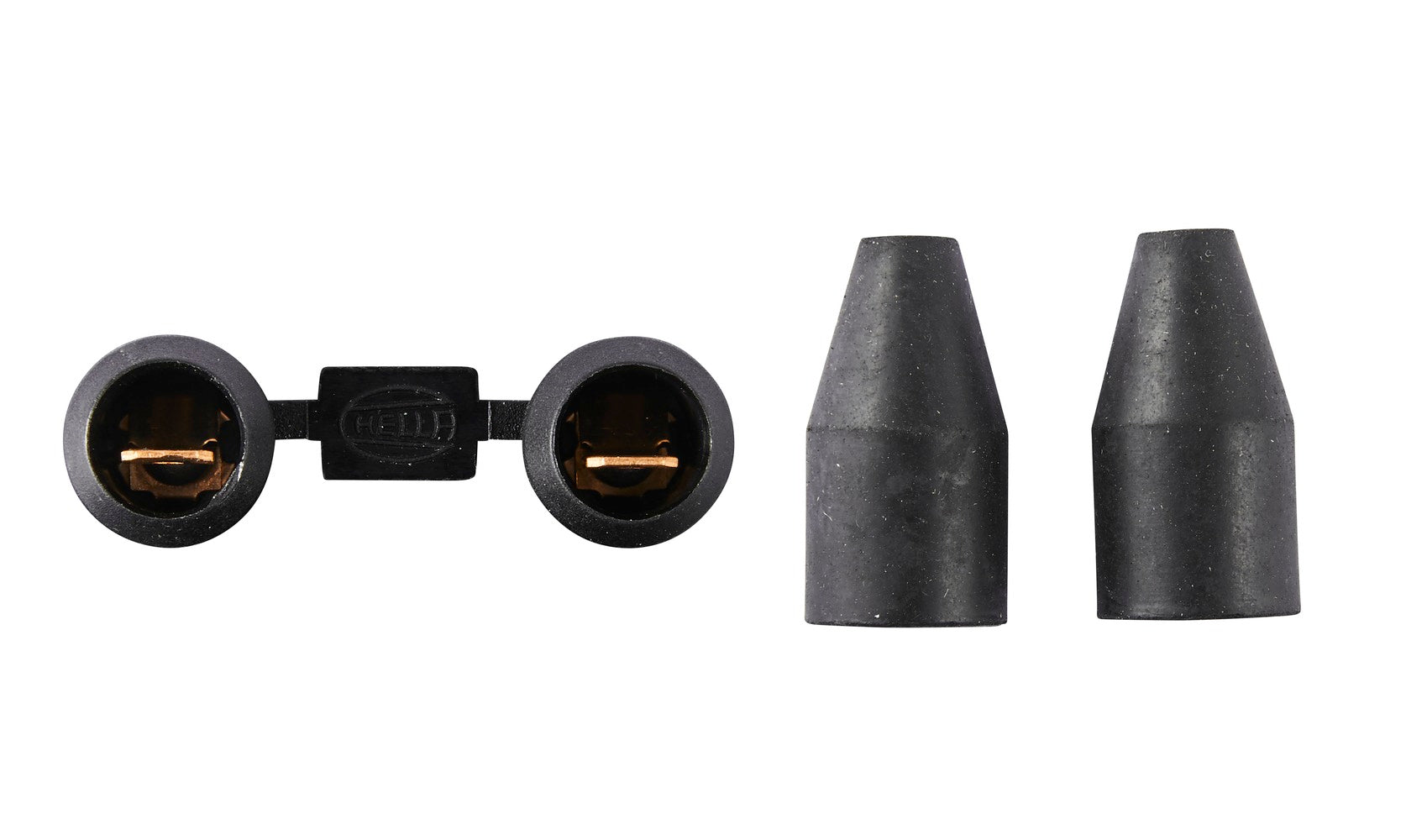

• With Teflon pill for protection against moisture, with interference suppression capacitor. Rubber grommet for contact protection.
• With flat terminals 6.3 mm, protected.
• Temperature range from: -40°C - Temperature range to: 75°C - Frequency Range: 375/500Hz - Power consumption: 84W
• Ø: 123mm - Width: 125mm - Overall Height: 135mm - Depth: 85mm

Item Attributes:
Voltage: 24 V
Power consumption: 84 W
Sound Level: 110 dB(A)
Frequency Range: 375 Hz / 500 Hz
Charging Rate: 3.5 A
Prot.type (IP Code): IPX9K / IPX7
fulfils ECE standard: R28
Registration Type: ECE
Signal: High Tone / Low Tone
Housing Colour: black
Quantity: 2
Operating Mode: Electric
Overall Height: 135 mm
Width: 125 mm
Ø: 123 mm
Depth: 85 mm
Interference Suppression
Special Purpose Vehicle: for special-purpose vehicles
Temperature range from: -40 °C
Temperature range to: 75 °C
Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with moisture protection / with rubber grommet / without E quality seal / with condenser
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS 667251; AUWÄRTER 1512.100.00; FIAT 42080296; HOLMER 1021042981; IVECO 42080296; JOHN DEERE 55 02 8; KÖGEL 77839; KOMATSU 20E-06-H9150; KRAUSS-MAFFEI 17336220N0000; LIEBHERR 10675526; LIEBHERR 6 140 461 14; LIEBHERR 6 204 593; LIEBHERR 614001208; MAN 151210000; MERCEDES-BENZ 003 542 45 20; MERCEDES-BENZ 717 193 55 20; MERCEDES-BENZ A 003 542 45 20; MERCEDES-BENZ A 717 193 55 20; NEOPLAN 1512.100.00; O&K 215139; PAUS 507747; SANY B240500000012; SCHMITZ CARGOBULL 1058; SOLARIS 2602-770-105; SOLARIS NT006881; STEYR 7.171.93.552.0; VAN HOOL 660760222; VDL 190101500; VDL 660760222; ZIEGLER 407711
