Description

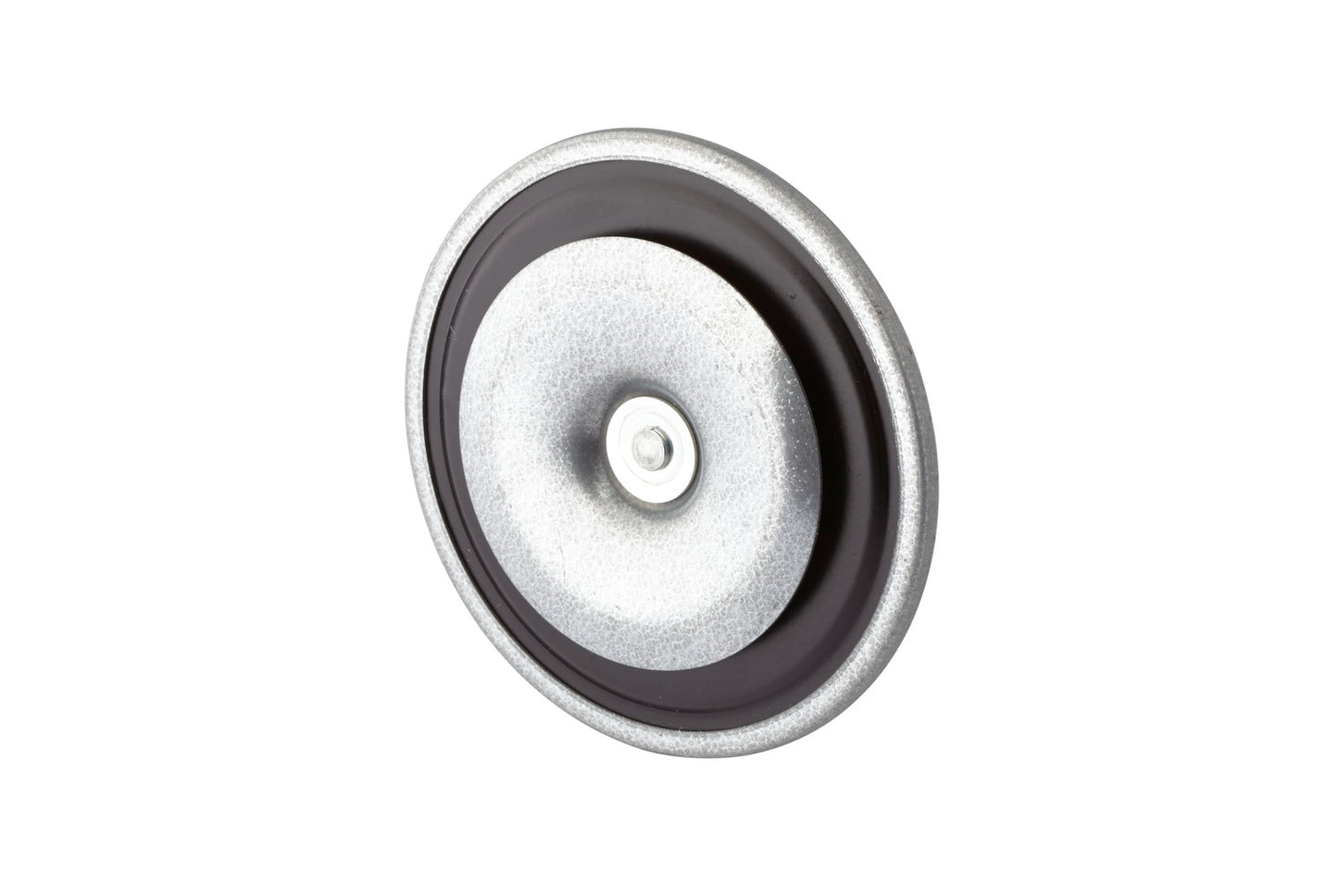

Signal Horn - HELLA HEAVY DUTY HORN B36 - 12V - 116dB(A) - Frequency Range: 400Hz - High Tone - Electric - ECE - Housing Colour: grey/black - Flat Plug-in Connector - Quantity: 1
Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.
- Housing and holder in black galvanised metal, black membrane
- Sound pressure level at 2 m distance: 116 dB(A); power consumption: 72 W
- Holder for fixing screw M8
- Operating temperature: -40 °C to 90 °C (-40 °F to 194 °F)
- Approval: ECE
- Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 400Hz - Power consumption: 72W
- Ø: 112mm - Overall Height: 129mm - Depth: 53mm
Item Attributes:
Voltage: 12 V
Power consumption: 72 W
Sound Level: 116 dB(A)
Frequency Range: 400 Hz
Charging Rate: 6 A
Prot.type (IP Code): IP54
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: grey/black
Quantity: 1
Operating Mode: Electric
Signal: High Tone
Overall Height: 129 mm
Ø: 112 mm
Depth: 53 mm
Temperature range from: -40 °C
Temperature range to: +60 °C
Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!
OE references: BMW 1 357 088; BMW 1 367 310; BMW 61 33 1 357 088; MACK 4381 66019
