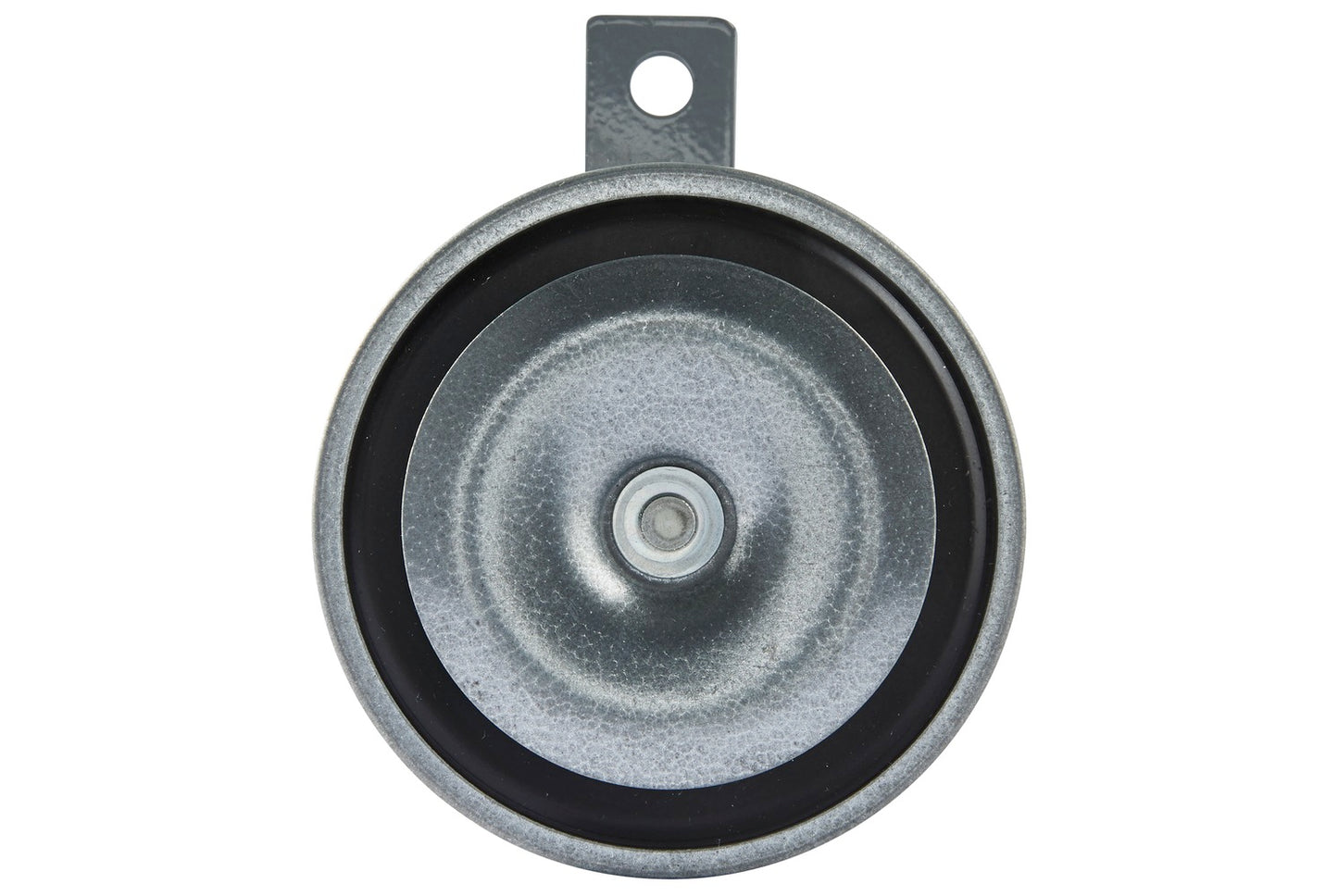

HELLA Signal Horn - HELLA HEAVY DUTY HORN M26 - 12V - 105dB(A) - High Tone - Quantity: 3AL002952-811

Signal Horn - HELLA HEAVY DUTY HORN M26 - 12V - 105dB(A) - Frequency Range: 400Hz - High Tone - Electric - ECE - Housing Colour: grey/black - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Full harmonious sound over long distances in road traffic
• Optimum sound when a set of tweeter and bass horn is installed.
• Membrane to protect against moisture penetration
• The horn is switched by the "horn" on the steering wheel (control signal).
• Teflon seal to protect against moisture (optional).
• Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 400Hz - Power consumption: 66W
• Ø: 97mm - Overall Height: 122mm - Depth: 54mm

Item Attributes:
Voltage: 12 V
Power consumption: 66 W
Sound Level: 105 dB(A)
Frequency Range: 400 Hz
Charging Rate: 5.5 A
Prot.type (IP Code): IPX9K
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: grey/black
Quantity: 1
Signal: High Tone
Operating Mode: Electric
Overall Height: 122 mm
Depth: 54 mm
Ø: 97 mm
Temperature range from: -40 °C
Temperature range to: +60 °C

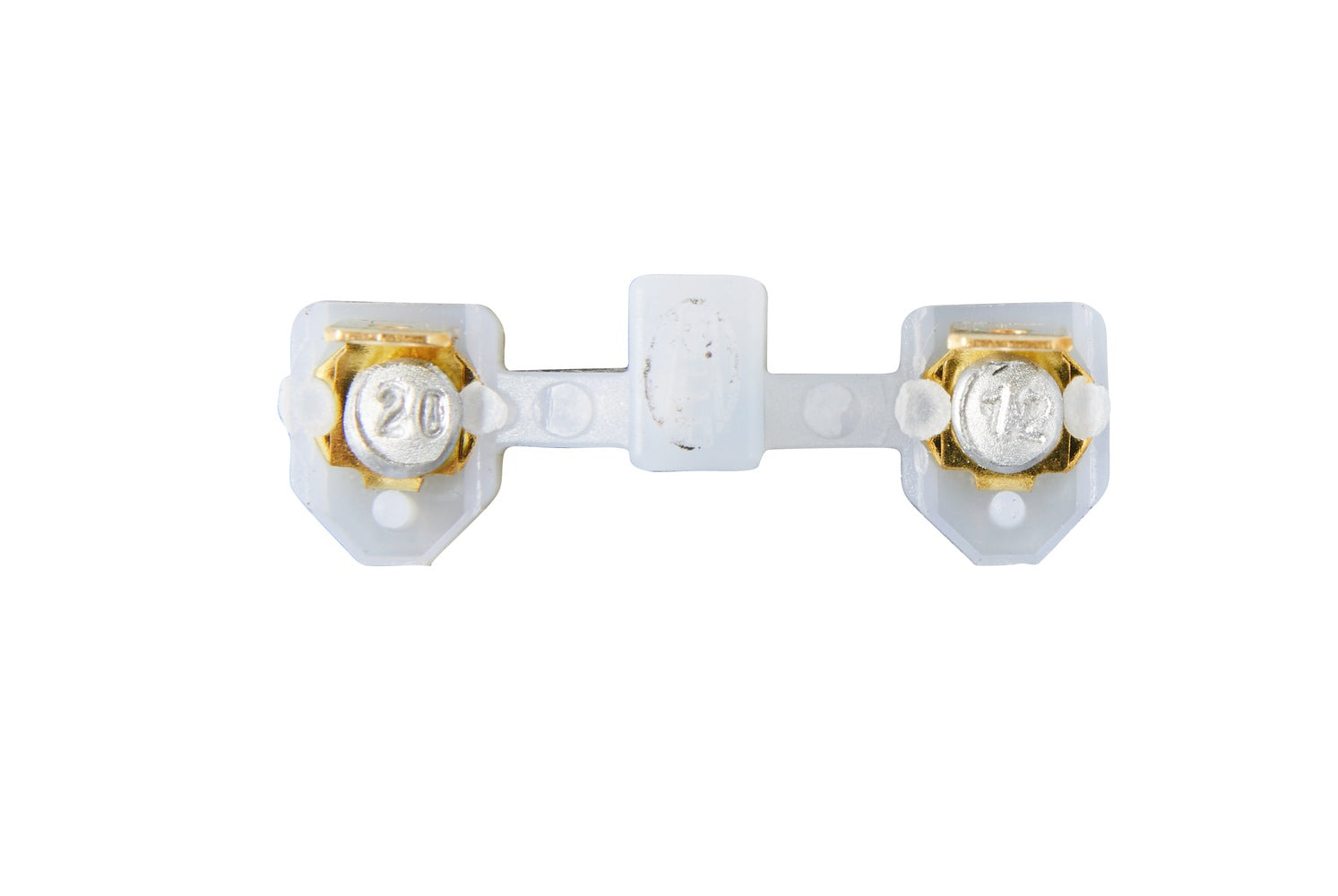

Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!

OE references: AGCO 4355332M1; AGCO 72481193; AGRIA 4767 5; AGRIFAC 7709415; AHLMANN 4153088A; AMAZONE ZU030; AMMANN 1579727; BMW 1 367 310; BMW 1 367 312; BMW 61 33 1 367 310; BMW 61 33 1 367 312; BOBCAT 100417-11D_100; BUCHER 30-14; CASE IH 216547; CLAAS 0071729.2; DAF 867508; DEMAG 966527; DOOSAN 100417-11D; FELDBINDER 008766; FENDT 1 678 404 M1; FENDT 4 355 332 M1; FENDT 72481193; FENDT F 238 900 020 041; FENDT Y 253 101 1; FORD 1 825 723; HAKO 90-00553-9; HOLDER 0001801206; HOLDER 021098; HYMER 0866730-00; ISEKI 2310-4015-00-A; JOHN DEERE AL 12 135; JOHN DEERE AZ 12 135; JUNGHEINRICH 50428801; KOMATSU 000 1801 206; KOMATSU X86097518000; KOMATSU Y253 101 1; KRAMER 1000156059; MANITOU 945995; MASSEY FERGUSON 1 678 404 M1; MASSEY FERGUSON 1 678 404 MO1A; MASSEY FERGUSON 4 355 332 M1; MERCEDES-BENZ 001 542 86 20; MERCEDES-BENZ 002 542 04 20; MERCEDES-BENZ 002 542 79 20; MERCEDES-BENZ 003 542 07 02; MERCEDES-BENZ 003 542 07 20; MERCEDES-BENZ 003 542 13 20; MERCEDES-BENZ 003 542 17 20; MERCEDES-BENZ 003 542 31 20; MERCEDES-BENZ A 001 542 86 20; MERCEDES-BENZ A 002 542 04 20; MERCEDES-BENZ A 002 542 79 20; MERCEDES-BENZ A 003 542 07 02; MERCEDES-BENZ A 003 542 07 20; MERCEDES-BENZ A 003 542 13 20; MERCEDES-BENZ A 003 542 17 20; MERCEDES-BENZ A 003 542 31 20; O&K 0216547; O&K 0718811; OPEL 09255071; OPEL 12 28 057; SCANIA 589680; TEREX 3600136023; TEREX 5050022200.; TEREX 6108843M1; VALMET 589680; VOLVO 11802744; VOLVO 80778319; VW 111 951 213 D; VW 411 951 213; YANMAR 5050022200
