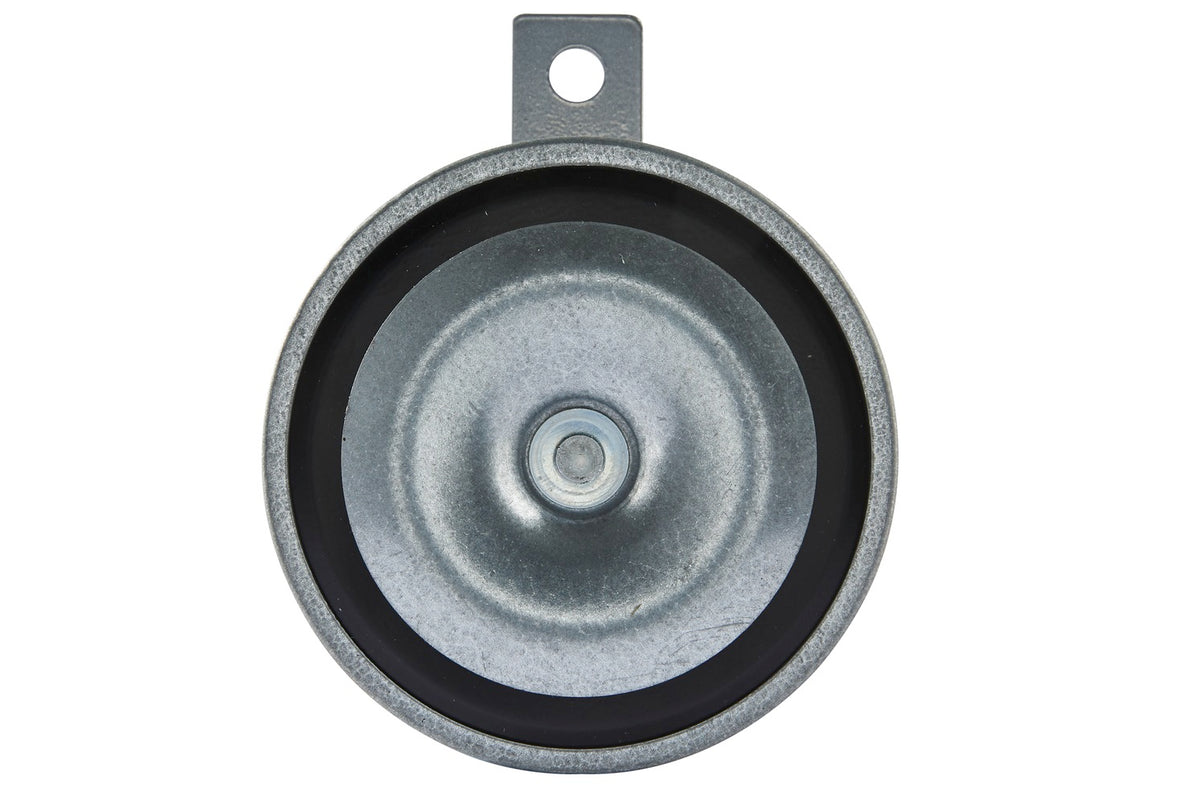

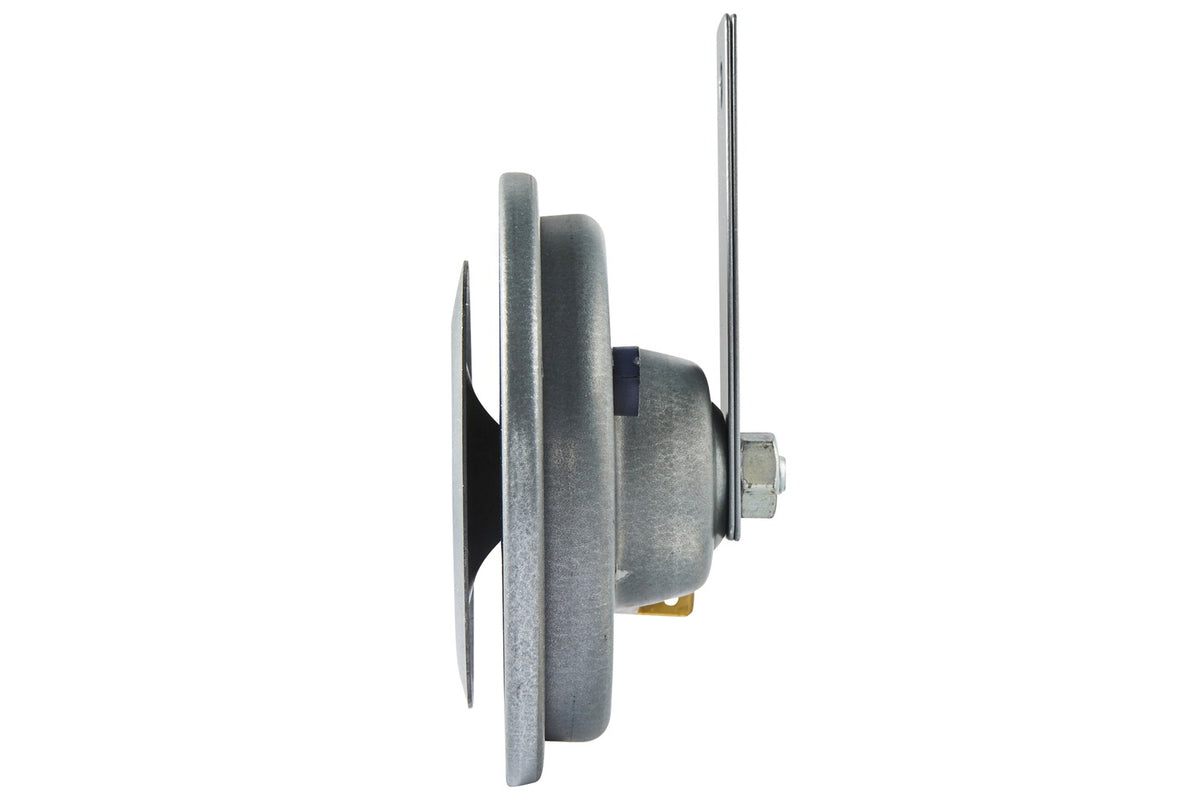

HELLA Signal Horn - HELLA HEAVY DUTY HORN M26 - 12V - 105dB(A) - Low Tone - Quantity: 3AL002952-861

Signal Horn - HELLA HEAVY DUTY HORN M26 - 12V - 105dB(A) - Frequency Range: 335Hz - Low Tone - Electric - ECE - Housing Colour: grey/black - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Rich, high-quality sound image with sound propagation.
• Optimum sound when a set of tweeter and bass horn is installed.
• The Rich Tone Horn is equipped with a high corrosion protection.
• Teflon seal to protect against moisture.
• Timeless and noble design.
• Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 335Hz - Power consumption: 66W
• Ø: 97mm - Overall Height: 122mm - Depth: 54mm

Item Attributes:
Voltage: 12 V
Power consumption: 66 W
Sound Level: 105 dB(A)
Frequency Range: 335 Hz
Charging Rate: 5.5 A
Prot.type (IP Code): IPX9K
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: grey/black
Quantity: 1
Signal: Low Tone
Operating Mode: Electric
Overall Height: 122 mm
Depth: 54 mm
Ø: 97 mm
Temperature range from: -40 °C
Temperature range to: +60 °C

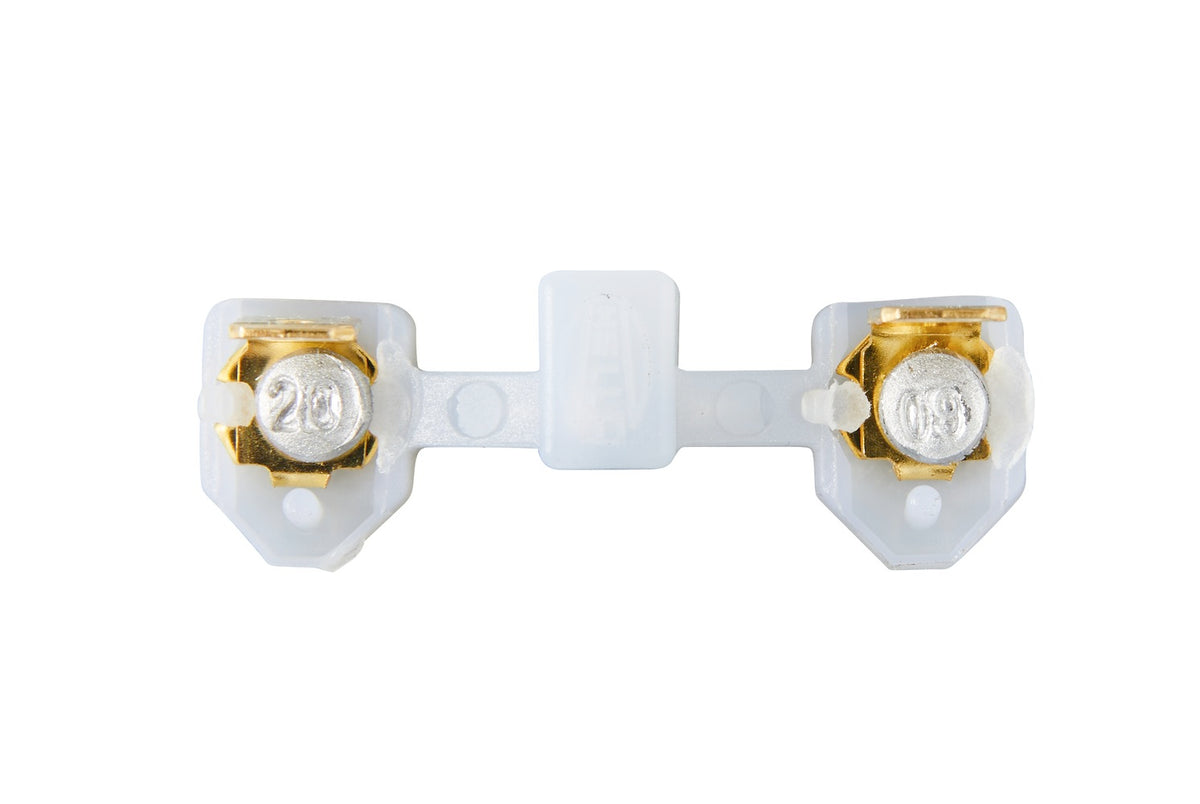

Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!

OE references: BMW 1 367 309; BMW 61 33 1 367 309; FORD 6 046 578; FORD 6 046 579; HOLMER 1021038366; JUNGHEINRICH 52011163; KUBOTA 69481-53141; KUBOTA RG20153362; LIEBHERR 6 905 327; MERCEDES-BENZ 001 542 85 20; MERCEDES-BENZ 002 542 03 20; MERCEDES-BENZ 002 542 78 20; MERCEDES-BENZ 003 542 10 20; MERCEDES-BENZ 003 542 16 20; MERCEDES-BENZ A 001 542 85 20; MERCEDES-BENZ A 002 542 03 20; MERCEDES-BENZ A 002 542 78 20; MERCEDES-BENZ A 003 542 10 20; MERCEDES-BENZ A 003 542 16 20; OPEL 12 28 065; PAUS 500999; PUTZMEISTER 779246; STEINBOCK 520 11163; VOLVO 11305113; VOLVO 5057050; VOLVO VOE11305113
