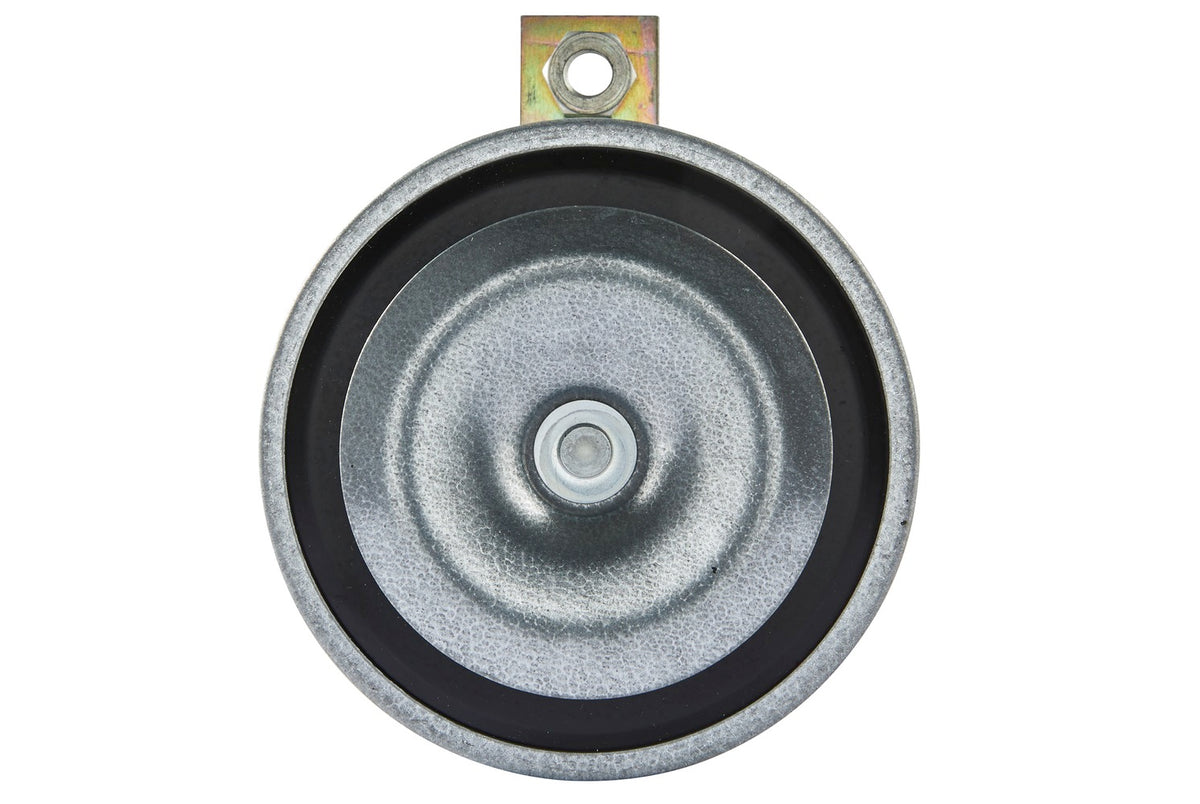

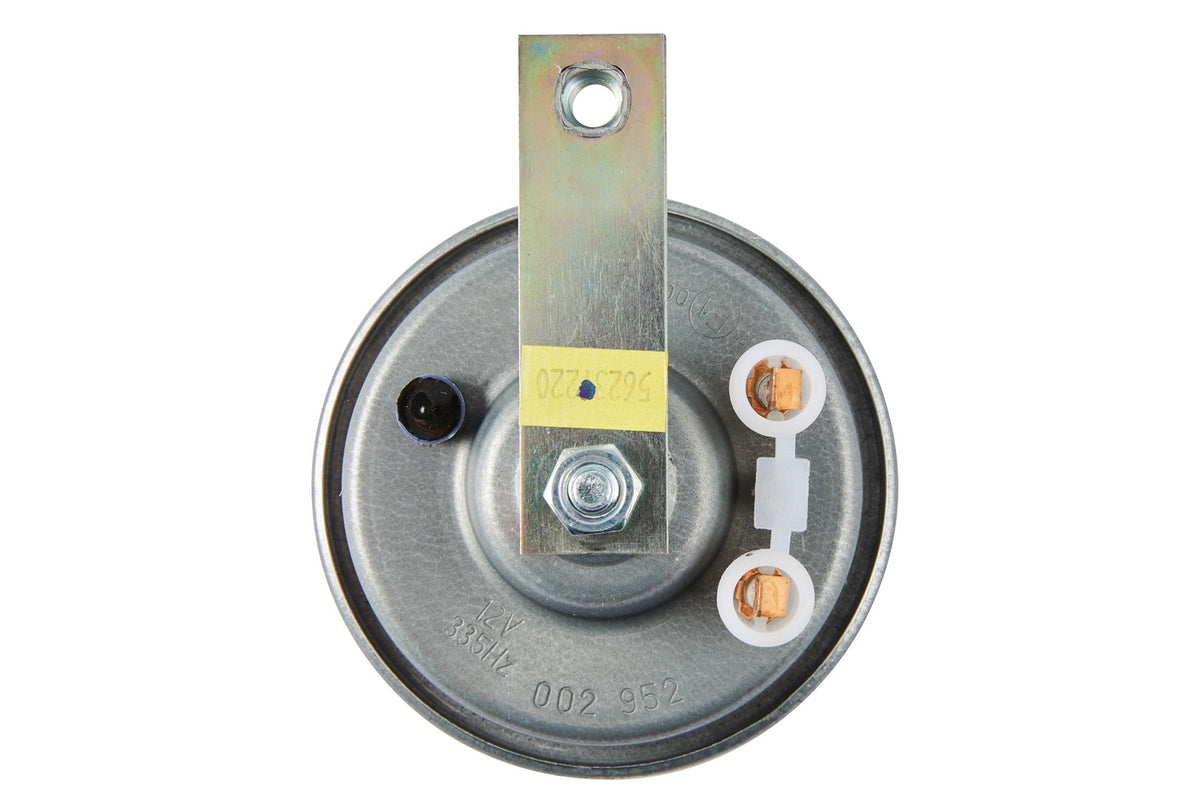

HELLA Signal Horn - M26 - 12V - 105dB(A) - Low Tone - Quantity: 1 3AL002952-841

Signal Horn - M26 - 12V - 105dB(A) - Frequency Range: 335Hz - Low Tone - Electric - ECE - Housing Colour: Grey - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Rich, high-quality sound image with sound propagation.
• Optimum sound when a set of tweeter and bass horn is installed.
• The Rich Tone Horn is equipped with a high corrosion protection.
• Teflon seal to protect against moisture.
• Timeless and noble design.
• Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 335Hz - Power consumption: 72W
• Ø: 97mm - Overall Height: 122mm - Depth: 54mm

Item Attributes:
Voltage: 12 V
Power consumption: 72 W
Sound Level: 105 dB(A)
Frequency Range: 335 Hz
Charging Rate: 6 A
Prot.type (IP Code): IPX7 / IPX9K
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: grey
Signal: Low Tone
Quantity: 1
Operating Mode: Electric
Overall Height: 122 mm
Depth: 54 mm
Ø: 97 mm
Temperature range from: -40 °C
Temperature range to: +60 °C

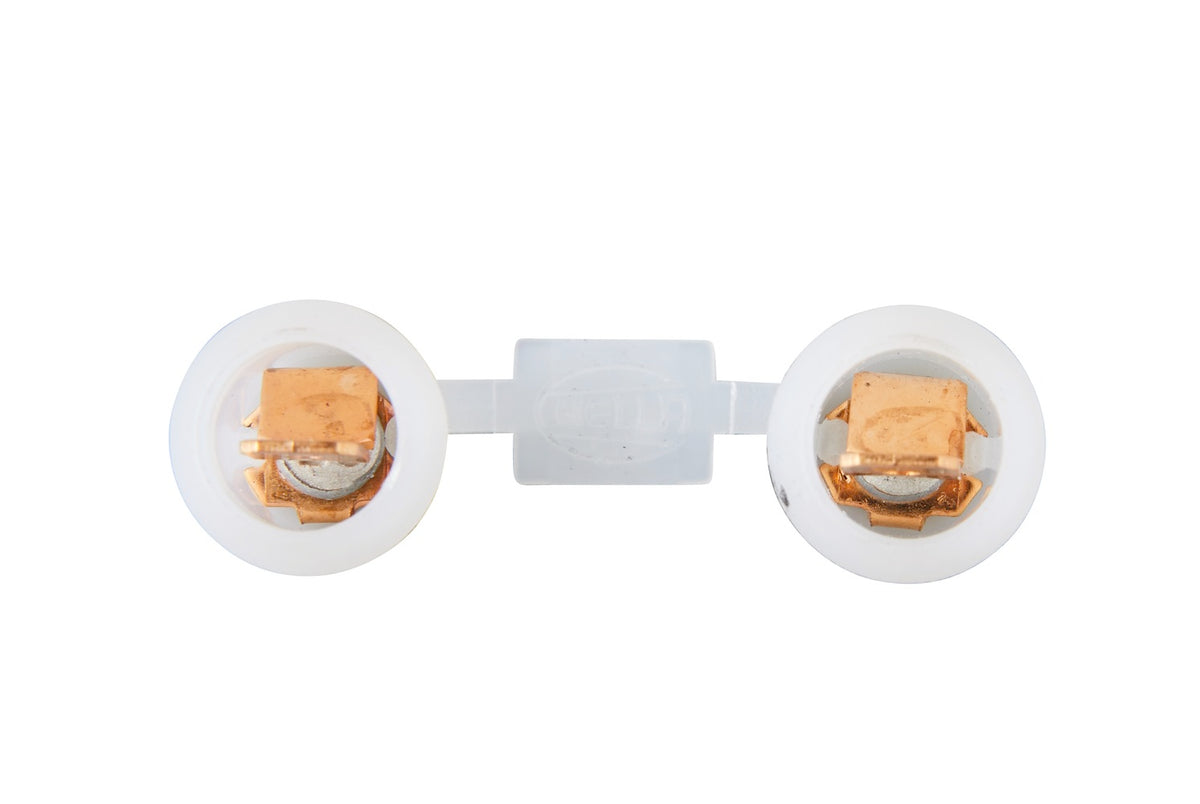

Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with E quality seal
Assembly by qualified personnel required!

OE references: CASE IH 9 802917 4; HAMM 2213644; HYDREMA 585301; JCB 704/22400; KOMATSU 4240141M91; VW 111 951 113 B; VW 191 951 113 A
