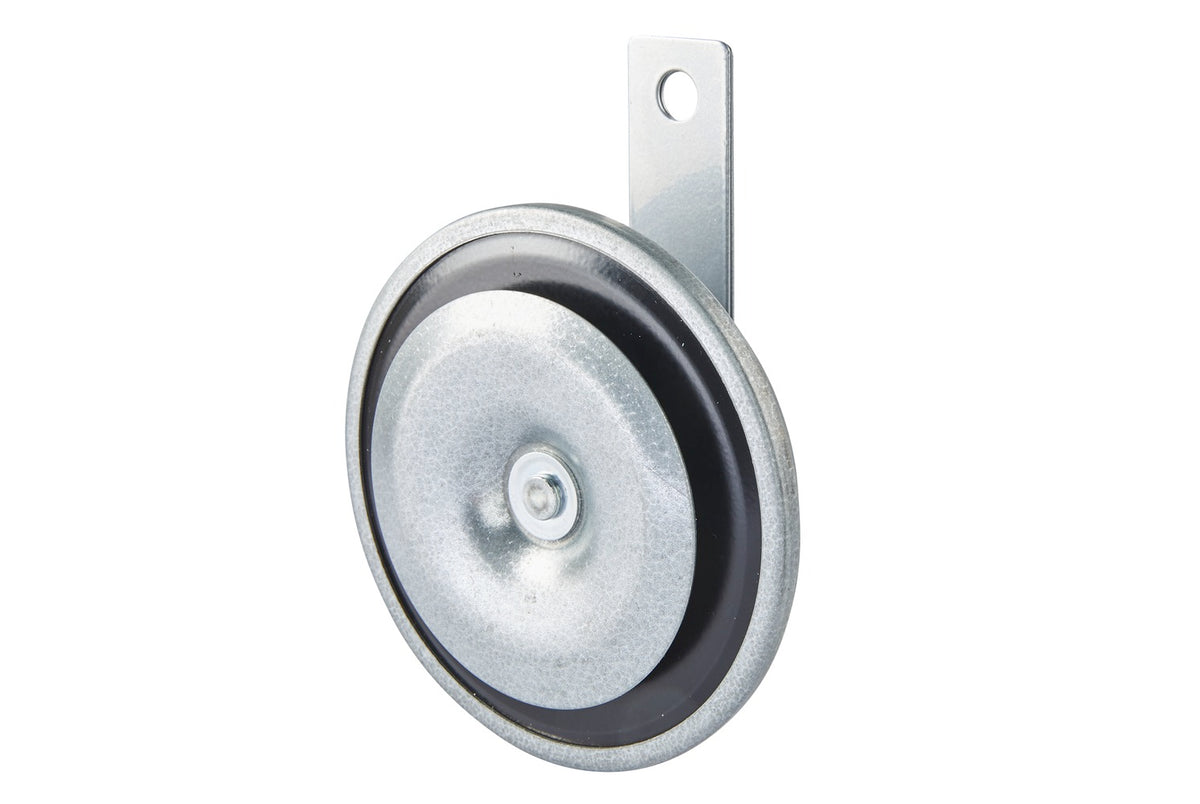

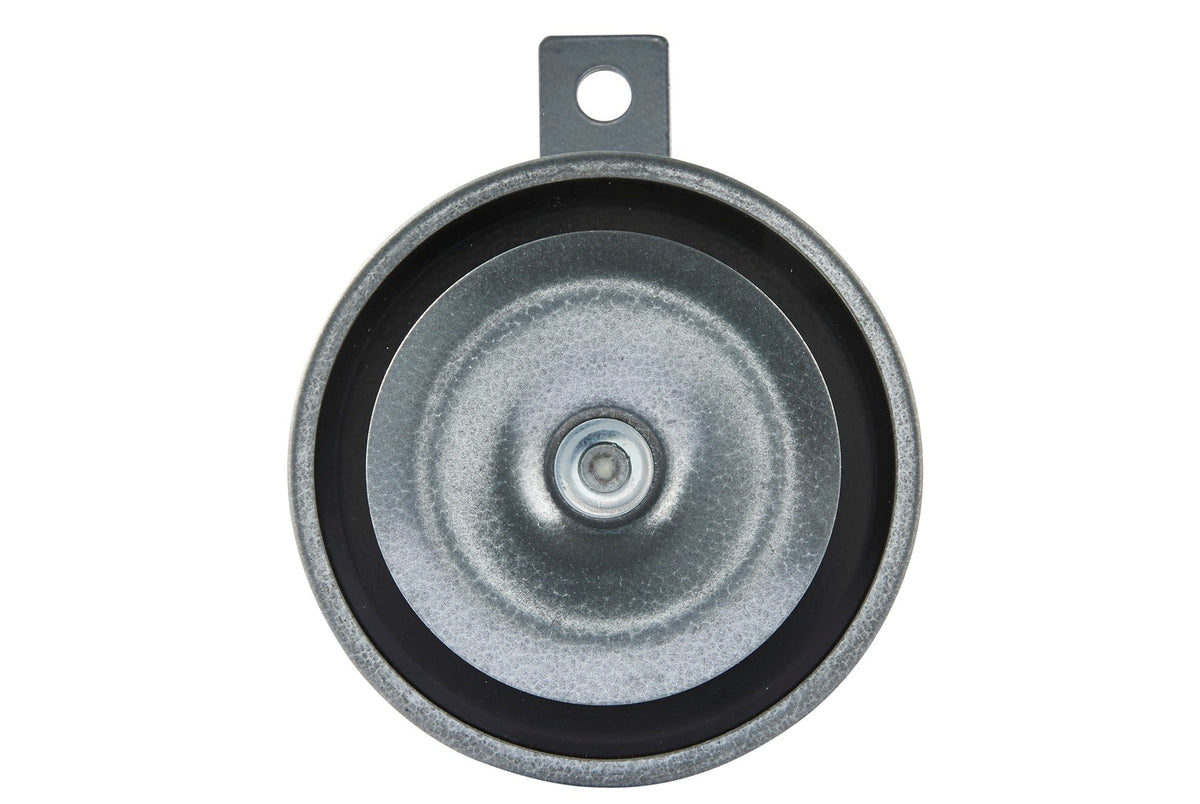

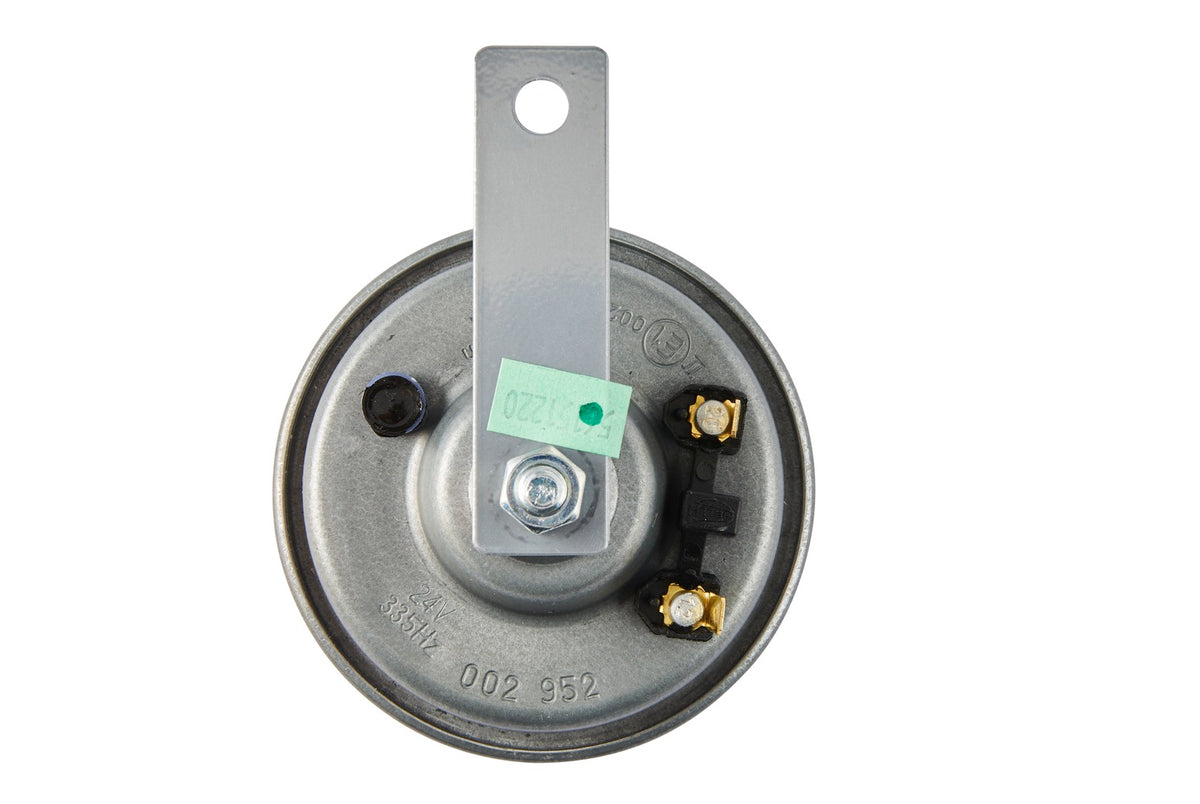

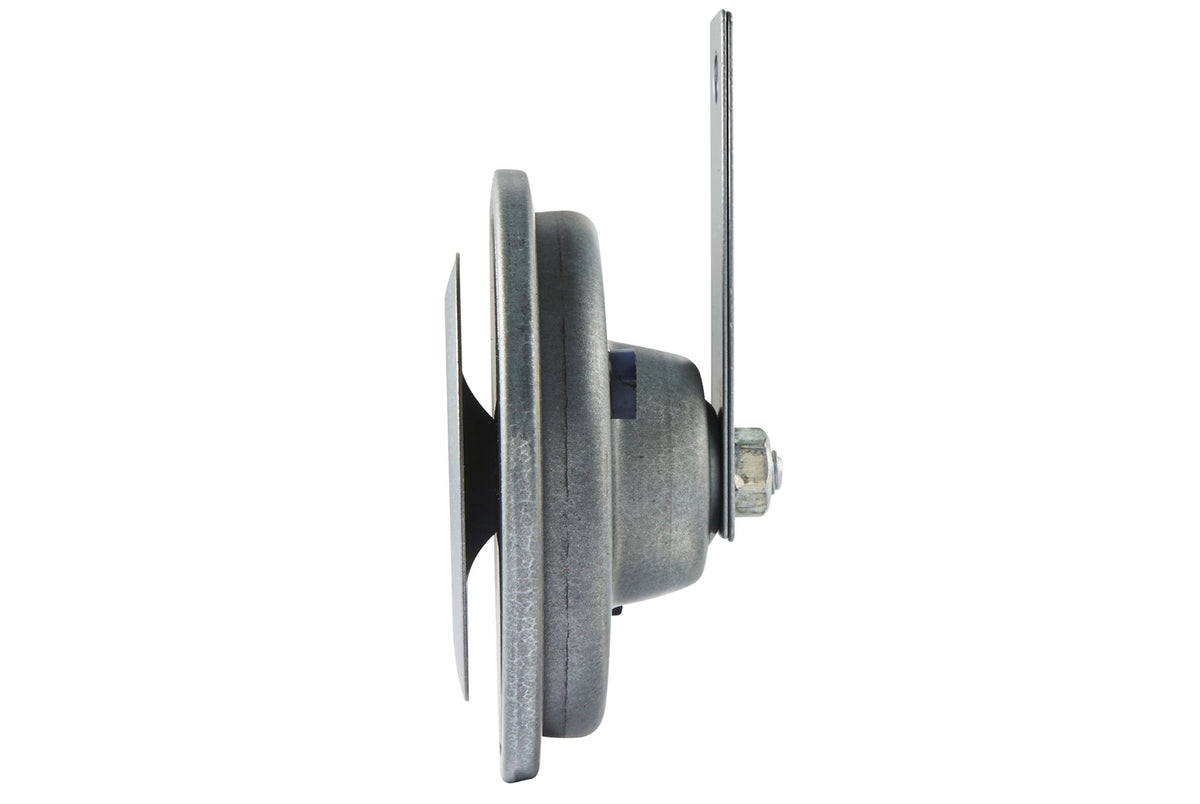

HELLA Signal Horn - M26 - 24V - 105dB(A) - Low Tone - Quantity: 1 3AL002952-871

Signal Horn - M26 - 24V - 105dB(A) - Frequency Range: 335Hz - Low Tone - Electric - ECE - Housing Colour: Grey - Flat Plug-in Connector - Quantity: 1

Over 120 years of experience in the development of horns & fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Full harmonious sound over long distances in road traffic
• Optimum sound when a set of tweeter and bass horn is installed.
• Membrane to protect against moisture penetration
• The horn is switched by the "horn" on the steering wheel (control signal).
• Teflon seal to protect against moisture (optional).
• Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 335Hz - Power consumption: 84W
• Ø: 97mm - Overall Height: 122mm - Depth: 54mm

Item Attributes:
Voltage: 24 V
Power consumption: 84 W
Sound Level: 105 dB(A)
Frequency Range: 335 Hz
Charging Rate: 3.5 A
Prot.type (IP Code): IPX7 / IPX9K
fulfils ECE standard: R28
Registration Type: ECE
Housing Colour: grey
Signal: Low Tone
Quantity: 1
Operating Mode: Electric
Overall Height: 122 mm
Ø: 97 mm
Depth: 54 mm
Temperature range from: -40 °C
Temperature range to: +60 °C

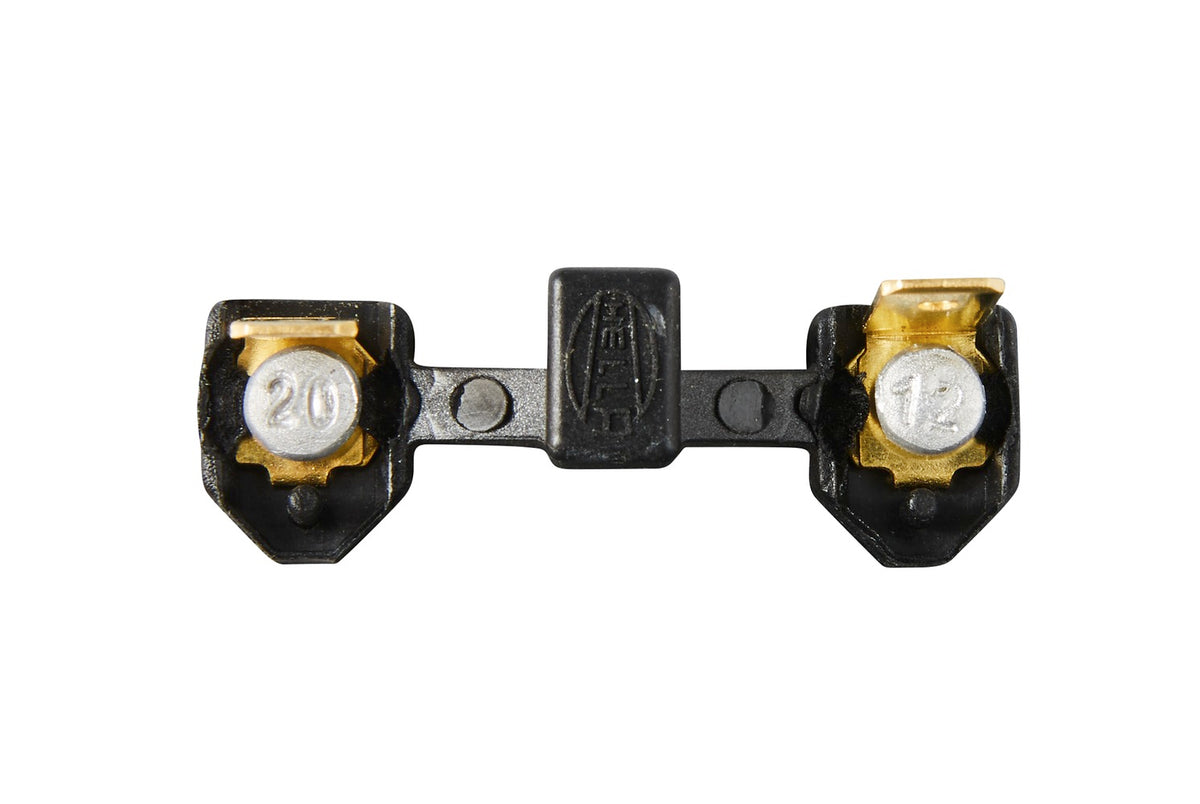

Mounting Type: Flat Plug-in Connector
Supplementary Article/Supplementary Info 2: with E quality seal / with moisture protection
Assembly by qualified personnel required!

OE references: AMMANN 4-5358020334; BUCHER 09301505-0; BUCHER 30-394; CASE IH 2974166; DAF 867509; DEMAG 05843140; FAUN 99700033262; HOLMER 1021038222; JUNGHEINRICH 28300010; LIEBHERR 6 140 031 08; LIEBHERR 6 200 008; LINDE 000 973 15 03; O&K 0033262; O&K 1709056; O&K 2974166; SPERRY NEW HOLLAND 2974166; SPERRY NEW HOLLAND 87620003; STEINBOCK 000 948; STEINBOCK 050 09366; STILL 0009731503; STILL 401754; STILL 8401754; STILL 930673; TEREX 3600136113; TEREX 5050022226; TIMBERJACK F005312
