HELLA Signal Unit - B36 - 24V - Acoustic - 91dB(A) - High Tone 3SB002768-031

Signal Unit - B36 - 24V - Acoustic - 91dB(A) - Frequency Range: 550Hz - High Tone - Housing Colour: Grey - Screw Connection

Play it safe - with the signal horns from HELLA. Signal horns are an absolute necessary and legally required accessory - and an essential safety feature. In view of the ever-increasing traffic in cities with millions of inhabitants, horn signals are essential to avoid accidents and collisions. An acoustic signalling device is used to ensure the safety of pedestrians but also other drivers. Horns come in a wide variety of designs and signal effects, depending on the intended use and requirement profile. HELLA offers a wide range of horns, each with a different sound. Over 100 years of experience in the development of horns and fanfares and continuous innovations through research - this is what distinguishes HELLA horns. Whether car, truck, bus, emergency or motorbike, our horns are used everywhere.

• Buzzer B36 (Ø 113 mm) with moisture protection and condenser
• Temperature range from -40°C to 60°C

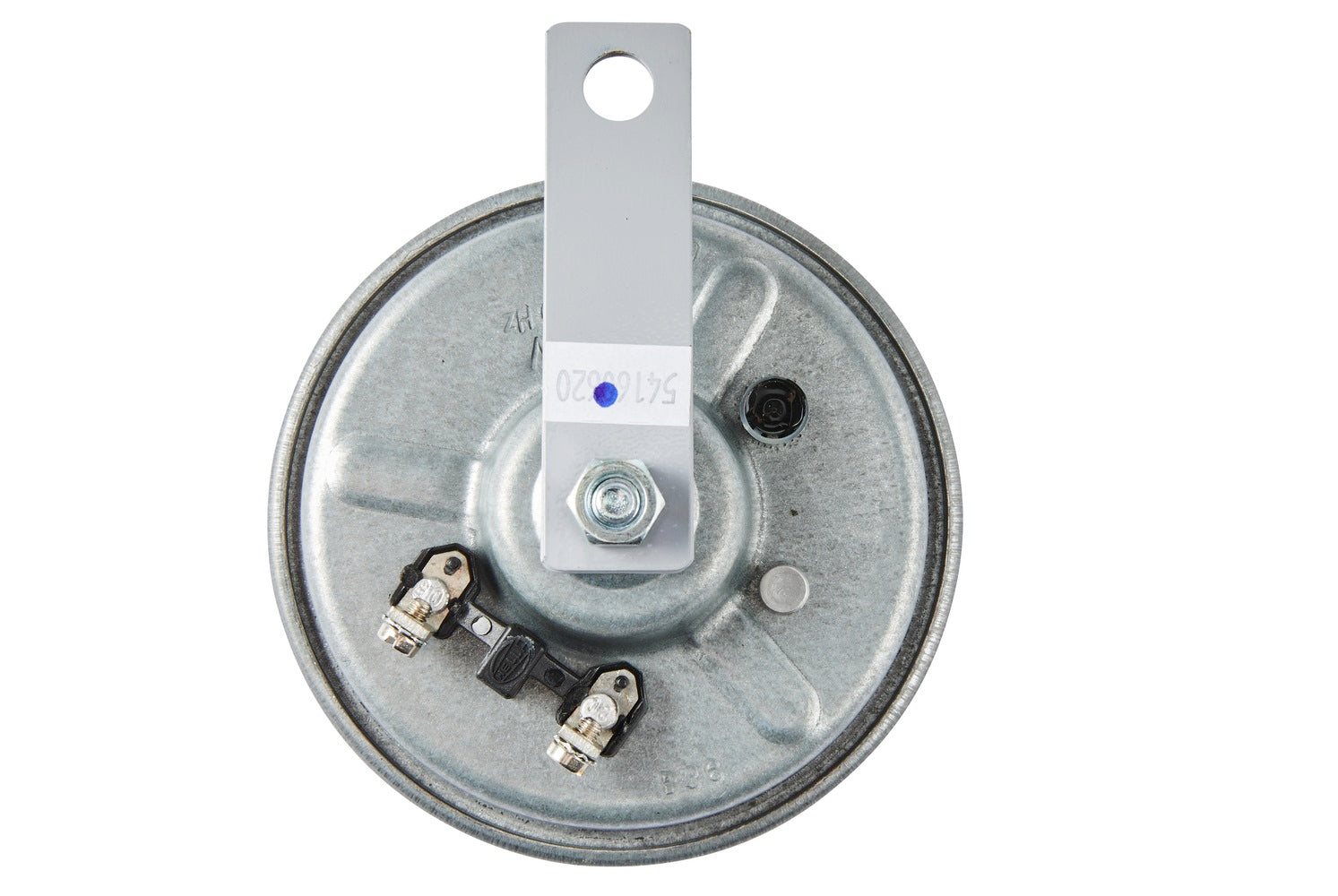

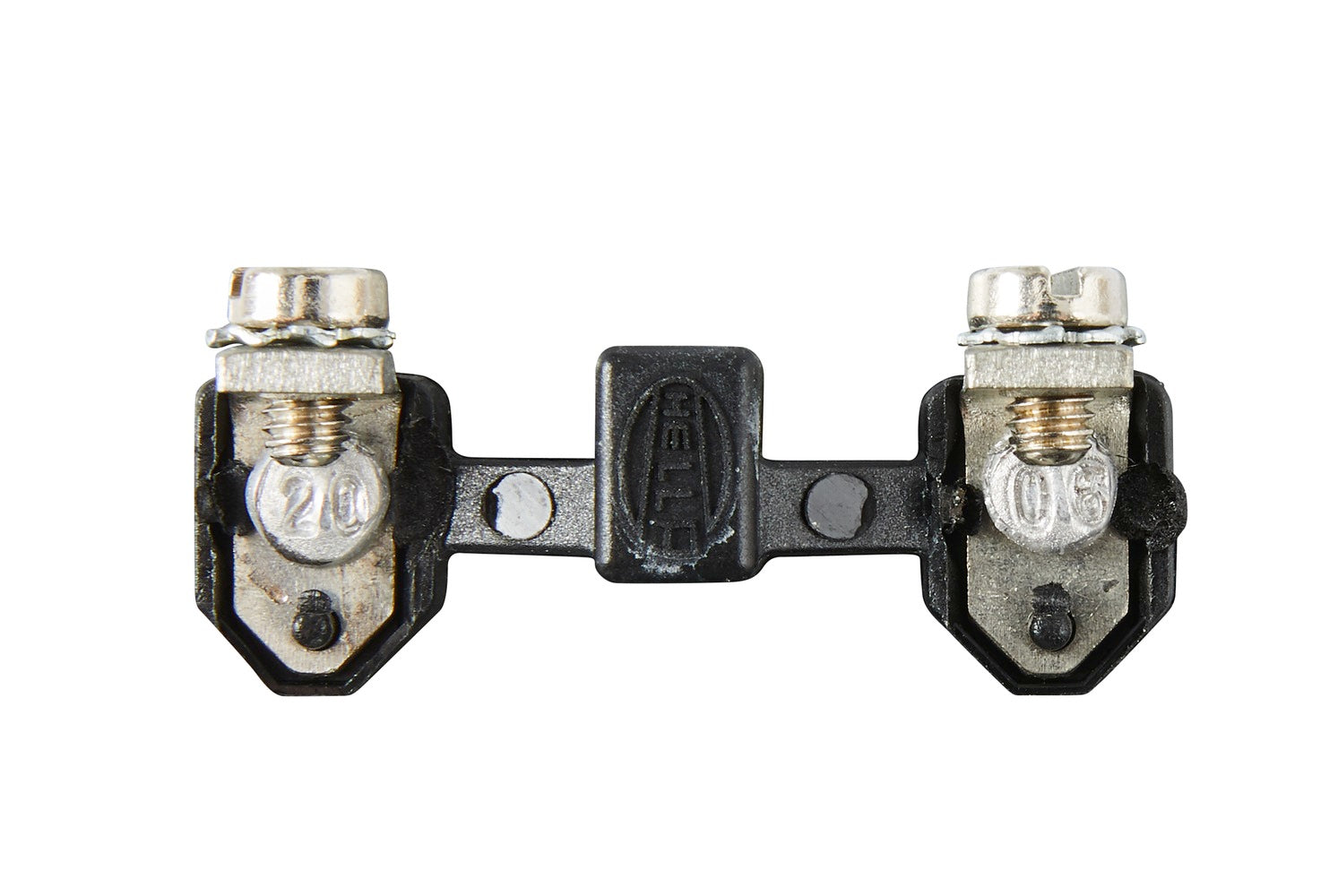

• Galvanised metal housing, light grey diaphragm, M4 screw terminals, holder on horn for M8 fixing screw, with Teflon pill for protection against moisture and interference suppression capacitor
• Temperature range from: -40°C - Temperature range to: +60°C - Frequency Range: 550Hz - Power consumption: 31W
• Ø: 113mm
• Prot.type (IP Code): IPX9K
• with moisture protection/with condenser

Item Attributes:
Information Transfer: Acoustic
Voltage: 24 V
Mounting Type: Screw Connection
Supplementary Article/Supplementary Info 2: with condenser / with moisture protection
Prot.type (IP Code): IPX9K
Temperature range from: -40 °C
Temperature range to: +60 °C
Ø: 113 mm
Signal: High Tone
Interference Suppression
Frequency Range: 550 Hz
Housing Colour: grey
Sound Level: 91 dB(A)
Power consumption: 31 W
Assembly by qualified personnel required!

OE references: AUWÄRTER 753-SU001; EVOBUS 004 542 50 20; EVOBUS A0045425020; KÖGEL 325466; LIEBHERR 6 140 068 08; MAN 81.25906-0001; MERCEDES-BENZ 004 542 50 20; MERCEDES-BENZ A 004 542 50 20; OPEL V28620480; SISU 187-603-0231; ZOOMLION 1020403040
