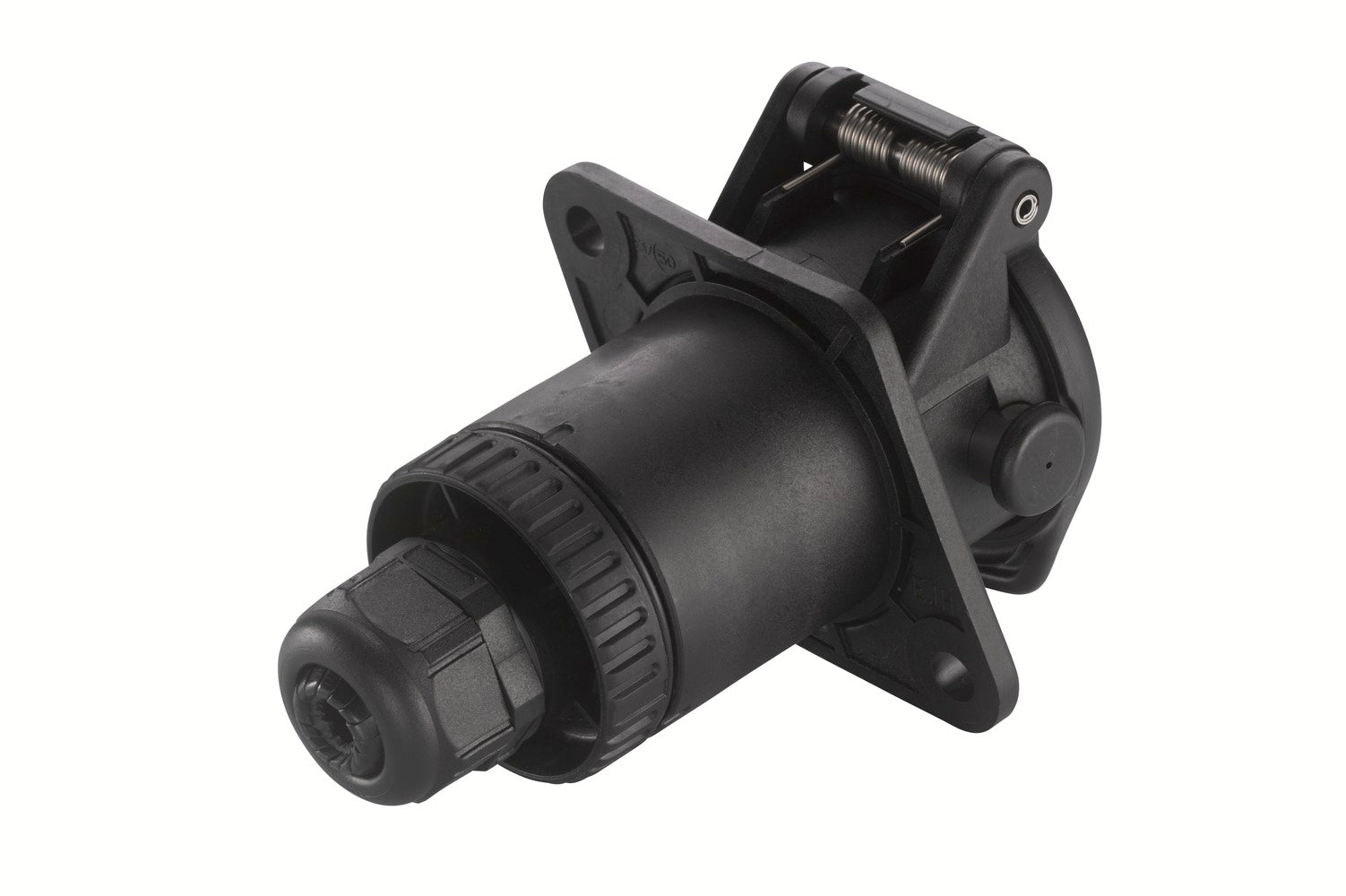

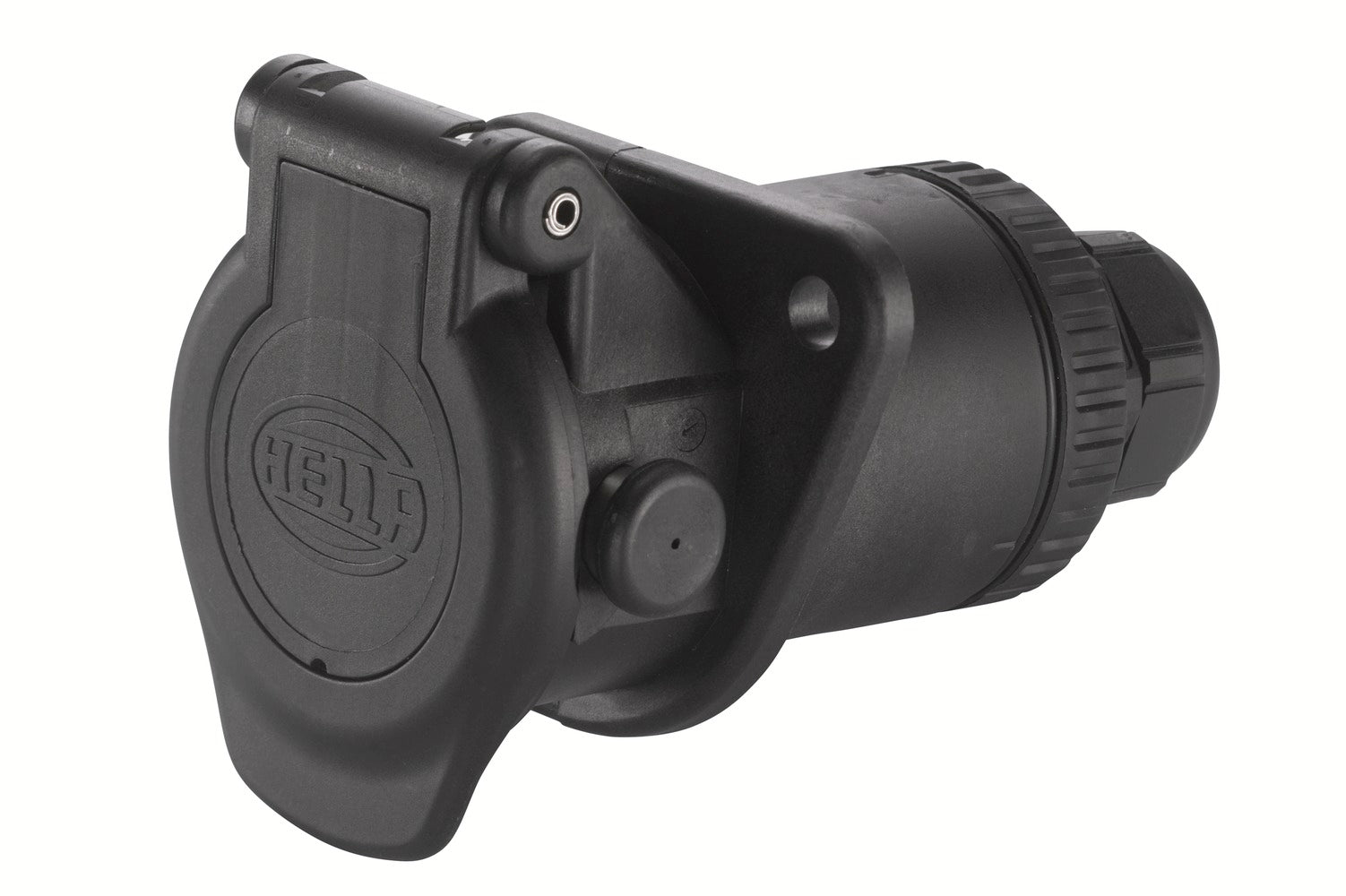

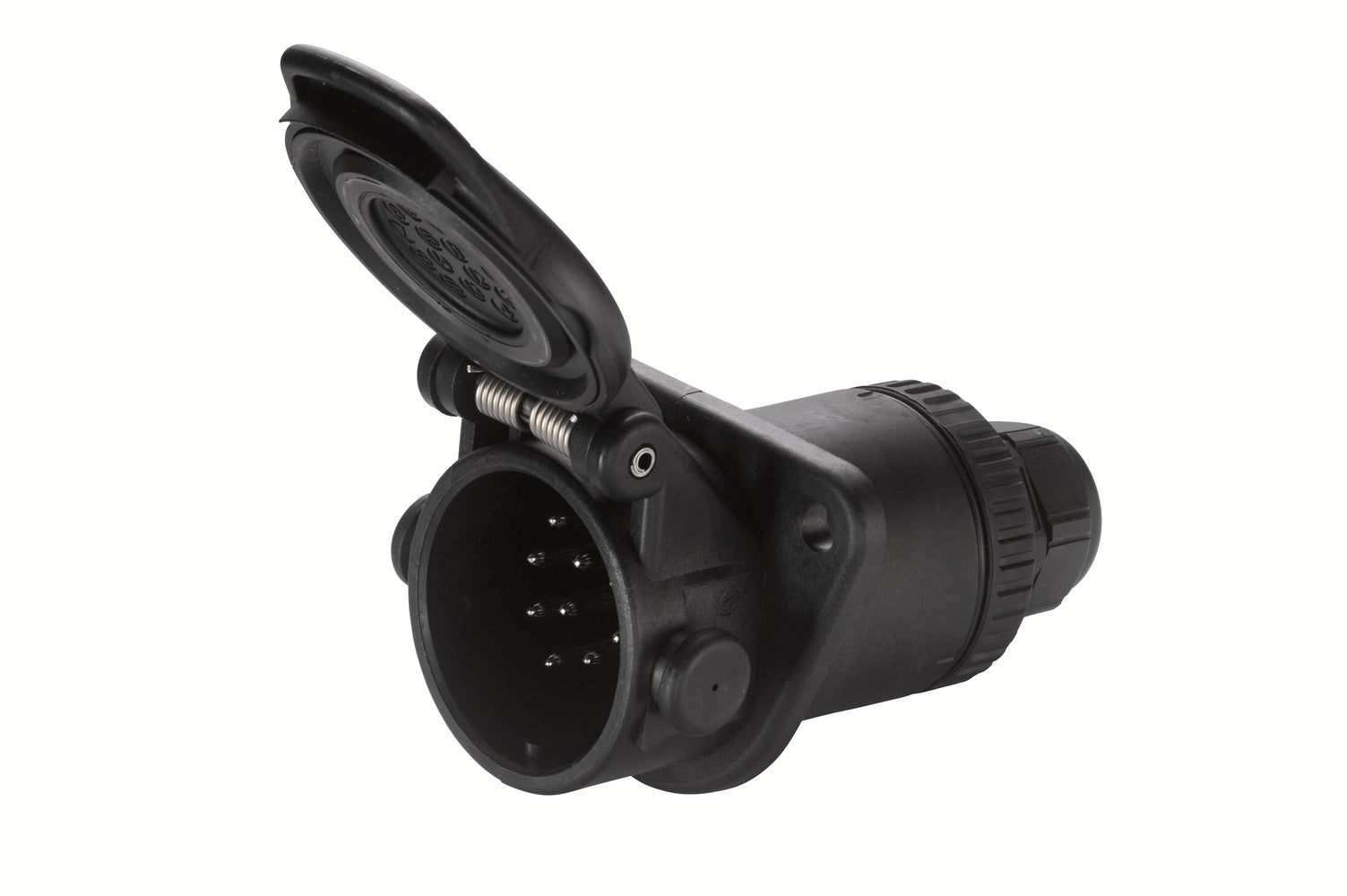

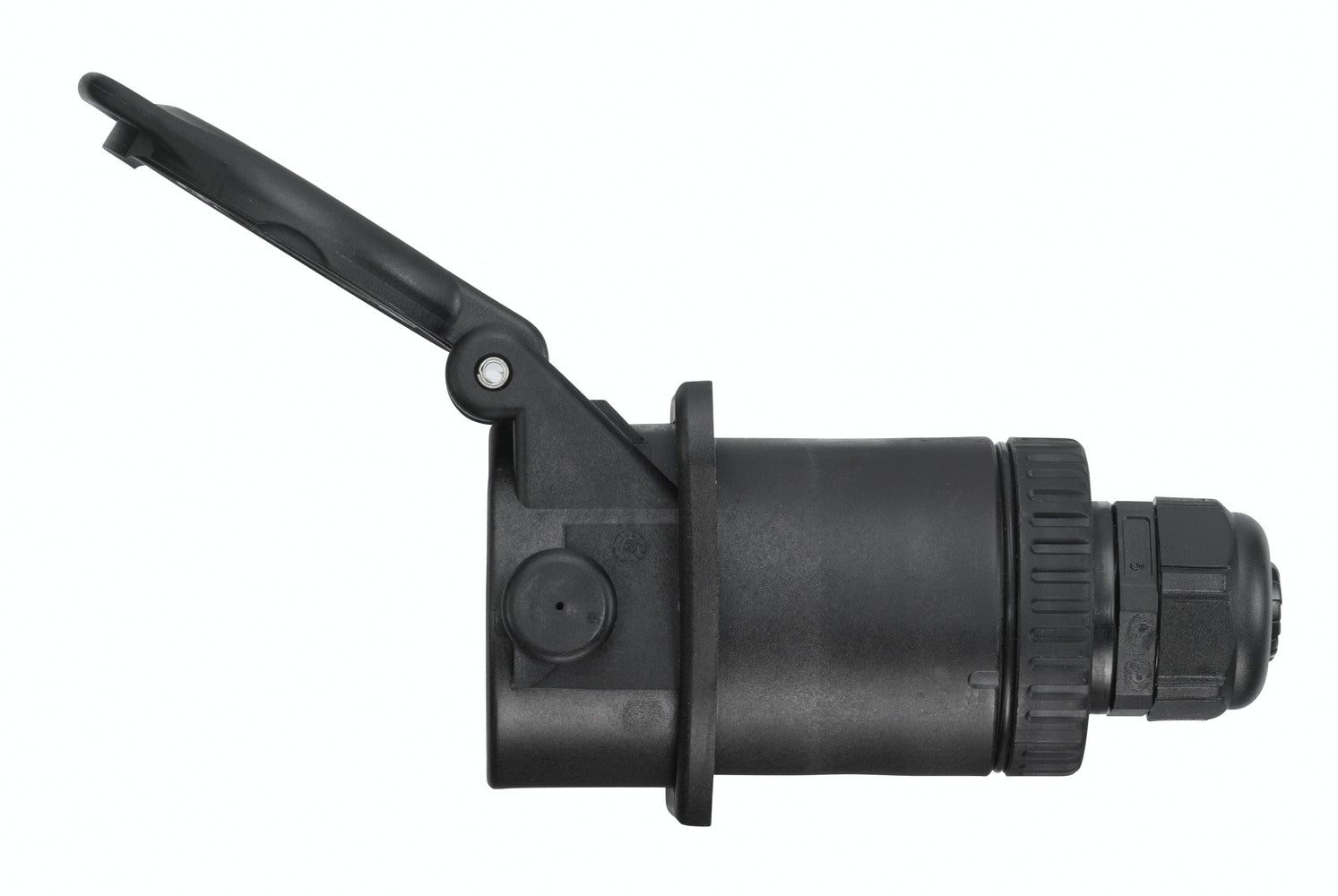

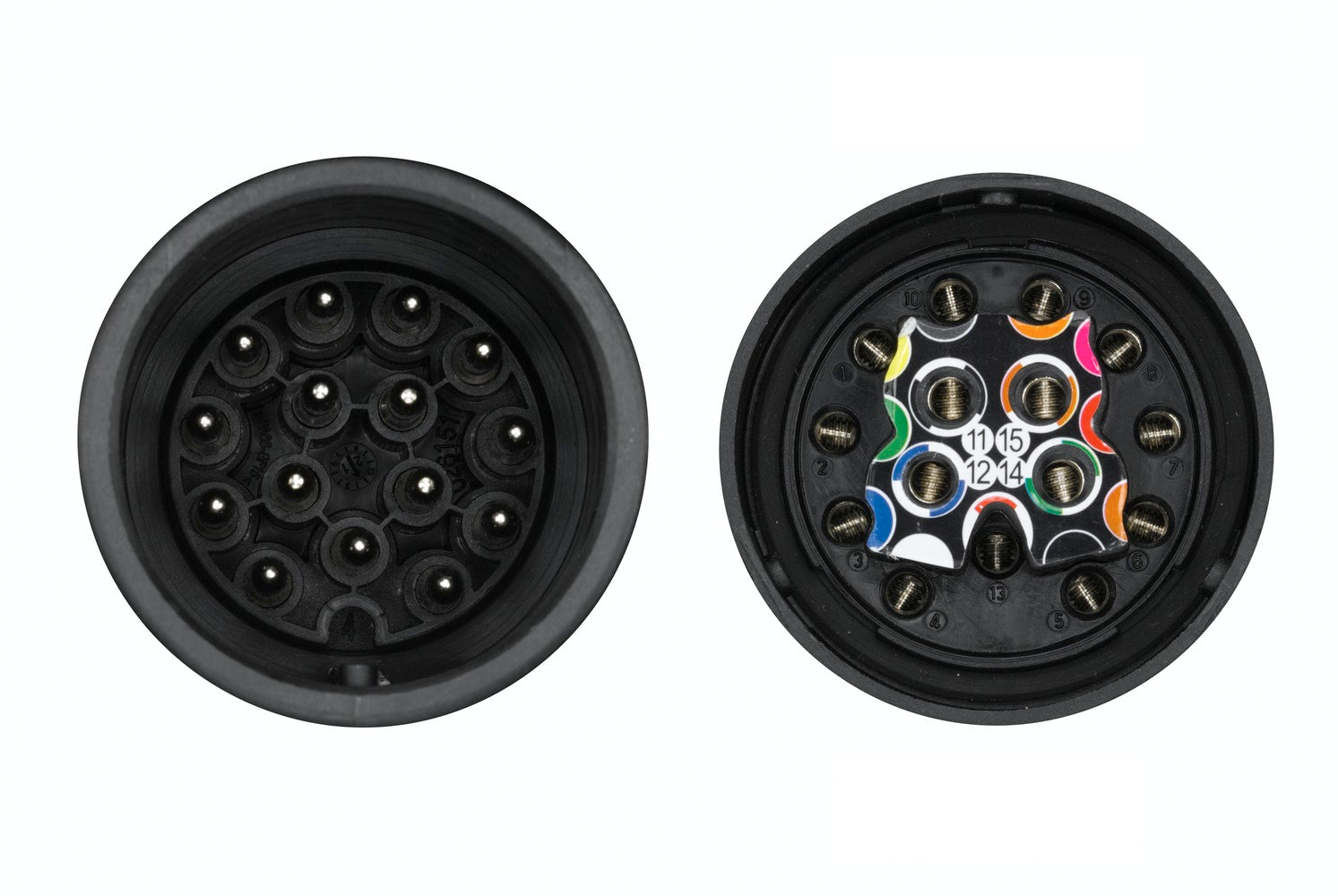

HELLA Socket - 24V - 15-pin connector - Plug: Screw Contact - Quantity: 1 8JB007242-011

Socket - 24V - 15-pin connector - Plug: Screw Contact - black - DIN/ISO: 12 098 - Quantity: 1

The 15-pole plug-in system according to ISO 12098 is the modern system for transmitting the light and auxiliary functions in 24 V on-board power systems. The system is used by many leading commercial vehicle manufacturers as original equipment due to its technical advantages, such as contact reliability and waterproofness. The system is increasingly replacing the older 7-pole connector generations. The connectors are suitable for ADR / GGVS applications.

• Original equipment quality
• Easy assembly
• 15-pole plug-in system according to ISO 12 098
• Temperature range from: -40°C - Temperature range to: +80°C - from: 1.5mm² - to: 2.5mm²
• Prot.type (IP Code): IP54
• with protective cap/bellow

Item Attributes:
Number of pins: 15 -pin connector
Voltage: 24 V
DIN/ISO: 12 098
Prot.type (IP Code): IP54
Colour: black
from: 1.5 mm²
to: 2.5 mm²
Current Strength from: 15 A
Current Strength to: 20 A
Temperature range from: -40 °C
Cable Ø from: 12 mm
Temperature range to: +80 °C
Cable Ø to: 18 mm
Supplementary Article/Supplementary Info 2: with protective cap/bellow
Plug: Screw Contact
Quantity: 1
Assembly by qualified personnel required!

OE references: BARKAS 90033208; IRIZAR 8504502; JAEGER 141053; JAEGER 55400002; LINDNER 3010812; PLAXTON 212759C; SCANIA 1934334; SOMMER 2800466001; VDL 30018546; WEIRO 19513
