Description

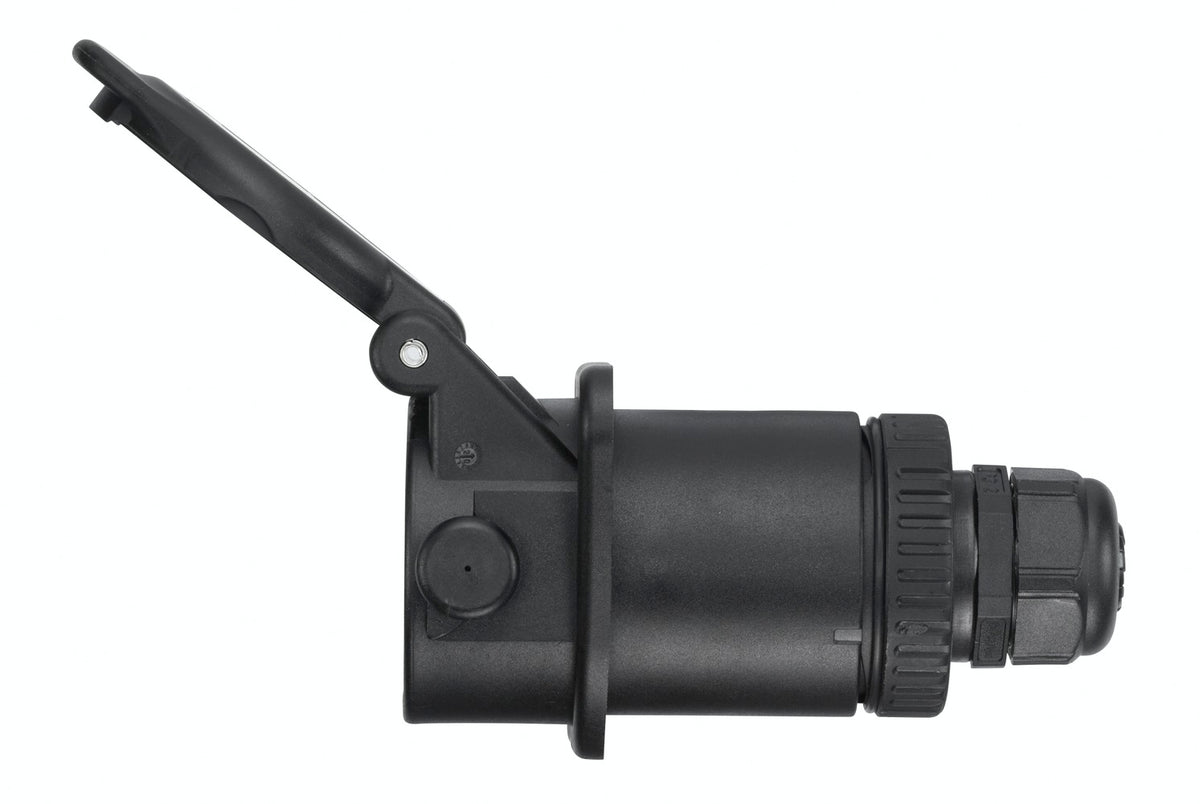

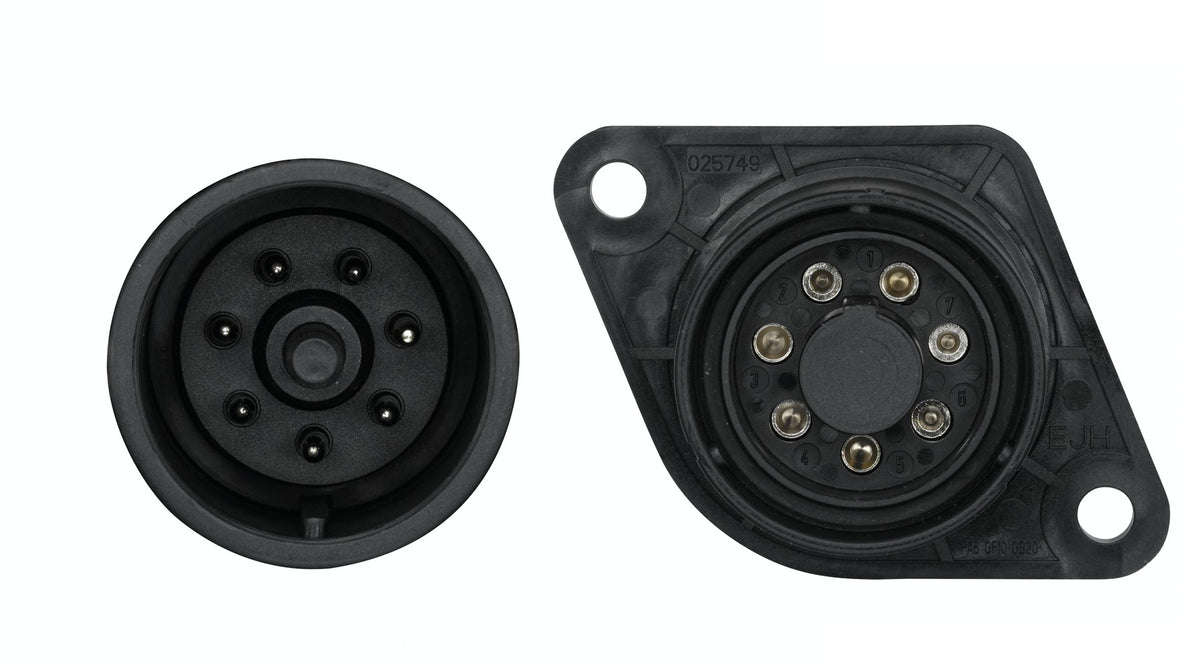

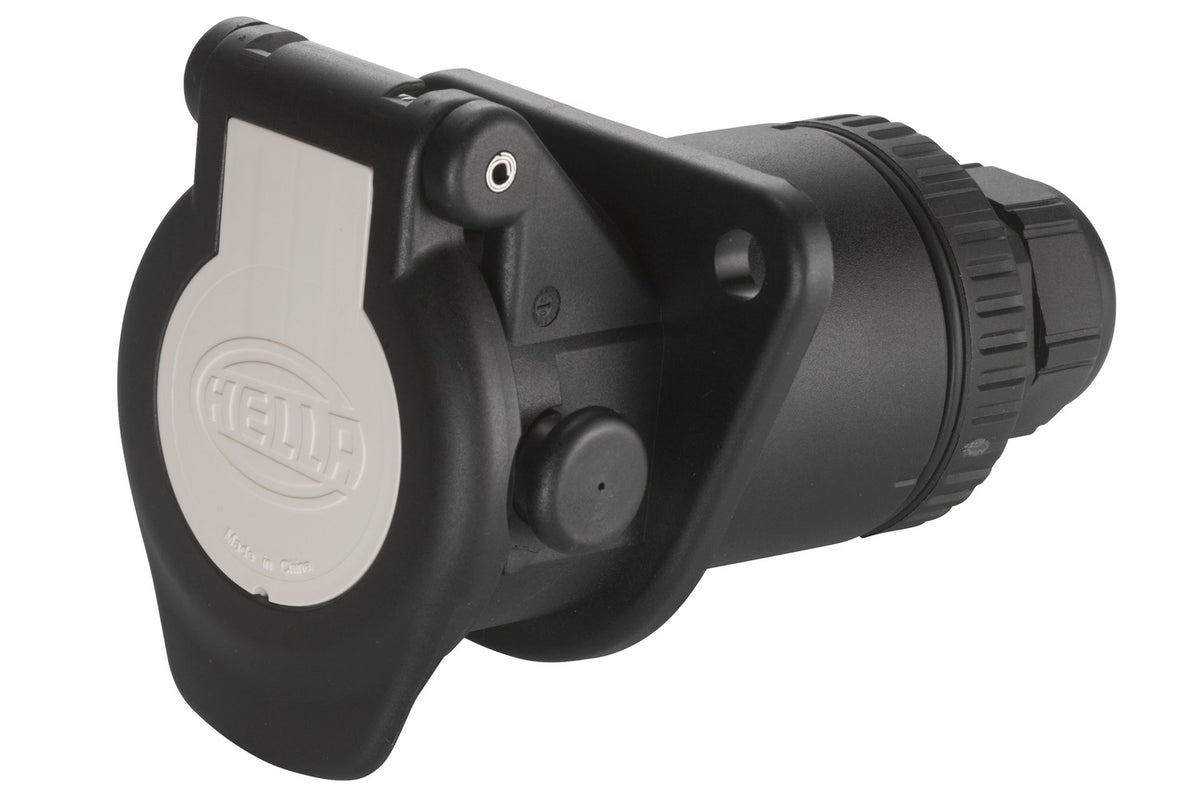

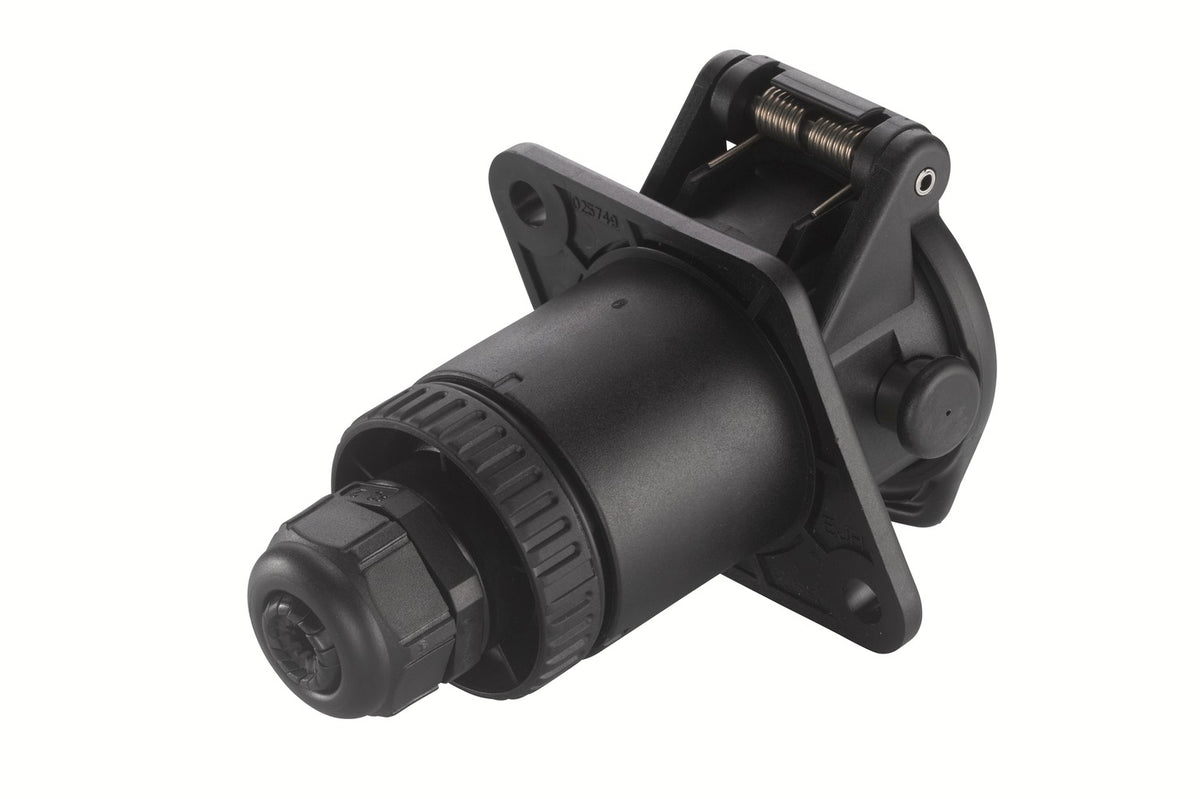

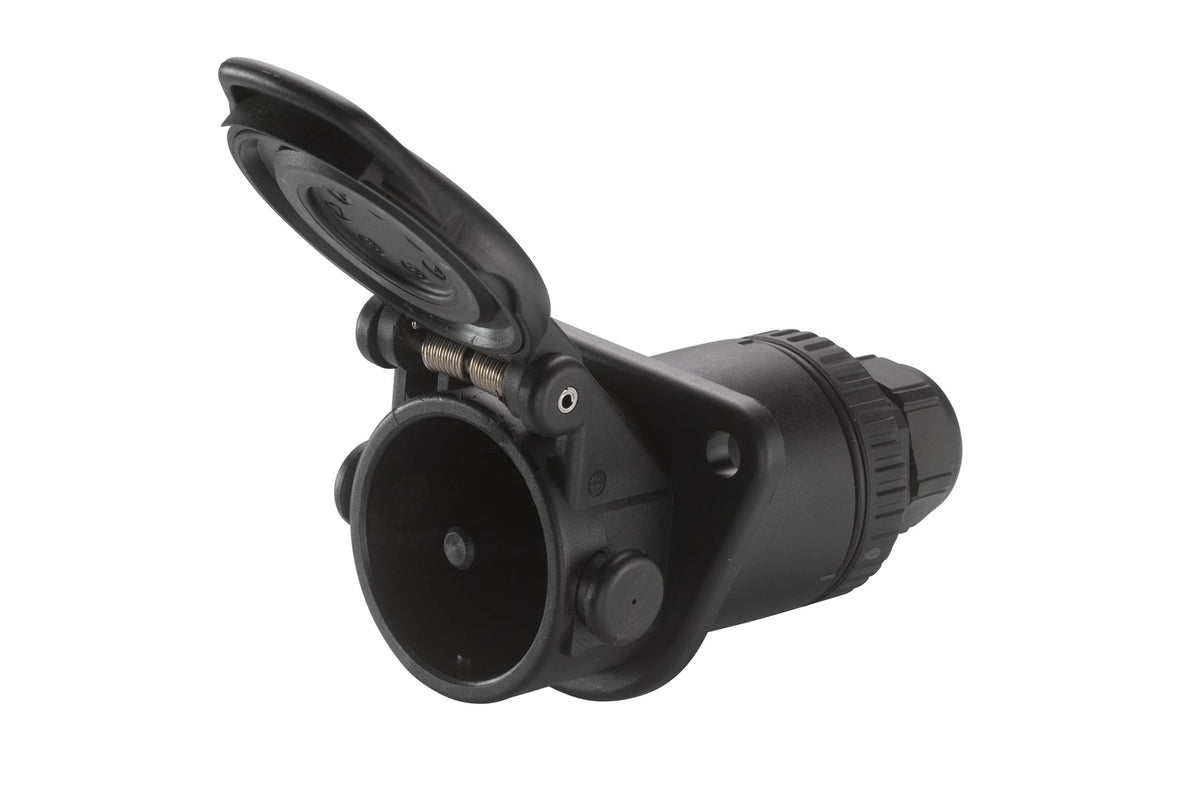

Socket - 24V - 7-pin connector - Plug: Crimp Contact - Black - DIN/ISO: 7638-1 - Quantity: 1
The plug-in systems according to ISO 7638-1 / ISO 7638-2 are used in almost all commercial vehicles with ABS/EBS systems. The connectors are suitable for ADR /GGVS applications.
- Original equipment quality
- Easy assembly
- ABS/EBS plug-in system according to ISO 76 38-1
- Temperature range from: -40°C - Temperature range to: +85°C - from: 1.5mm² - to: 6.0mm²
- Prot.type (IP Code): IP54
- with protective cap/bellow - for vehicles with ABS
Item Attributes:
Number of pins: 7 -pin connector
Voltage: 24 V
DIN/ISO: 7638-1
Prot.type (IP Code): IP54
Colour: black
from: 1.5 mm²
to: 6.0 mm²
Current Strength from: 15 A
Current Strength to: 30 A
Temperature range from: -40 °C
Temperature range to: +85 °C
Cable Ø from: 9 mm
Cable Ø to: 16 mm
Braking/Driving Dynamics: for vehicles with ABS
Supplementary Article/Supplementary Info 2: with protective cap/bellow
Plug: Crimp Contact
Quantity: 1
Assembly by qualified personnel required!
OE references: JAEGER 141007; JAEGER 55400006; LIEBHERR 1 040 070 30; MAFI 000,579,2493; SCANIA 2432332; ZOOMLION 1022200997
