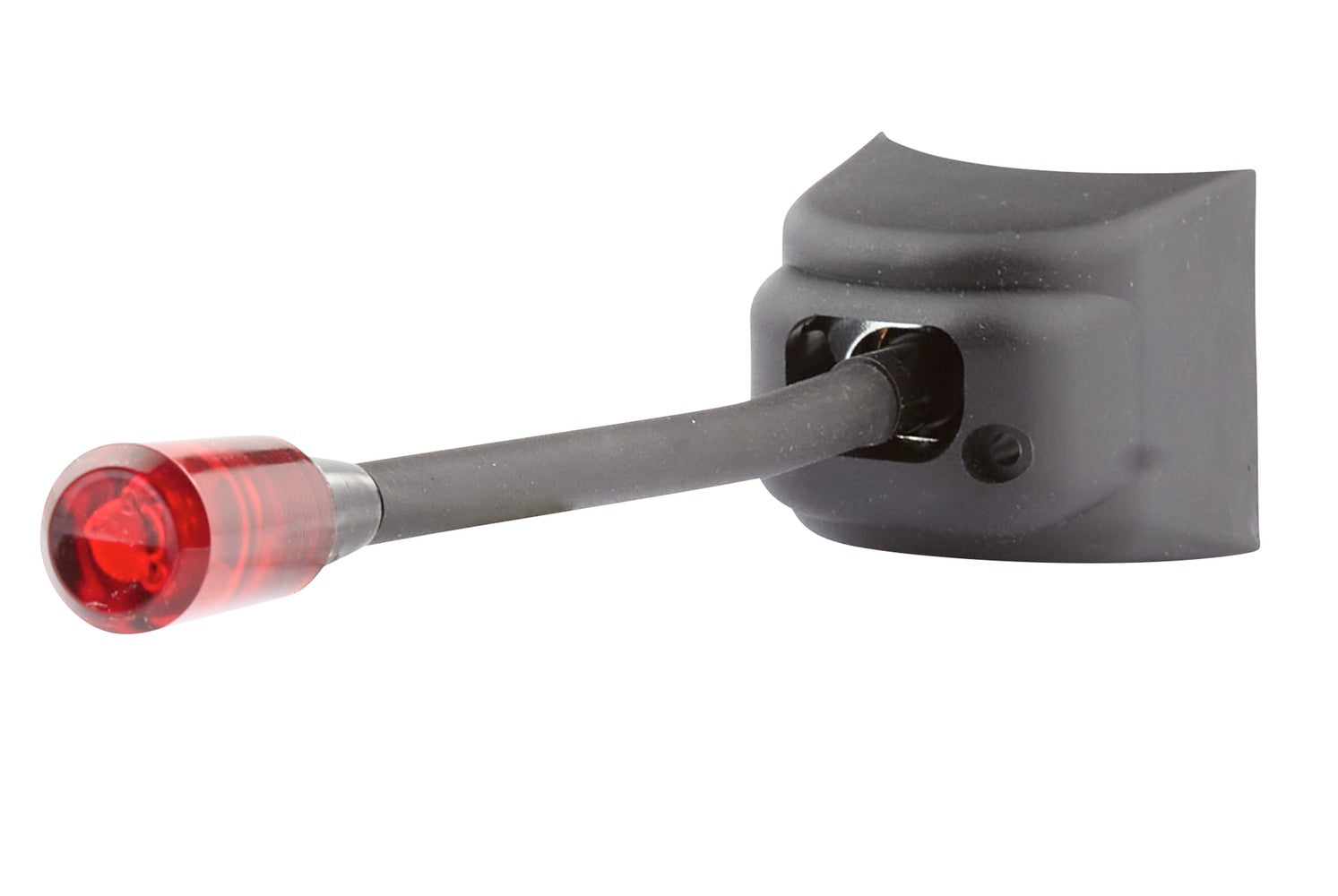

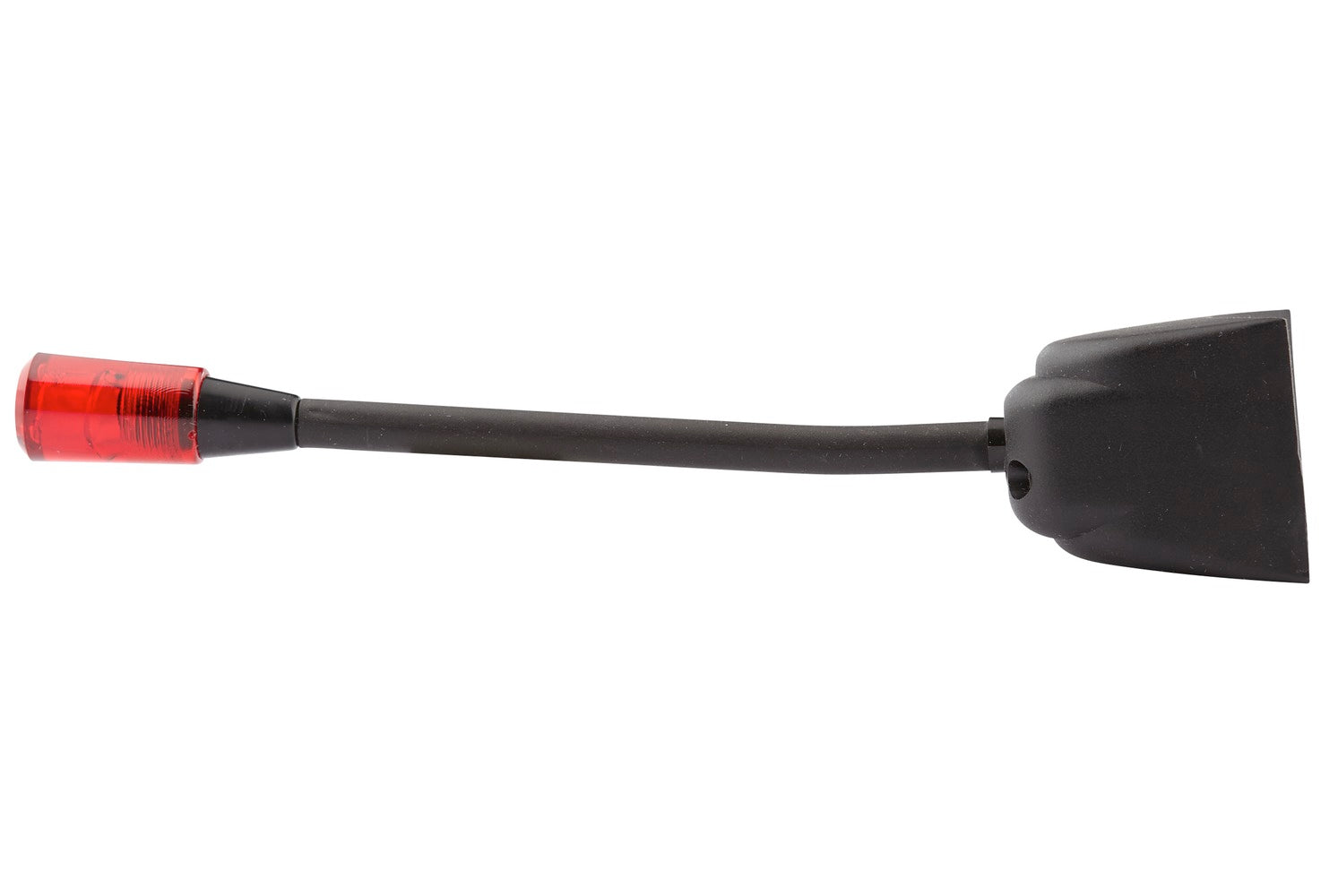

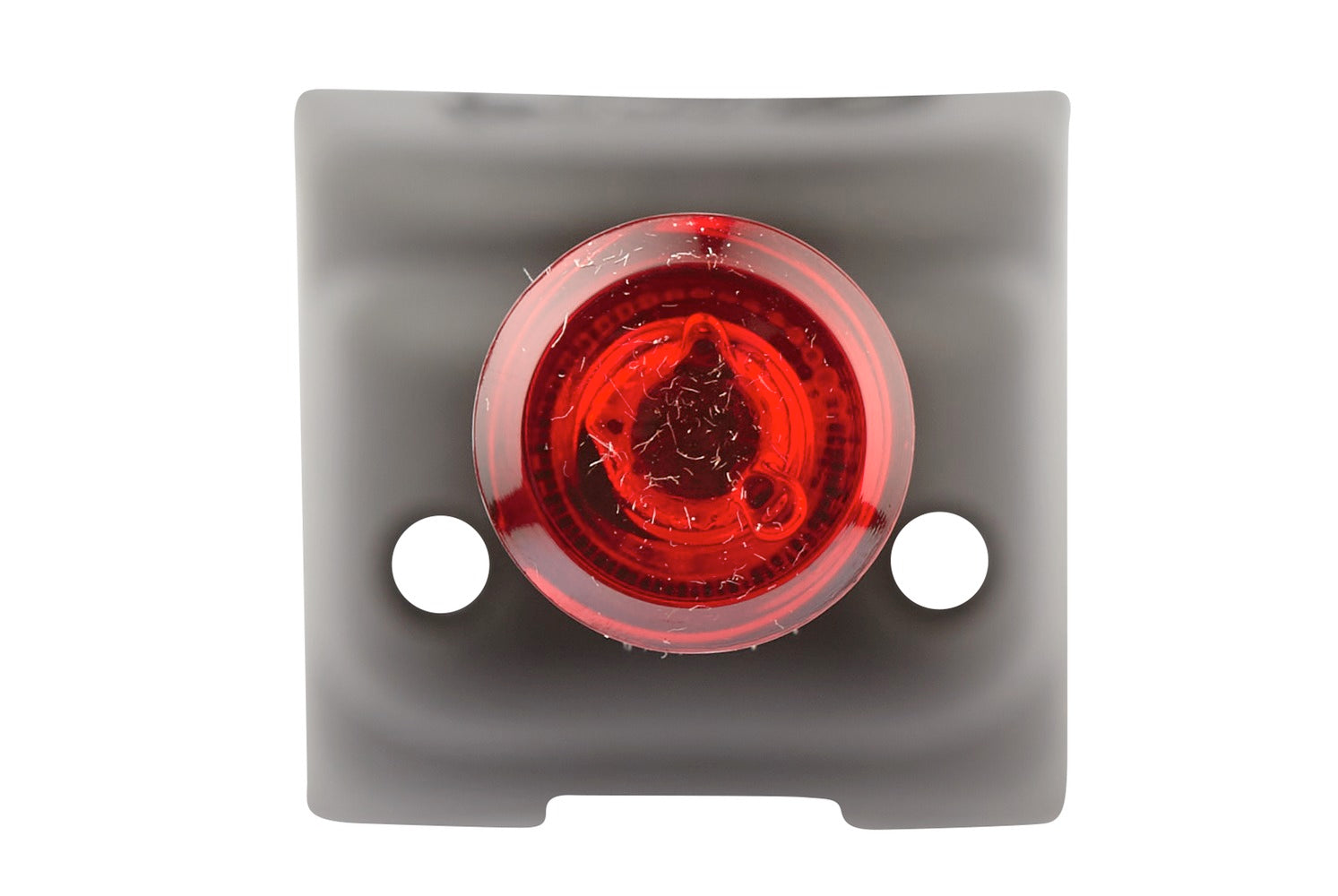

HELLA Steering Column Switch 6BA001539-001

Steering Column Switch - with indicator function/with klaxon/with headlight flasher - Length: 108mm - Cable: 60mm - curved

At HELLA we offer you a wide range of different switches for every function. Whether rotary switches, indicator switches, alarm switches, glow and starter switches, ignition starter switches, multi-function switches, isolators, dimmer foot switches or pushbutton and plunger switches - we have an extensive range for everything that needs to be switched on or off in vehicles. Our counters have one thing in common: The high quality!

• Steering column switch for installation - Flasher switch with horn and light flasher contact

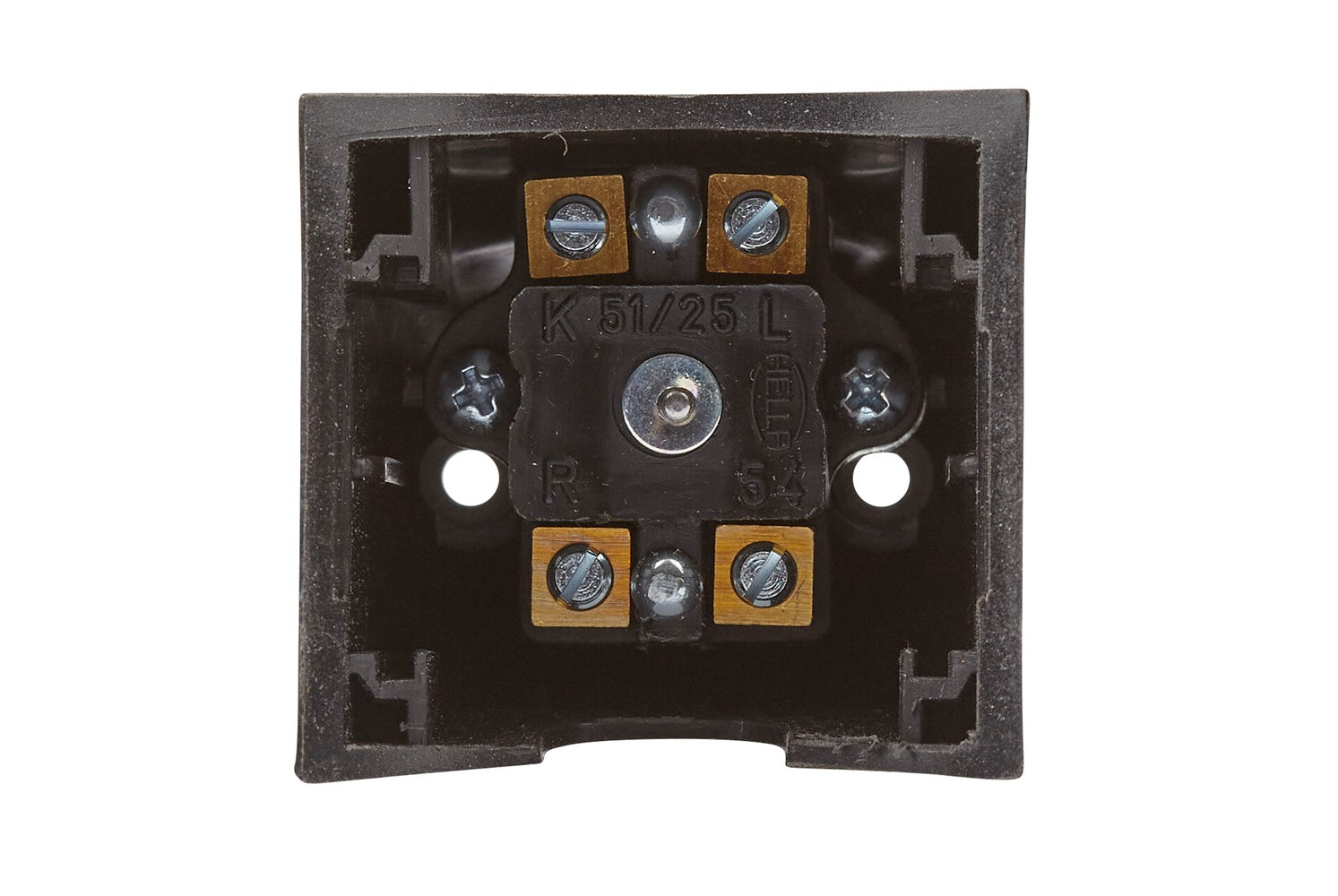

• Handle black, switching rod black chromated, 6 flat terminals 6.3 mm, 2 fixing screws M4
• Blinker switch with 108 mm long switching rod bent by 26° and 60 mm long cable with flat plug connection 6.3 mm for terminal 31b
• Switch positions: Centre = off, flashing light left and right, push button = horn on and off. Gearshift rod lifted = headlight flasher on.
• Max. load capacity at 12V: Flasher 8A, horn 10A inductive, flasher 2A inductive.

Item Attributes:
Length: 108 mm
Shape: curved
Cable: 60 mm
Switch Function: with indicator function / with headlight flasher / with klaxon
Assembly by qualified personnel required!

OE references: AGCO 45019600; AGCO V619690; AHLMANN 1229033; CASE IH 139.900.580.025,00; CASE IH 3 057633 R91; CASE IH 9 803272 9; CLAAS 074 407 00; DEUTZ-FAHR 011 63922; FENDT D 450 196 00; FENDT V 619 690; HAKO 90-12221-9; HOLMER 1023008809; HYDREMA 585020; INTERNATIONAL HARV. 3 057 633 R 91; IVECO 1163922; JUNGHEINRICH 14465020; KOMATSU B 969 171 324 201; KRAMER 000 333 05 18; KRAMER 1000000457; LANDINI 3057633R91; LINDE 000 973 24 00; MAFI 000,579,1190; MASSEY FERGUSON 31931; MITSUBISHI DO-003-009; OPEL 26600400; OPEL 42 05 700; OPEL V04205700; OPEL V26600400; ROSENBAUER 031006; SCANIA 619690; STEYR 3.990.05.800.25; STEYR 5.399.80.006.00.0; STILL 0009732400; STILL 1676059; STILL 518284; VALMET 619690; WEIRO 11292; YUTONG 3774-00294
