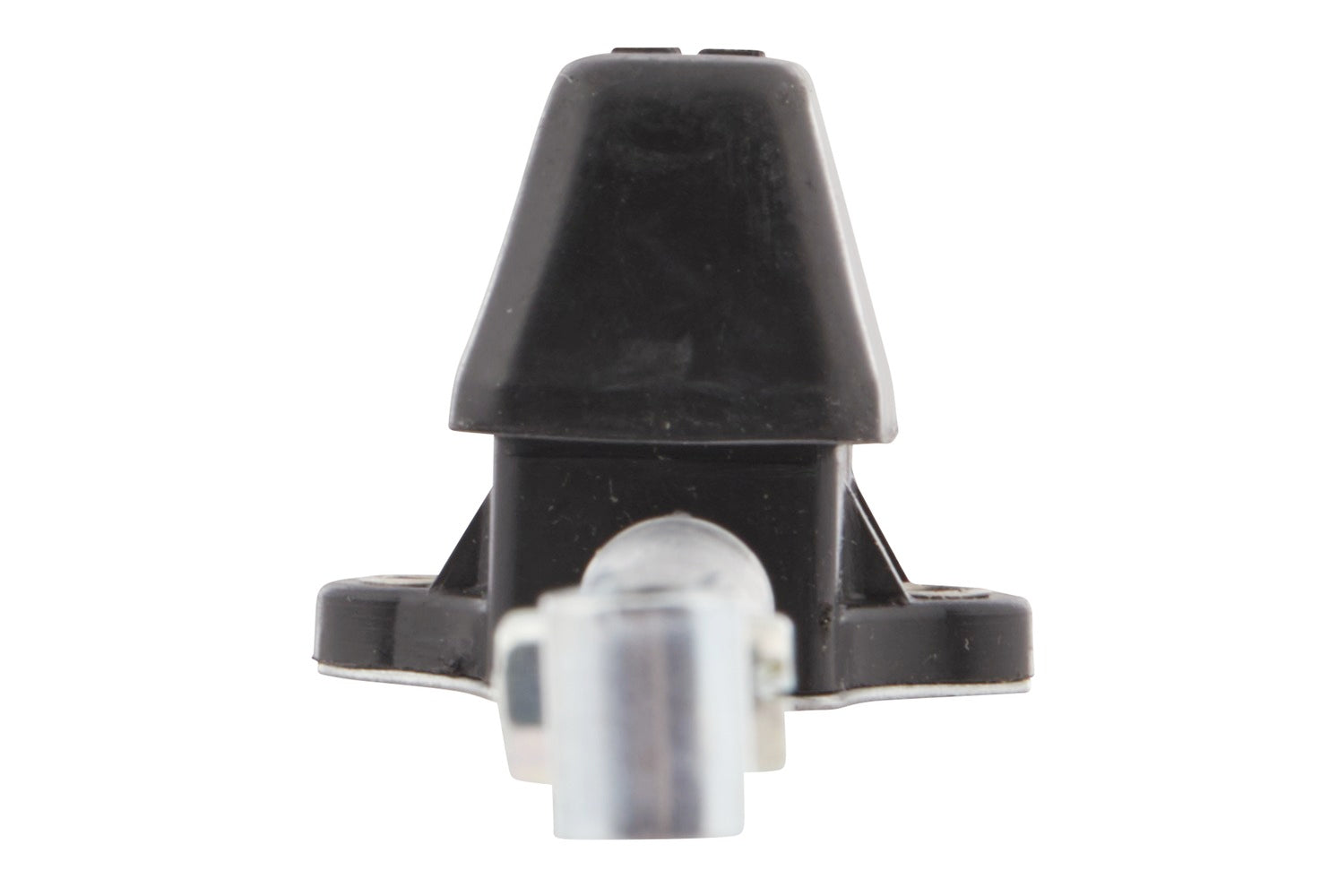

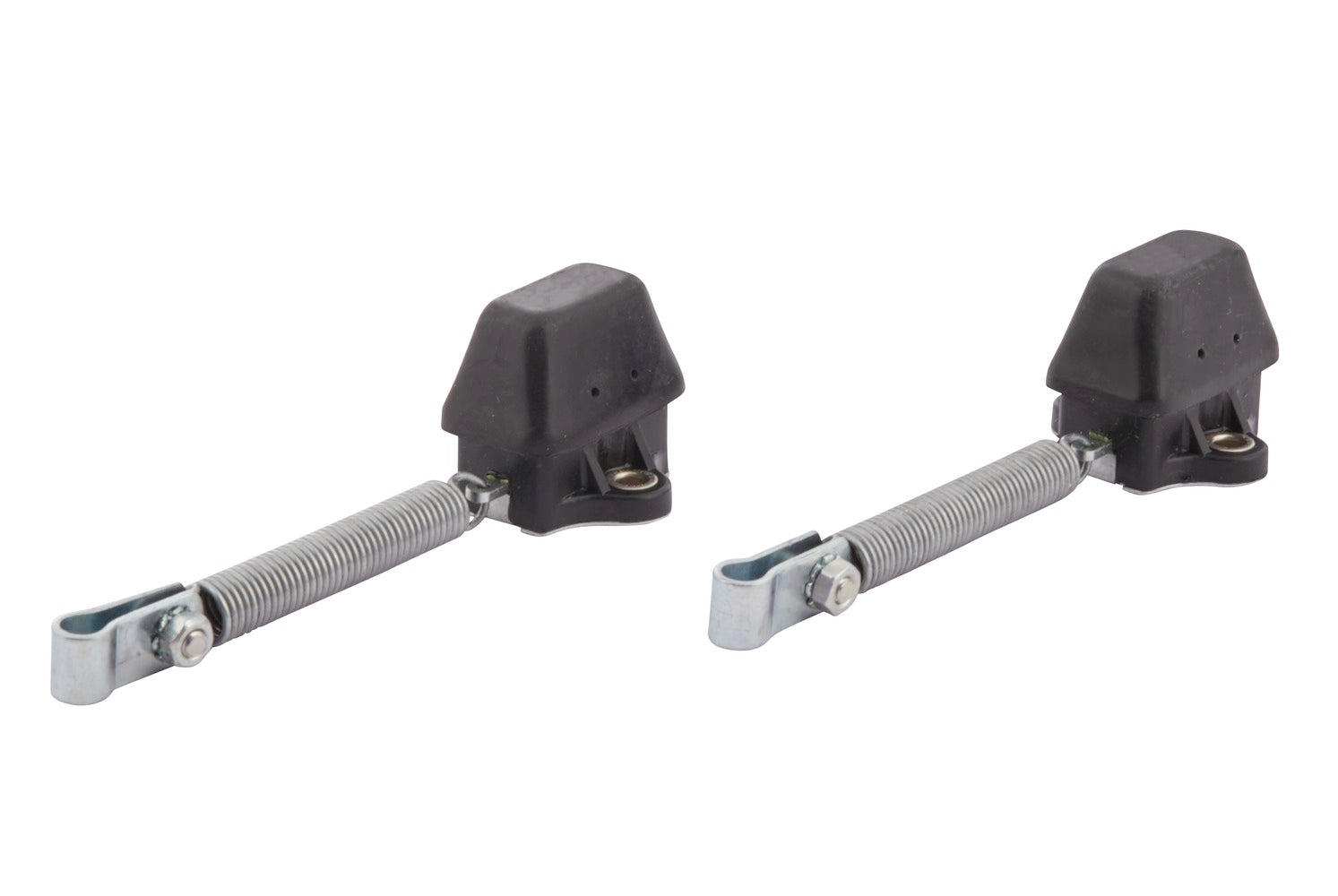

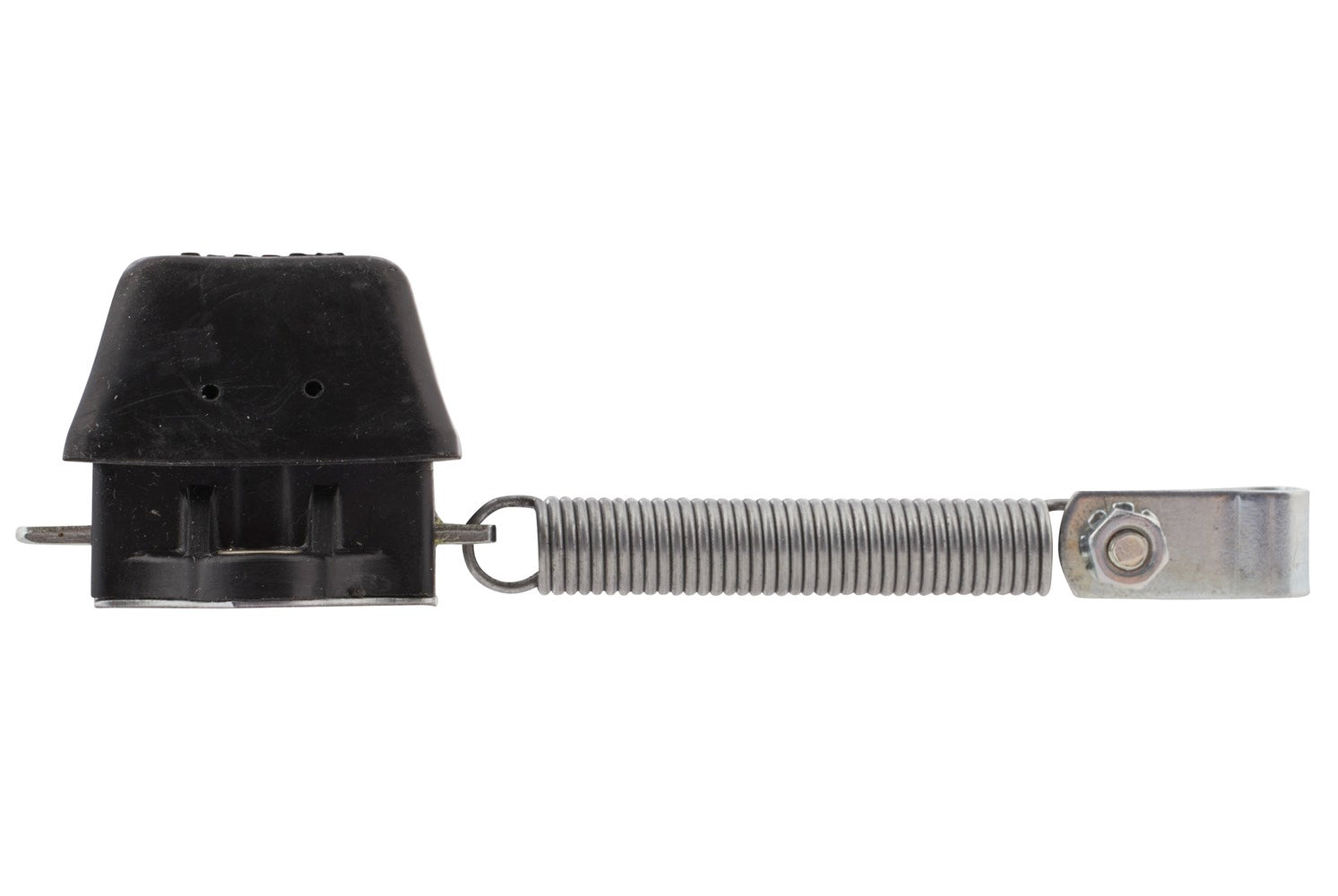

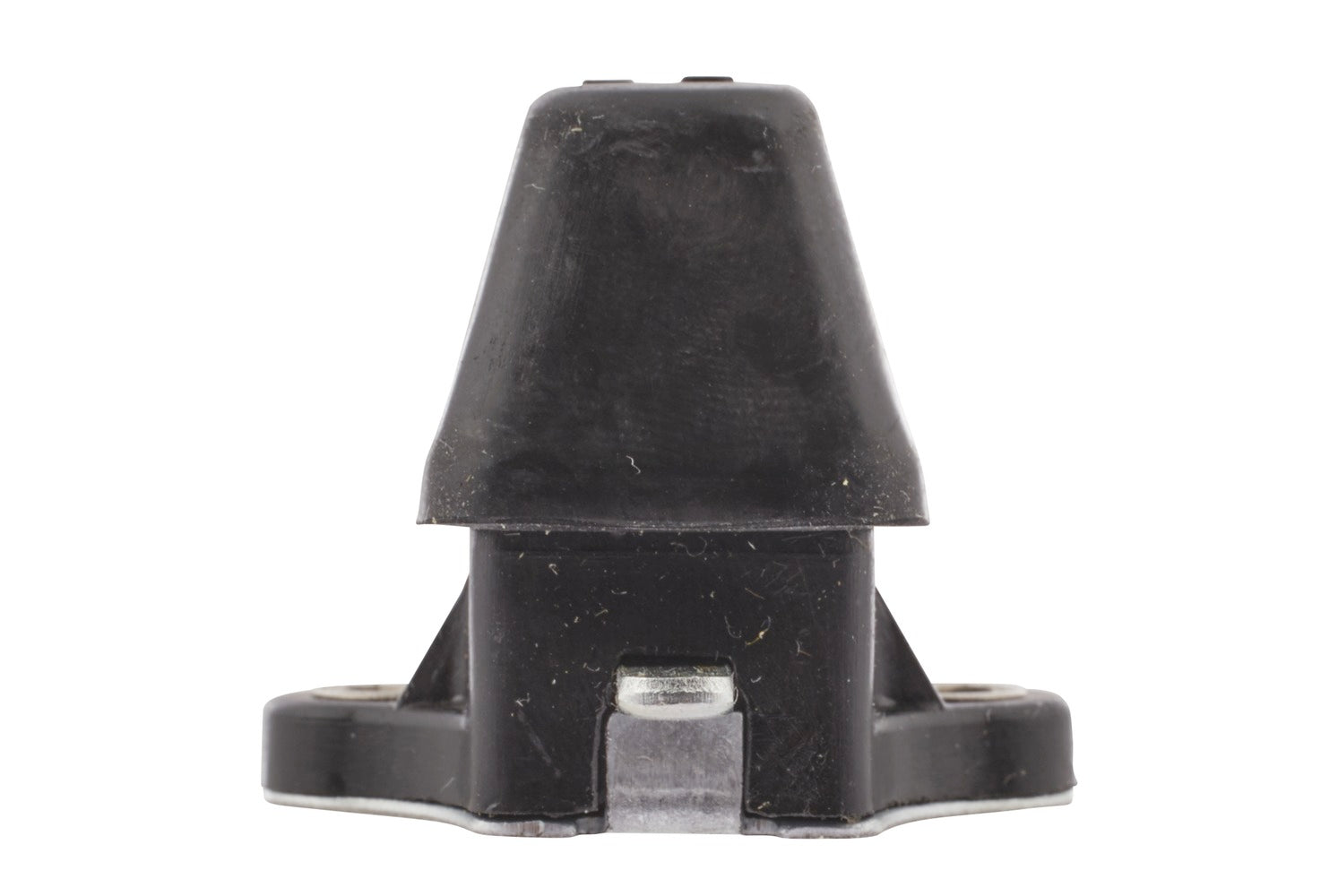

HELLA Stop Light Switch - Pull Actuation - Screw Contact 6DD001551-011

Stop Light Switch - Pull Actuation - Screw Contact - Fitting/Bolted - Normally Open Contact - Electric - Lmax.: 65mm - Quantity: 2

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Capacity at 12V: 7A
• with splash protection cover
• Pull switch, brake light - with rubber protective cap
• Pull switch, switched on when spring-loaded, switched off in rest position
• 65 mm spring length and clamp Ø 6 mm
• Housing pressed material, with 2 screw connections
• Load capacity at 12V: 7A

Item Attributes:
Mounting Type: Bolted / Fitting
Supplementary Article/Supplementary Info 2: with splash protection cover
Capacity at 12V: 7A
Actuation Type: Pull Actuation
Operating Mode: Electric
Lmax.: 65 mm
Quantity: 2
Switch Function: Normally Open Contact
Plug: Screw Contact
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: AHLMANN 5529107; AMAZONE XF287; BCS 999999999990; CASE IH 0043800; CASE IH 3 058 667 R92; CATERPILLAR 122-2369; CLAAS 067 443 90; DEMAG 97395973; HAKO 03-33990-8; HAKO 90-13856-1; HOLDER 022599; IVECO 3416568; JOHN DEERE AZ 16 014; JOHN DEERE WZ2605022; LIEBHERR 6 060 011; LIEBHERR 6 061 964; LINDNER 3000325; MAFI 000,579,1284; MANITOU 233167; MANITOU 62376; MASSEY FERGUSON 31956; MASSEY FERGUSON 9 690 00 M1; MASSEY FERGUSON U.31956; O&K 0043800; REFORM 900536103; ROSENBAUER 029570; SAME 03416568; TEREX 5350638985; TEREX 97395973; VOLVO 14345800; VOLVO 20007049692; VOLVO 21436335; VOLVO 7049692; WEIDEMANN 1000062281; WEIRO 11197; YANMAR 5350638985
