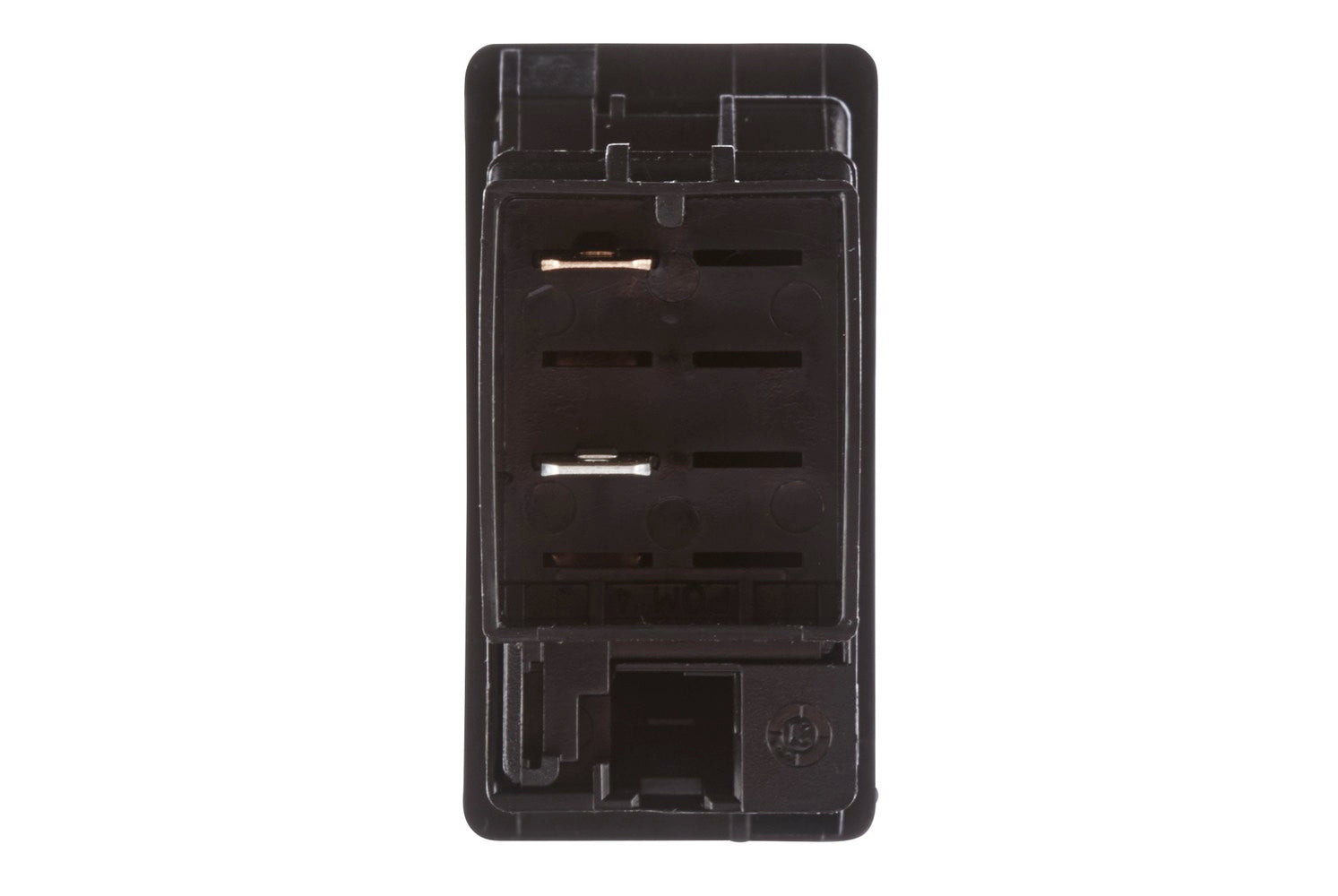

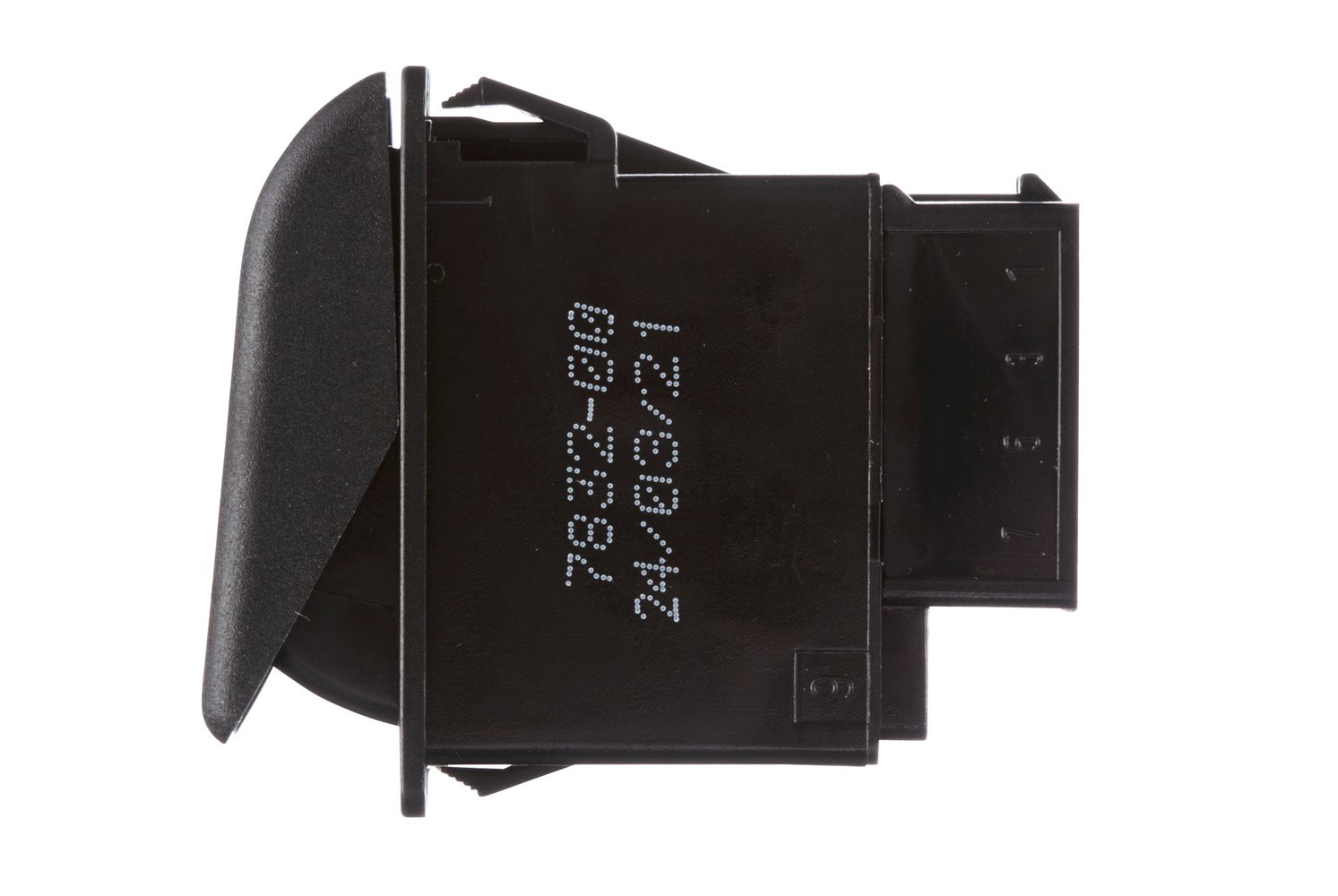

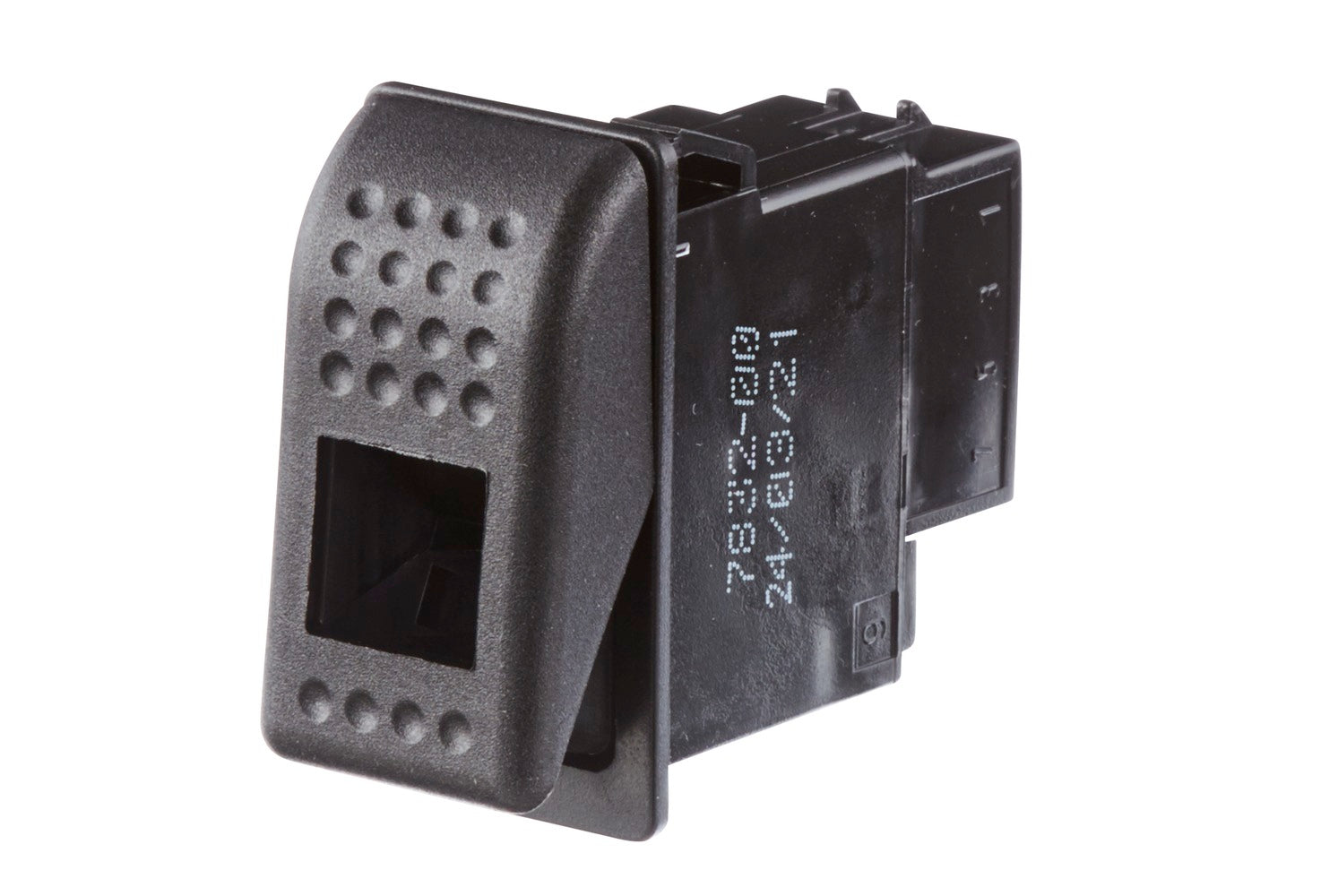

HELLA Switch - S22 - Toggle Actuation - Number of connectors: 2 6EH007832-001

Switch - S22 - Toggle Actuation - Number of connectors: 2 - without comfort function

The right switch for every application: The extensive HELLA modular switch range offers the right switch for almost every application thanks to a wide range of configuration options for functions and switch symbols. The series allow all areas of application to be optimally covered. 7832 series: The basic programme that has proven itself for more than 20 years for simple electrical systems. The symbol discs are available in different colours according to DIN or customer request. All symbols can be displayed. The symbols are illuminated by incandescent lamps or LEDs. The switch and control panels can be illuminated with 12 V bulbs, 24 V bulbs or LEDs. There are both single-stage and two-stage switches; as louvres and push-buttons. Mounting strips for forming switch rows and combinations complete the range.

• Switch, latching, single-step, with one circuit, without illumination
• The switches of the 7832 series are designed for the interior of commercial vehicles and passenger cars
• The series uses the common standards in automotive engineering

Item Attributes:
Actuation Type: Toggle Actuation
Number of connectors: 2
Switch Function: without comfort function
Assembly by qualified personnel required!

OE references: AEBI 300.5815; AGCO ST100549; ALEXANDER DENNIS 660332-1; HAKO 90-74226-3; MACK 4381 80570; SAME 0.015.0485.4/04411512.4; TEREX 1000191915; ZOOMLION 1020513020
