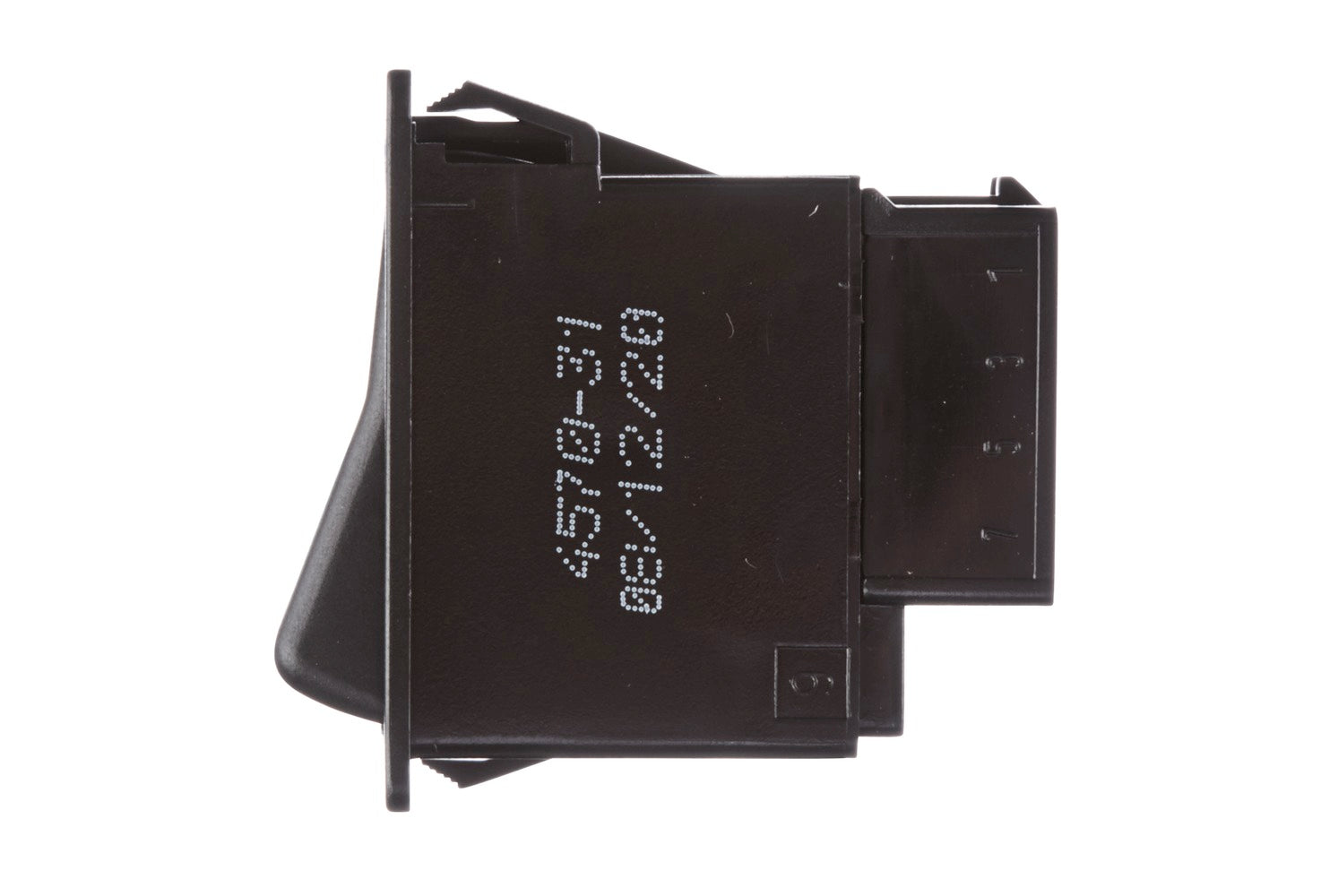

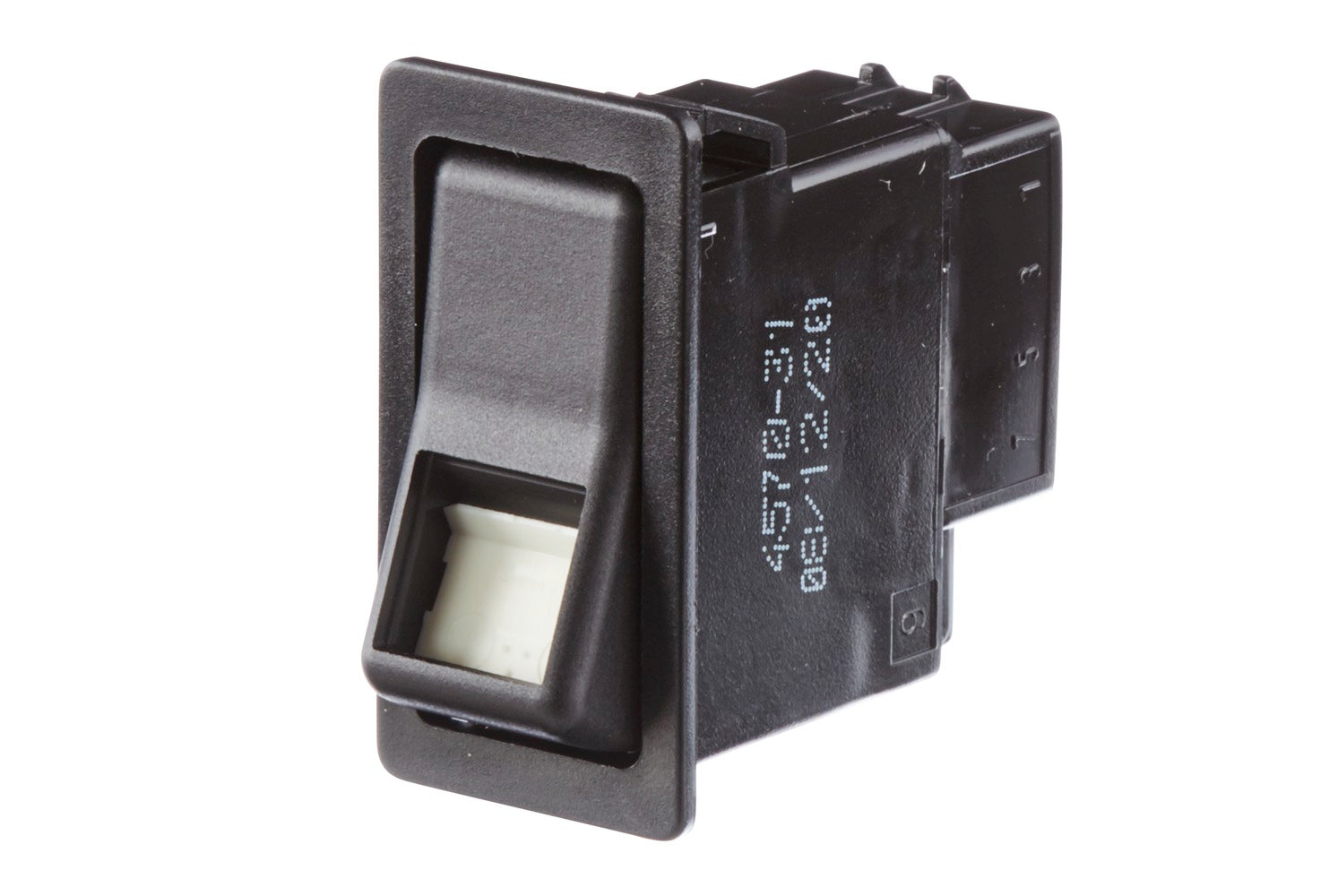

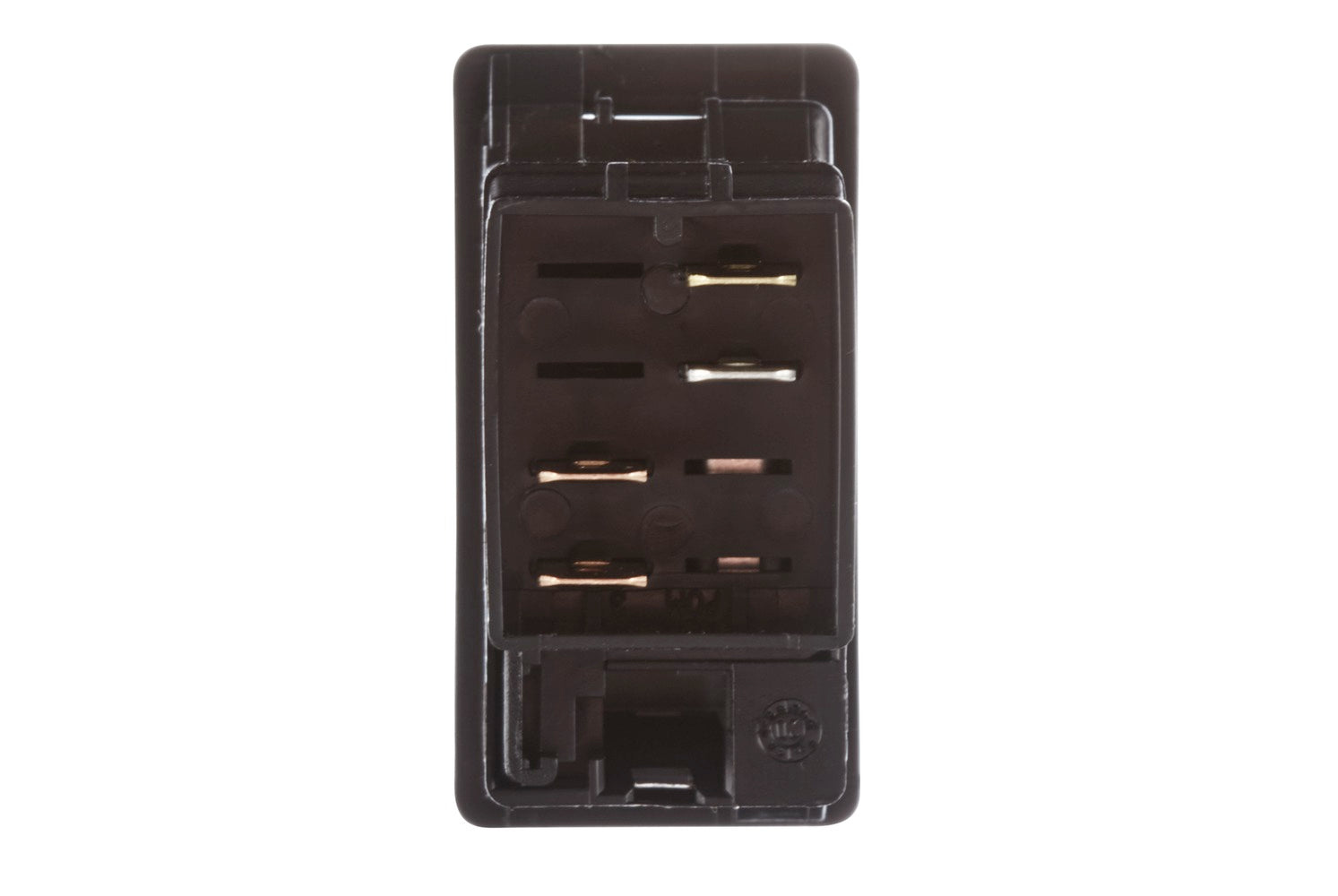

HELLA Switch - Toggle Actuation/Button Actuation - Number of connectors: 6 6RH004570-311

Switch - Toggle Actuation/Button Actuation - Number of connectors: 6

The right switch for every application: The extensive HELLA modular switch range offers the right switch for almost every application thanks to a wide range of configuration options for functions and switch symbols. The series allow all areas of application to be optimally covered. Series 4570: Belongs to the basic programme that has proven itself for simple electrical systems for more than 20 years. The symbol discs are available in different colours according to DIN or customer request. The symbols are illuminated by incandescent lamps or LEDs, which can be ordered as accessories. The symbol discs are available in different colours according to DIN or customer request. All symbols can be displayed. The symbols are illuminated by incandescent lamps or LEDs. The switch and control panels can be illuminated with 12 V bulbs, 24 V bulbs or LEDs. There are both single-stage and two-stage switches; as louvres and push-buttons. Mounting strips for forming switch rows and combinations complete the range.

• Switch, latching, two-position, with one circuit, designed for location lighting, 2. Step momentary, combination switch
• The modular switches of the 4570 series are designed for the interior of commercial vehicles and passenger cars
• The advantages of the series are to be found in the modular design and high switching capacity

Item Attributes:
Actuation Type: Button Actuation / Toggle Actuation
Number of connectors: 6
Assembly by qualified personnel required!

OE references: ALEXANDER DENNIS 76301037; DEMAG 00020112; GOLDHOFER 171213910; GOLDHOFER 56280; JUNGHEINRICH 14739820; KUBOTA W23TS00087; SANY B241200000027; TEREX 00020112; TEREX 94700020112; VAN HOOL 10801643; VDL 10801643
