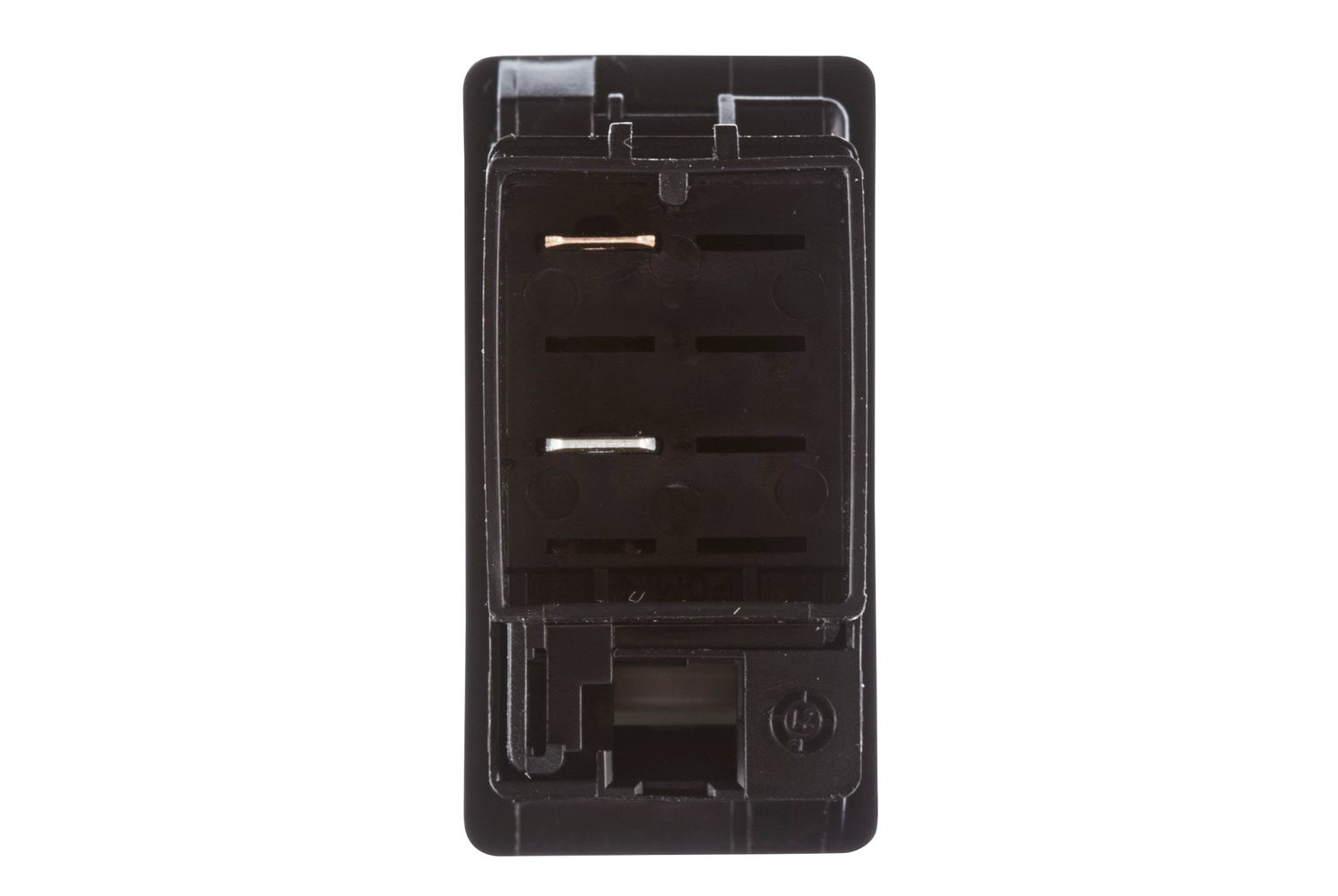

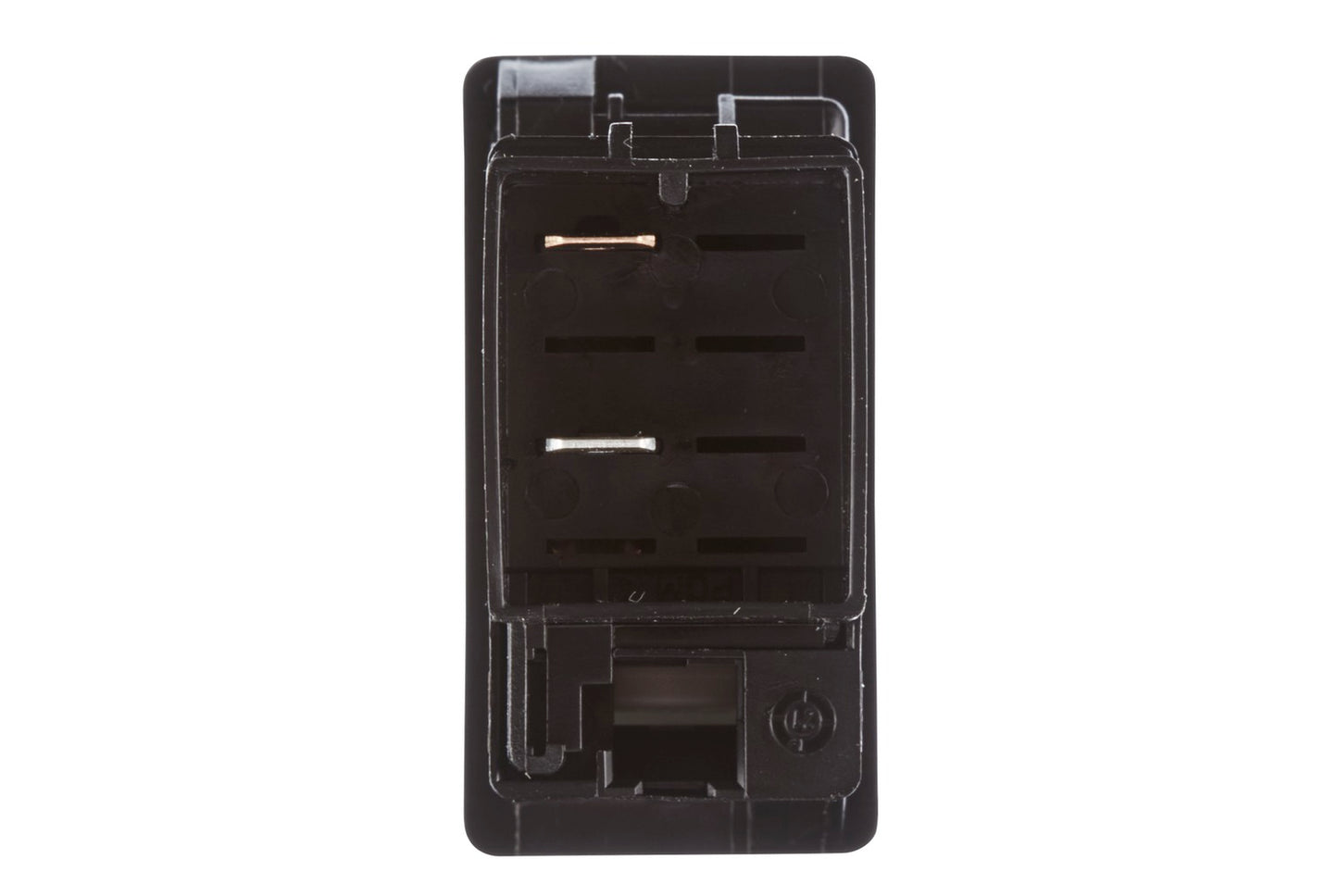

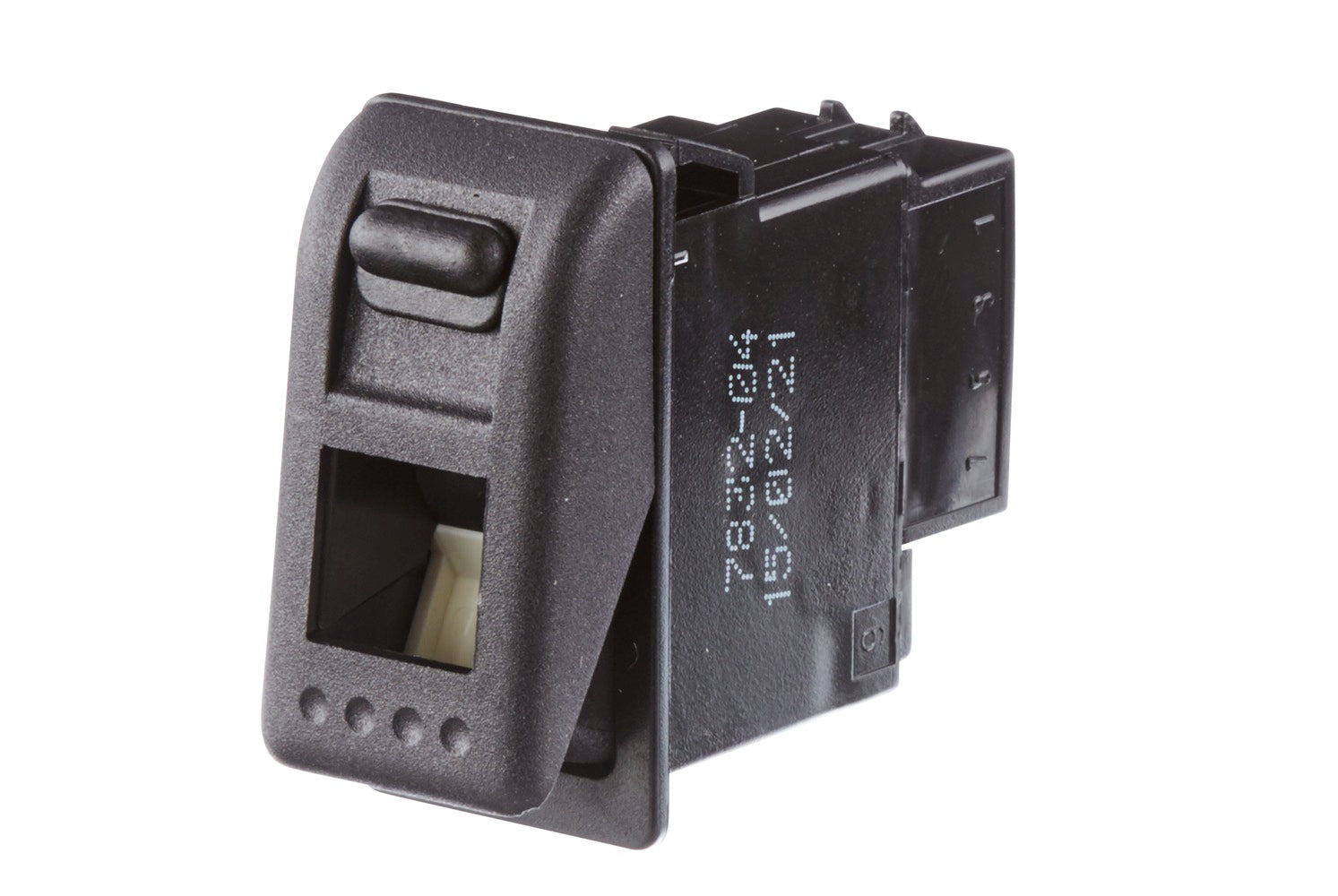

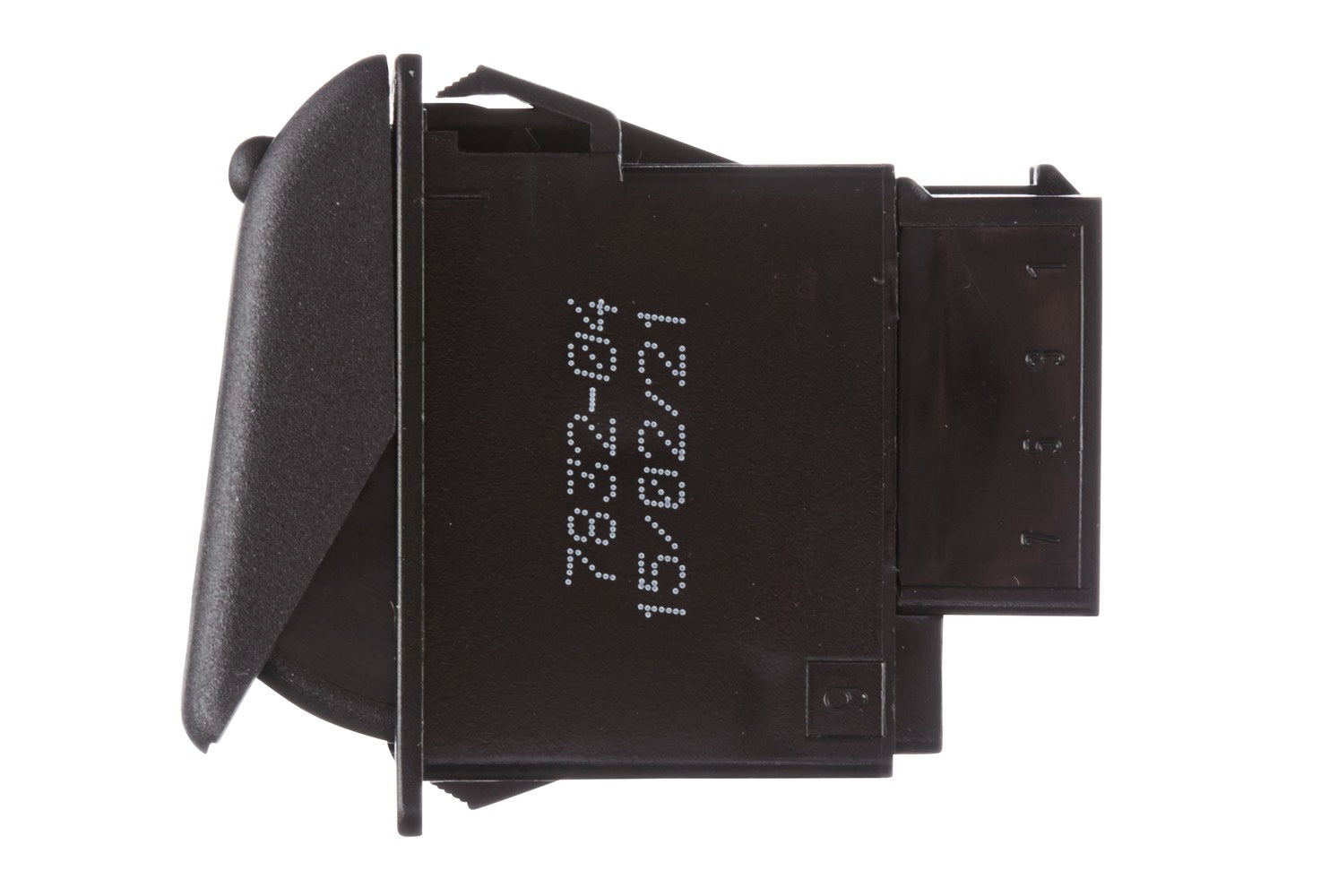

HELLA Switch - Toggle Actuation - Number of connectors: 4 6EH007832-041

Switch - Toggle Actuation - Number of connectors: 4 - Clipped - with comfort function/Safety Switch

The right switch for every application: The extensive HELLA modular switch range offers the right switch for almost every application thanks to a wide range of configuration options for functions and switch symbols. The series allow all areas of application to be optimally covered. 7832 series: The basic programme that has proven itself for more than 20 years for simple electrical systems. The symbol discs are available in different colours according to DIN or customer request. All symbols can be displayed. The symbols are illuminated by incandescent lamps or LEDs. The switch and control panels can be illuminated with 12 V bulbs, 24 V bulbs or LEDs. There are both single-stage and two-stage switches; as louvres and push-buttons. Mounting strips for forming switch rows and combinations complete the range.

• Switch, latching, single-position, with one circuit, designed for location and function lighting, with actuation lock-out
• The switches of the 7832 series are designed for the interior of commercial vehicles and passenger cars
• The series uses the common standards in automotive engineering

Item Attributes:
Mounting Type: Clipped
Actuation Type: Toggle Actuation
Number of connectors: 4
Switch Function: with comfort function / Safety Switch
Assembly by qualified personnel required!

OE references: AGCO E402117; ALEXANDER DENNIS 660332-10; BMC 52RS002332; CLAAS 056 436 80; GOLDHOFER 80924; HOLDER 030735; KRONE 0302521/0; PLAXTON 660332-10; SISU 186-209-0921; SPIERINGS 1042474; TERBERG-BENSCHOP T25014350
