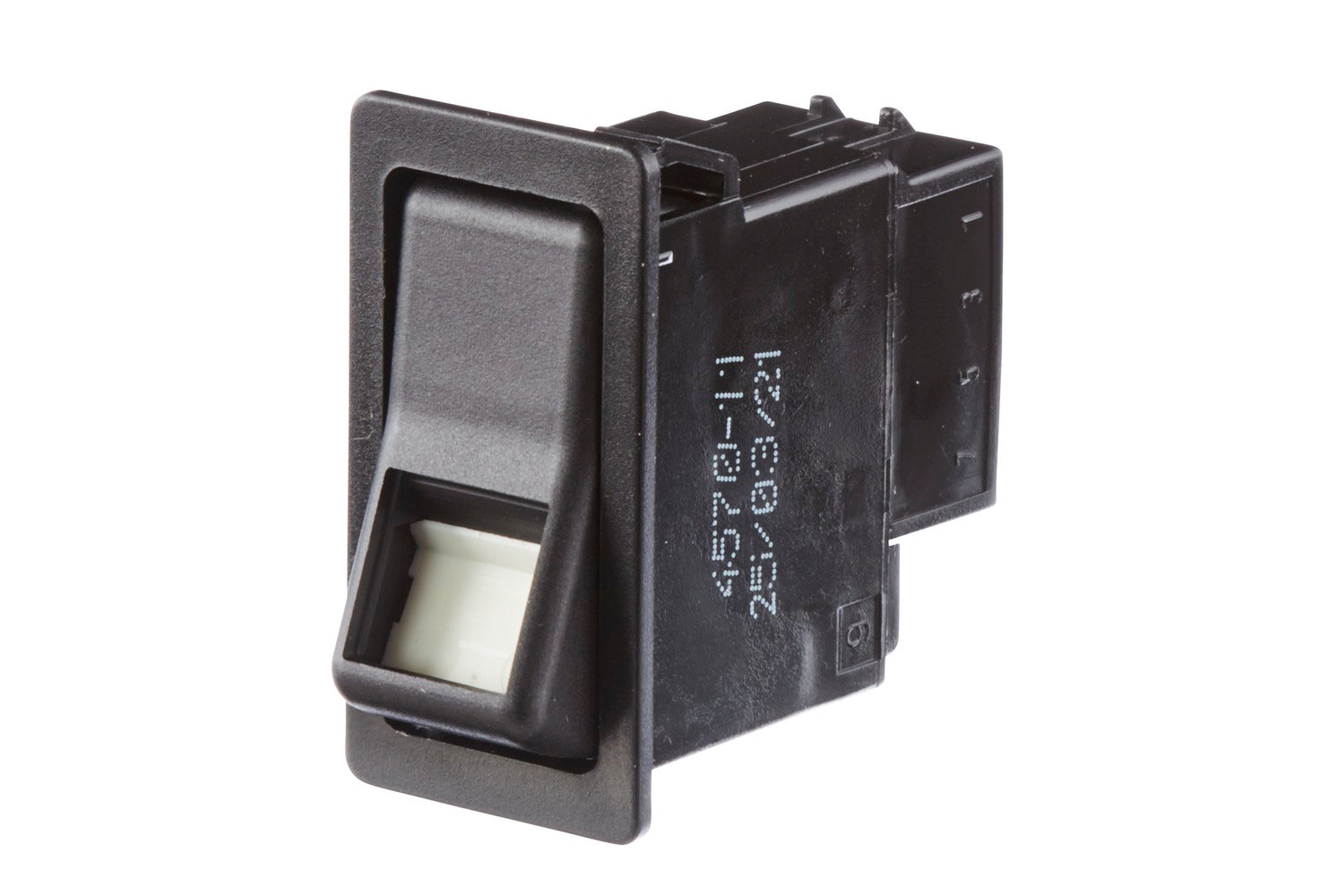

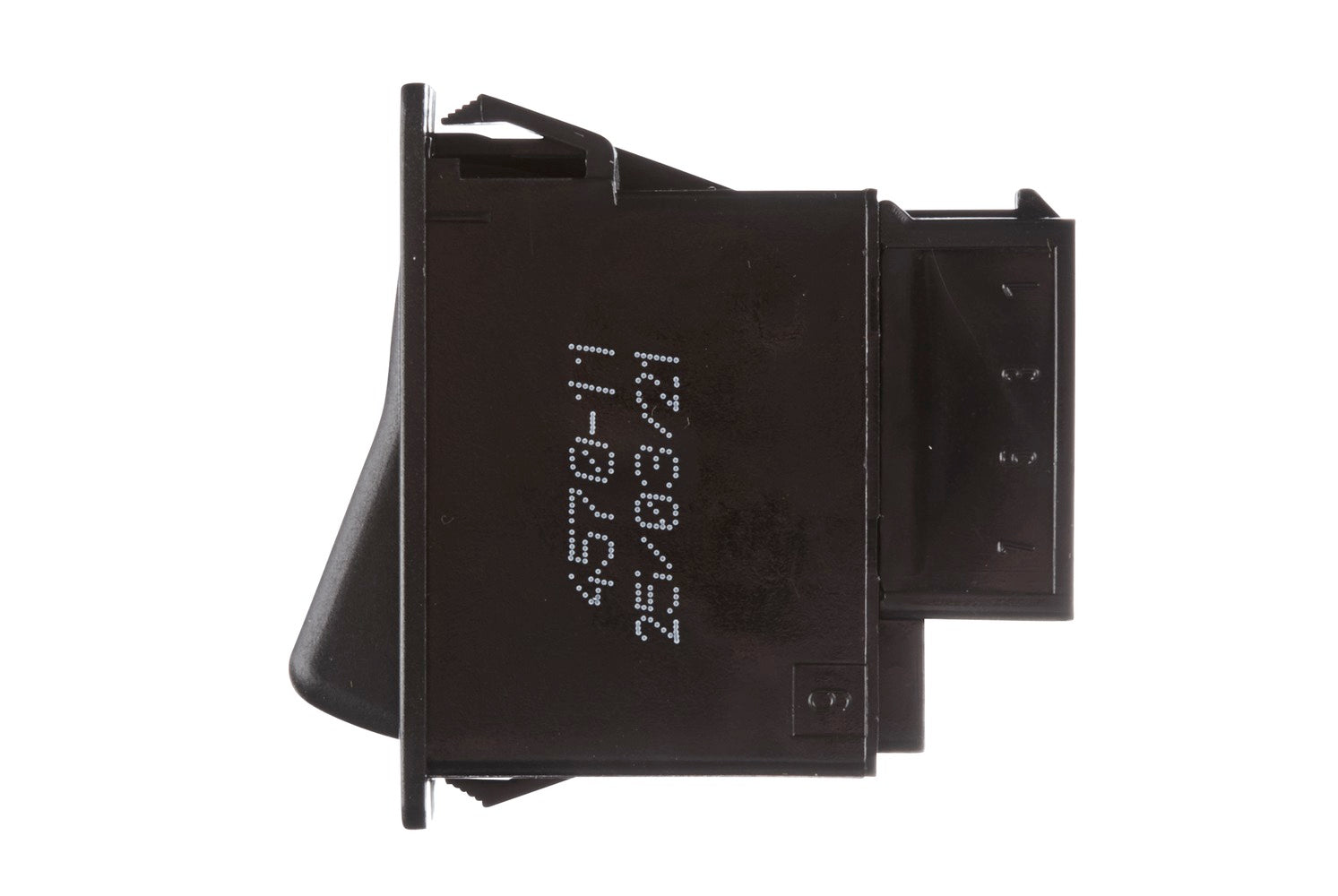

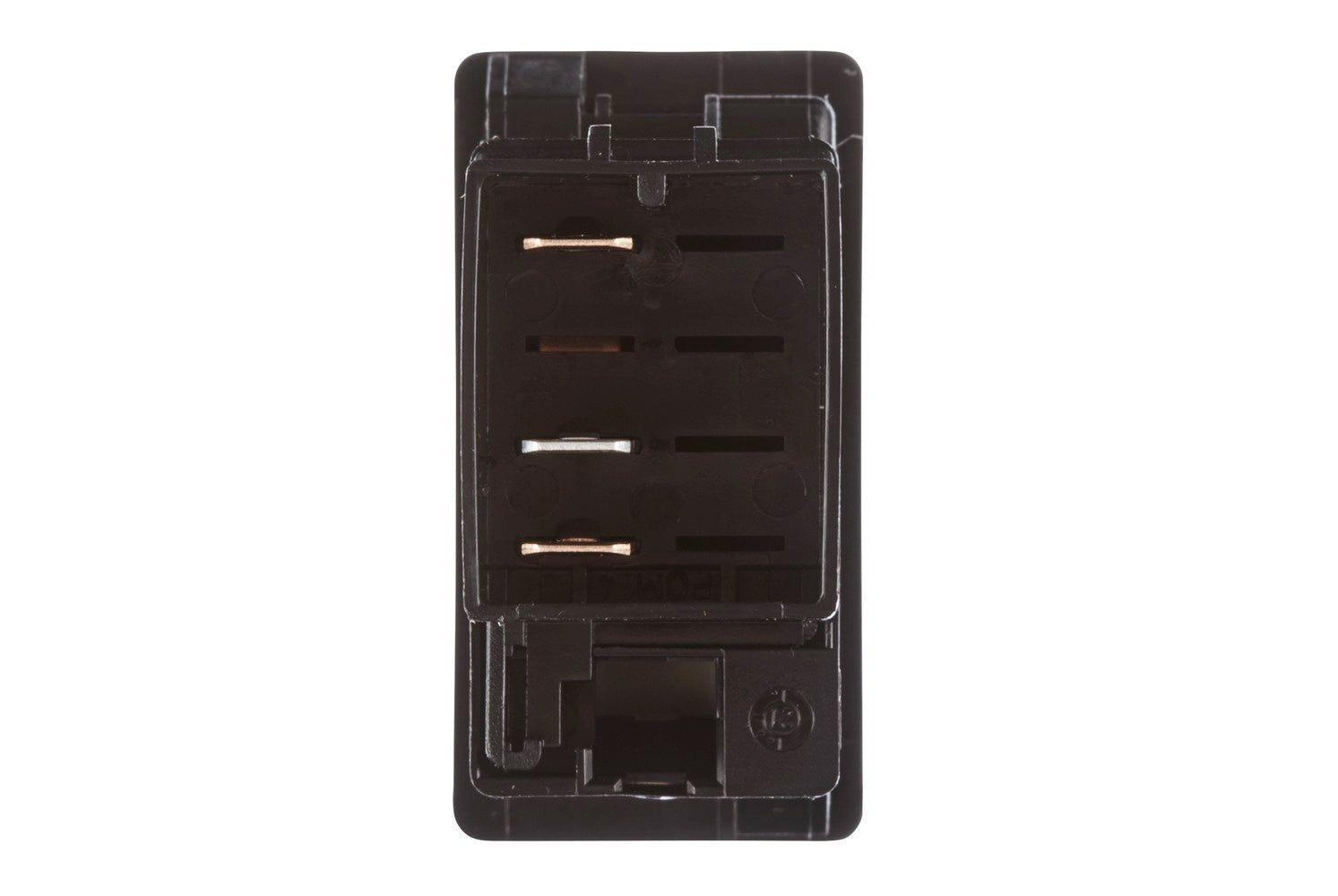

HELLA Switch - Toggle Actuation - Number of connectors: 5 6FH004570-111

Switch - Toggle Actuation - Number of connectors: 5

The right switch for every application: The extensive HELLA modular switch range offers the right switch for almost every application thanks to a wide range of configuration options for functions and switch symbols. The series allow all areas of application to be optimally covered. Series 4570 / 7832: The basic programme that has proven itself for more than 20 years for simple electrical systems. The symbol discs are available in different colours according to DIN or customer request. All symbols can be displayed. The symbols are illuminated by incandescent lamps or LEDs. The switch and control panels can be illuminated with 12 V bulbs, 24 V bulbs or LEDs. There are both single-stage and two-stage switches; as louvres and push-buttons. Mounting strips for forming switch rows and combinations complete the range.

• Switch, latching, single-step, with one circuit, with location light
• The modular switches of the 4570 series are designed for the interior of commercial vehicles and passenger cars
• The advantages of the series are to be found in the modular design and high switching capacity

Item Attributes:
Actuation Type: Toggle Actuation
Number of connectors: 5
Assembly by qualified personnel required!

OE references: AEBI 0237441-1; AUDI KDWHLO9063; DAF 908311; VW KDWHLO9063
