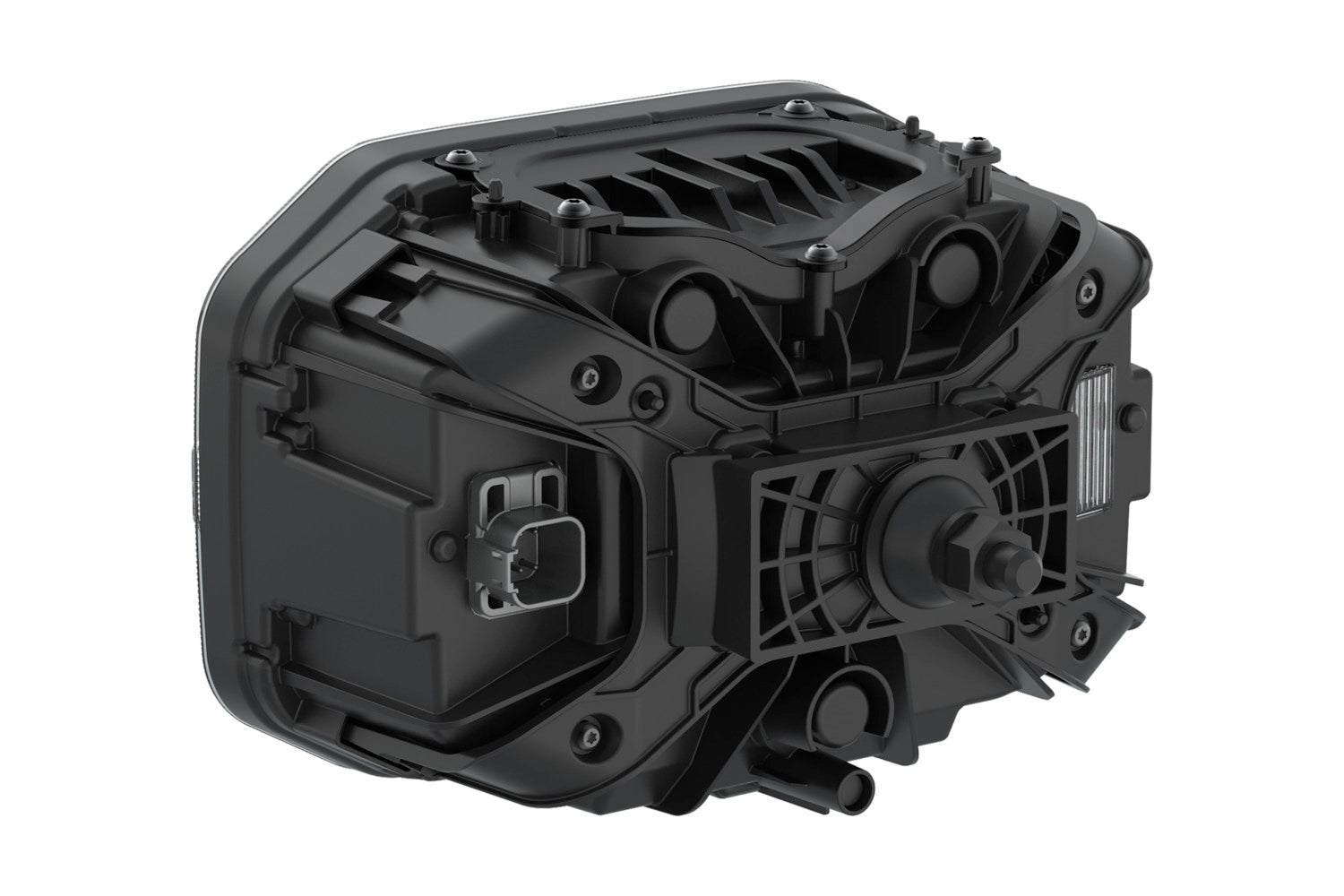

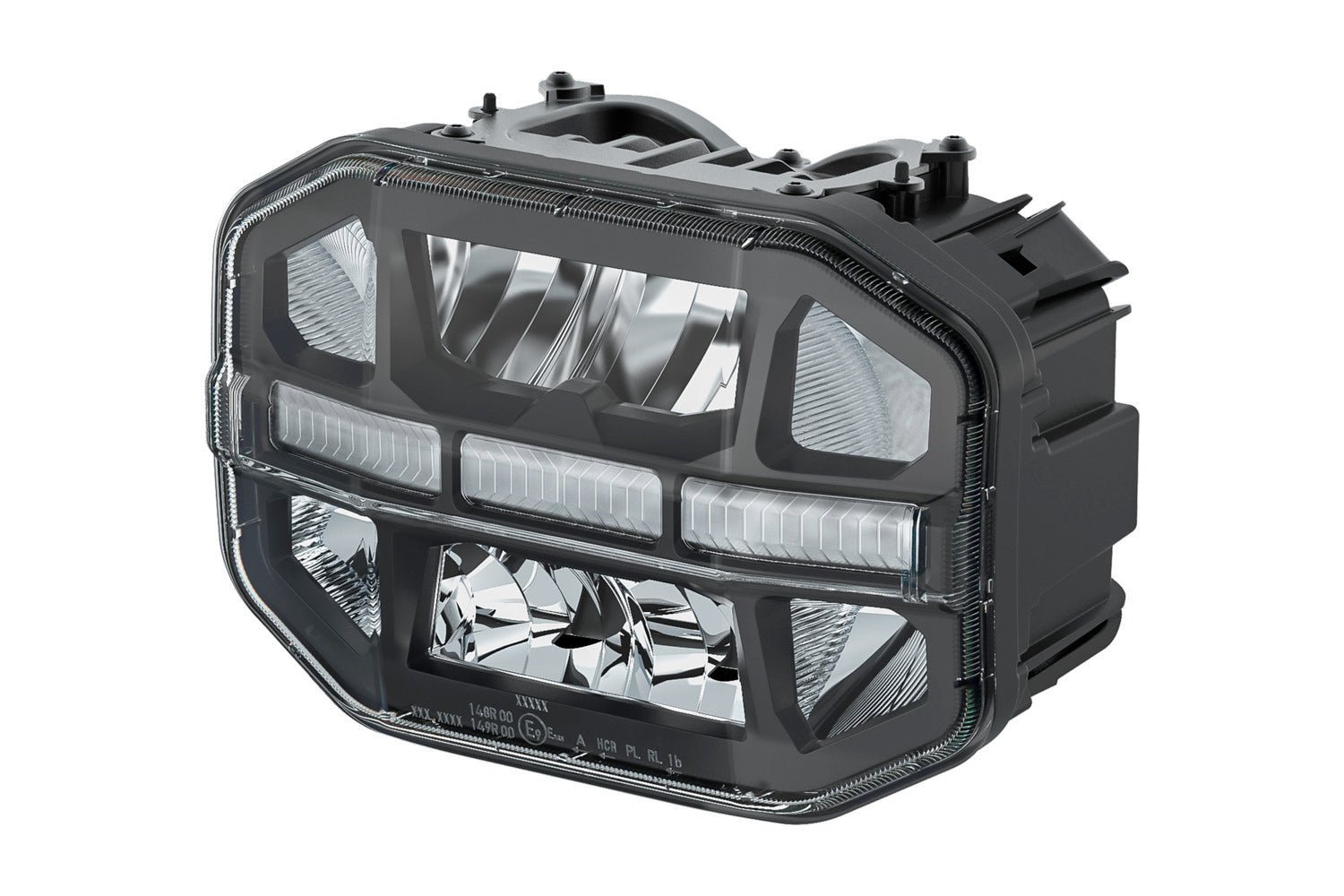

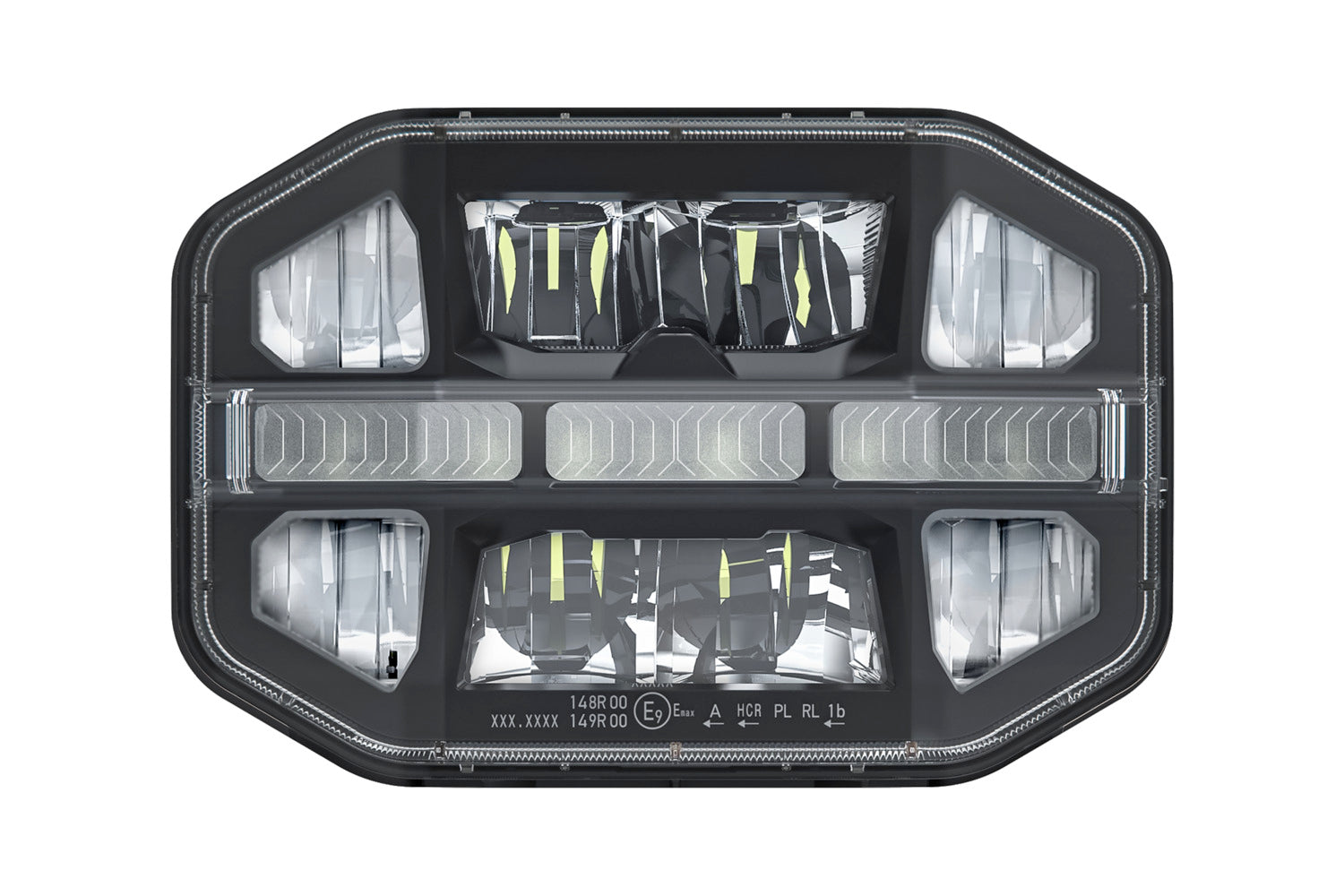

HELLA Symmetric-Headlight - C240 - 12/24V 1SF328550-011

Symmetric-Headlight - C240 - 12/24V - ECE - Plug: DEUTSCH plug - 6-pin connector - left

The C240 LED is a combination headlight in which all lighting functions are implemented using LED technology. The special free-form reflector in conjunction with the LED light source provides significantly better light than headlights with halogen bulbs. Due to the light color being similar to daylight, the light appears significantly brighter to the eye and therefore enables fatigue-free work at night. The main headlight is particularly vibration and shock resistant. Ideal for harsh use on construction vehicles (high vibrations, dust, moisture, mechanical shock, etc.). Thanks to LED technology, a service life can be achieved. The lower LED power consumption compared to a conventional halogen headlight also leads to fuel savings, which can save further costs. The C240 LED meets all ECE and SAE requirements and is suitable and approved for almost worldwide use.

• Class C symmetric, central mount left
• Prot.type (IP Code): IP6K9K
• Housing material: PBT
• with high beam (LED)/with low beam (LED)/with daytime running light (LED)/with position light (LED)/with indicator (LED)
• Width: 245mm - Height: 165mm - Depth: 192mm - Lamp Type: LED - with indicator failure control
• with high beam (LED)/with low beam (LED)/with position light (LED)/with indicator (LED)
• Registration Type: ECE - fulfils ECE standard: R149/R148/R10 - for right-hand traffic/for left-hand traffic - Prot.type (IP Code): IP6K9K

Item Attributes:
Fitting Position: left
Mounting Type: Bolted
Fastening Type: Horizontal fastening
Light Function: with indicator (LED) / with high beam (LED) / with low beam (LED) / with position light (LED)
Supplementary Article/Supplementary Info 2: with indicator failure control
Left-hand/Right-hand Traffic: for right-hand traffic / for left-hand traffic
Lamp Type: LED
Light Design: Symmetric
Voltage: 24 V / 12 V
Registration Type: ECE
fulfils ECE standard: R148 / R10 / R149
Housing material: PBT
Prot.type (IP Code): IP6K9K
Temperature range from: -40 °C
Temperature range to: +50 °C
Plug: DEUTSCH plug
Number of pins: 6 -pin connector
Height: 165 mm
Width: 245 mm
Depth: 192 mm
Reverse polarity protection: Yes
Observe mounting information
paired article number: 1SF 328 550-021
Assembly by qualified personnel required!

OE references: PAUS 896378; YANMAR 5350247540
