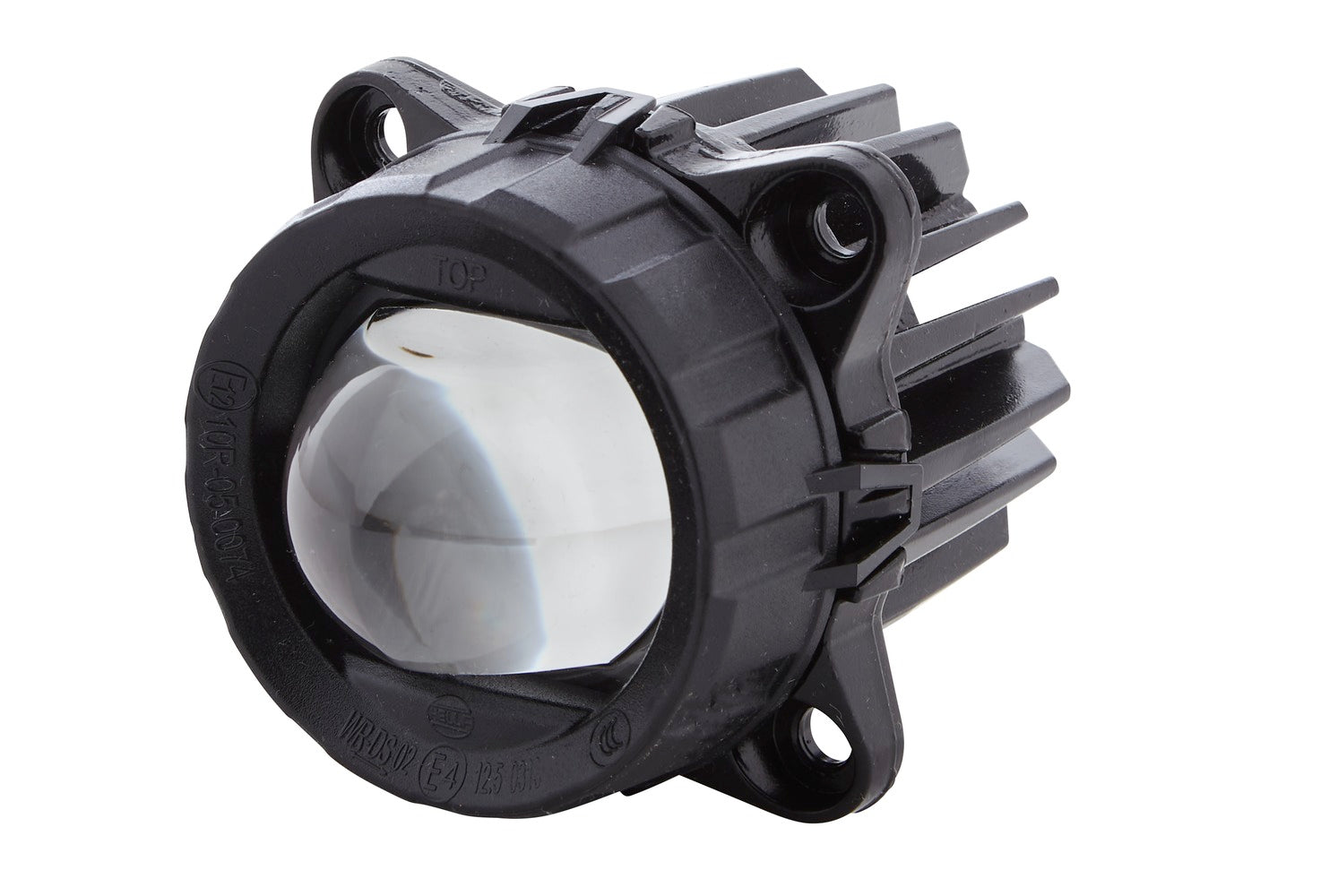

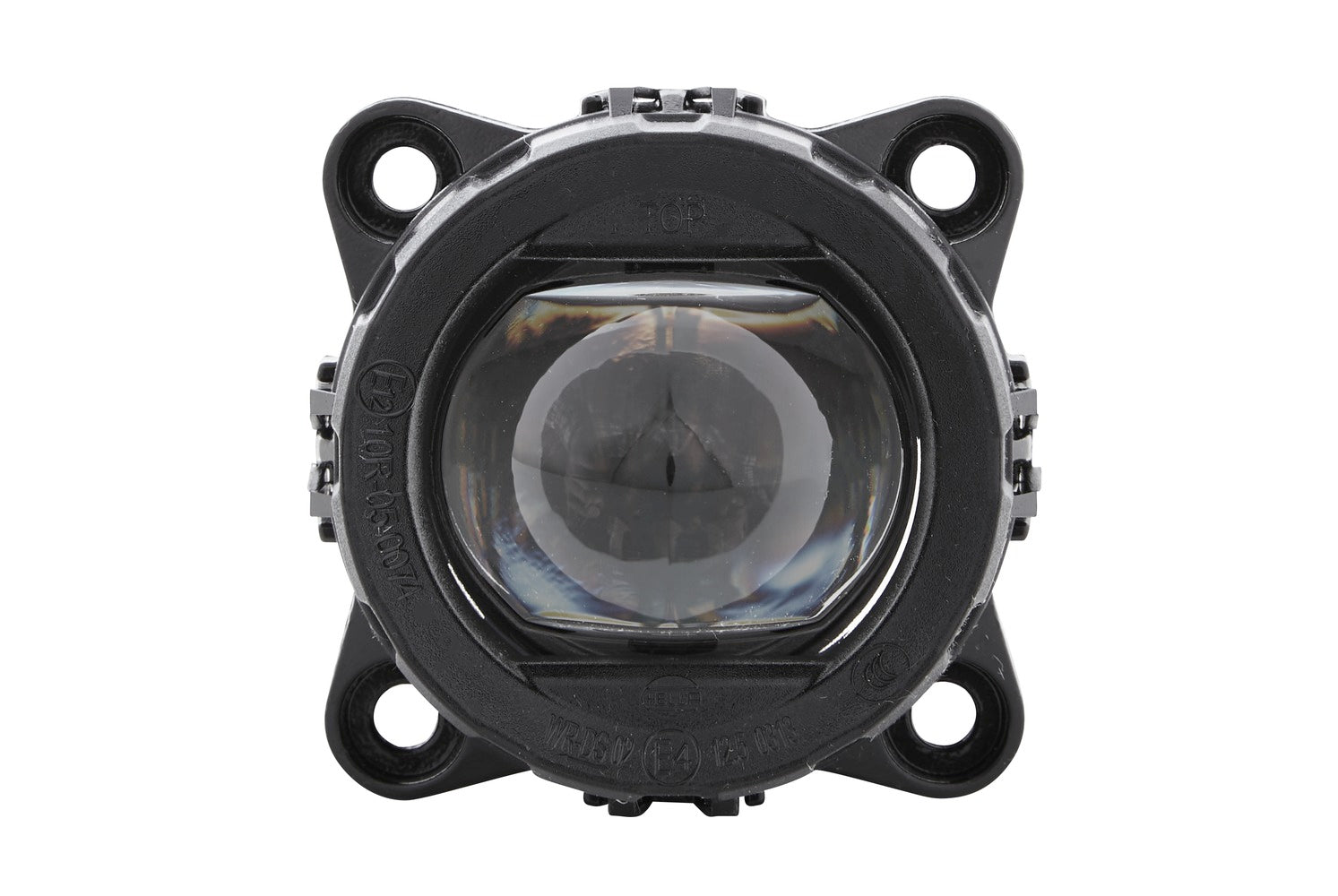

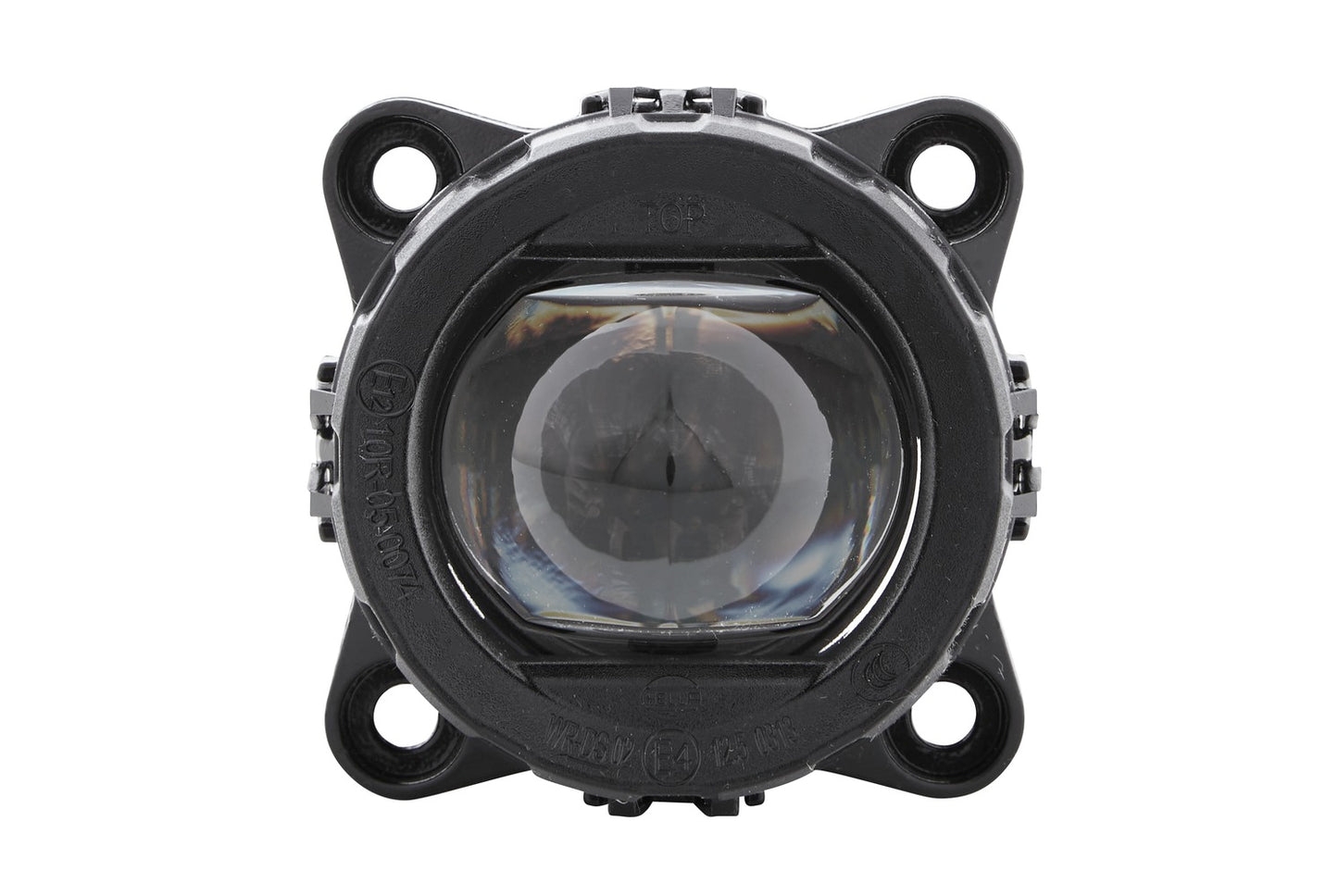

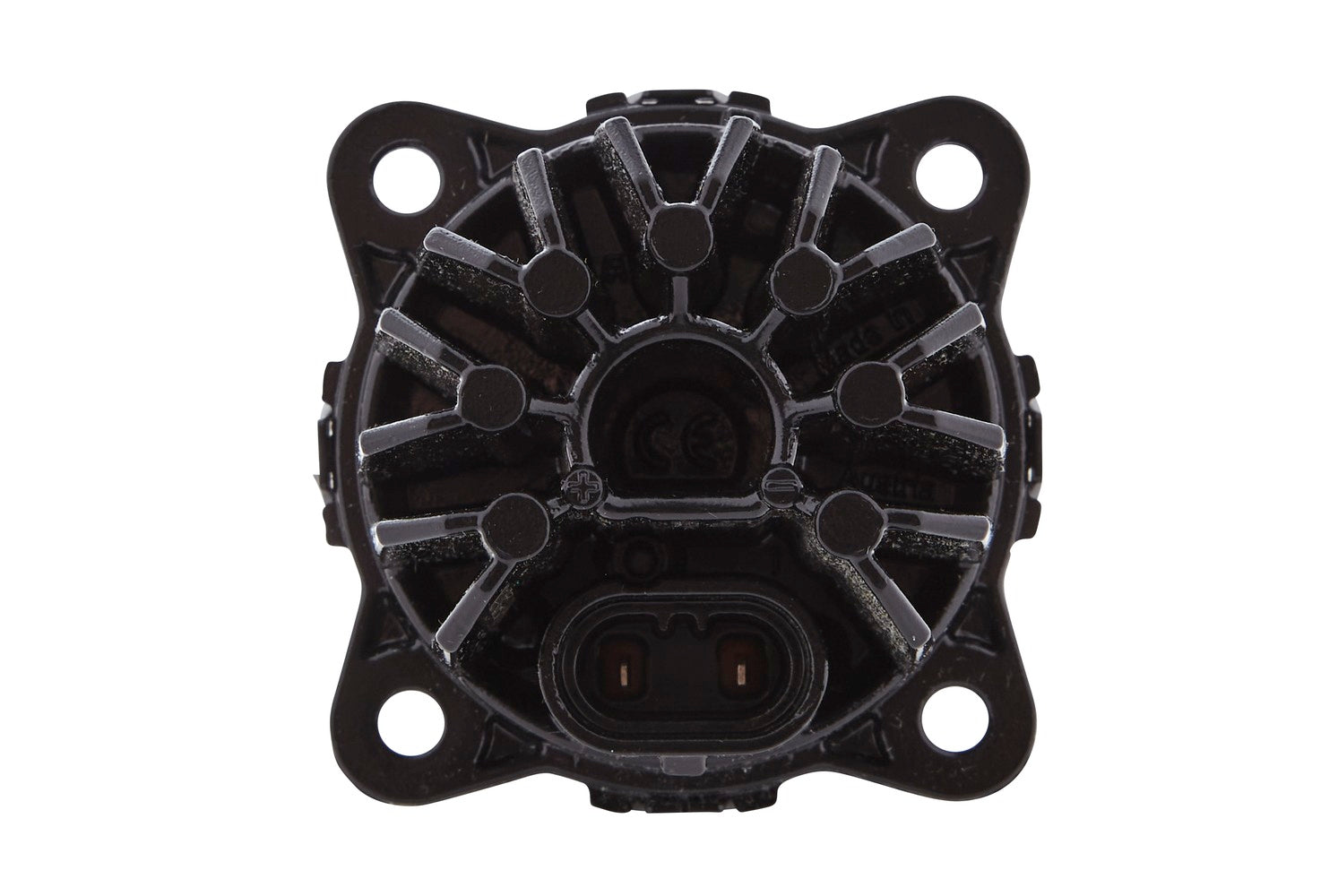

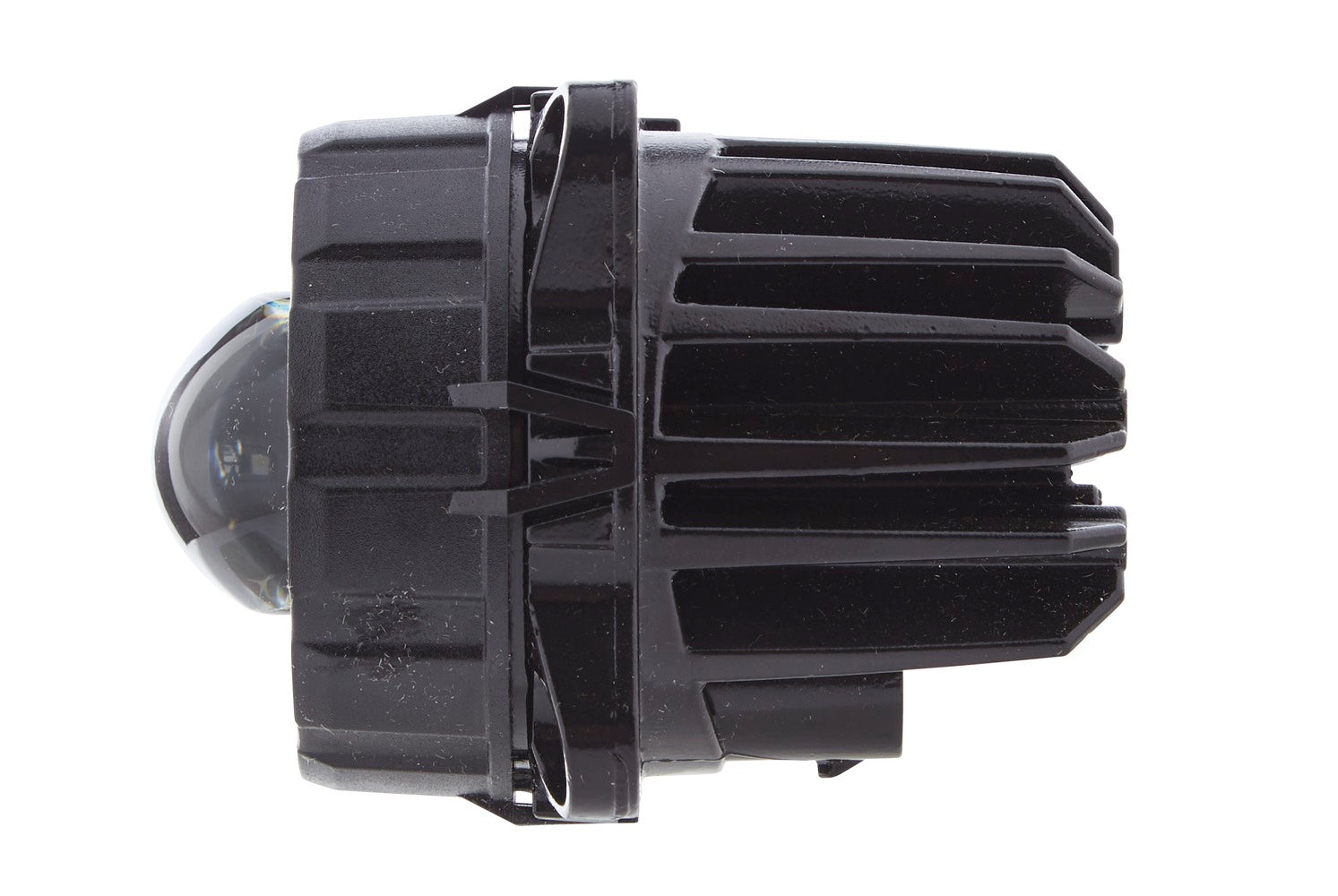

HELLA Symmetric/LED-Spotlight - Modul 60 - 12V 1KL998670-031

Symmetric/LED-Spotlight - Modul 60 - 12V - round - Reference number: 12.5 - CCC - Clear diffusing lens - Crystal clear - left/right

Anyone on the road or in the field at night must be able to rely one hundred percent on their illumination. HELLA's compact Module 60 LED headlamp series provides particularly homogeneous illumination and offers exactly the safety and reliability required on the road as well as in offhighway applications. The lens system specially developed by HELLA focuses the light of the LEDs and distributes it ideally over the application area. Additionally, the products are durable and resistant to vibration, dirt and water. A special version with an additional mounting frame is available for agricultural and construction machinery. The fixing points of the mounting frames are identical to those of the already established Module 60 halogen headlamp series. Thus, the conversion to LED technology is even easier and faster with this version, in just a few steps. The modules are available as low beam or high beam version.

• Specially developed lens system for homogeneous illumination provides exactly the safety and reliability needed on the road and off-highway.
• The lens system specially developed by HELLA concentrates the light of the LEDs and distributes it optimally to the area of application.
• The products are also durable and resistant to vibration, dirt and water.
• Enables easy changeover from halogen to LED technology.
• Width: 68mm - Height: 68mm - Depth: 90mm - Fitting Depth: 45mm - Lamp Type: LED - with LED - without carrier frame/Electromagnetic Compatibility (EMC)
• Light functions: 1 - with high beam (LED)
• Registration Type: CCC - fulfils ECE standard: R113/R10/R149

Item Attributes:
Mounting Type: Screw Connection
Fastening Type: Four-point attachment
Light Design: LED / Symmetric
Lamp Type: LED
Voltage: 12 V
Fitting Position: right / left
Height: 68 mm
Width: 68 mm
Depth: 90 mm
Fitting Depth: 45 mm
Light Function: with high beam (LED)
Light functions: 1
Registration Type: CCC
fulfils ECE standard: R113 / R149 / R10
Reference number: 12.5
Housing Colour: black
Lens Colour: Crystal clear
Frame Colour: black
Shape: round
Housing Type: Metal Housing
Diffusing Lens Type: Clear diffusing lens
Supplementary Article/Supplementary Info 2: without carrier frame / Electromagnetic Compatibility (EMC)
Supplementary Article/Supplementary Info: with LED
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CARRARO 46840004
