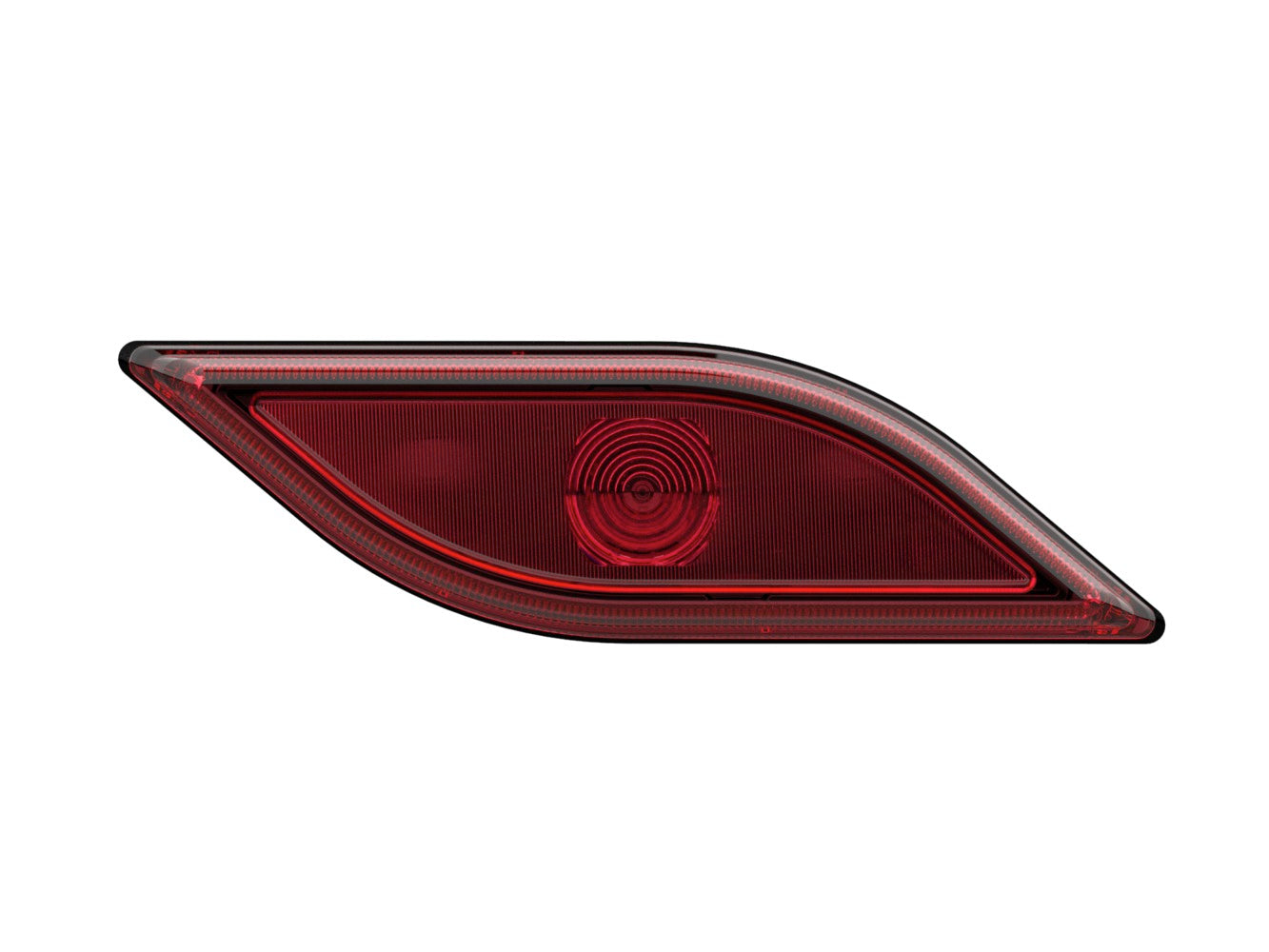

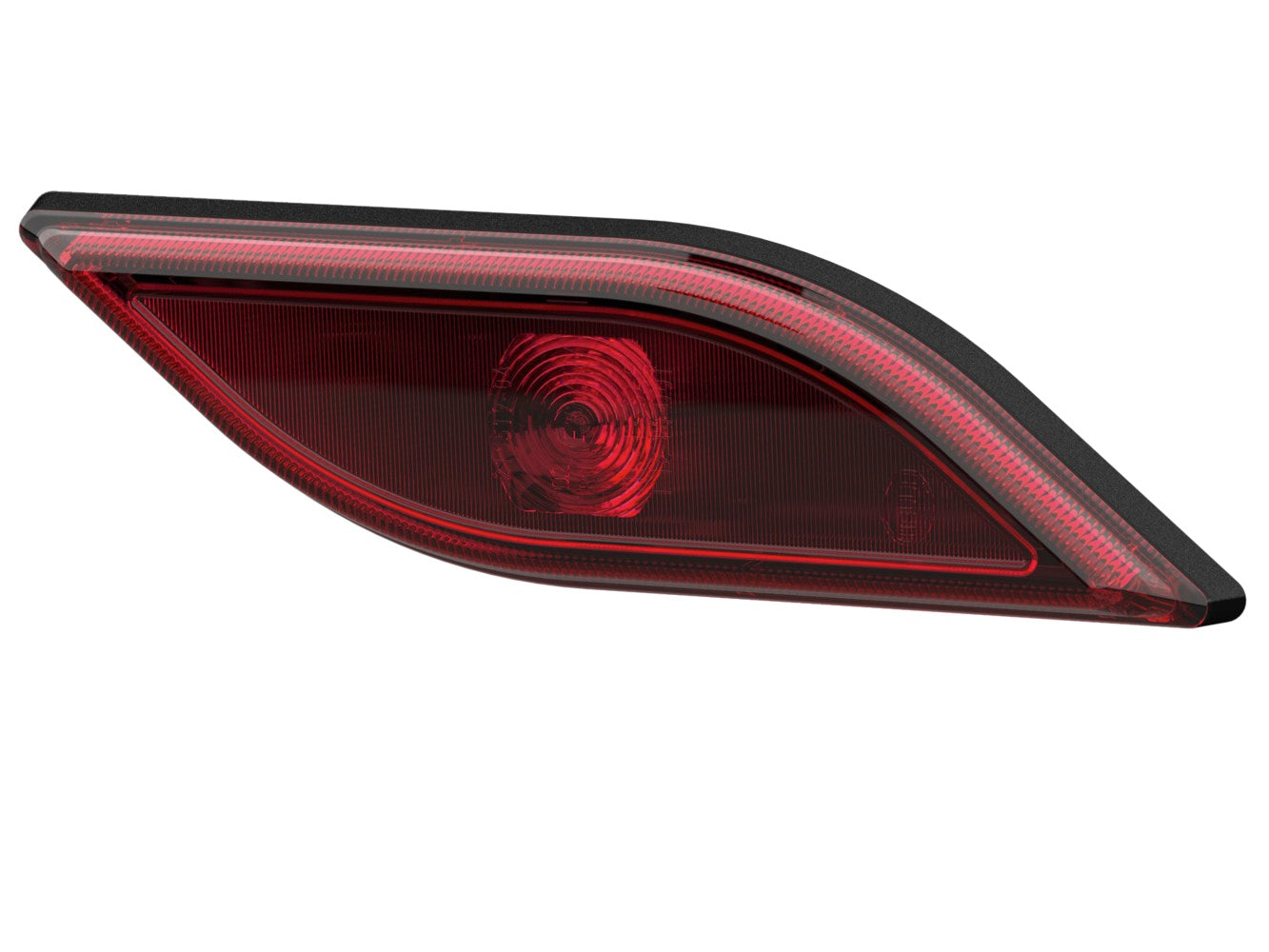

HELLA Tail Light - Shapeline Style - LED - 12/24V 2SA013324-261

Tail Light - Shapeline Style - LED - 12/24V - Glued - SAE - Lens Colour: red - Cable: 250mm - Right Rear - Quantity: 1

HELLA Shapeline. The variety of shapes and different combination options coupled with a technically optimised product design make the Shapeline luminaire range an innovation in the field of vehicle lighting! Whether at the front, side or rear of the vehicle, any vehicle series - whether small or large - can be given an individual and, above all, consistent appearance via an individual composition and arrangement of the lights. In addition to innovative technology and the well-known high HELLA quality, the variety of shapes of the Shapeline luminaires offers you almost limitless design freedom.

• Flexible design with the classic straight Shapeline Tech Design and the curved dynamic Shapeline Style Design
• Wide range of functions thanks to numerous LED lighting functions that can be combined in different, individual ways
• High recognition value thanks to unique yet consistent light signature
• LED technology ensures long service life and energy efficiency
• Simple and safe installation
• Length: 139mm - Width: 40mm - Height: 20mm - Lamp Type: LED - Number of LEDs: 1 - with overvoltage protection
• Light functions: 1 - with taillight (LED)

Item Attributes:
Mounting Type: Glued
Fastening Type: for horizontal fastening
Fitting Position: Right Rear
Lamp Type: LED
Light Function: with taillight (LED)
Light Design: LED
Voltage: 24 V / 12 V
Power consumption: 1.5 W
Length: 139 mm
Width: 40 mm
Height: 20 mm
Cable: 250 mm
Housing Colour: black
Lens Colour: red
Prot.type (IP Code): IPX9K / IP6K7
fulfils ECE standard: R7 / R10
Quantity: 1
Light functions: 1
Number of LEDs: 1
SVHC: 7439-92-1; Lead
small model
Registration Type: SAE
Conductor Number: 2 -conductor
Supplementary Article/Supplementary Info 2: with overvoltage protection
Assembly by qualified personnel required!
