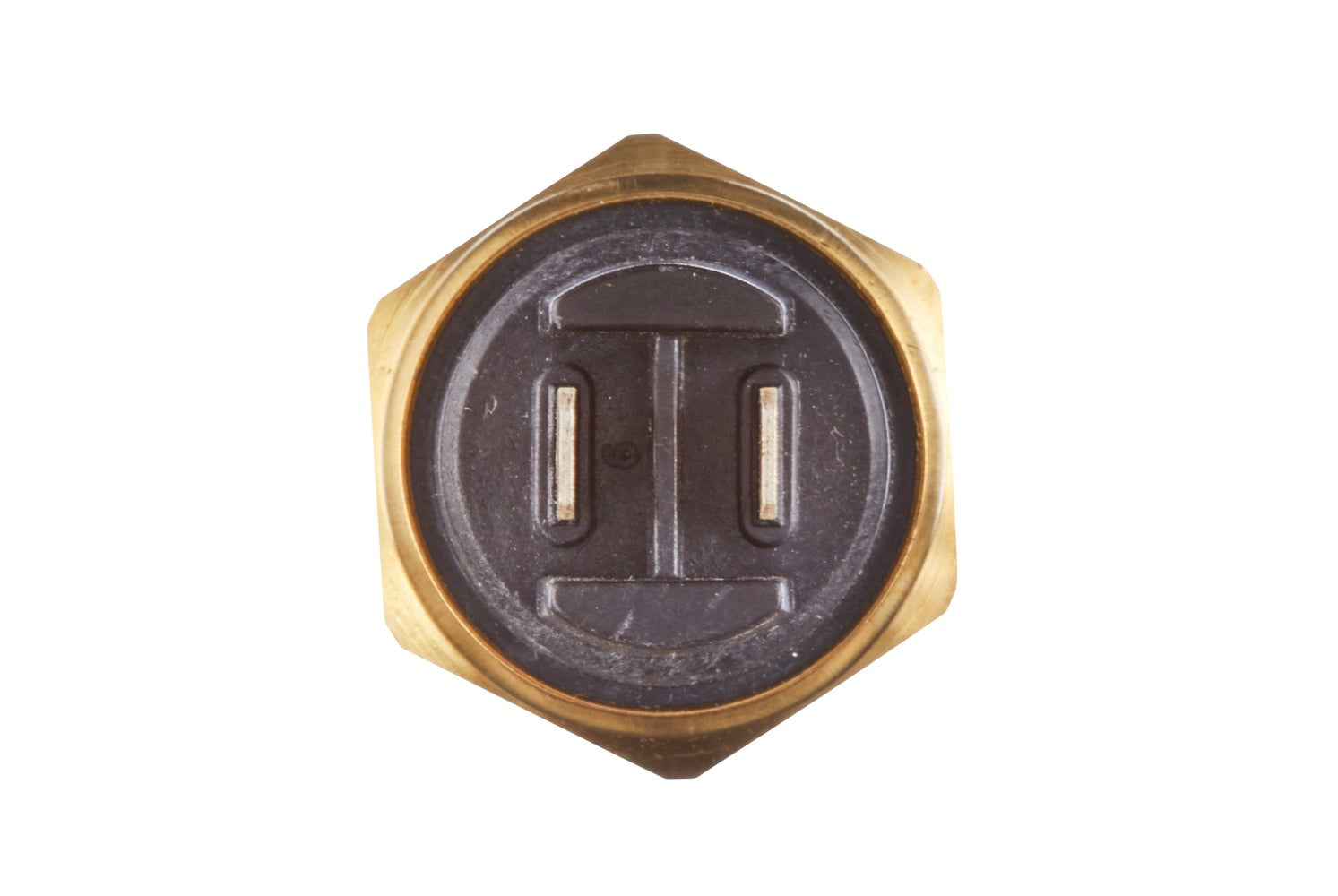

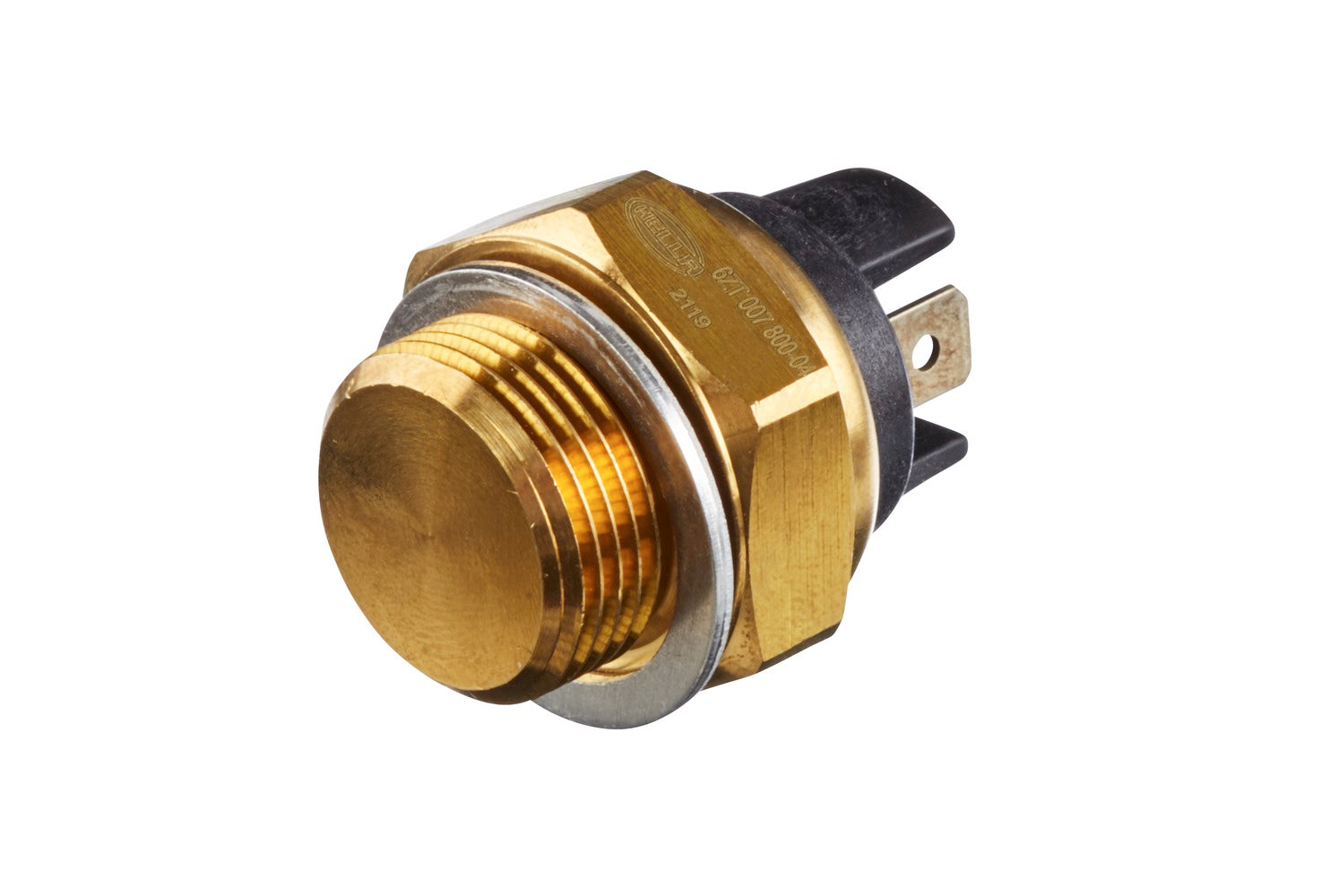

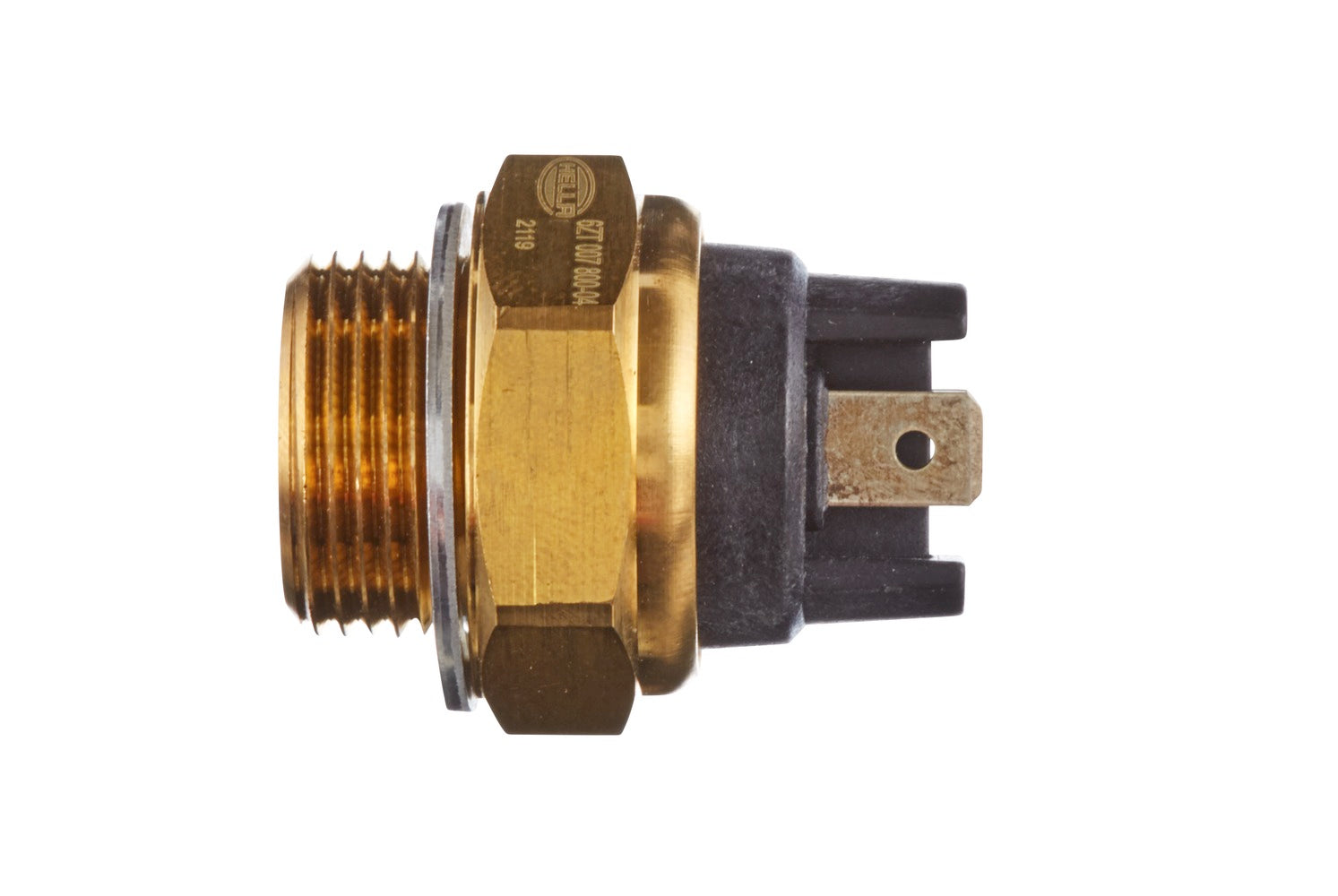

HELLA Temperature Switch, radiator fan - 12V - 2-pin connector - Blade Terminal 6ZT007800-041

Temperature Switch, radiator fan - 12V - 2-pin connector - Blade Terminal - Bolted - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 75°C - Switch point to: 85°C
• Spanner size: 29
• Mounting type screwed
• Thread size M22x1,5
• Width across flats 29
• Switching point from 75 °C to 85 °C
• In the cooling system responsible for the function of the fan - electronic control of the fan on the radiator

Item Attributes:
Mounting Type: Bolted
Switch point from: 75 °C
Switch point to: 85 °C
Voltage: 12 V
Number of pins: 2 -pin connector
Thread Size: M 22 x 1,5
Switch Function: Normally Open Contact
Spanner Size: 29
Plug: Blade Terminal
Assembly by qualified personnel required!

OE references: ALFA ROMEO 116 00 07 256; ALFA ROMEO 116 00 07 256 02/00; ALFA ROMEO 116 0007 2560 00; ALFA ROMEO 116000725600; ALFA ROMEO 116000725602; ALFA ROMEO 116000725605; ALFA ROMEO 60506988; ALFA ROMEO 60706988; CITROËN 591887; FERRARI 101507; HOLDER 031071; MAZDA LF0118221; PEUGEOT 1264.04; PEUGEOT 1264.13; PEUGEOT 24211; RENAULT 6000001356; RENAULT 7700748169; RENAULT TRUCKS 26171030; TALBOT 9151381080; VW 6M0 905 065
