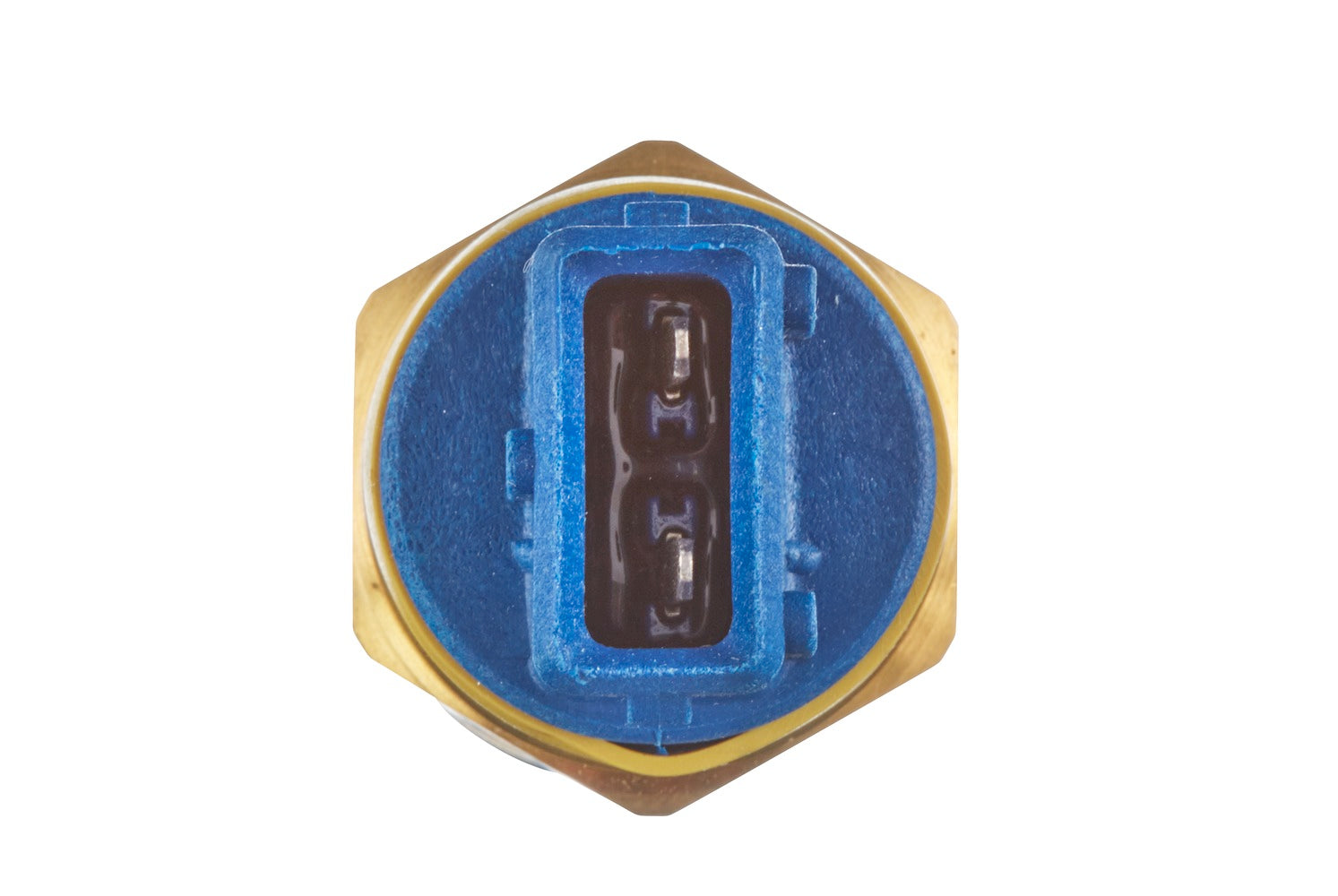

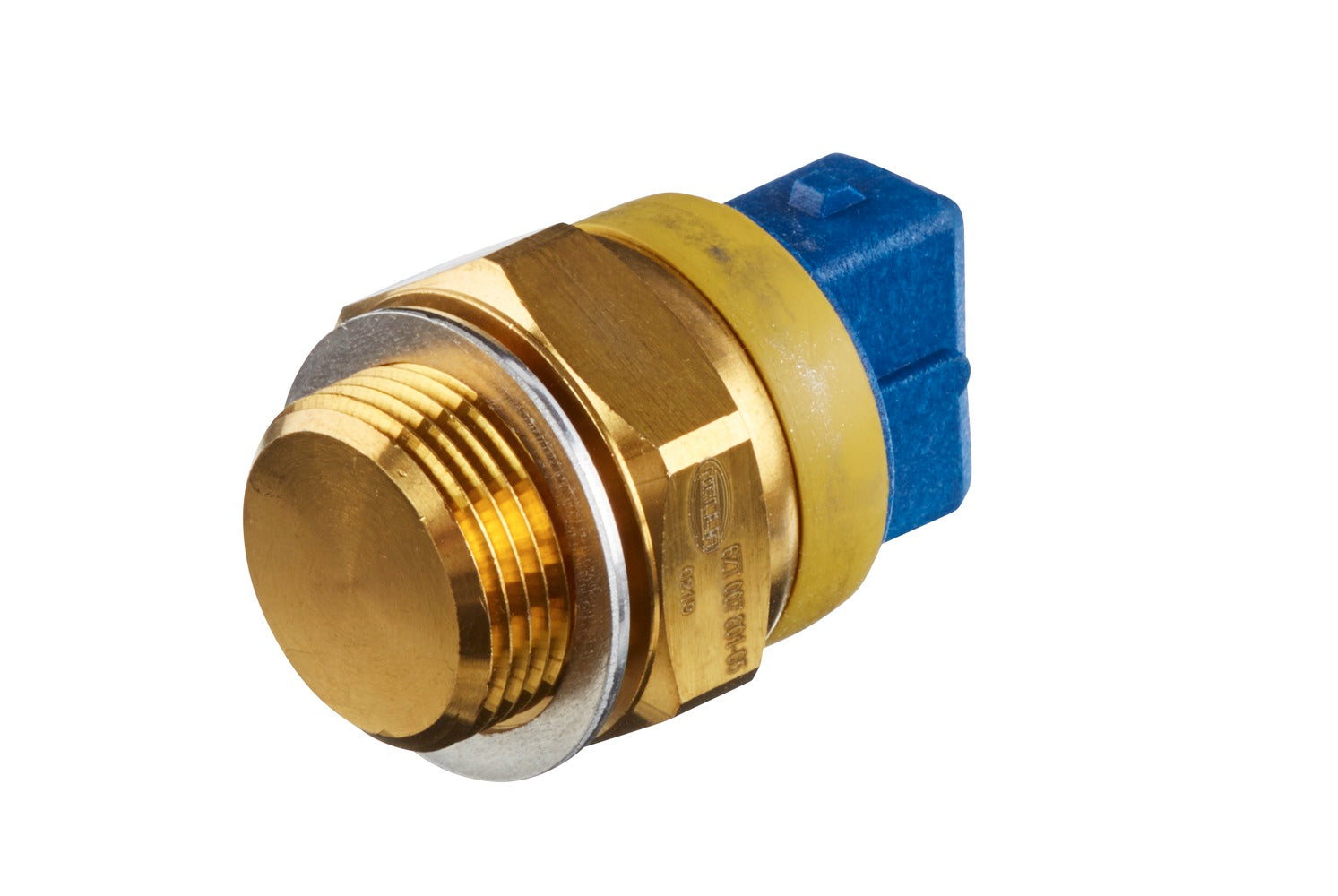

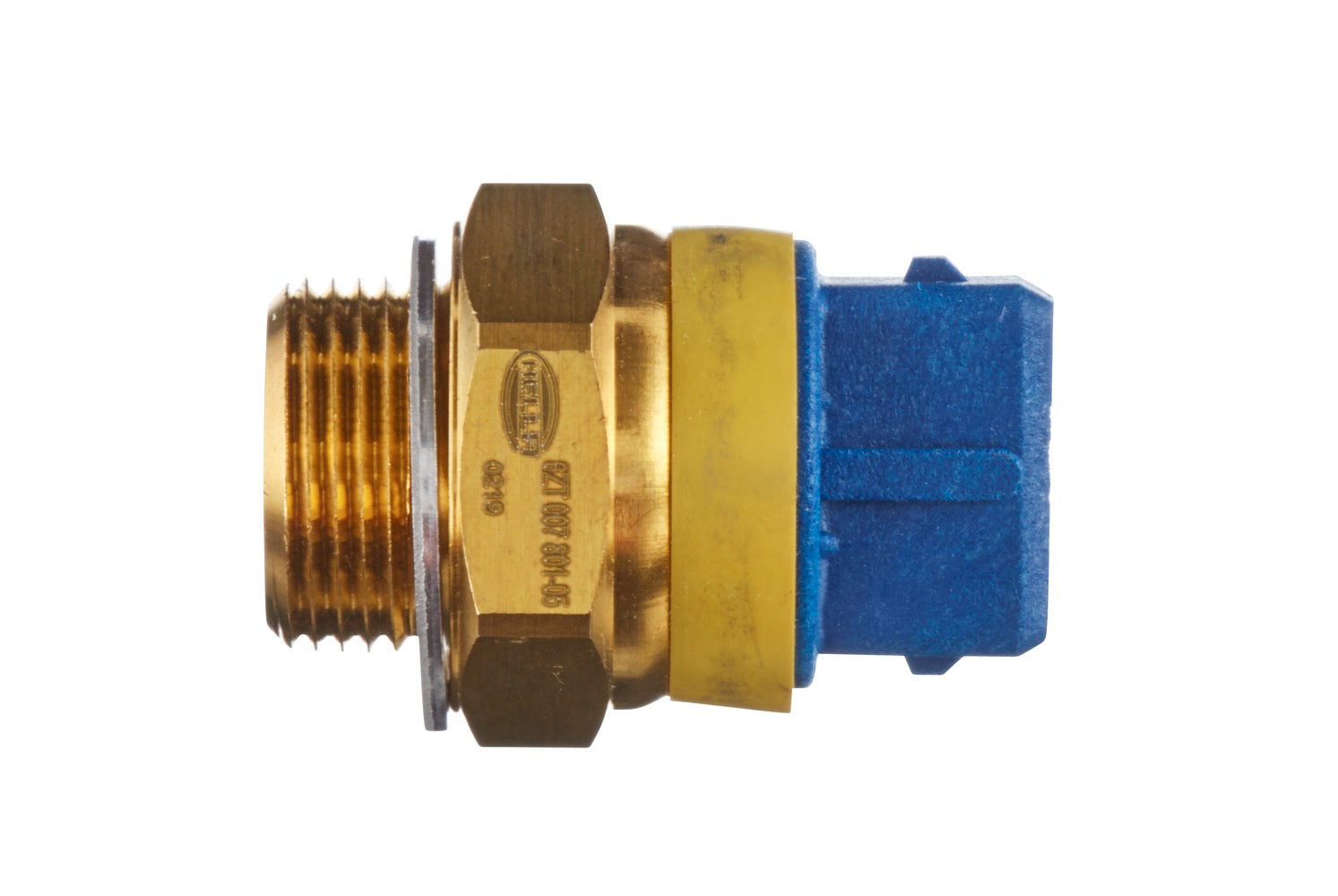

HELLA Temperature Switch, radiator fan - 12V - 2-pin connector - Blade Terminal 6ZT007801-051

Temperature Switch, radiator fan - 12V - 2-pin connector - Blade Terminal - Bolted - Normally Open Contact - Colour Coding: yellow (amber)

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 92°C - Switch point to: 97°C
• Spanner size: 29
• Mounting type screwed
• Thread size M22x1,5
• Width across flats 29
• Switching point from 92 °C to 97 °C
• In the cooling system responsible for the function of the fan - electronic control of the fan on the radiator

Item Attributes:
Mounting Type: Bolted
Switch point from: 92 °C
Switch point to: 97 °C
Voltage: 12 V
Number of pins: 2 -pin connector
Colour Coding: yellow (amber)
Thread Size: M 22 x 1,5
Switch Function: Normally Open Contact
Spanner Size: 29
Plug: Blade Terminal
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!

OE references: CITROËN 1264 26; CITROËN 1264 37; CITROËN 1264.40; CITROËN 96.138.637; CITROËN 96064561; FERRARI 962 9968 880; FIAT 9629968880; LANCIA 9629968880; PEUGEOT 1264.26; PEUGEOT 1264.37; PEUGEOT 1264.40; PEUGEOT 96138637
