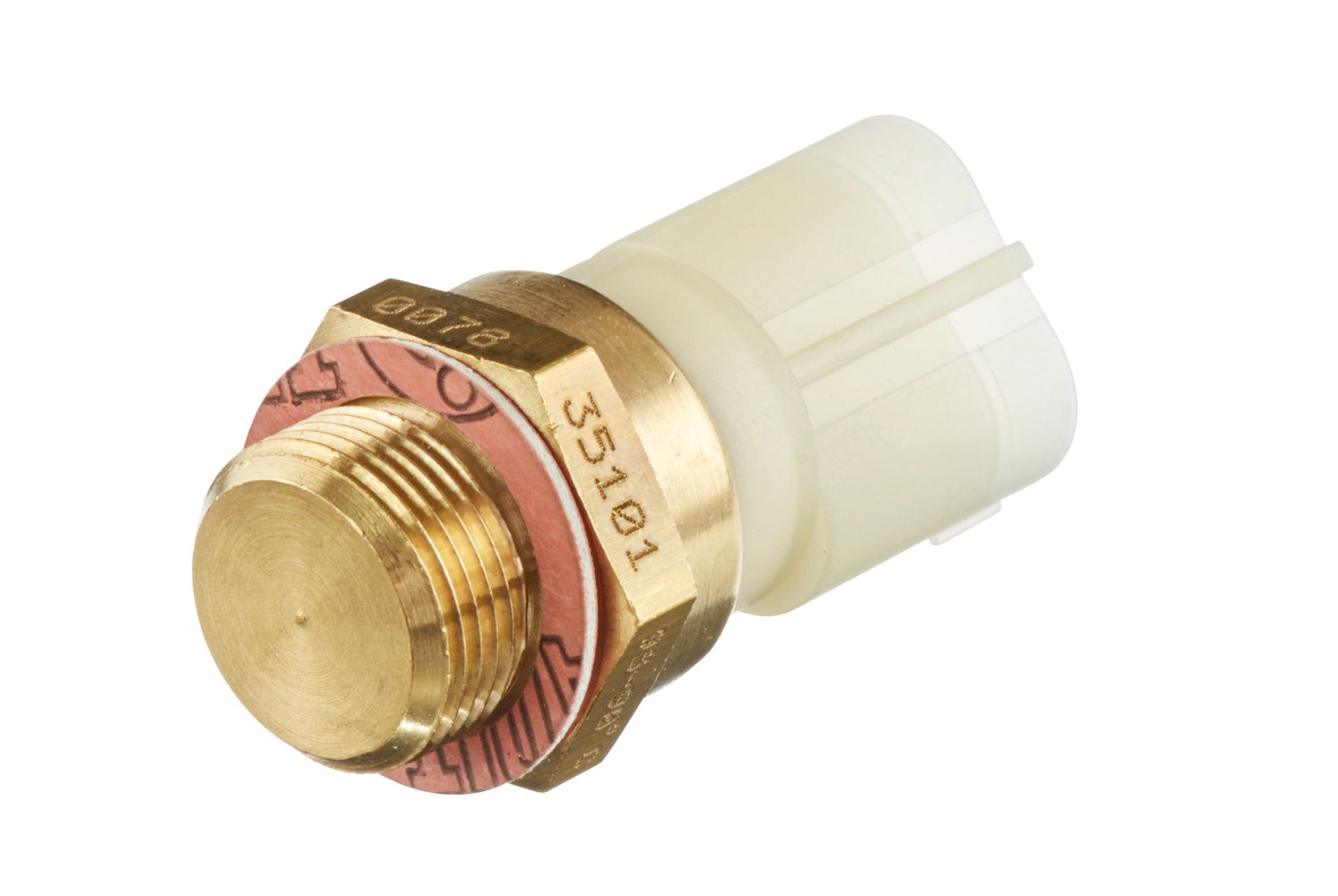

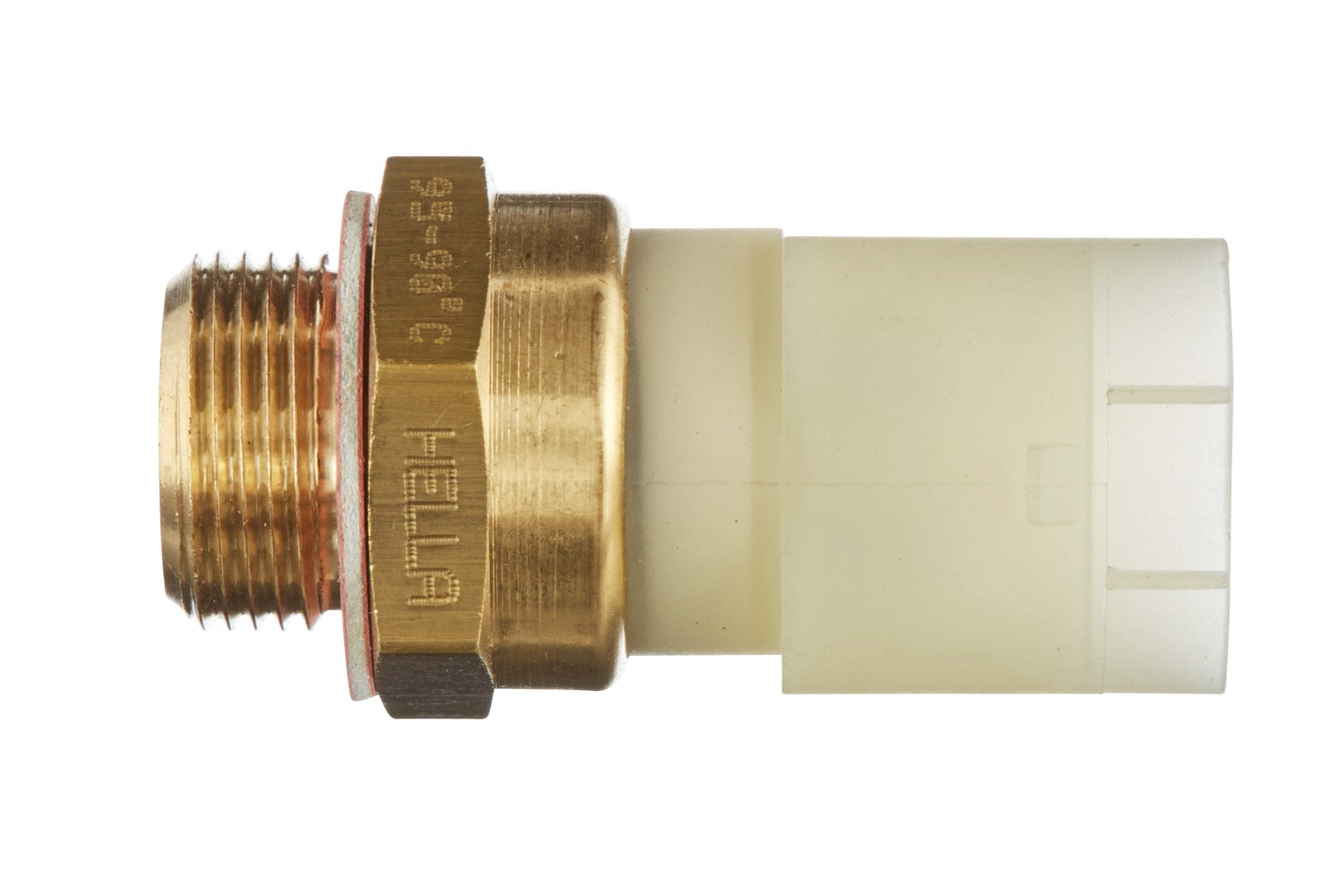

HELLA Temperature Switch, radiator fan - 12V - 2-pin connector - Blade Terminal 6ZT007835-101

Temperature Switch, radiator fan - 12V - 2-pin connector - Blade Terminal - Bolted - Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 90°C - Switch point to: 95°C
• Spanner size: 29
• Mounting type screwed
• Thread size M22x1.5, thread type with metric thread
• Width across flats 29
• Switching point from 90 °C to 95 °C

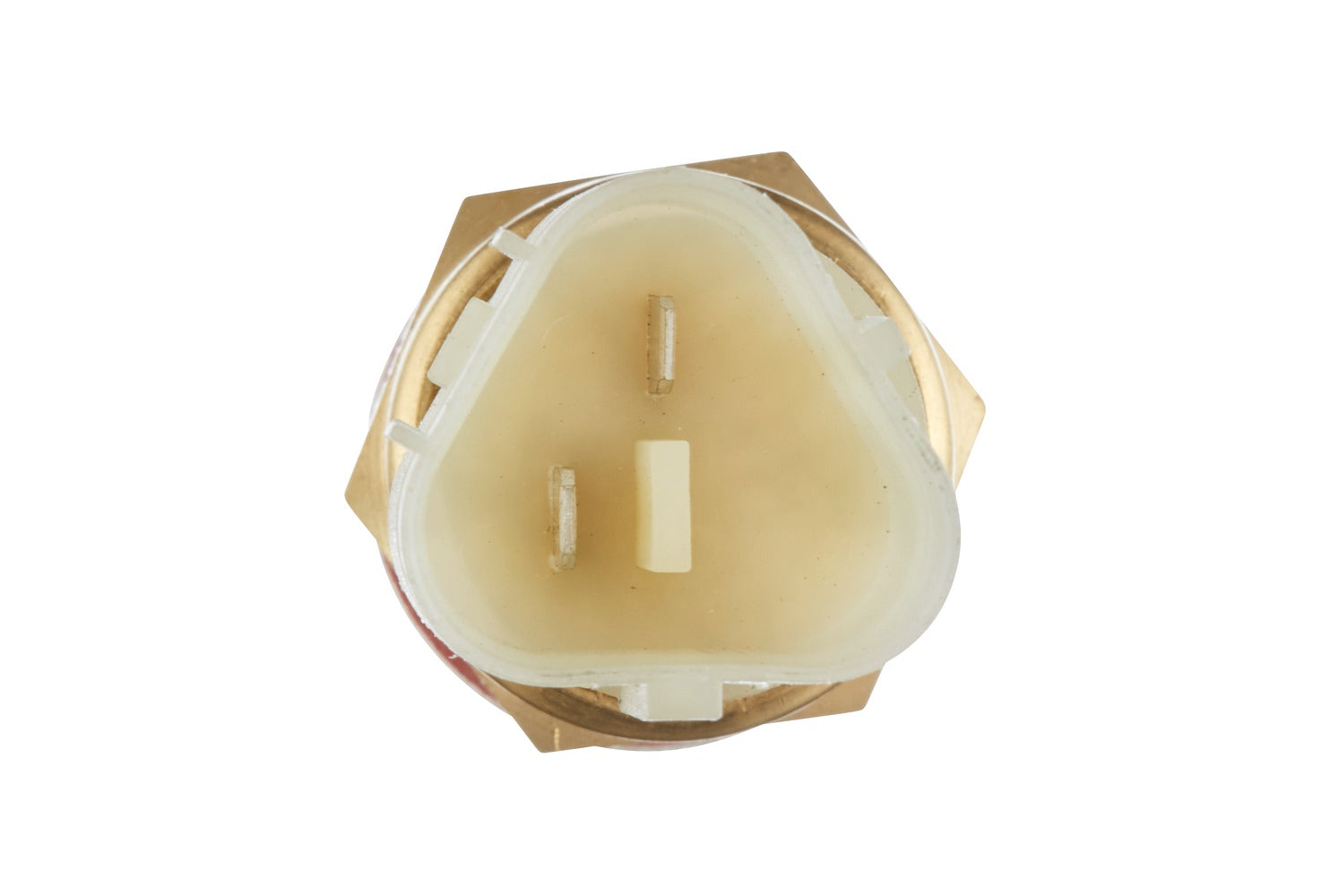

• Plug design: Flat plug

Item Attributes:
Mounting Type: Bolted
Switch point from: 90 °C
Switch point to: 95 °C
Voltage: 12 V
Number of pins: 2 -pin connector
Thread Type: with metric thread
Thread Size: M 22 x 1,5
Switch Function: Normally Open Contact
Spanner Size: 29
Plug: Blade Terminal
Assembly by qualified personnel required!

OE references: AUDI 1J0 959 481; AUDI 1JO 959 481; AUDI 6X0 959 481; SEAT 1J0 959 481; SEAT 1JO 959 481; SEAT 6X0 959 481; SKODA 1J0 959 481; SKODA 1JO 959 481; SKODA 6X0 959 481; VW 1J0 959 481; VW 1JO 959 481; VW 6X0 959 481
