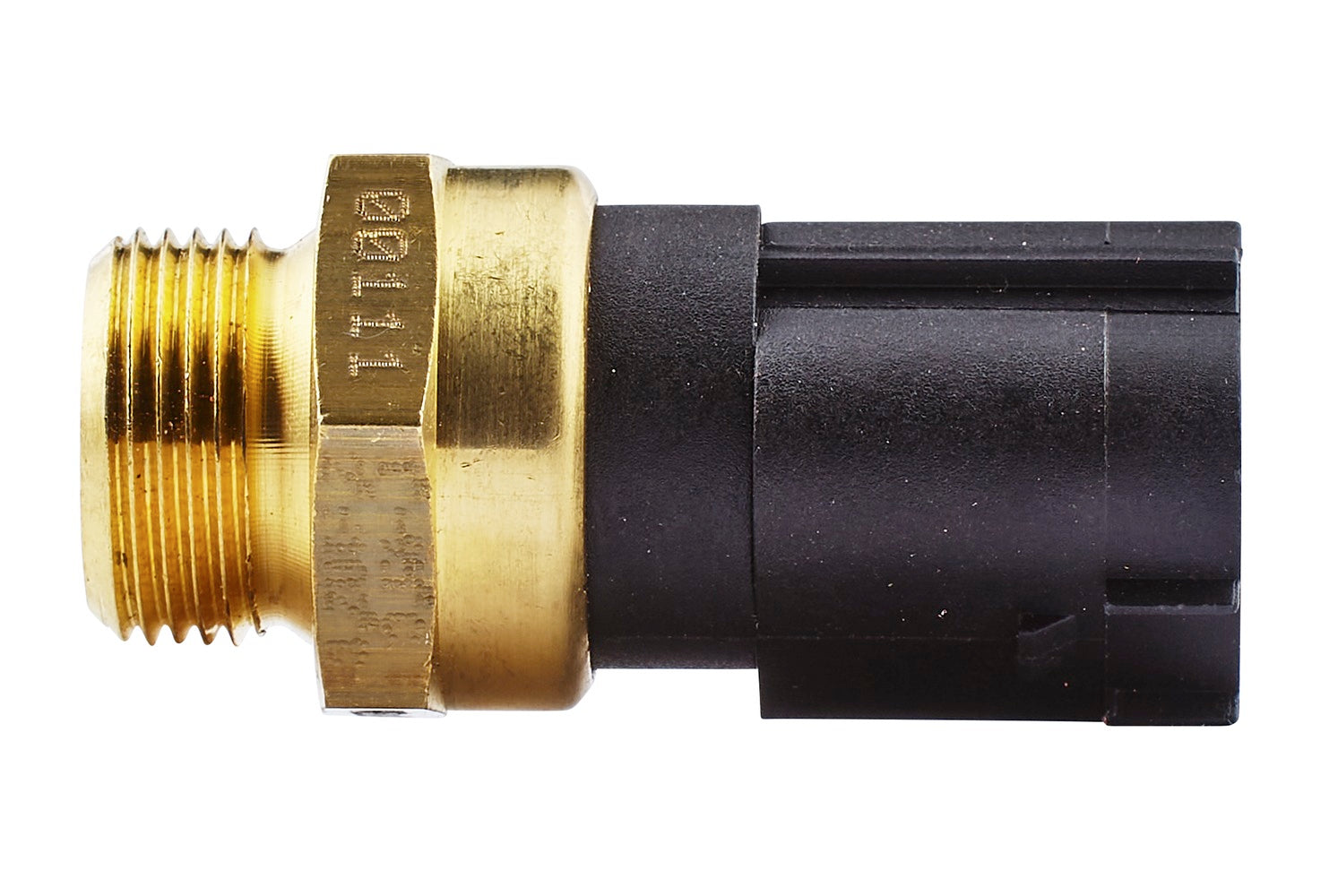

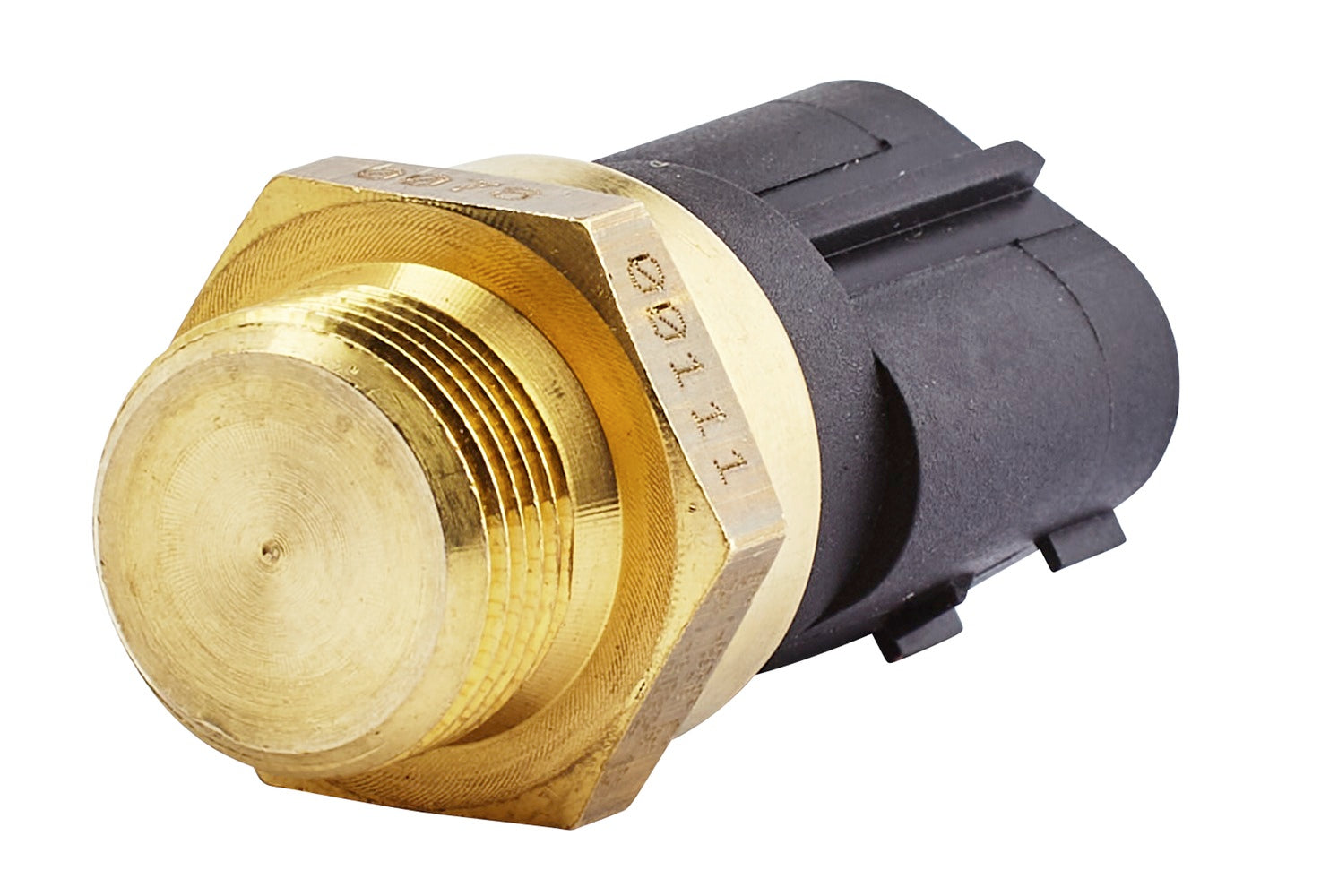

HELLA Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal 6ZT007800-111

Temperature Switch, radiator fan - 12V - 3-pin connector - Blade Terminal - Bolted - Dual Output/Normally Open Contact

At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.

• Switch point from: 87°C - Switch point to: 102°C
• Spanner size: 29 - with double thermal switch
• With double thermoswitch
• Mounting type screwed
• Thread size M22x1,5
• Width across flats 29
• Switching point from 87 °C to 102 °C

Item Attributes:
Mounting Type: Bolted
Switch point from: 87 °C
Switch point to: 102 °C
Voltage: 12 V

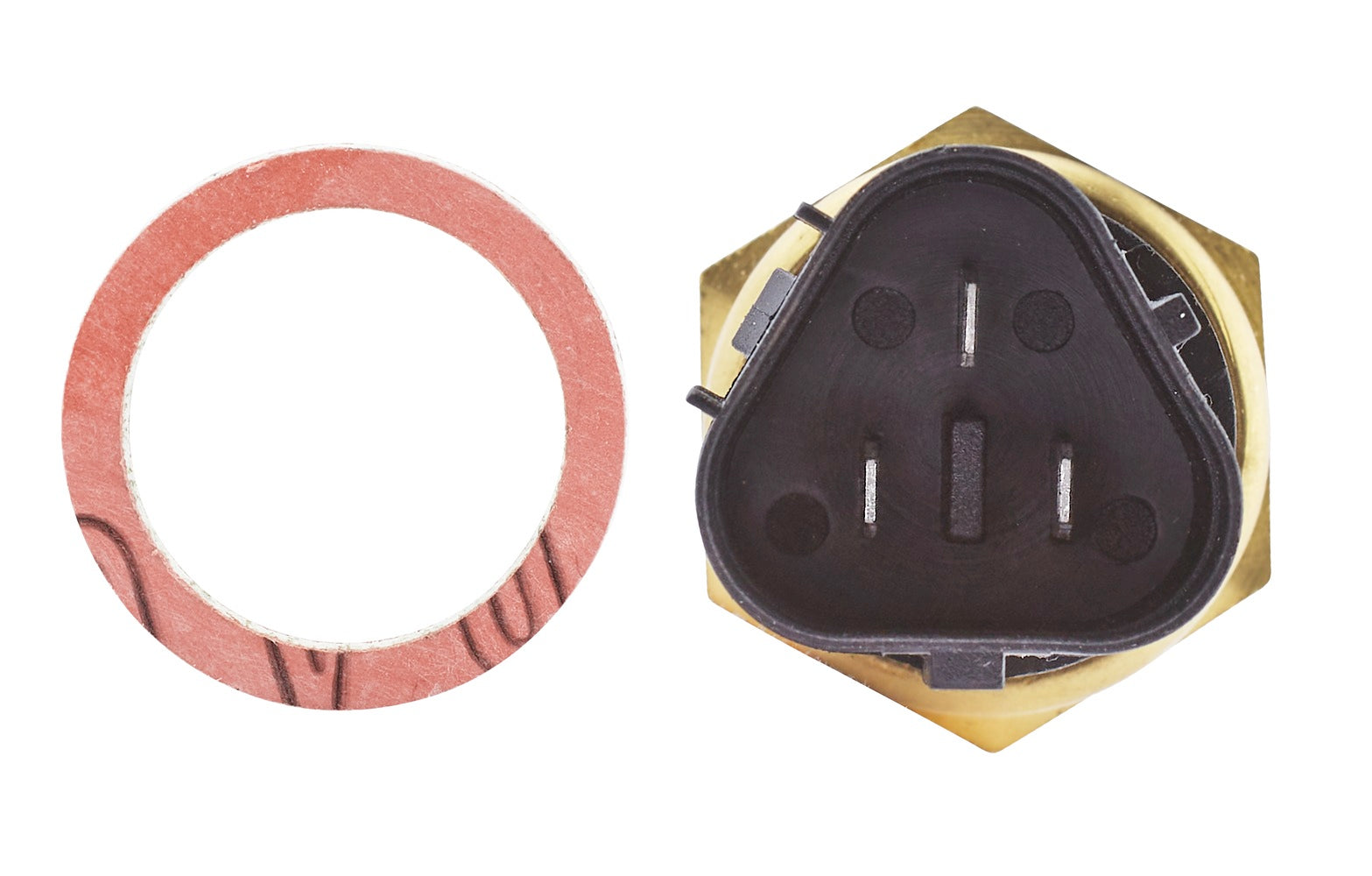

Number of pins: 3 -pin connector
Thread Size: M 22 x 1,5
Switch: with double thermal switch
Switch Function: Normally Open Contact / Dual Output
Spanner Size: 29
Plug: Blade Terminal
Assembly by qualified personnel required!

OE references: AUDI 1J0 959 481A; SEAT 1J0 959 481 A; SKODA 1J0 959 481 A; VW 1J0 959 481A
